The LA6565 is a 4-channel BTL plus 1-channel H-bridge actuator driver developed for use in CD and DVD drives.
The BTL driver channels 1 and 2 include built-in operational amplifiers allowing the LA6565 to support a wide range of
applications.
Functions
•
Five power amplifier channels on a single chip (Bridge connection (BTL): 4-channels, H-bridge: 1-channel)
•
IO max: 1A
•
Built-in level shifters (except for the H bridge channel)
•
Muting circuits (output on/off, two systems)
(The muting circuits operate for the BTL amplifiers. They do not apply to the H-bridge or regulator circuits.)
•
Built-in regulator (Uses an external PNP-transistor and is set with an external resistor.)
•
Output voltage setting function (loading driver)
•
Built-in independent operational amplifiers
•
Thermal shutdown circuit
Specifications
Maximum Ratings
at Ta = 25°C
Parameter
Maximum supply voltage
Maximum output current
Maximum input voltage
MUTE pin voltage
Allowable power dissipation
Symbol
VCC max
IO max
VINB
VMUTE
Pd max
Independent IC
Mounted on a specified board *
Operating temperature
Storage temperature
Topr
Tstg
Conditions
Ratings
14
1
13
13
0.8
2
-40 to +85
-55 to +150
Unit
V
A
V
V
W
W
°C
°C
* Specified board: 114.3mm
×
76.1mm
×
1.6mm, glass epoxy board.
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be
intended for use for any "special application" (medical equipment whose purpose is to sustain life, aerospace
instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety
equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case
of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee
thereof. If you should intend to use our products for applications outside the standard applications of our
customer who is considering such use and/or outside the scope of our intended standard applications, please
consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our
customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer
'
s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer
'
s products or
equipment.
21809 MS 20090209-S00003 / 52404TN (OT) No.7817-1/8
LA6565
Recommended Operating Conditions
at Ta = 25°C
Parameter
Supply voltage
Symbol
VCC
Conditions
Ratings
5.6 to 13
Unit
V
Electrical Characteristics
at Ta
=
25°C, VCC1 = VCC2 = 8V, VREF = 2.5V
Parameter
Overall
Quiescent current when o
Quiescent current when off
Thermal shutdown circuit
operating temperature
VREF Amplifier
VREF amplifier offset voltage
VREF input voltage range
VREF-OUT output current
VREF-OFFSET
VREF-IN
I-VREF-OUT
-10
1
1
+10
VCC-1.5
mV
V
mA
ICC-ON
ICC-OFF
TSD
BTL amplifier output on, loading block off *1
All outputs off *1
*7
150
30
10
175
50
15
200
mA
mA
°C
Symbol
Conditions
min
Ratings
typ
max
Unit
Operational Amplifier
(Independent)
Input voltage range
Output current (sink)
Output current (source)
Output offset voltage
Residual current (sink)
VIN(OP)
SINK(OP)
SOURCE(OP)
VOFF(OP)
VCE-SINK(OP)
IO(sink side) = 1mA
0
2
300
-10
500
+10
0.6
VCC-1.5
V
mA
µA
mV
V
BTL Amplifier Block
(Channels 1 to 4)
Output offset voltage
Input voltage range
Output voltage
Closed circuit voltage gain
Slew rate SR
Muting on voltage
Muting off voltage
VOFF
VIN
VO
VG
SR
VMUTE-ON
VMUTE-OFF
The voltage difference between each channel
outputs *2, *3
Input voltage range of the input operational amplifiers
IO = 0.5A, the voltage between VO+ and VO- in each
channel
The gain from the input to the output with the input
amplifier set to 0dB*2, *3
For the independent amplifier. Times 2 when
between outputs.*7
The output on voltage, for each mute function *4
The output off voltage, for each mute function *4
2.5
0.5
V
V
0.5
V/µs
7.2
8
9
times
0
5.7
6.2
VCC-1.5
V
V
-50
+50
mV
Input Amplifier Block
(Channels 1 and 2)
Input voltage range
Output current (sink)
Output current (source)
Output offset voltage
VIN-OP
SINK-OP
SOURCE-OP
VOFF-OP
*5
0
2
300
-10
500
+10
VCC-1.5
V
mA
µA
mV
Loading Block
(Channel 5, H bridge circuit)
Output voltage
Braking output saturation
voltage
Low-level input voltage
High-level input voltage
VIN-L
VIN-H
2
1
V
V
VO-LOAD
VCE-BREAK
For forward/reverse operation, IO = 0.5A,
VCONT = VCC*
The output voltage during braking *6
5.7
6.5
0.3
V
V
Power Supply Block
(Uses an external 2SB632K PNP-transistor)
Power supply output
REG-IN sink current
Line regulation
Load regulation
VOUT
REG-IN-SINK
∆V
OLN
∆V
OLD
IO = 200mA
External PNP-transistor base current
6V
≤
VCC
≤
12V, IO = 200mA
5mA
≤
IO
≤
200mA
1.260
5
1.285
10
10
10
100
100
1.310
V
mA
mV
mV
*1: The total current dissipation for VCCP1, VCCP2, and VCCS with no load.
*2: The input amplifier is a buffer amplifier.
*3: The voltage difference between the two sides of the load (12Ω).
*4: When the MUTE pin is high, the output will be on, and when low, the output will be off (high-impedance state).
*5: The input operational amplifier source is constant current. Since the 11kΩ resistor between this and the next stage functions as the load, the input
operational amplifier gain must be set carefully.
*6: The braking operation is a short (to ground) braking operation. The sink side output is on at this time.
*7: Design guarantee.
No.7817-2/8
LA6565
Package Dimensions
unit : mm (typ)
3251
2.5
Pd max -- Ta
Specified board: 114.3×76.1×1.6mm
3
glass epoxy boaard.
With specified board
17.8
(6.2)
36
19
Allowable power dissipation, Pd max -- W
2.0
1.5
(4.9)
7.9
10.5
1.0
0.8
0.5
1.04
Independent IC
(0.5)
0.8
2.0
0.3
0.25
0.65
1
18
0.42
(2.25)
2.45max
0
-40
-20
0
20
40
60
80
100
2.7
SANYO : HSOP36R(375mil)
Pin Assignment
FWD 1
REV 2
VCC2 3
VLO
−
4
VLO+ 5
VO4+ 6
VO4
−
7
VO3+ 8
VO3
−
9
36 S_GND
35 VCONT
34 MUTE1
33 MUTE234
32 VIN4
−
31 VIN4
30 VREF_IN
29 VREF_OUT
28 REG_OUT
0.1
Ambient temperature, Ta --
°C
FR
FR
VO2+ 10
VO2
−
11
VO1
−
12
VO1+ 13
VCCP1 14
VCCS 15
VIN1+ 16
VIN1
−
17
VIN1 18
Top View
27 REG_IN
26 VIN+OP
25 VIN
−
OP
24 VO_OP
23 VIN3
22 VIN3
−
21 VIN2
20 VIN2
−
19 VIN2+
No.7817-3/8
LA6565

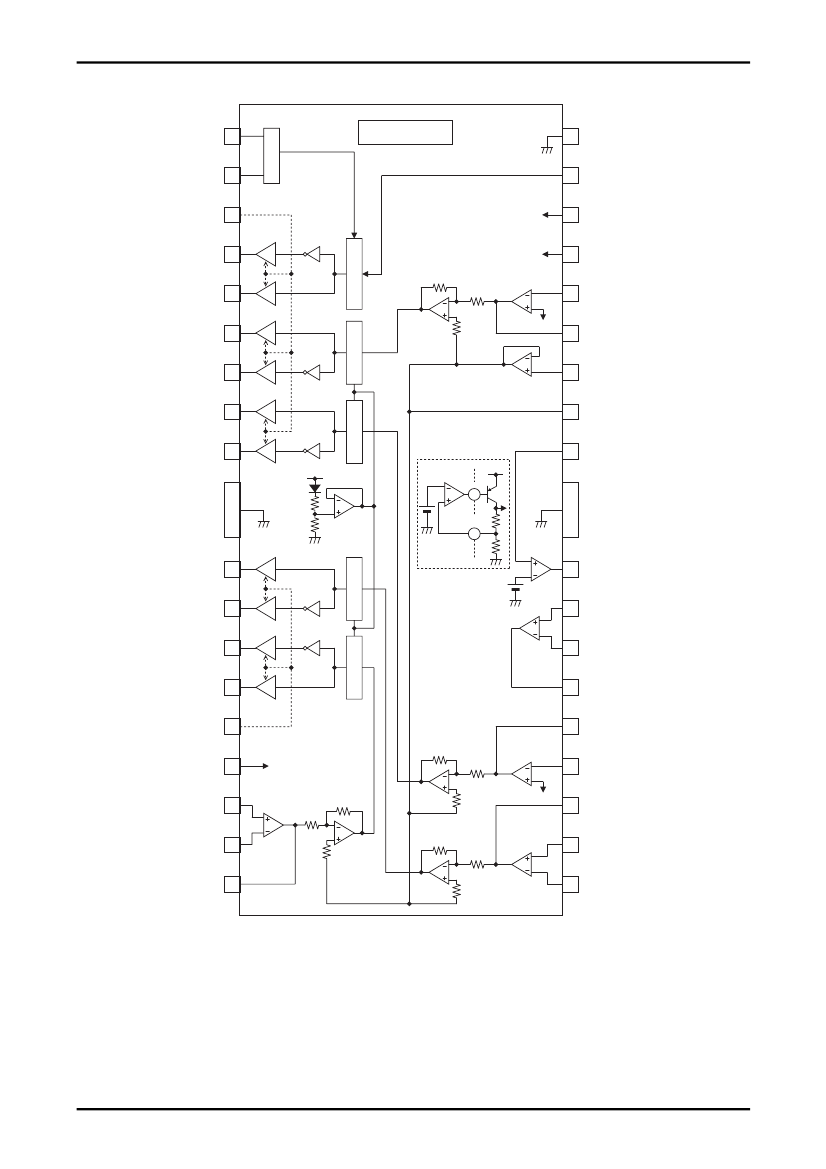

Block Diagram
Thermal shutdown
circuit
Signal system ground
FWD 1
Input
36 S_GND
FWD 2
(LOAD output voltage setting)
35 VCONT
VCCP2 3
VLO
−
4
VLO+ 5
VO4+ 6
VO4
−
7
VO3+ 8
VO3
−
9
VCC
Output control
MUTE
CH1
Turms the corresponding
channel ON/OFF
High: output ON
CH2,3,4
Low: output OFF
44kΩ
11kΩ
34 MUTE1
33 MUTE234
32 VIN4
−
Level shift
to VREF_OUT
31 VIN4
30 VREF_IN
Level shift
29 VREF_OUT
28 REG_OUT
(VCC)
REG_IN
FR
Power
system
ground
Power
system
ground
FR
REG_OUT
Level shift
VO2+ 10
VO2
−
11
VO1
−
12
VO1+ 13
VCCP1 14
27 REG-IN
26 VIN+OP
25 VIN
−
OP
24 VO_OP
23 VIN3
44kΩ
Level shift
VIN1 15
VIN1+ 16
VIN1
−
17
VIN1 18
Signal system
power supply
44kΩ
11kΩ
44kΩ
11kΩ
22 VIN3
−
to VREF_OUT
21 VIN2
20 VIN2
−
19 VIN2+
11kΩ
No.7817-4/8
LA6565
Pin Function
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Pin name
FWD
REV
VCC2
VLO
−
VLO+
VO4+
VO4
−
VO3+
VO3
−
VO2+
VO2
−
VO1
−
VO1+
VCCP1
VCCS
VIN1+
VIN1
−
VIN1
VIN2+
VIN2
−
VIN2
VIN3
−
VIN3
VO_OP
VIN
−
OP
VIN+OP
REG_IN
REG_OUT
VREF_OUT
VREF_IN
VIN4
VIN4
−
MUTE234
MUTE1
VCONT
S_GND
Pin function
Loading output direction switching (FWD). Loading system logic input.
Loading output direction switching (REV). Loading system logic input.
Channels 3, 4, and loading power stage power supply.
