G1180-022104 datasheet, PDF - EEWORLD Datasheet

G1180-022104: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerWieson Technologies Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

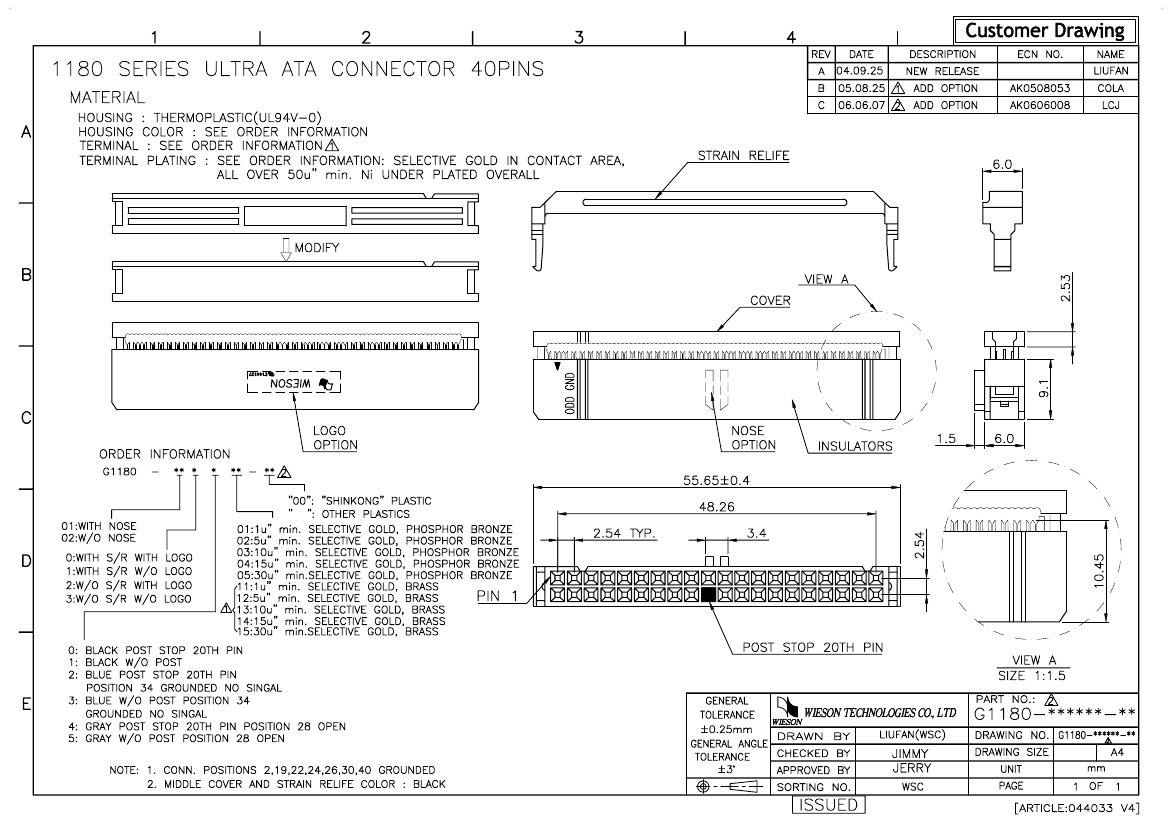

G1180-022104 Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wieson Technologies Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.295 inch
subject depth	0.358 inch
body length	2.191 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	1180
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation type	CABLE
Number of rows loaded	2
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	40
