BTB08MG90-120GNOOT-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> BTB08MG90-120GNOOT-U

BTB08MG90-120GNOOT-U: DescriptionBoard Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BTB08MG90-120GNOOT-U Overview

Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle

BTB08MG90-120GNOOT-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.252 inch
subject depth	0.354 inch
body length	2.177 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
Insulator color	NATURAL
JESD-609 code	e4
Manufacturer's serial number	BTB08
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.318 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	120

Preview

Download Datasheet

View All

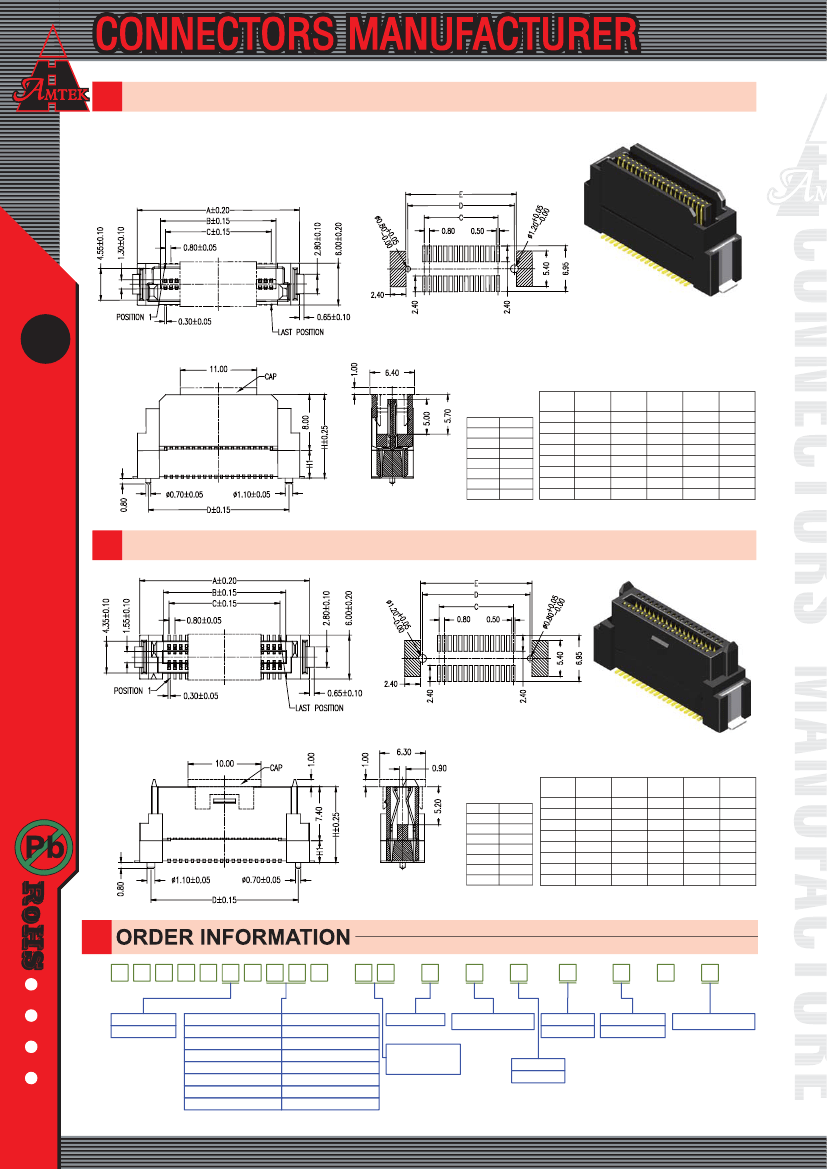

Board To Board Male 0.8mm H=8.0/9.0/10.0/11.0/12.0/13.0/14.0mm

Specifications

Current Rate:0.5 AMP

Insulation Resistance:500MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-20°C to +105°C

Material

Insulator:Polyester,UL 94V-0

◎

Standard:LCP

Terminal:Copper Alloy

Plating:Gold Plated

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

oard To Board 0.8mm

1-7

Dim. H

8.00

9.00

10.00

11.00

12.00

13.00

14.00

Dim. H1

---

1.00

2.00

3.00

4.00

5.00

6.00

No. of

Contacts Dim. A

15.30

19.30

23.30

31.30

39.30

100

47.30

120

55.30

160

71.30

Dim. B

8.80

12.80

16.80

24.80

32.80

40.80

48.80

64.80

Dim. C

7.20

11.20

15.20

23.20

31.20

39.20

47.20

63.20

Dim. D

12.20

16.20

20.20

28.20

36.20

44.20

52.20

68.20

Dim. E

12.80

16.80

20.80

28.80

36.80

44.80

52.80

68.80

Part No.:BTB08MGXX-XX-U

Board To Board Female 0.8mm H=7.4/8.4/9.4/10.4/11.4/12.4/13.4mm

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Dim. H

7.40

8.40

9.40

10.40

11.40

12.40

13.40

Dim. H1

---

1.00

2.00

3.00

4.00

5.00

6.00

No. of

Contacts Dim. A

15.30

19.30

23.30

31.30

39.30

100

47.30

120

55.30

160

71.30

Dim. B

8.80

12.80

16.80

24.80

32.80

40.80

48.80

64.80

Dim. C

7.20

11.20

15.20

23.20

31.20

39.20

47.20

63.20

Dim. D

12.20

16.20

20.20

28.20

36.20

44.20

52.20

68.20

Dim. E

12.80

16.80

20.80

28.80

36.80

44.80

52.80

68.80

Part No.:BTB08FGXX-XX-U

B T B 0 8 X G X X -

M:Male

Male Insulator Height

80:

Insulator

Height H=8.0mm

90:

Insulator

Height H=9.0mm

100:

Insulator

Height H=10.0mm

110:

Insulator

Height H=11.0mm

120:

Insulator

Height H=12.0mm

130:

Insulator

Height H=13.0mm

140:

Insulator

Height H=14.0mm

X X

◎P:With

Peg

O:W/O Peg

◎T:Tube

R:Tape & Reel

Female Insulator Height

74:

Insulator

Height H=7.4mm

84:

Insulator

Height H=8.4mm

94:

Insulator

Height H=9.4mm

104:

Insulator

Height H=10.4mm

114:

Insulator

Height H=11.4mm

124:

Insulator

Height H=12.4mm

134:

Insulator

Height H=13.4mm

◎G:Gold

Plated

◎N:Nylon

Natural

U:RoHS + LCP

F:Female

No. of Contacts

(20,30,40,60,

80,100,120,160)

◎C:With

Cap

O:W/O Cap

◎:Standard

Recommended

Mating Height See Page 1-1

www.amtek-co.com.tw
