DB844H65(E)-XY
dB Director®
13.5 dBd, 65°, Directional Log Periodic Antenna
Model Number
Termination
Frequency Range
Gain
VSWR
Beamwidth
(3dB from max)
Front to Back Ratio
Polarization
Max. Input Power
Application
Weight
Wind Area
Wind Load
Max. Wind Speed
Material
DB844H65-XY
Type N-Female
806-960 MHz
13.5 dBd (15.6 dBi)
< 1.5:1
Horizontal:
Vertical:
65° ± 5°
15° ± 1°
DB844H65E-XY
7/16 DIN
> 40 dB
Vertical
500 Watts
Cellular, ESMR
19 lbs (8.6 kg)
5 ft² (.46 m²)
200 lbf (890 N) 89.9 kp (at 100 mph)
125 mph (200 km/h)
Reflectors:
Radiators:
Back Panel:
Radome:
Mounting Hdw:
Radome:Light Gray
Aluminum
Brass
Pass. Aluminum
ABS
Galvanized Steel
Screen: Gold
65°
Color
Mounting
Downtilt Brackets
(Optional)
Weather Protection
Lightning Protection
DB380 pipe mount kit (max. 3.5" OD),
included.
DB5083
Fully protected by metal and ABS.
All metal parts grounded.
50" x 26" x 12" (127 x 66 x 30 cm)
37 lbs (17 kg)
Packing Size
Shipping Weight

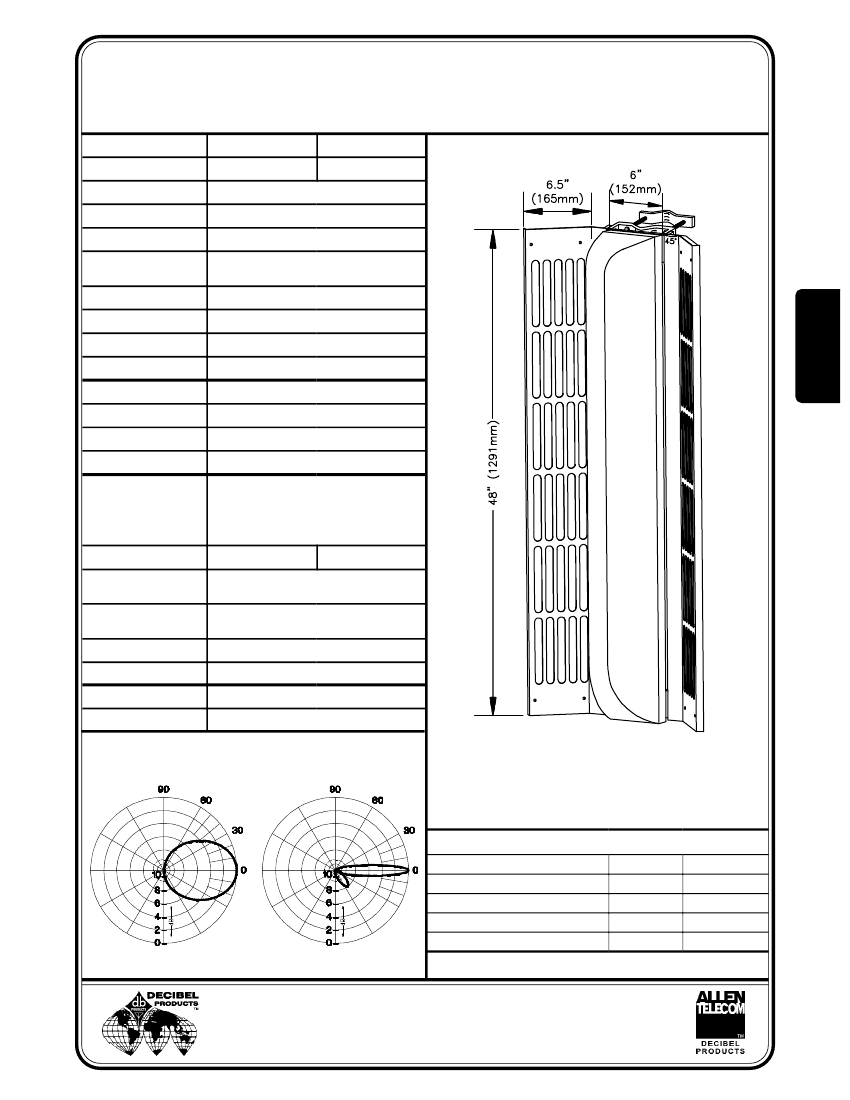

Antenna Patterns
13.5 dBd (15.6 dBi) Gain Directional Log
Periodic Antenna with 65° horizontal
3 dB beamwidth for 806-960 MHz.
Electrical Downtilt (T) Option
Model Number
844H65T6(E)-XY
844H65T8(E)-XY
844H65T11(- or E)XY
844H65T13(- or E)XY
Horizontal
Vertical
Specifications are for reference only.
Downtilt
6°
8°
11°
13°
Gain
13 dBd
12.8 dBd
12.8 dBd
12.5 dBd
099089-009-C 7/99
DECIBEL
Allen Telecom Inc.
PRODUCTS
A Division of
8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610
214 / 631-0310 • Fax: 214 / 631-4706
