858DG65T3ESX Overview

Base Station/Broadcast Transmission Antenna

858DG65T3ESX Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA

Preview

Download Datasheet

View All

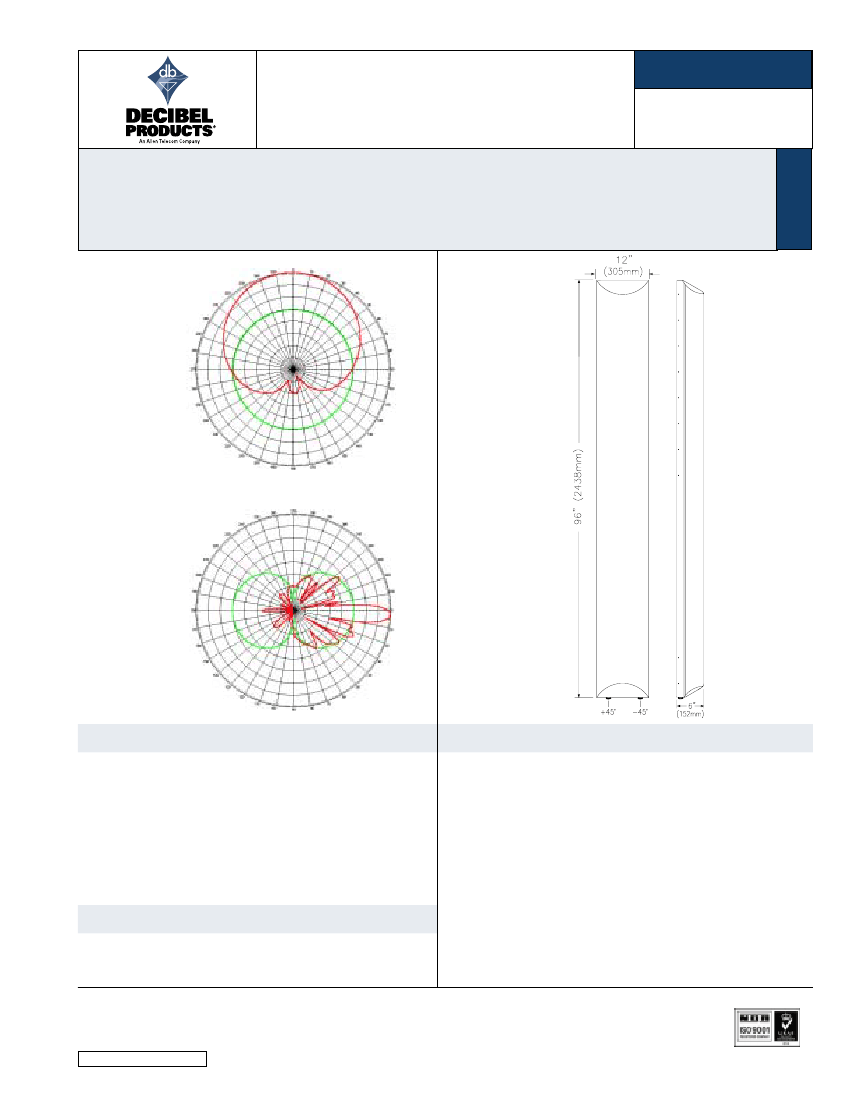

858DG65T3ESX

15.2 dBd

Panel Antenna

806-896 MHz

MaxGain™

Gen3XPol™

•

806-896 MHz

15.2 dBd (17.3 dBi) Gain

3° Electrical Downtilt

Independently Polarized (+45°/-45°)

•

65° Azimuth BW

7° Elevation BW

7/16 DIN (Bottom)

AMPS, Cellular, and Trunking

65°

Azimuth

(Horizontal)

Elevation

(Vertical)

Electrical

VSWR (max.):

USLS:

Isolation

Port to Port:

Front-to-Back Ratio:

Max. Input Power:

Impedance:

Lightning Protection:

1.35:1

> 18 dB

> 30 dB

30 dB, typical

500 Watts

50 Ohms

All metal parts are grounded.

Weight:

Wind Area:

Wind Load:

Max. Wind Speed:

Reflector:

Radiators:

Radome:

Mounting Hardware:

Color:

Mechanical

34 lbs (15.5 kg)

5.33 ft² (0.5 m²)

213 lbf (948N) 95.8 kp (at 100 mph)

125 mph (200 km/h)

Pass. Aluminum

ABS, UV Inhibited

Galvanized Steel

Light Gray

Mounting Options

Standard:

Downtilt:

DB380-3 pipe mount kit (max. 3.5” OD),

included.

DB5083D downtilt bracket, optional.

8635 Stemmons Freeway • Dallas, Texas U.S.A. 75247-3701

Dallas/Ft.Worth Area Tel: 214.631.0310 • Fax: 214.631.4706

Toll Free Tel: 1.800.676.5342 • Fax: 1.800.229.4706

www.decibelproducts.com

dbtech@decibelproducts.com

099095-021

10/01-F

ISO9001 Compliant
