8840905/10 | 2001 GRAY REEL
Sunlight and Oil Resistant Category 5e U/UTP 2001 Cable, non-plenum,
gray jacket, 4 pair count, 1000 ft (305 m) length, reel
Product Classification
Portfolio
Product Type
Regional Availability
CommScope®
Twisted pair cable
Asia | Australia/New Zealand | EMEA | Latin America | North America

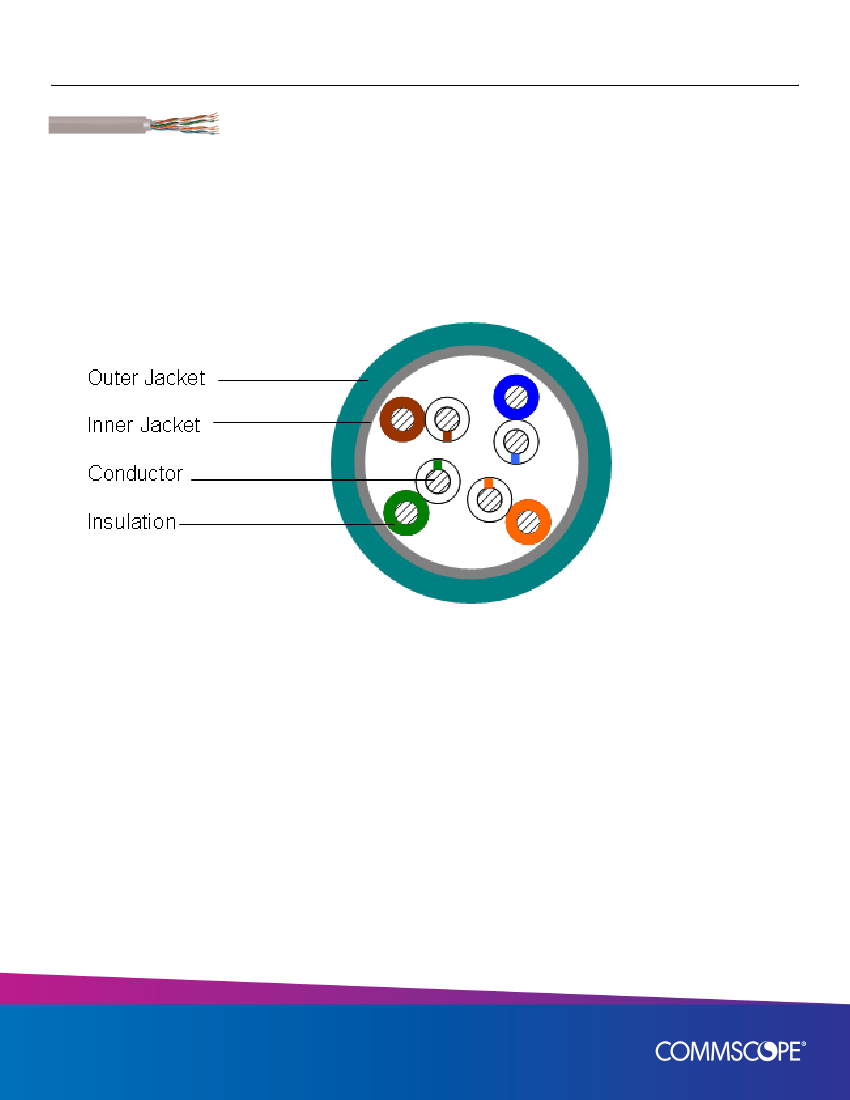

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Insulation Material
PVC
Bare copper
Polyolefin
Dimensions
Cable Length
Cable Weight
Diameter Over Inner Jacket
Diameter Over Jacket, nominal
Inner Jacket Thickness
Jacket Thickness
305 m | 1000 ft
29.47 lb/kft
4.953 mm | 0.195 in
6.426 mm | 0.253 in
0.559 mm | 0.022 in
0.457 mm | 0.018 in
page 1 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: December 31, 2018
8840905/10 | 2001 GRAY REEL
Electrical Specifications
ANSI/TIA Category
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
5e
5%
9.38 ohms/100 m
45 ns
5.6 nF/100 m @ 1 kHz
100 MHz
ANSI/TIA-568-C.2
300 V
1500 Vac | 2500 Vdc
Nominal Velocity of Propagation (NVP)
69 %
Environmental Specifications
Environmental Space
Flame Test Method
Installation Temperature
Operating Temperature
Non-plenum
CMR
0 °C to +60 °C (+32 °F to +140 °F)
-40 °C to +75 °C (-40 °F to +167 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Supported Application
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
U/UTP (unshielded)
Reel
4
Horizontal
Industrial
Gray
2001
24 AWG
Solid
8
Mechanical Specifications
Pulling Tension, maximum
11 kg | 25 lb
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2015
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
page 2 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: December 31, 2018
8840905/10 | 2001 GRAY REEL
page 3 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: December 31, 2018
8840905/10 | 2001 GRAY REEL
Electrical Performance
Std
IL
NEXT
ACR
PSNEXT
PSACR
ACRF
PSACRF
RL
Freq.
MHz
1
4
8
10
16
20
25
31.25
62.5
100
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Insertion Loss (dB/100m)
Near End Crosstalk (dB/100m)
Attenuation to Crosstalk Ratio (dB/100m)
Power Sum Near End Crosstalk (db/100m)
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
Attenuation to Crosstalk Ratio - Far End (dB/100m)
Power Sum Attenuation to Crosstalk Ratio – Far End (dB/100m)
Return Loss (dB)
IL
Std
2.0
4.1
5.8
6.5
8.2
9.3
10.4
11.7
17.0
22.0
NEXT
Std
65.3
56.3
51.8
50.3
47.2
45.8
44.3
42.9
38.4
35.3
ACR
Std
63.3
52.2
46.0
43.8
39.0
36.5
33.9
31.2
21.4
13.3
PSNEXT
Std
62.3
53.3
48.8
47.3
44.2
42.8
41.3
39.9
35.4
32.3
PSACR
Std
60.3
49.2
43.0
40.8
36.0
33.5
30.9
28.2
18.4
10.3
ACRF
Std
63.8
51.8
45.7
43.8
39.7
37.8
35.8
33.9
27.9
23.8
PSACRF
Std
60.8
48.8
42.7
40.8
36.7
34.8
32.8
30.9
24.9
20.8
RL
Std
20.0
23.0
24.5
25.0
25.0
25.0
24.3
23.6
21.5
20.1
page 4 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: December 31, 2018
