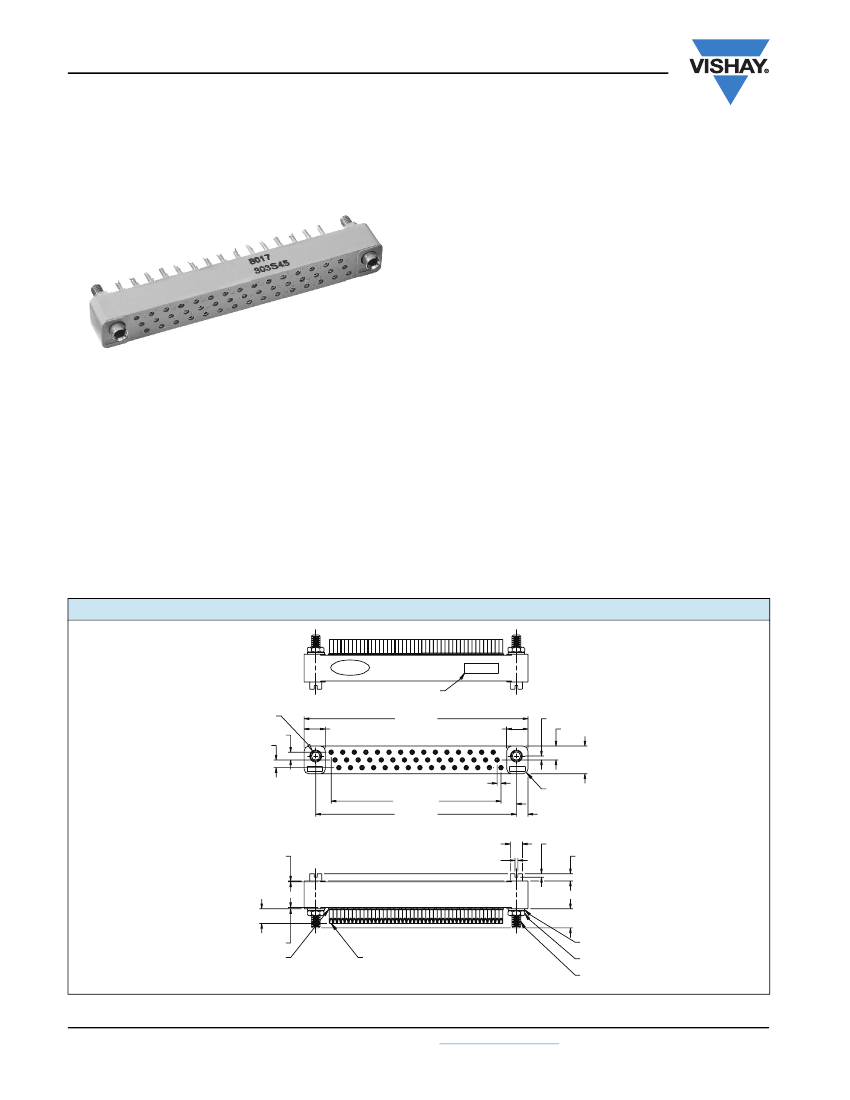

Series 303
Vishay Dale
Printed Circuit Dip Solder Connector
FEATURES
• Guide pins polarize connectors and aid in alignment
• Mounting studs provide easy, vibration-resistant mounting
to circuit board
• Male contacts molded in. Female contacts float which aids
in alignment and enables connectors to withstand vibration
• Long, thin, three-row design requires a minimum of space
• Meets applicable paragraphs of MIL-C-8384
MATERIAL SPECIFICATIONS
Contact:
Phosphor bronze, gold plated
Studs, Guides, Washersm Nuts:
Corrosion-resistant steel,
passivated
Standard Body:
Glass-filled
MIL-P-19833, type GDI-30 green
diallyl
phthalate
per
APPLICATIONS
For use in equipment requiring printed circuit connectors of
the dip solder type with mating female connector.
ELECTRICAL SPECIFICATIONS
Current Rating:
3 A
Breakdown Voltage, Contact to Contact and Contact to
Ground:
At sea level: 1200 V
RMS
At 70 000 feet: 325 V
RMS
PHYSICAL SPECIFICATIONS
Number of Contacts:
45
Minimum Creepage between Contacts:
0.06"
Minimum Air Space between Contacts:
0.02"
Contacts, Center to Center:
0.050"
Temperature Range:
Operating and non-operating; - 62 °C
to + 125 °C
DIMENSIONS
in inches (millimeters)
VISHAY
303S45
DATE CODE
GUIDE SOCKET TO ACCEPT
Ø 0.093 [2.36] PIN
(TYP.)
0.100 [2.54]
0.100 [2.54]
2.90 [73.7]
0.275 [6.98]
(TYP.)
A
B
C
D
E
F
H
J
K
L
M
N
P
R
S
T
U
V
W
X
Y
A
a
b
c
d
e
f
h
j
k
m
n
0.050 [1.27]
0.275 [6.98]
(TYP.)
p
r
s
t
u
v
w
x
y
z
1
2
303S45
0.180 [4.57]
0.36 [9.14]
0.050 [1.27]
(TYP.)
2.200 [55.9]
2.600 ± 0.008
[66.00 ± 0.20]
0.06 [1.52] R.
(TYP.)
0.200 [5.08]
0.150 [3.81]
0.012 [0.305]
0.156 [3.96]
(TYP.)
0.038 [0.965]
(TYP.)
0.047 [1.19]
(TYP.)
0.093 ±.010
[2.36 ± 0.25]
0.360 [9.14]
0.187 ± 0.010
[4.75 ± 0.25]
0.25 [6.35]
0.018 [0.381]
"C" RING
(TYP.)
SOCKET CONTACT SOLDER CUP
Ø 0.035 ± 0.002 [0.889 ± 0.051] X
0.12 [3.05] DP.
(TYP.)
SPLIT LOCK WASHER
(TYP.)
HEX
NUT
(TYP.)
4-40 UNC 2A
(TYP.)
www.vishay.com
1
For technical questions, contact:
connectors@vishay.com
Document Number: 36024
Revision: 21-Mar-07
