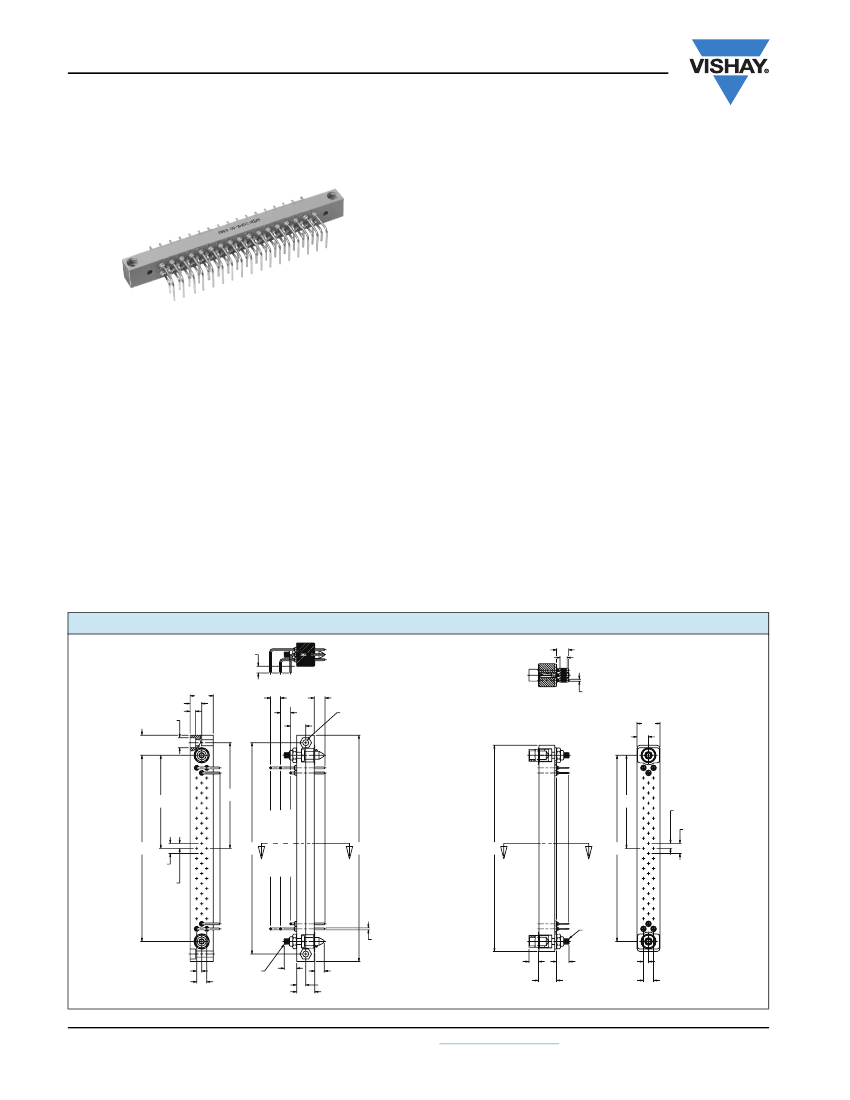

Series 315
Vishay Dale
Printed Circuit Dip Solder Connector
FEATURES
• Polarization guide components are interchangeable
between plug and receptacle. Each may be orientated in
any of 6 positions to provide selective keying. A total of 144
keying variations are possible.
• Right angle dip solder terminals, straight through available
on request
• Holes provided for threaded mounting studs
MATERIAL SPECIFICATIONS
Contact Pin:
Dip solder phosphor bronze
Contact Pin-Solder Cup:
Brass
Contact Socket:
Phosphor bronze (closed entry)
Contact Plating:
Gold
Guides:
Stainless steel, passivated
Nut:
Aluminum, anodized
Standard Body:
Glass-filled diallyl phthalate per
MIL-P-19833, type GDI-30F, green. Other materials
available upon request
• Female contacts float to aid in alignment and resist
vibration
• Closed entry female contacts prevent insertion of oversize
probes
• Meets applicable paragraphs of MIL-C-8384
APPLICATIONS
Designed for printed circuit applications requiring 50
contacts.
ELECTRICAL SPECIFICATIONS
Current Rating:
7.5 A
Breakdown Voltage:
At sea level: 2500 V
RMS
At 70 000 feet: 600 V
RMS
PHYSICAL SPECIFICATIONS
Number of Contacts:
50
Contact Spacing:
0.200", staggered rows provide a 0.100"
grid
Contact Gauge:
#20 AWG
Minimum Creepage Path between Contacts:
0.11"
Minimum Air Space between Contacts:
0.06"
DIMENSIONS
in inches (millimeters)
0.135
[3.43]
0.250 MAX.,
[6.35]
(TYP.)
0.130 MIN.,
[3.30]
(TYP.)
SECTION A-A
0.460 [11.7]
0.230 [5.84]
0.109 [2.77] (TYP.)
0.200 HEX.
[5.08]
(TYP.)
0.400
[10.2]
0.200
[5.08]
0.200
[5.08]
0.300
[7.62]
0.20
[5.08]
0.120 DIA. HOLE
[3.05]
(TYP.)
SECTION B-B
0.042
[1.07]
(TYP.)
0.460 [11.7]
0.230 [5.84]
4
34
1
1
18
18
35
35
2
2
19
19
36
36
20
21
1.850
[47.0]
37
2.100
[53.3]
(CONTACTS 34 THRU 50)
(CONTACTS 18 THRU 33)
(CONTACTS 1 THRU 17)
3
3
20
1.850
[47.0]
37
4
4
21
39
6
0.100
[2.54]
(TYP.)
0.200
[5.08]
(TYP.)
38
38
5
5
22
22
39
6
23
23
40
40
7
7
24
24
41
41
8
8
42
3.700
[94.0]
0.200
[5.08]
(TYP.)
0.100
[2.54]
(TYP.)
4.200
[107]
A
4.500
[114]
A
4.100
[104]
B
B
3.700
[94.0]
25
25
42
9
9
26
26
43
10
43
10
27
27
44
11
44
11
28
28
45
12
45
12
29
29
46
13
46
13
30
30
47
14
47
14
31
31
48
15
48
15
32
32
9
49
16
16 17
33
0.040 ± 0.001 DIA.,
[1.020 ± 0.025]
(TYP.)
0.19
[4.83]
(TYP.)
0.360
[9.14]
0.25
[6.35]
(TYP.)
4-40 UNC 2A
(TYP.)
50
17
50
3
0.100
[2.54]
0.200
[5.08]
4-40 UNC 2A
(TYP.)
0.25
[6.35]
(TYP.)
0.360
[9.14]
0.19 [4.83] (TYP.)
0.180 [4.57]
0.100
[2.54]
0.200
[5.08]
315 PR-50 TYPE
315 S-50 TYPE
www.vishay.com
1
For technical questions, contact:
connectors@vishay.com
Document Number: 36025
Revision: 21-Mar-07
