Product Specifications
S-3-TCPUSE-H-D

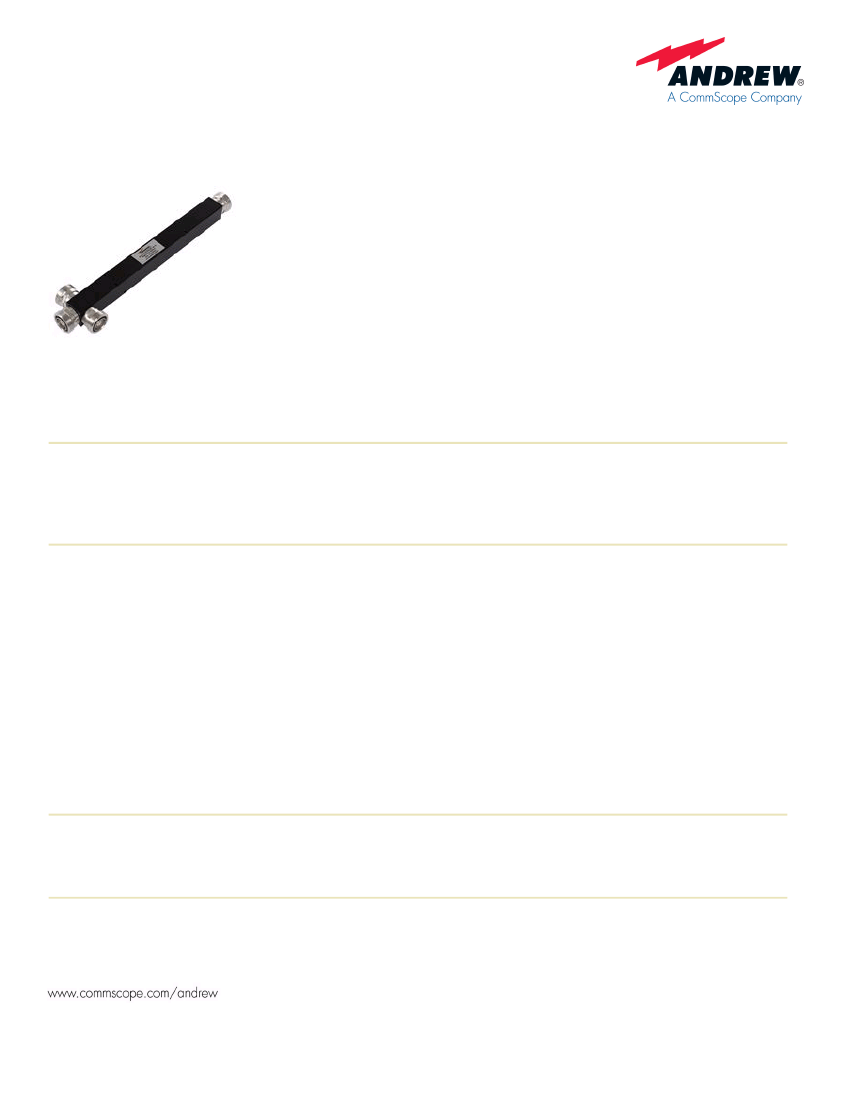

Multiband Threeway Reactive High Power Splitter, 380–2700 MHz
CHARACTERISTICS
General Specifications
Device Type
Interface
Color
Splitter
716 DIN Female
Black
Electrical Specifications
Operating Frequency Band
3rd Order IMD
3rd Order IMD Test Method
Average Power, maximum
Impedance
Peak Power, maximum
Power Rating, Splitting
Reflected Power, maximum
Return Loss
Split Loss
VSWR
380 – 2700 MHz
150 dBc (relative to carrier)
Two +43 dBm carriers
300 W
50 ohm
3 kW
300 W
300 W
19.0 dB
4.8 dB
1.25:1
Dissipative Loss at Frequency Band 0.2 dB @ 380–2700 MHz
Mechanical Specifications
Inner Contact Plating
Outer Contact Plating
Silver
Trimetal
Environmental Specifications
Application
Ingress Protection Test Method
Indoor/Outdoor
IEC 60529:2001, IP65
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 1 of 2
6/9/2011
Product Specifications
S-3-TCPUSE-H-D
Operating Temperature
Relative Humidity
25 °C to +85 °C (13 °F to +185 °F)
Up to 100%
Dimensions
Height
Length
Net Weight
Width
29.00 mm | 1.14 in
297.00 mm | 11.69 in
670.00 g | 1.48 lb
64.00 mm | 2.52 in
Packed Dimensions
Height
Length
Shipping Weight
Volume
Width
43.0 mm | 1.7 in
310.0 mm | 12.2 in
760.00 g | 1.68 lb
1066.4000 cc
80.0 mm | 3.1 in
Regulatory Compliance/Certifications
Agency
RoHS 2002/95/EC
ISO 9001:2008
Classification
Compliant by Exemption
Designed, manufactured and/or distributed under this quality management system
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 2 of 2
6/9/2011
