LIC0306X7R100-104KNP datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LIC0306X7R100-104KNP

LIC0306X7R100-104KNP: DescriptionCeramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0306, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size433KB，4 Pages; ManufacturerVENKEL LTD; Environmental Compliance

Download Datasheet Parametric Compare View All

LIC0306X7R100-104KNP Overview

Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0306, CHIP, ROHS COMPLIANT

LIC0306X7R100-104KNP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	VENKEL LTD
package instruction	, 0306
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.1 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.86 mm
JESD-609 code	e3
length	1.6 mm
Manufacturer's serial number	LIC0306
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	10 V
series	LIC
size code	0306
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

Low Inductance Chip Capacitors

Features

•

Multilayer Chip Capacitor with very low inductance

•

Monolithic structure for high reliability

•

Excellent for by-pass filter applications

Dimensions

Unit: inch (mm)

Series

LIC00

0.032 ± 0.006

(0.80 ± 0.15)

0.048 ± 0.010

(1.20 ± 0.25)

0.063 ± 0.010

(1.60 ± 0.25)

0.063 ± 0.006

(1.60 ± 0.15)

0.080 ± 0.010

(2.00 ± 0.25)

0.126 ± 0.010

(3.20 ± 0.25)

E/B (Max)

0.0088

(0.22)

0.016

(0.40)

0.016

(0.40)

T (Max)

0.034

(0.86)

0.034

(0.86)

0.024

(0.61)

LIC0508

LIC0

E/B END BAND

X7R:

SPECIFICATIONS:

OPERATING TEMPERATURE RANGE:

TEMPERATURE COEFFICIENT:

VOLTAGE RATINGS:

DISSIPATION FACTOR:

X7R = –55˚C to +125˚C

0 ±15%

∆°C

max.

10, 16, 25, 50 VDC

10V = 5.0% max.

16V = 3.5% max.

25V = 3.0% max.

50V = 2.5% max.

100,000 MW min., or 1,000 MW

per µF min. or 100 GW, whichever is less

1KHz ± 50Hz at 1.0 ± 0.2 Vrms, 25°C

K = ±10%; M = ±20%

INSULATION RESISTANCE:

(@ +25˚C, RVDC)

TEST PARAMETERS:

CAPACITANCE TOLERANCES:

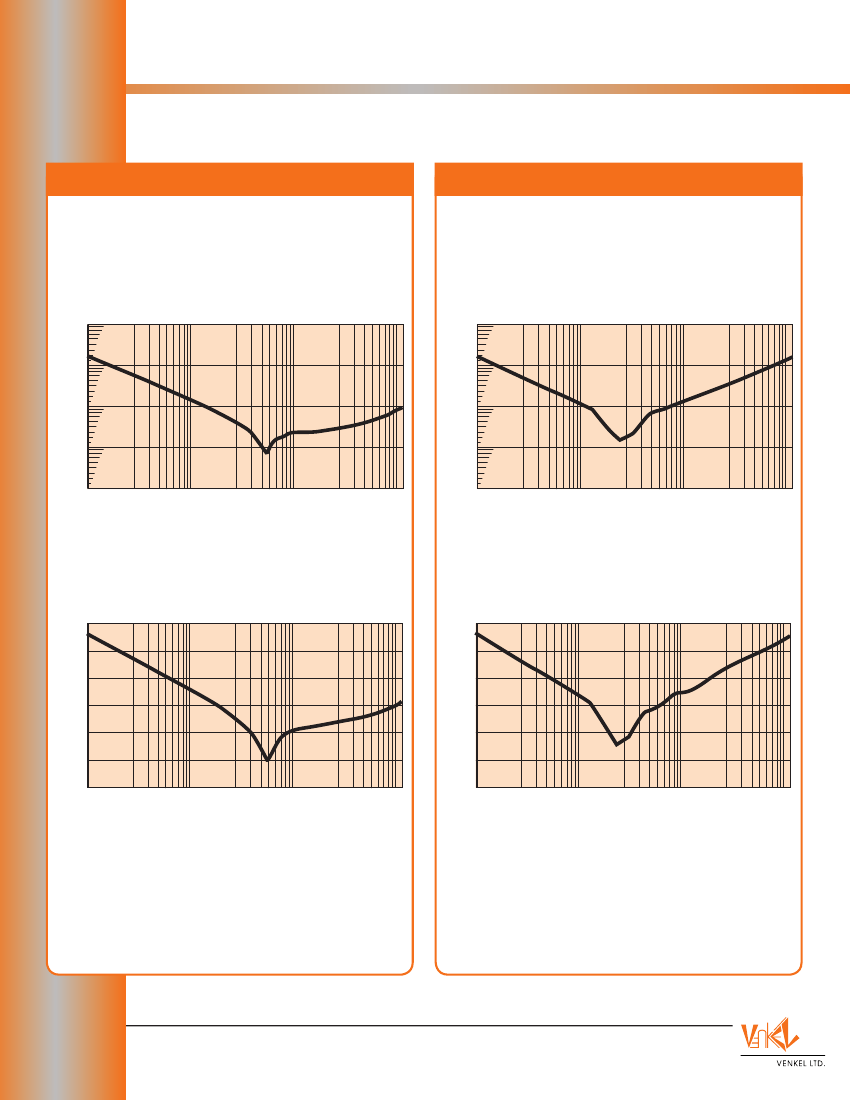

Typical Inductance

SERIES

LIC00

LIC0508

LIC0

Measured Inductance (nH)

0.5

0.00

0.50

All components in this section are RoHS compliant per the EU directives and definitions.

5900 Shepherd Mountain Cove • Austin, TX 78730

Phone: 512 / 794-0081 • Fax: 512 / 794-0087 • Toll Free: 800 / 950-8365

e-mail: sales@venkel.com • www.venkel.com
