Motion-Detecting Sensor (AMP)
MOTION-DETECTING
SENSOR
(PASSIVE INFRARED TYPE)
Highly sensitive type
24×24 mm
.945×.945 inch
• High detection ability
This sensor is a stable, sensitive sensor
that detects 2°C
3.6°F
temperature
changes regardless of the location or
speed of the subject. In other words,
this sensor ensures detection whether a
person is at the edge of the detection
area or in the middle, regardless of how
fast they are moving.
• Low current consumption
The standard model consumes 260 µA
(during stand-by), while the low con-
sumption current type consumes 30 µA
(during stand-by). This makes battery
operation possible.
• Wide operation voltage range (2.6 to
5.5 V DC)
The usable range extends from a
standard 5 V DC for microcomputers to
3 V DC and 4.5 V DC for battery opera-
tion.
Ex. AMP
0
9
Lead wire
0: No lead wire type
Operating voltage
9: 2.6 to 5.5 V DC
AMP Series
• Varied operation in accordance with
the surrouding brightness
If used together with a brightness
sensor (CdS), you can make the sensor
operate only during bright hours or dark
hours.
• Output time can easily be changed
By simply changing the resistor
attached to the outside of the sensor,
the output time can be changed from
approximately 10 seconds to 6 minutes.
FEATURES
• Detects even slight motion of a per-
son (e.g. a 20 cm
7.87 inch
move-
ment of the hand)
With our unique motion detector—high-
ly sensitive type, even slight motions
made by people will be detected easily.
• Compact lens
We have decreased the exposed por-
tion of the lens, and at the same time
maintained a detection ability that is as
good or better than other motion sen-
sors on the market.
Lens dimensions:
Standard sensitive type
16×20
mm
.630×.787 inch
TYPICAL APPLICATIONS
• Lighting and ventilation control of con-
ference rooms
• Control of illumination and exhaust fans
in toilets
• Lighting control of halls
• Nighttime lighting control of vending
machines
• Lightning control around cash dispens-
ing machines (ATMs)
ORDERING INFORMATION
Detection performance
1: Standard sensitive type: 0.3 to 2.0 m/s
2: Highly sensitive type: 0.3 to 1.0 m/s
Current consumption
0: Standard type
1: Low current consumption type
TYPES
Detection
performance
Standard
sensitive type
Highly
sensitive type
Current consumption
Standard type
Low current consumption type
Standard type
Low current consumption type
2.6 to 5.5 V DC
Rated operating voltage
Part No.
AMP1009
AMP1109
AMP2009
AMP2109
20 pcs.
200 pcs.
Packing quantity
Inner
Outer
PERFORMANCE
Items
Rated detection distance
Horizontal
Detection
range
Vertical
1. Detection performance
(Measuring conditions: ambient temp.: 25°C
77°F;
operating voltage: 5V DC)
Standard sensitive type
5 m min.
95°
55°
34 zones
Highly sensitive type
2 m min.
73°
73°
64 zones
Conditions of objects to be detected
1. To have more than 2°C
36°F
of temperature
1.
difference from background
2. Movement speed
• Standard sensitive type: 0.3 to 2.0 m/s
• Highly sensitive type: 0.3 to 1.0 m/s
3. Detection object = human body

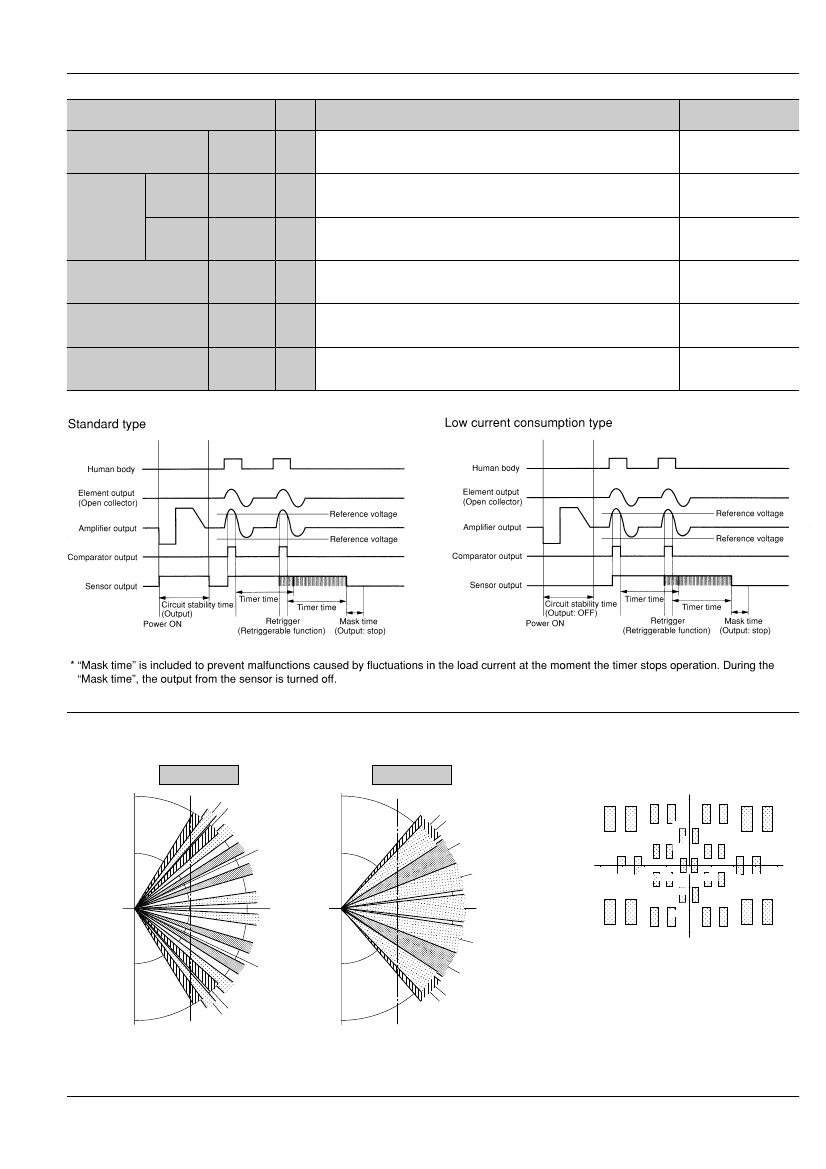

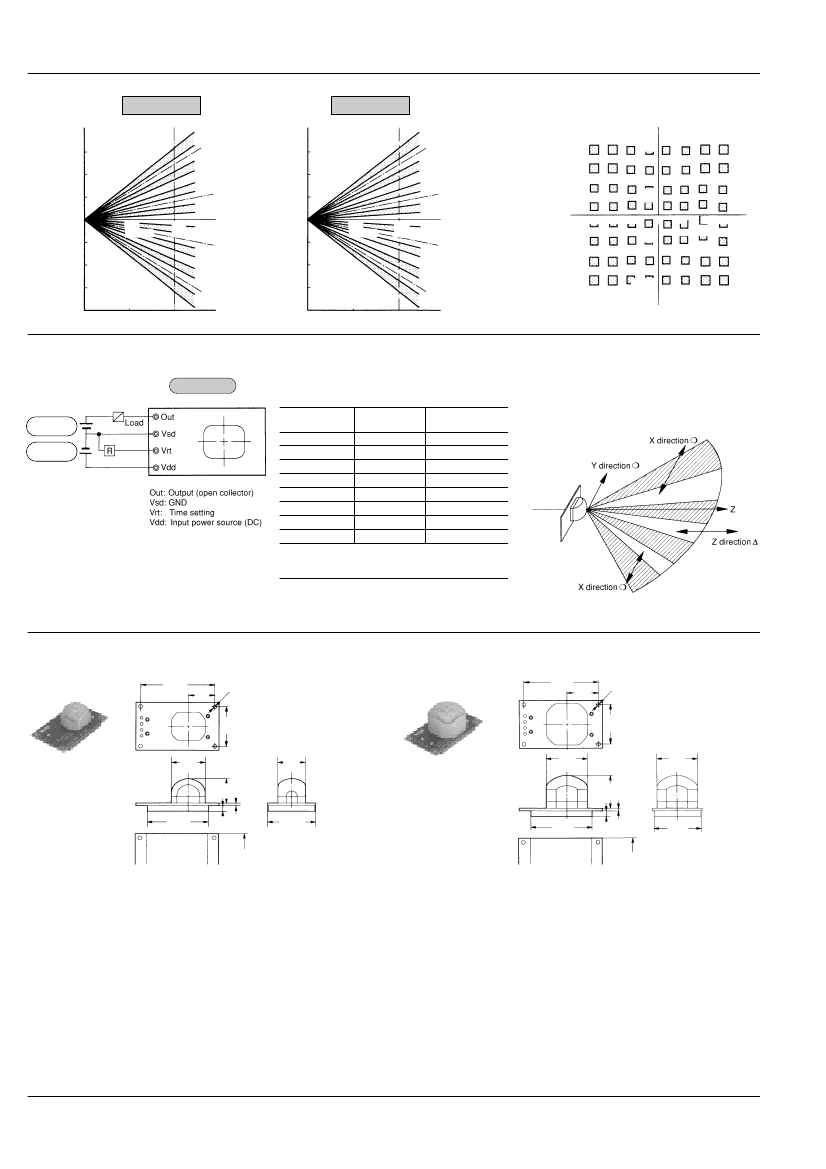

Detection zone
2. Absolute maximum rating
(Measuring condition: ambient temp.: 25°C
77°F)
Items
Power supply voltage
Output
(Open collector)
Voltage
Current
Specified value
7V
30 V
50 mA
–20 to +55°C
–4 to +131°F
–30 to +80°C
–22 to +176°F
No freezing and condensing at low temperature.
Remarks
Usable ambient temperature
Storage temperature
10
Motion-Detecting Sensor (AMP)
CAUTIONS WHEN USING
This product is mainly designed for use
indoors with general electronic devices.
If it is to be used outdoors, take suitable
precautions to protect it from water, dust,
dew condensation, and freezing.
Example:
1. Safety devices
2. Security equipment
3. Traffic signal equipment
4. Miscellaneous safety devices and
control equipment for trains,
automobiles.
1. Operation environment
1) Shown below are ambient tempera-
ture, humidity and air pressure condi-
tions for operation, transportation, and
storage of the sensor.
Usable ambient temperature:
–20 to 55°C
–4 to +131°F
Storage temperature:
–30 to 80°C
–22 to +176°F
Humidity: 15 to 85% R.H.
(with no freezing and condensation)
Air pressure: 86 to 106 kPa
• Condensation
Condensation may occur if the relay
is exposed to sudden temperature
change in a high-temperature, high-
humidity environment. This may
result in problems such as sensing
performance deterioration, non-
operation or insulation failure.
• Freezing
At temperature below 0°C
32°F,
con-
densation and moisture may freeze
onto the sensor and cause problems
such as sensing performance
deterioration, non-operation or insula-
tion failure.
• Low-temperature, low-humidity
atmosphere
If the relay is exposed to a low-
temperature, low-humidity environ-
ment for an extended period of time,
the plastic components may become
brittle and fragile.
2) Be sure to use a stable power source
for the sensor. The sensor may operate
incorrectly if it receives voltage ripples of
more than 40 mV P-P.
3) Be sure to employ an absorber ele-
ment to prevent the internal circuit from
being destroyed if an external voltage
surge of more than 500 V occurs (mono-
polarized all-wave voltage of ±1.2×50
µsec).
4) Static electricity or lightning may
cause the sensor to operate incorrectly.
5) Avoid using the sensor in the following
locations:
Locations exposed to direct sunlight
or other bright light sources.
Locations where a heater lies within
the detection range.
Locations subject to direct air from an
air conditioner.
Locations with high humidity (e.g.,
bathrooms, etc.).
Locations subject to sudden, extreme
temperature changes.
Locations subject to strong vibrations
or shocks.
Locations containing objects that
block infra-red rays such as glass.
Locations where blinds or curtains are
located near the detection range.
Locations near to a heat source or
switching device.
Locations containing dust or corrosive
gases.
Outdoors.
2. Detection characteristics
1) Since this sensor works by detecting
fluctuations in infrared rays, it will also
detect non-human heat sources (e.g.,
small animals, etc.) if they enter the
detection range.
2) Since this sensor works by detecting
fluctuations in infra-red rays, it will not
detect a person that is motionless, even
if within the detection range.
3. Drop damage
If the sensor is dropped, damage can
occur resulting in incorrect operation. If
dropped, be sure to do a visual check of
the exterior for noticeable damage and
check the operation characteristics for
faulty operation.
4. Other handling cautions
1) When installing the sensor, be sure
not to apply stress to the printed circuit
board.
2) Be careful not to allow dust or dirt to
accumulate on the lens as this will adver-
sely affect the detection sensitivity.
3) When soldering the lead wire, perform
the operation within 3 seconds at 350°C
662°F.
4) In order to avoid adverse effects from
noise, we recommend the use of
shielded wire when wiring.
5) In order to protect the internal cir-
cuitry, keep wire to a length of 1 m
3.3 ft
maximum from the sphere.
12/1/2002
All Rights Reserved, © Copyright Matsushita Electric Works, Ltd.
