FD2000
Rev1.0
CONTENTS
1. OVERVIEW ............................................................................................................................................................4
2. FEATURES.............................................................................................................................................................4

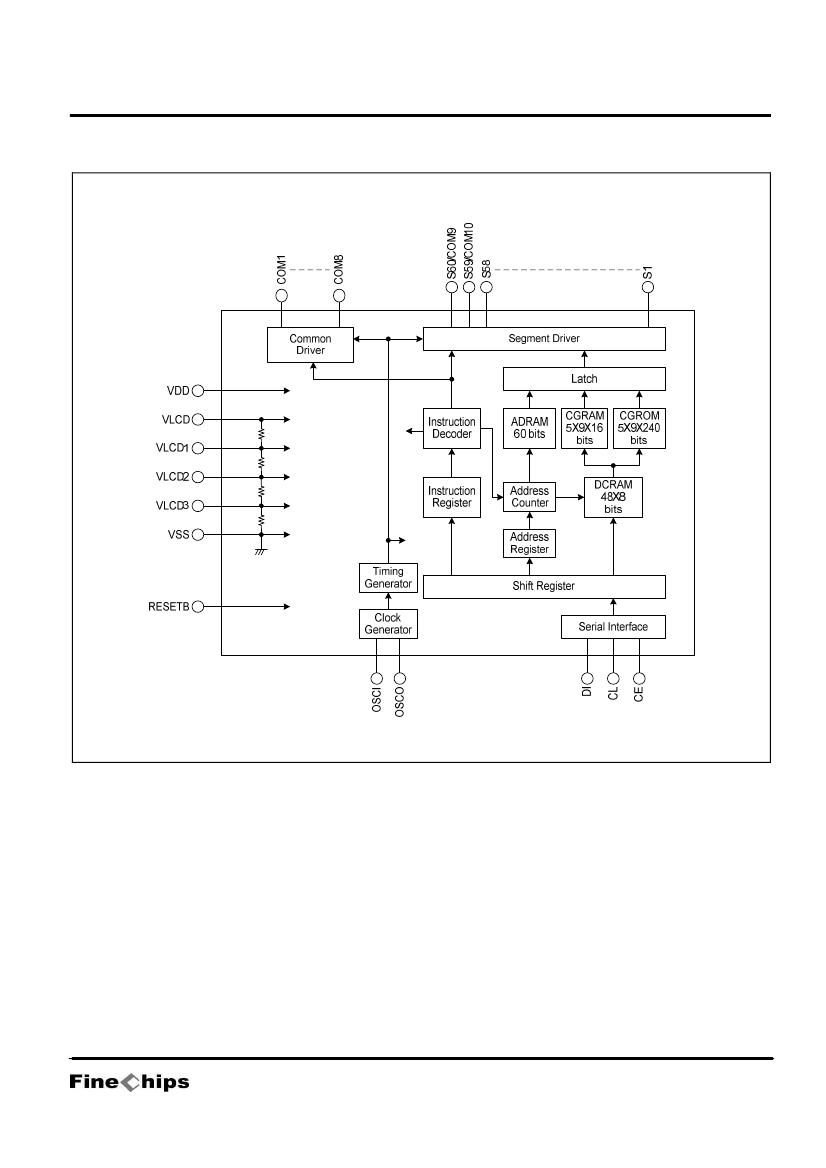

3. BLOCK DIAGRAM..................................................................................................................................................5
4. PIN ASSIGNMENTS...............................................................................................................................................6
4.1. 80-MQFP-1420 ................................................................................................................................................6
4.2. 80-LQFP-1212 .................................................................................................................................................7
5. PIN DESCRIPTIONS..............................................................................................................................................8
6. BLOCK FUNCTIONS..............................................................................................................................................9
6.1. AC (Address counter).......................................................................................................................................9
6.2. DCRAM (Data control RAM) ............................................................................................................................9
6.3. ADRAM (Additional data RaM) ......................................................................................................................10
6.4. CGROM (Character generator ROM) ............................................................................................................11
6.5. CGRAM (Character generator RAM) .............................................................................................................11
7. RESET FUNCTION .............................................................................................................................................12
8. SERIAL DATA TRANSFER FORMAT.................................................................................................................13
9. INSTRUCTION TABLE.........................................................................................................................................14
10. DETAILED INSTRUCTION DESCRIPTIONS ....................................................................................................15
10.1. Set display technique ― Sets the display technique ...................................................................................15
10.2. Display on/off control ― Turns the display on or off ....................................................................................15
10.3. Display shift ― Shifts the display.................................................................................................................16
10.4. Set AC address ― Specifies the DCRAM and ADRAM address for AC .....................................................17
10.5. DCRAM data write ― Specifies the DCRAM address and stores data at that address ..............................17
10.6. ADRAM data write ― Specifies the ADRAM address and stores data at that address ..............................19
10.7. CGRAM data write ― Specifies the CGRAM address and stores data at that address .............................21
11. NOTES ON THE POWER ON AND POWER OFF SEQUENCES ....................................................................22
12. LCD DRIVE TECHNIQUE ..................................................................................................................................23
12.1. 1/8 duty, 1/4 bias drive technique ................................................................................................................23
12.2. 1/9 duty, 1/4 bias drive technique ................................................................................................................24
12.3. 1/10 duty, 1/4 bias drive technique ..............................................................................................................25
13. SAMPLE APPLICATION CIRCUIT.....................................................................................................................26
13.1. 1/8 duty, 1/4 bias drive (For use with normal panels) ..................................................................................26
13.2. 1/8 duty, 1/4 bias drive (For use with large panels) .....................................................................................26
13.3. 1/9 duty, 1/4 bias drive (For use with normal panels) ..................................................................................27
13.4. 1/9 duty, 1/4 bias drive (For use with large panels) .....................................................................................27
13.5. 1/10 duty, 1/4 bias drive (For use with normal panels) ................................................................................28
13.6. 1/10 duty, 1/4 bias drive (For use with large panels) ...................................................................................28
2/37
FD2000
Rev1.0
14. SAMPLE CORRESPONDENCE BETWEEN INSTRUCTIONS AND THE DISPLAY ........................................29
15. FD2000 CHARACTER FONT (STANDARD) .....................................................................................................31
16. ELECTRICAL CHARACTERISTICS ..................................................................................................................32
16.1. Absolute maximum ratings...........................................................................................................................32
16.2. Allowable operating ranges..........................................................................................................................33
16.3. Electrical characteristics in the allowable operating ranges ........................................................................34
17. PACKAGE DIMENSIONS...................................................................................................................................36
17.1. 80-MQFP-1420 ............................................................................................................................................36
17.2. 80-LQFP-1212 .............................................................................................................................................37
3/37
FD2000
1. OVERVIEW
Rev1.0
The FD2000 is 1/8 to 1/10 duty dot matrix LCD display controller/drivers that supports the display of characters,
numbers, and symbols. In addition to generating dot matrix LCD drive signals based on data transferred serially
from a microcontroller, the FD2000 also provide on-chip character display ROM and RAM to allow display
systems to be implemented easily.
2. FEATURES
•
Controls and drives a 5 x 7, 5 x 8, or 5 x 9 dot matrix LCD.
•
Supports accessory display segment drive (up to 60 segments)
•
Display technique
1/8 duty 1/4 bias drive (5 x 7 dots)
1/9 duty 1/4 bias drive (5 x 8 dots)
1/10 duty 1/4 bias drive (5 x 9 dots)
•
Display digits
12 digits x 1 line (5 x 7 dots)
11 digits x 1 line (5 x 8 or 5 x 9 dots)
•
Display control memory
CGROM: 240 characters (5 x 7, 5 x 8, or 5 x 9 dots)
CGRAM: 16 characters (5 x 7, 5 x 8, or 5 x 9 dots)
ADRAM: 12 x 5 bits
DCRAM: 48 x 8 bits
•
Instruction function
Display on/off control
Display shift function
•
Provides a backup function based on low power modes
•
Serial data input support
•
Independent LCD drive block power supply VLCD
•
Provides a RESETB pin for LSI internal initialization
•
RC oscillator circuit
4/37
