Series REC 16 LH
Vishay Sfernice
Precision Linear Transducers, Designed for Mounting in Hydraulic
or Pneumatic Cylinder, Conductive Plastic Element
(Unsealed Series/Ø 16 mm)
FEATURES
•
Large range of strokes from 25 to 2000 mm
•
High accuracy
•
Very good repeatability
•
Continuous resolution
•
Easy mounting
These unsealed sensors are suitable for installation in the
high pressure chamber of cylinders.
RoHS
COMPLIANT
ELECTRICAL SPECIFICATIONS
Theoretical Electrical Travel (TET) = E
Independent Linearity (over TET)
On Request
Actual Electrical Travel (AET)
Total Resistance R
T
Resistance Tolerance at 20 °C
Repeatability
Maximum Power Rating
Wiper Current
Load Impedance
Insulation Resistance
Dielectric Strength
From 25 mm to 2000 mm in increments of 25 mm
≤
± 1 %;
≤
± 0.1 %
≤
± 0.05 % if E
≥
100 mm,
≤
± 0.025 % if E
≥
200 mm
TET + 6 mm ± 0.5
150
Ω/cm
± 20 %
≤
0.01 %
0.05 W/cm at 70 °C, 0 W at 125 °C
Recommended: a few µA - 1 mA max. (continuous)
1000 times R
T
minimum
> 1000 MΩ, 500 V
DC
> 300 V
RMS
at 50 Hz
MECHANICAL SPECIFICATIONS
Mechanical Travel (MT)
Body
Rod Internal Diameter
Support
Operating Force
Electrical Outputs
Oil
Pressure
Wiper
MT = TET
Anodized aluminum
16 LH: Ø 18 mm
2 screws
1 N typical
Wires 300 mm long
Insulating mineral hydraulic
300 bars continuous, 1000 bars accidentally
Precious metal multifinger
PERFORMANCE
Life
Temperature Limits
Speed at 20 °C
25 million cycles typical/1 Hz/T° = 20 °C ± 5 °C/80 % TET
- 20 °C to + 80 °C
1.5 m/s max.
Document Number: 54016
Revision: 01-Feb-08
For technical questions, contact: sfer@vishay.com
www.vishay.com
59
Series REC 16 LH
Vishay Sfernice
Precision Linear Transducers, Designed for Mounting in
Hydraulic or Pneumatic Cylinder, Conductive Plastic Element
(Unsealed Series/Ø 16 mm)

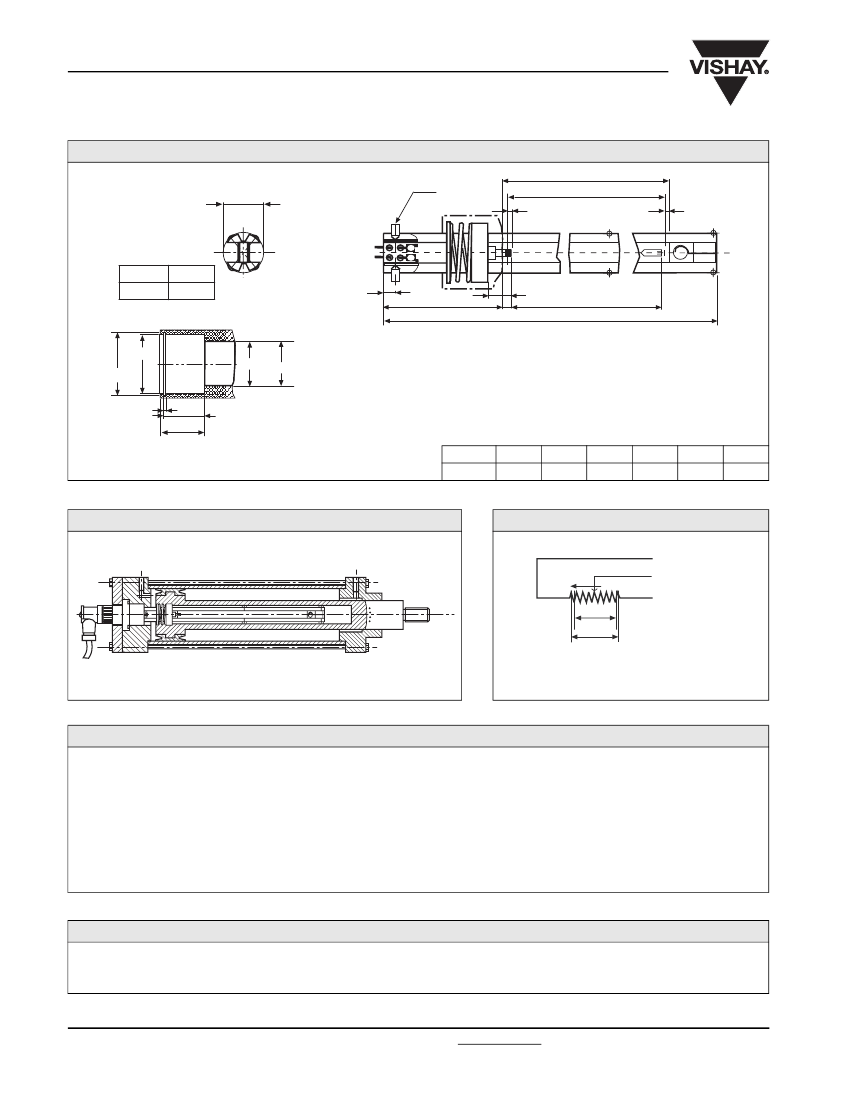

DIMENSIONS
in millimeters, general tolerance ± 1 mm
Ø
18
- 0.2
+0
FIXING SCREWS
Hc M4-8
AET = TET + 6
ELECTRICAL CONTINUITY = TET + 3
1.5
1.5
MODEL
16 LH
ØA
18
L
≤
500
L > 500
6
46
3
MT = TET
L = TET + 70
8.5
0.2
Ø
C
+ 0.2
-
Ø
0.2
B
+ 0
-
Ø
D
+ 0.1
Ø
D
+ 0.6
+ 0.1
+ 0.4
0.1
E
+0
-
G
- 0.1
F
+1
-0
+ 0.1
MODEL
16 LH
B
25.2
C
24
D
18
E
1.3
F
17.8
G
16.3
MOUNTING IN ACTUATOR
ELECTRICAL CONNECTIONS
GREEN WIRE: +
RED WIRE: WIPER
YELLOW WIRE: -
TET
AET
TET = THEORETICAL ELECTRICAL TRAVEL
AET = ACTUAL ELECTRICAL TRAVEL
On these models:
Cylinder sealing and electrical connections required
ORDERING INFORMATION/DESCRIPTION
REC
SERIES
16
MODEL
LH
TYPE
4
THEORETICAL
ELECTRICAL
Times 25 mm
D
LINEARITY
A:
≤
± 1 %
D:
≤
± 0.1 %
E:
≤
± 0.05 %
F:
≤
± 0.025 %
152
RESISTANCE
W...
MODIFICATIONS
e.
LEAD FINISH
Unsealed
First 2 digits are
significant numbers
3rd digit indicates
number of zeros
Special feature
code number
SAP PART NUMBERING GUIDELINES
RE
SERIES
16 LH
MODEL
4
TET
D
LINEARITY
152
OHMIC VALUE
W....
SPECIAL FEATURES
www.vishay.com
60
For technical questions, contact: sfer@vishay.com
Document Number: 54016
Revision: 01-Feb-08
