30EPF..PbF, 30CPF..PbF Soft Recovery Series
Vishay High Power Products
Fast Soft Recovery
Rectifier Diode, 30 A
30EPF..PbF
30CPF..PbF
FEATURES/DESCRIPTION
The 30EPF..PbF and 30CPF..PbF soft recovery
rectifier series has been optimized for combined
short reverse recovery time and low forward
voltage drop.
Base
common
cathode
2
Base
common
cathode
2, 4
The glass passivation ensures stable reliable
operation in the most severe temperature and power cycling
conditions.
30CPF series is a drop in replacement for 25CPF series
(parallel connection only).
This product series has been designed and qualified for
industrial level.
Compliant to RoHS directive 2002/95/EC.
1
Cathode
3
Anode
Anode
1
Anode
3
TO-247AC modified
TO-247AC
APPLICATIONS
PRODUCT SUMMARY
V
F
at 30 A
t
rr
V
RRM
< 1.41 V
95 ns
1000 V to 1200 V
• Output rectification and
choppers and converters
freewheeling
in
inverters,
• Input rectifications where severe restrictions on conducted
EMI should be met
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
t
rr
T
J
30 A, T
J
= 25 °C
1 A, 100 A/µs
CHARACTERISTICS
Sinusoidal waveform
VALUES
30
1000 to 1200
350
1.41
95
- 40 to 150
UNITS
A
V
A
V
ns
°C
VOLTAGE RATINGS
PART NUMBER
30EPF10PbF, 30CPF10PbF
30EPF12PbF, 30CPF12PbF
V
RRM
, MAXIMUM PEAK
REVERSE VOLTAGE
V
1000
1200
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
1100
1300
I
RRM
AT 150 °C
mA
6
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
Maximum peak one cycle
non-repetitive surge current
Maximum I
2
t for fusing
Maximum I
2
√t
for fusing
SYMBOL
I
F(AV)
I
FSM
I
2
t
I
2
√t
TEST CONDITIONS
T
C
= 95 °C, 180° conduction half sine wave
10 ms sine pulse, rated V
RRM
applied
10 ms sine pulse, no voltage reapplied
10 ms sine pulse, rated V
RRM
applied
10 ms sine pulse, no voltage reapplied
t = 0.1 ms to 10 ms, no voltage reapplied
VALUES
30
300
350
450
636
6360
A
2
s
A
2
√s
A
UNITS
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 94101
Revision: 09-Dec-09
For technical questions, contact:
diodestech@vishay.com
www.vishay.com
1
30EPF..PbF, 30CPF..PbF Soft Recovery Series
Vishay High Power Products
ELECTRICAL SPECIFICATIONS
PARAMETER
Maximum forward voltage drop
Forward slope resistance
Threshold voltage
Maximum reverse leakage current
SYMBOL
V
FM
r
t
V
F(TO)
I
RM
TEST CONDITIONS
30 A, T
J
= 25 °C
T
J
= 150 °C
T
J
= 25 °C
T
J
= 150 °C
VALUES
1.41
10.09
0.992
V
R
= Rated V
RRM
0.1
6
UNITS
V
mΩ
V
mA
Fast Soft Recovery
Rectifier Diode, 30 A
RECOVERY CHARACTERISTICS
PARAMETER
Reverse recovery time
Reverse recovery current
Reverse recovery charge
Snap factor
SYMBOL
t
rr
I
rr
Q
rr
S
TEST CONDITIONS
I
F
at 30 Apk
25 A/µs
25 °C
Typical
VALUES
450
6.1
2.16
0.6
UNITS
ns
A
µC
dir
dt
I
FM
t
a
t
rr
t
b
Q
rr
I
RM(REC)
t
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Maximum thermal resistance,
junction to case
Maximum thermal resistance,
junction to ambient
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
Case style TO-247AC modified (JEDEC)
Marking device
Case style TO-247AC
SYMBOL
T
J
, T
Stg
R
thJC
R
thJA
R
thCS
Mounting surface, smooth and greased
DC operation
TEST CONDITIONS
VALUES
- 40 to 150
0.8
40
0.2
6
0.21
6 (5)
12 (10)
30EPF10
30EPF12
30CPF10
30CPF12
g
oz.
kgf · cm
(lbf · in)
°C/W
UNITS
°C
Mounting torque
www.vishay.com
2
For technical questions, contact:
diodestech@vishay.com
Document Number: 94101
Revision: 09-Dec-09
30EPF..PbF, 30CPF..PbF Soft Recovery Series
Fast Soft Recovery
Rectifier Diode, 30 A
150
80
30.PF.. Series
R
thJC
(DC) = 0.8 K/W
Vishay High Power Products
Maximum Allowable Case
Temperature (°C)
140
130
Maximum Average Forward
Power Loss (W)
70
60
50
40
180°
120°
90°
60°
30°
DC
Ø
120
110
100
60°
90
80
0
5
10
15
20
30°
Conduction angle
RMS limit
30
Ø
120°
90°
25
180°
30
35
20
10
0
0
10
20
Conduction period
30.PF.. Series
T
J
= 150 °C
30
40
50
Average Forward Current (A)

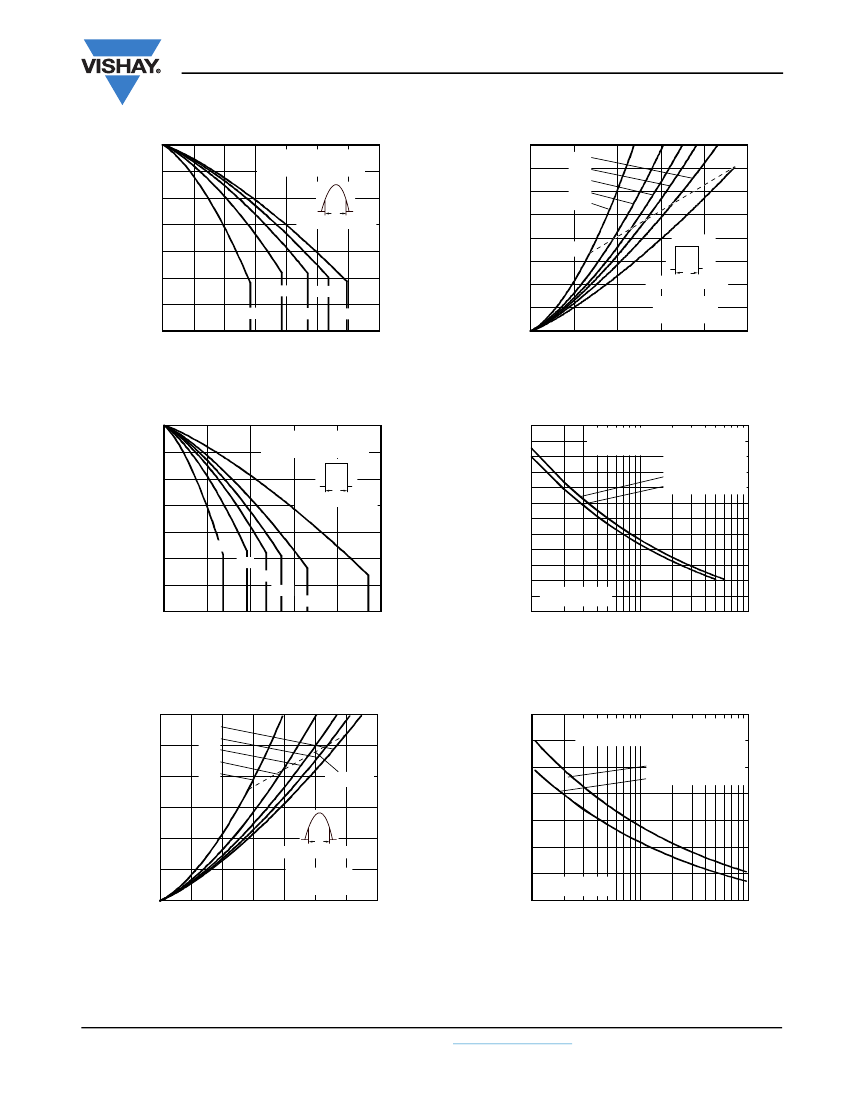

Fig. 1 - Current Rating Characteristics
Average Forward Current (A)
Fig. 4 - Forward Power Loss Characteristics
150
350
30.PF.. Series
R
thJC
(DC) = 0.8 K/W
300
At any rated load condition and
with
rated
V
RRM
applied following surge.
Initial T
J
= 150 °C
at 60 Hz 0.0083 s
at 50 Hz 0.0100 s
Maximum Allowable Case
Temperature (°C)
140
130
Peak Half Sine Wave
Forward Current (A)
Ø
250
200
150
100
120
110
30°
100
90
80
0
10
20
60°
90°
120°
Conduction period
180°
30
40
DC
50
50
1
30.PF.. Series
10
100
Average Forward Current (A)
Fig. 2 - Current Rating Characteristics
Number of Equal Amplitude Half Cycle
Current Pulses (N)
Fig. 5 - Maximum Non-Repetitive Surge Current
60
400
180°
120°
90°
60°
30°
350
Maximum non-repetitive surge current
versus
pulse train duration.
Initial T
J
= 150 °C
No voltage
reapplied
Rated
V
RRM
reapplied
Maximum Average Forward
Power Loss (W)
50
40
30
20
10
0
0
5
Peak Half Sine Wave
Forward Current (A)
300
250
200
150
100
30.PF.. Series
50
0.01
RMS limit
Ø
Conduction angle
30.PF.. Series
T
J
= 150 °C
10
15
20
25
30
35
0.1
1
Average Forward Current (A)
Fig. 3 - Forward Power Loss Characteristics
Pulse Train Duration (s)
Fig. 6 - Maximum Non-Repetitive Surge Current
Document Number: 94101
Revision: 09-Dec-09
For technical questions, contact:
diodestech@vishay.com
www.vishay.com
3
30EPF..PbF, 30CPF..PbF Soft Recovery Series
Vishay High Power Products
Instantaneous Forward Current (A)
1000
Fast Soft Recovery
Rectifier Diode, 30 A
100
10
T
J
= 25 °C
T
J
= 150 °C
30.PF.. Series
1
0
1
2
3
4
5
6
Instantaneous Forward Voltage (V)

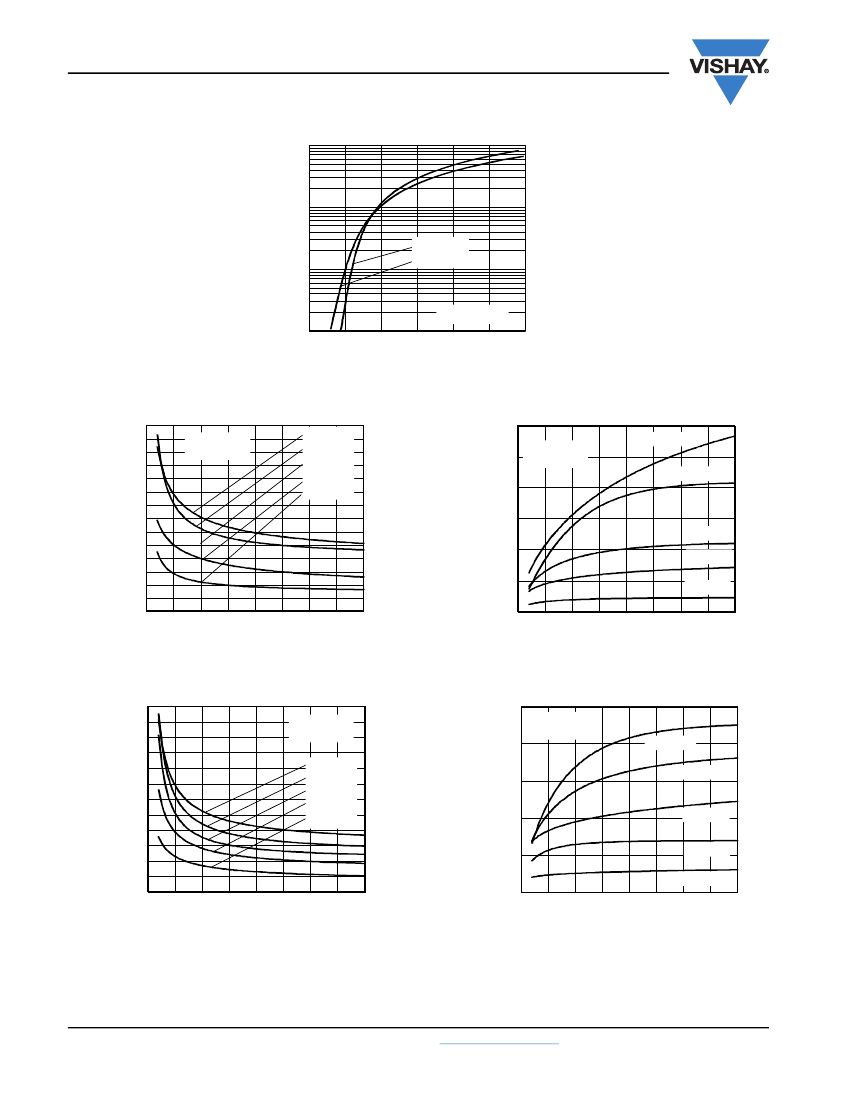

Fig. 7 - Forward Voltage Drop Characteristics
0.7
0.6
30.PF.. Series
T
J
= 25 °C
Q
rr
- Maximum Reverse
Recovery Charge (µC)
t
rr
- Maximum Reverse
Recovery Time (µs)
I
FM
= 30 A
I
FM
= 20 A
I
FM
= 10 A
I
FM
= 5 A
I
FM
= 1 A
6
5
4
3
I
FM
= 10 A
2
1
0
I
FM
= 5 A
I
FM
= 1 A
30.PF.. Series
T
J
= 25 °C
I
FM
= 30 A
I
FM
= 20 A
0.5
0.4
0.3
0.2
0.1
0
0
50
100
150
200
0
50
100
150
200
dI/dt - Rate of Fall of Forward Current (A/µs)
Fig. 8 - Recovery Time Characteristics, T
J
= 25 °C
dI/dt - Rate of Fall of Forward Current (A/µs)
Fig. 10 - Recovery Charge Characteristics, T
J
= 25 °C
1.2
1.0
0.8
0.6
0.4
0.2
0
0
50
100
150
200
30.PF.. Series
T
J
= 150 °C
I
FM
= 30 A
I
FM
= 20 A
I
FM
= 10 A
I
FM
= 5 A
I
FM
= 1 A
10
30.PF.. Series
T
J
= 150 °C
Q
rr
- Maximum Reverse
Recovery Charge (µC)
t
rr
- Maximum Reverse
Recovery Time (µs)
8
I
FM
= 30 A
I
FM
= 20 A
6
4
I
FM
= 10 A
I
FM
= 5 A
I
FM
= 1 A
2
0
0
50
100
150
200
dI/dt - Rate of Fall of Forward Current (A/µs)
Fig. 9 - Recovery Time Characteristics, T
J
= 150 °C
dI/dt - Rate of Fall of Forward Current (A/µs)
Fig. 11 - Recovery Charge Characteristics, T
J
= 150 °C
www.vishay.com
4
For technical questions, contact:
diodestech@vishay.com
Document Number: 94101
Revision: 09-Dec-09
30EPF..PbF, 30CPF..PbF Soft Recovery Series
Fast Soft Recovery
Rectifier Diode, 30 A
25
30.PF.. Series
T
J
= 25 °C
I
FM
= 30 A
35
30
30.PF.. Series
T
J
= 150 °C
I
FM
= 30 A
I
FM
= 20 A
I
FM
= 10 A
I
FM
= 5 A
Vishay High Power Products
I
rr
- Maximum Reverse
Recovery Current (A)
I
rr
- Maximum Reverse
Recovery Current (A)
20
I
FM
= 20 A
I
FM
= 10 A
I
FM
= 5 A
25
20
15
10
15
10
I
FM
= 1 A
5
I
FM
= 1 A
5
0
0
50
100
150
200
0
0
50
100
150
200
dI/dt - Rate of Fall of Forward Current (A/µs)
Fig. 12 - Recovery Current Characteristics, T
J
= 25 °C
dI/dt - Rate of Fall of Forward Current (A/µs)
Fig. 13 - Recovery Current Characteristics, T
J
= 150 °C
Z
thJC
- Transient Thermal Impedance (K/W)
1
Steady state
value
(DC operation)
0.1
D = 0.50
D = 0.33
D = 0.25
D = 0.17
D = 0.08
Single pulse
30.PF.. Series
0.01
0.0001
0.001
0.01
0.1
1
10

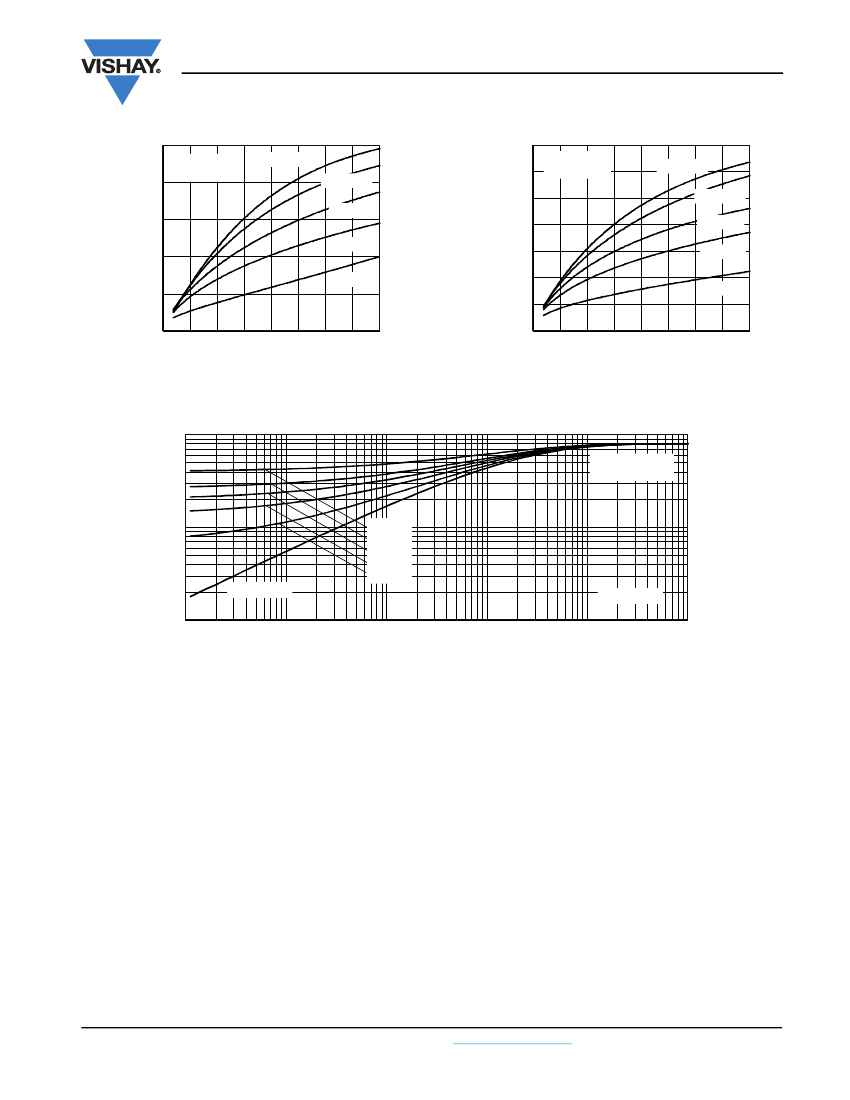

Square Wave Pulse Duration (s)
Fig. 14 - Thermal Impedance Z
thJC
Characteristics
Document Number: 94101
Revision: 09-Dec-09
For technical questions, contact:
diodestech@vishay.com
www.vishay.com
5
