VS-30EPH06PbF
Vishay Semiconductors
Hyperfast Rectifier, 30 A FRED Pt
®
Base
common
cathode
2
FEATURES
• Hyperfast recovery time
• Low forward voltage drop
• 175 °C operating junction temperature
• Low leakage current
• Single diode device
• Compliant to RoHS Directive 2002/95/EC
TO-247AC modified
1
Cathode
3
Anode
• Designed and qualified for industrial level
DESCRIPTION/APPLICATIONS
PRODUCT SUMMARY
Package
I
F(AV)
V
R
V
F
at I
F
t
rr
typ.
T
J
max.
Diode variation
TO-247AC modified (2 pins)
30 A
600 V
2.6 V
See Recovery table
175 °C
Single die
State of the art hyperfast recovery rectifiers designed with
optimized performance of forward voltage drop, hyperfast
recovery time and soft recovery.
The planar structure and the platinum doped life time
control guarantee the best overall performance, ruggedness
and reliability characteristics.
These devices are intended for use in PFC boost stage in
the AC/DC section of SMPS, inverters or as freewheeling
diodes.
Their extremely optimized stored charge and low recovery
current minimize the switching losses and reduce over
dissipation in the switching element and snubbers.
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Peak repetitive reverse voltage
Average rectified forward current
Non-repetitive peak surge current
Operating junction and storage temperatures
SYMBOL
V
RRM
I
F(AV)
I
FSM
T
J
, T
Stg
T
C
= 116 °C
T
J
= 25 °C
TEST CONDITIONS
VALUES
600
30
300
- 65 to 175
UNITS
V
A
°C
ELECTRICAL SPECIFICATIONS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
Breakdown voltage,
blocking voltage
Forward voltage
SYMBOL
V
BR
,
V
R
V
F
I
R
C
T
L
S
I
R
= 100 μA
I
F
= 30 A
I
F
= 30 A, T
J
= 150 °C
V
R
= V
R
rated
T
J
= 150 °C, V
R
= V
R
rated
V
R
= 600 V
Measured lead to lead 5 mm from package body
TEST CONDITIONS
MIN.
600
-
-
-
-
-
-
TYP.
-
2.0
1.34
0.3
60
33
3.5
MAX.
-
2.6
1.75
50
500
-
-
μA
pF
nH
V
UNITS
Reverse leakage current
Junction capacitance
Series inductance
Document Number: 94018
Revision: 04-Apr-11
For technical questions within your region, please contact one of the following:
www.vishay.com
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
1
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30EPH06PbF
Vishay Semiconductors
Hyperfast Rectifier, 30 A FRED Pt
®
DYNAMIC RECOVERY CHARACTERISTICS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
I
F
= 1.0 A, dI
F
/dt = 50 A/μs, V
R
= 30 V
Reverse recovery time
t
rr
T
J
= 25 °C
T
J
= 125 °C
Peak recovery current
I
RRM
Q
rr
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
I
F
= 30 A
dI
F
/dt = 200 A/μs
V
R
= 200 V
MIN.
-
-
-
-
-
-
-
TYP.
28
31
77
3.5
7.7
65
345
MAX.
35
-
-
-
-
-
-
A
ns
UNITS
Reverse recovery charge
nC
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Thermal resistance,
junction to case per leg
Thermal resistance,
junction to ambient per leg
Thermal resistance,
case to heatsink
Weight
Mounting torque
Marking device
Case style TO-247AC modified
SYMBOL
T
J
, T
Stg
R
thJC
R
thJA
R
thCS
Typical socket mount
Mounting surface, flat, smooth
and greased
TEST CONDITIONS
MIN.
- 65
-
-
-
-
-
6.0
(5.0)
TYP.
-
0.5
-
0.4
6.0
0.22
-
MAX.
175
0.9
70
-
-
-
12
(10)
30EPH06
g
oz.
kgf · cm
(lbf · in)
°C/W
UNITS
°C
www.vishay.com
2
For technical questions within your region, please contact one of the following:
Document Number: 94018
DiodesAmericas@vishay.com, DiodesAsia@vishay.com,
Revision: 04-Apr-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30EPH06PbF
Hyperfast Rectifier, 30 A FRED Pt
®
Vishay Semiconductors
1000
1000
I
R
- Reverse Current (µA)
100
10
1
0.1
T
J
= 175 °C
T
J
= 150 °C
T
J
= 125 °C
T
J
= 100 °C
I
F
- Instantaneous
Forward Current (A)
100
10
T
J
= 175 °C
T
J
= 150 °C
T
J
= 25 °C
T
J
= 25 °C
0.01
0.001
0.0001
1
0
0.5
1
1.5
2
2.5
3
3.5
0
100
200
300
400
500
600
V
F
- Forward Voltage Drop (V)

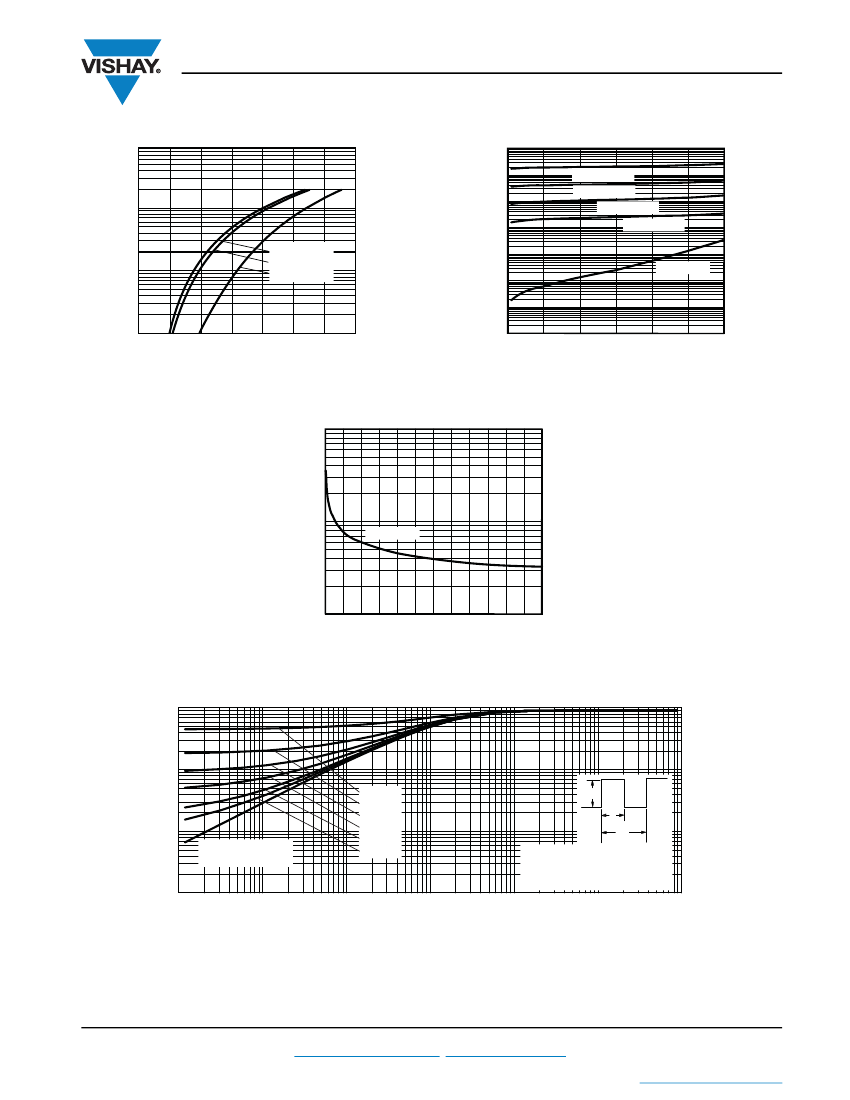

Fig. 1 - Typical Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
1000
C
T
- Junction Capacitance (pF)
100
T
J
= 25 °C
10
0
100
200
300
400
500
600
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Z
thJC
- Thermal Impedance (°C/W)
1
0.1
D = 0.50
D = 0.20
D = 0.10
D = 0.05
D = 0.02
D = 0.01
P
DM
t
1
t
2
0.01
Single pulse
(thermal resistance)
Notes:
1. Duty factor D = t
1
/t
2
.
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.01
0.1
1
0.001
0.00001
.
10
0.0001
0.001
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Document Number: 94018
Revision: 04-Apr-11
For technical questions within your region, please contact one of the following:
www.vishay.com
DiodesAmericas@vishay.com, DiodesAsia@vishay.com,
3
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30EPH06PbF
Vishay Semiconductors
Hyperfast Rectifier, 30 A FRED Pt
®
180
90
80
160
DC
70
60
I
F
= 30 A
I
F
= 15 A
Allowable Case Temperature (°C)
t
rr
(ns)
140
Square wave (D = 0.50)
Rated V
R
applied
50
40
30
120
100
See note (1)
80
0
5
10
15
20
25
30
35
40
45
20
10
0
100
V
R
= 200 V
T
J
= 125 °C
T
J
= 25 °C
1000
I
F(AV)
- Average Forward Current (A)

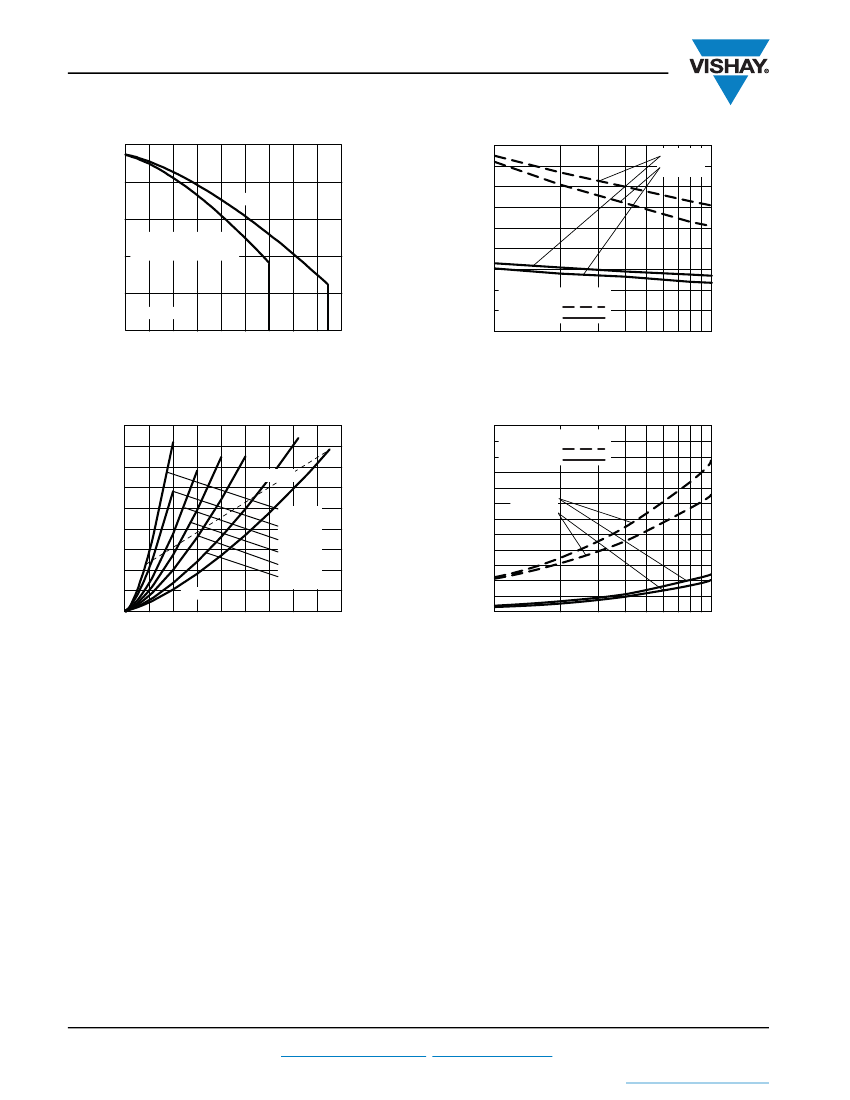

Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
90
80
dI
F
/dt (A/µs)
Fig. 7 - Typical Reverse Recovery Time vs. dI
F
/dt
1200
1000
V
R
= 200 V
T
J
= 125 °C
T
J
= 25 °C
Average Power Loss (W)
70
60
50
40
30
20
10
0
0
5
10
15
20
25
DC
RMS limit
800
D = 0.01
D = 0.02
D = 0.05
D = 0.10
D = 0.20
D = 0.50
Q
rr
(nC)
600
400
200
0
100
I
F
= 30 A
I
F
= 15 A
30
35
40
45
1000
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
dI
F
/dt (A/µs)
Fig. 8 - Typical Stored Charge vs. dI
F
/dt
Note
(1)
Formula used: T = T - (Pd + Pd
C
J
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= Rated V
R
www.vishay.com
4
For technical questions within your region, please contact one of the following:
Document Number: 94018
DiodesAmericas@vishay.com, DiodesAsia@vishay.com,
Revision: 04-Apr-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30EPH06PbF
Hyperfast Rectifier, 30 A FRED Pt
®
Vishay Semiconductors
V
R
= 200 V
0.01
Ω
L = 70 μH
D.U.T.
dI
F
/dt
adjust
D
G
IRFP250
S
Fig. 9 - Reverse Recovery Parameter Test Circuit
(3)
I
F
0
t
rr
t
a
t
b
Q
rr
(2)
(4)
I
RRM
0.5 I
RRM
dI
(rec)M
/dt
(5)
0.75 I
RRM
(1)
dI
F
/dt
(1) dI
F
/dt - rate of change of current
through zero crossing
(2) I
RRM
- peak reverse recovery current
(3) t
rr
- reverse recovery time measured
from zero crossing point of negative
going I
F
to point where a line passing
through 0.75 I
RRM
and 0.50 I
RRM
extrapolated to zero current.
(4)
Q
rr
- area under curve defined by t
rr
and I
RRM
Q
rr
=
t
rr
x I
RRM
2
(5) dI
(rec)M
/dt - peak rate of change of
current during t
b
portion of t
rr
Fig. 10 - Reverse Recovery Waveform and Definitions
Document Number: 94018
Revision: 04-Apr-11
For technical questions within your region, please contact one of the following:
www.vishay.com
DiodesAmericas@vishay.com, DiodesAsia@vishay.com,
5
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
