ALUMINUM ELECTROLYTIC CAPACITORS
Goback
MBA
■FEATURES
series
NEW
業界最½
IMPEDANCE
業界最高許容紋波電流
l
Special low impedance at 100kHz
l
For motherboard.,Highripple current, Low E.S.R
l
Load life 105℃ 2000 hours.
■SPECIFICATIONS
Item
Operating Temperature
Rated Voltage Range
Capacitance Tolerance
Leakage Current(MAX)
Characteristics
－40℃∼＋105℃
6.3~16W.V.
±20%
(20℃,120Hz )
I=0.03CV or 3uA whichever is greater.(After 2 minutes)
I=Leakage Current(uA) C=Nominal Capacitance(uA) V=Rated
Dissipation Factor
(tanδ)
Rated voltage (V)
Tan
δ
0.18
6.3
0.16
10
0.14
16
(20℃ 120Hz)
MAX
Low Temperature
Stability Impedance Ratio
Rated voltage (V)
Z(-40℃)/Z(20℃)
6.3
3
10
3
16
3
(120Hz)
MAX
After life test at conditions stated in the table below,the capacitors shall meet
the following requirement.
Load Life
Capacitance Change
Dissipation Factor
Leakage Current
Within ±25% of the initial value.
Not more than 200% of the specified value
Not more than the specified value
Case Dia
φ8,φ10,
Life Time
2000
Shelf Life
Standard
After leaving capacitors under no load at 105℃ for 500 hours and applying
voltage according to JIS C-5102 4-3, they meet the specified value for load
life characteristics listed above.
JIS C 5141
■MULTIPLIER
FOR RIPPLE CURRENT
Frequency coefficient
Frequency(Hz)
Cap(uF)
47-330
470-1000
1500
120
0.47
0.55
0.65
1k
0.75
0.85
0.90
10k
0.95
0.98
1.00
≧100k
1.00
1.00
1.00
Temperature coefficient
Temperature
Coefficient
65℃
≧
2.10
75℃
2.00
85℃
1.70
105℃
1.00
MBA-0401

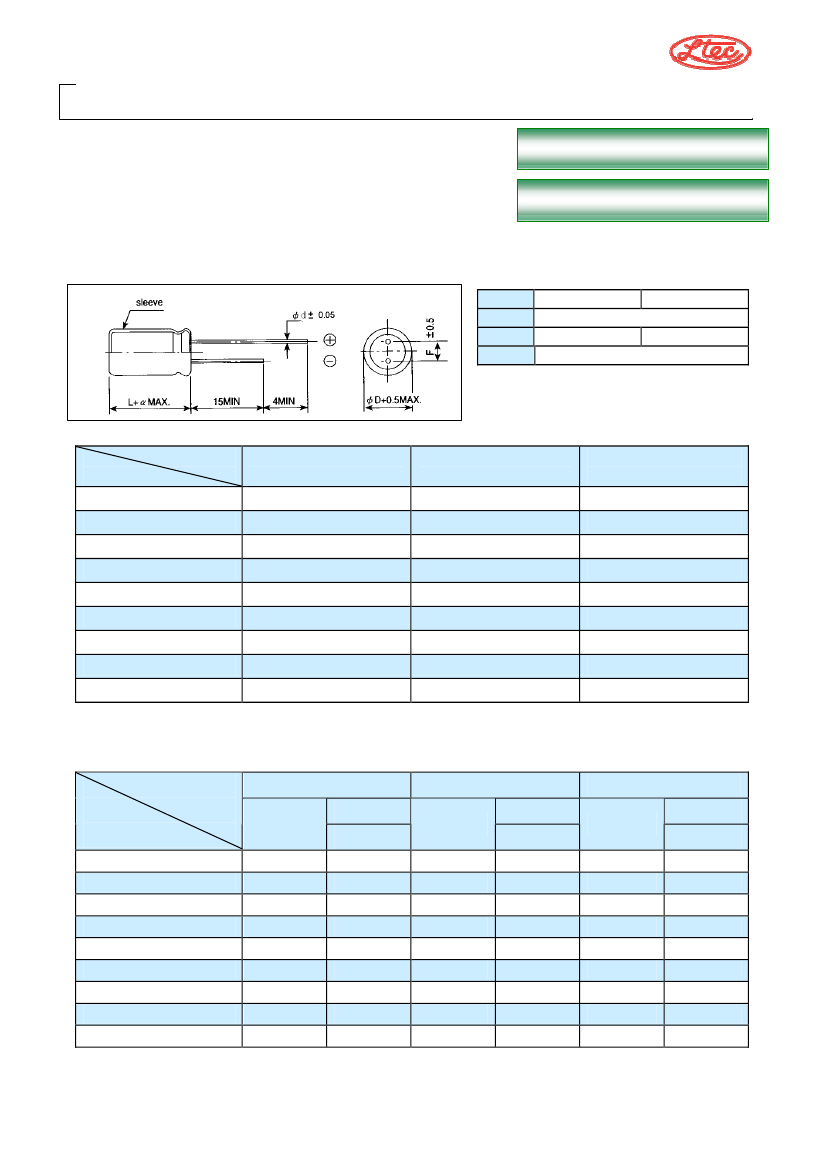

ALUMINUM ELECTROLYTIC CAPACITORS
MBA
■FEATURES
業界最½
IMPEDANCE
series
l
Special low impedance at 100kHz
l
For motherboard.,Highripple current, Low E.S.R
l
Load life 105℃ 2000 hours.
φD
φd
F
α
業界最高許容紋波電流
8
3.5
5.0
L≦16:α=1.5 L≧2.0:α=2.0
0.6
10
■Standard
Size
WV(V.DC)
Cap(uF)
470
680
820
1000
1200
1500
1800
2200
3300
φDxL(mm)
6.3
(OJ)
8X11.5
8X11.5
8X16
8X16
10X12.5
10 X16
10X20
10X23
10
(1A)
8X11.5
8X11.5
10 X12.5
10X16
10X23
16
(1C)
8X11.5
10 X12.5
10X16
10X20
■MAXIMUM
PERMISSIBLE RIPPLE CURRENT,IMPEDANCE
Ripple Current(Ma.m.s./105℃,100kHz),Impedance(ΩMAX/100kHz)
WV(V.DC)
Cap(uF)
470
680
820
1000
1200
1500
1800
2200
3300
6.3(OJ)
Impedanc
Ripple
10(1A)
Impedanc
Ripple
16(1C)
Impedanc
Ripple
20℃
0.020
0.019
0.018
0.016
0.013
0.011
0.010
0.009
1300
1420
1700
1780
1860
2280
2990
3200
1300
1420
1860
2390
3270
20℃
0.021
0.016
0.014
0.011
0.009
1420
1860
2390
3270
20℃
0.021
0.016
0.011
0.010
MBA-0401
