P695-3CCSF

Description
RF SMP Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Locking, Receptacle,
CategoryThe connector    The connector
File Size81KB,1 Pages
ManufacturerCarlisle Interconnect Components

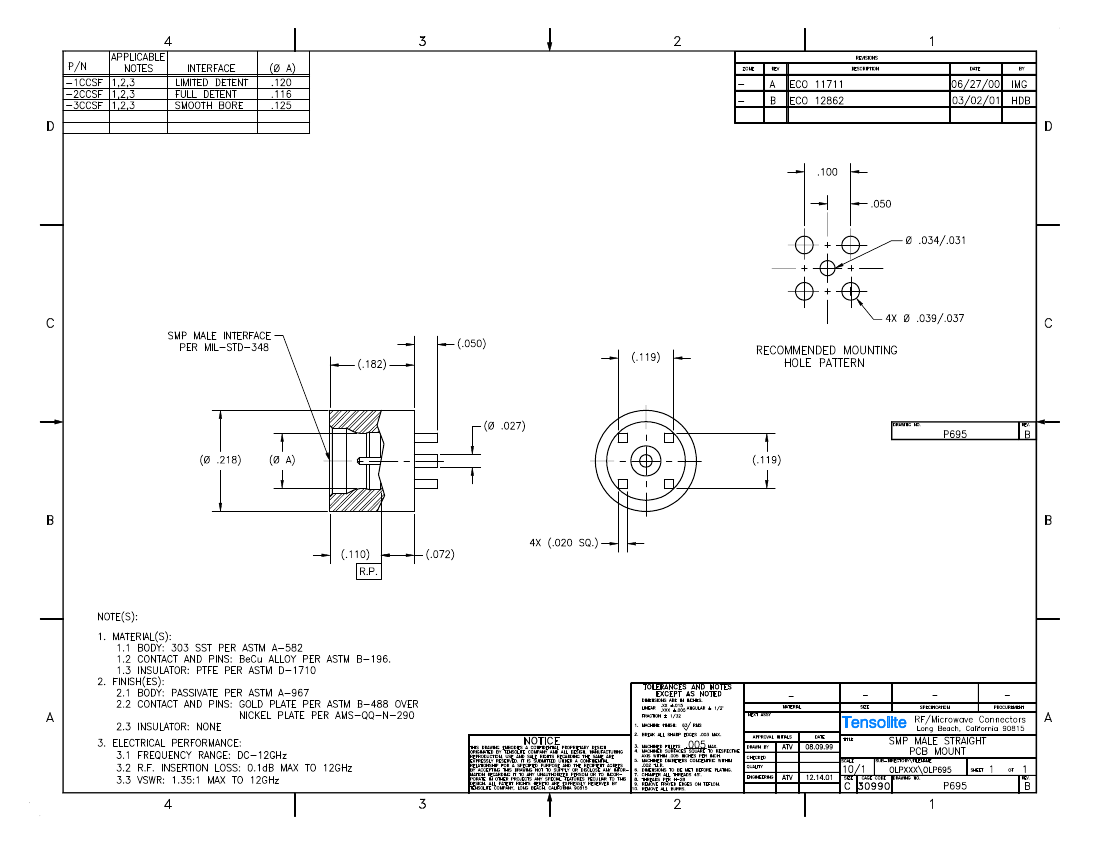

Download Datasheet Parametric View All

P695-3CCSF Overview

RF SMP Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Locking, Receptacle,

P695-3CCSF Parametric

Parameter NameAttribute value
MakerCarlisle Interconnect Components
Reach Compliance Codecompliant
subject depth0.182 inch
Body diameter0.218 inch
Body/casing typeRECEPTACLE
Connector typeRF SMP CONNECTOR
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact styleCOAX
Durability5000 Cycles
maximum insertion force8.896 N
Insertion loss0.1 dB
Insulation resistance5000000000 Ω
insulator materialPOLYTETRAFLUOROETHYLENE
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating frequency12 GHz
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceGOLD OVER NICKEL
Terminal length0.05 inch
Termination typeSOLDER
Total number of contacts1
voltage standing wave ratio1.35
Evacuation force-minimum value2.224 N
