AVL / AVYL Series
Automotive Leaded Varistor
Description:
Almost all electronic systems in internal-combustion powered vehicles,
e.g., anti-lock brakes, direct ignition, airbag control, wiper motors, etc. are
susceptible to damage from destructive voltage transients.
Stackpole Electronics, Inc.
Resistive Product Solutions

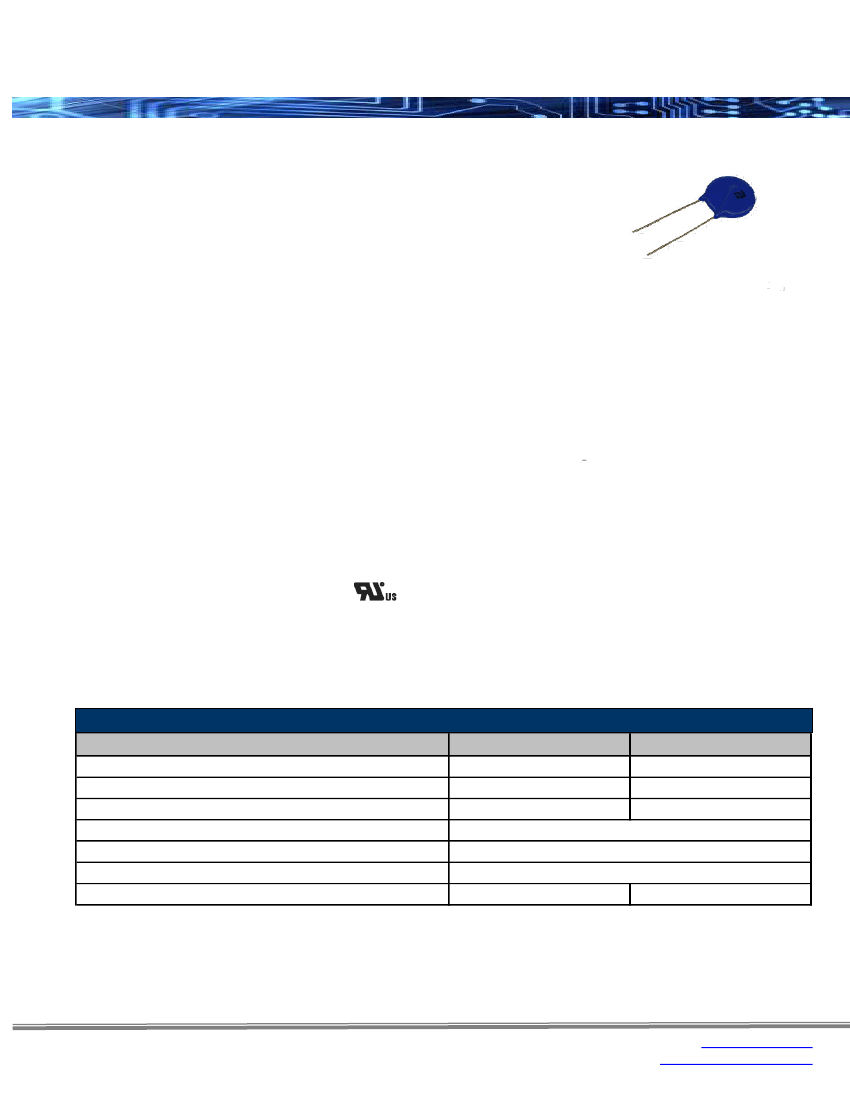

Stackpole/KEKO’s AVL Series of leaded automotive varistors includes both
multilayer and single layer components, defined by W
LD
capability. Multilayer
devices are intended W
LD
applications requiring up to 50 Joules of energy,
and single layer discs are for W
LD
applications requiring above 50 Joules of
energy.
Automotive multilayer varistors offer excellent transient energy absorption due to improved internal energy distribution.
Compared to an equivalent automotive disc varistor, they offer better electrical characteristic in much smaller size.
Automotive disc varistors are specifically designed and used in applications requiring higher levels of W
LD
energy
absorption, which MLV devices are incapable of handling.
Features:
•
•
•
•
•
•
AC operating voltage range (Vrms) from 14V to 40V
DC operating voltage (Vdc) from 16V to 56V
Higher operating voltages are available upon request
Power supply voltages (Vdc) 12V, 24V and 42V
Broad range of current and energy handling
capabilities realized with either type of construction
AVYL high temperature product will have performance
characteristics different from the AVL listed here.
Contact factory for specific details.
UL1449, C22.2 – File E221545 Section 7
•
•
•
•
•
•
In-line leads on automotive MLV varistors
MLV varistors: +125ºC continuous operating
temperature is available upon request
(+150ºC for AVYL)
W
LD
up to 50J
Available in tape and reel for automatic insertion
equipment
Lead-free RoHS compliant
AEC-Q200 qualified Grade 1
General Technical Data
Specification
Operating Ambient Temperature for W
LD
above 50J - AVL
Operating Ambient Temperature for W
LD
above 50J - AVYL
Storage Temperature Range for W
LD
above 50J
Threshold Voltage Temperature Coefficient
Insulation Resistance
Response Time
Climatic Category for W
LD
≤
50J - MLV
Higher operating voltages are available upon request.
40/125/56
MLV
-40ºC to +150ºC
-40ºC to +150ºC
-40ºC to +85ºC
≤0.05%
/ ºC
> 1Gohm
< 25ns
40/85/56
SLV
-40ºC to +85ºC
-40ºC to +150ºC
-40ºC to +125ºC
Rev Date: 11/04/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
AVL / AVYL Series
Automotive Leaded Varistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Standard Packaging Options / Quantity
Series
Voltage Range
(Vrms)
14 - 40
14 - 40
AVL, AVYL
14 - 40
14 - 20
25 - 40
25 - 40
Model Size
60 2
80 2
90 2
110 3
20
40
Packaging Options: 7mm, 10mm, 14mm, 20mm and 23mm
Bulk
1,500
1,000
1,000
700
400
400
Tape and Reel
2,000
1,500
1,500
1,000
700
700
Ammo Pack
2,000
1,500
1,500
1,000
800
800
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
A
V
L
2
0
K
8
0
2
0
5
0
T
Product Series
AVL
Standard
AVYL High Temp
Vrms
See Device Ratings &
Dimensions Table
Tolerance
Code
Tol
K
10%
Disc Size (mm)
Code
Size
60
6 mm
80
8 mm
90
9 mm
110
11 mm
20
20 mm
40
40 mm
Lead Spacing
Code Spacing
2
5 mm
3
7.5 mm
W
LD
Code Size
003
3
006
6
012
12
025
25
050
50
100
100
B
T
A
Packaging
Bulk
Tape and Reel
Ammo
Legacy Part Number (before January 3, 2011):
SEI Type
Lead Style
Vrms
Tolerance
Disc Size
Lead Spacing
W
LD
Packaging
AVL
Type Description
AVL
Standard
AVYL High Temp
Size
60 2
80 2
80 2
90 2
110 3
20, 40
1
Version
1 = Outward crimped
1 = Straight leads
5 = Straight with kink
1 = Inward crimped
1 = Inward crimped
1 = Straight leads
20
Code
K
K
Tol
10%
80
Size
60 = 6mm
80 = 8mm
90 = 9mm
110 = 11mm
20 = 20mm
40 = 40mm
2
Code Spacing
2
5mm
3
7.5mm
050
W
LD
003 = 3
006 = 6
012 = 12
025 = 25
050 = 50
100 = 100
Code
B
R
A
T
Description
Bulk
Tape and Reel
Ammo
Rev Date: 11/04/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
AVL / AVYL Series
Automotive Leaded Varistor
Stackpole Electronics, Inc.
Resistive Product Solutions

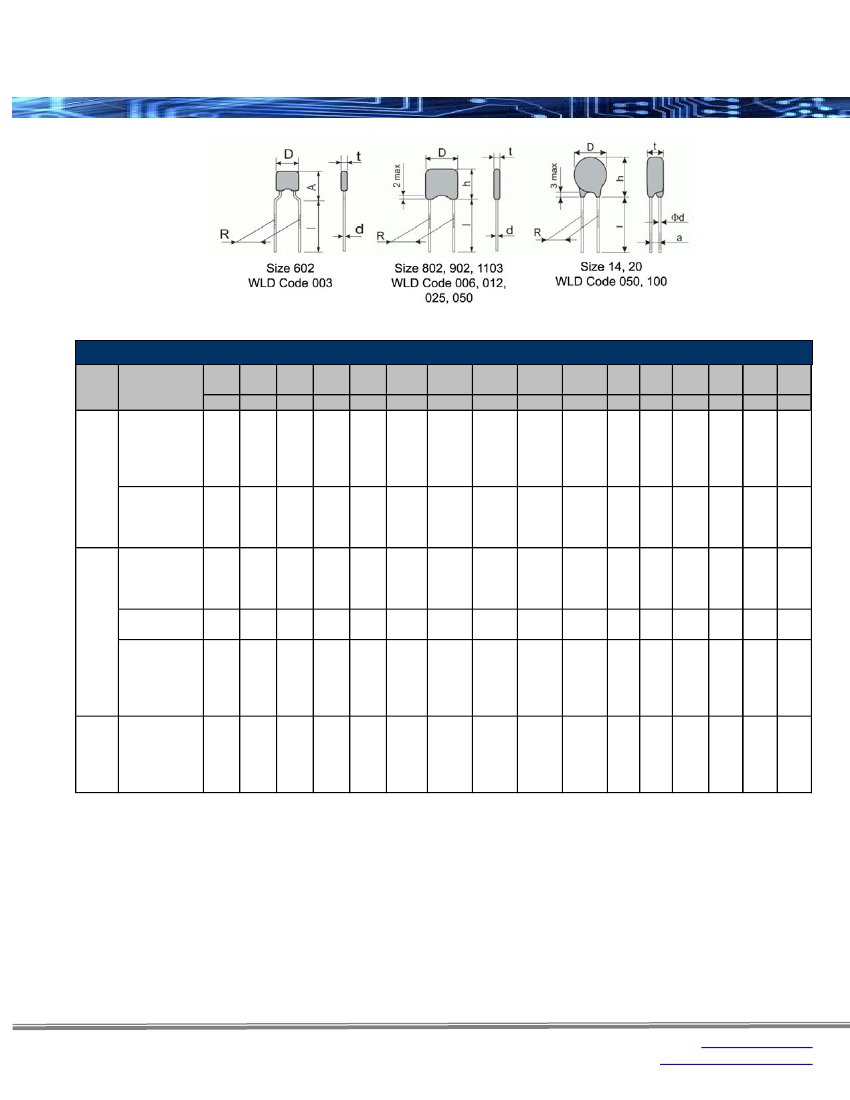

Device Ratings and Dimensions
Power
Supply
Part Number
14K602003
14K802006
14K902012
14K902025
14K1103050
17K602003
17K802006
17K902025
17K1103050
20K602003
20K802006
20K902025
20K1103050
25K14050
25K20100
30K602003
30K802006
30K902025
30K14050
30K20100
40K602003
40K802006
40K902025
40K14050
40K20100
V
rms
V
dc
V
N
V
JUMP
V
C
I
C
I
P
W
MAX
(joules)
1.6
2.4
4.4
6.0
13.2
1.8
2.9
7.2
15.8
1.9
3.0
9.0
17.0
28.0
50.0
2.3
3.8
18.0
34.0
60.0
2.6
4.8
18.0
37.0
76.0
WLD
(joules)
3
6
12
25
50
3
6
25
50
3
6
25
50
50
100
3
6
25
50
100
3
6
25
50
100
(volts) (volts) (volts) (volts) (volts) (amps) (amps)
14
16
24
24.5
40
2.5
400
14
16
24
24.5
40
5.0
800
14
16
24
24.5
40
5.0
1,200
14
16
24
24.5
40
10.0
2,000
14
16
24
24.5
40
10.0
2,000
17
20
27
30
44
2.5
400
17
20
27
30
44
5.0
800
17
20
27
30
44
10.0
2,000
17
20
27
30
44
10.0
2,000
20
26
33
30
54
2.5
400
20
26
33
30
54
5.0
800
20
26
33
30
54
10.0
2,000
20
26
33
30
54
10.0
2,000
25
28
39
40
77
20.0
2,000
25
28
39
40
77
20.0
2,000
30
34
47
50
77
2.5
400
30
34
47
50
77
5.0
800
30
34
47
50
77
10.0
2,000
30
34
47
50
93
20.0
2,000
30
34
47
50
93
20.0
2,000
40
56
68
65
110
2.5
400
40
56
68
65
110
5.0
800
40
56
68
65
110
10.0
2,000
40
56
68
65
135
20.0
2,000
40
56
68
65
135
20.0
2,000
C
TYP
P
D
t
h
R
d
max 1 kHz max max max
(watts) (nF) (mm) (mm) (mm) (mm) (mm)
0.010
2.5
7.0 4.5
7
5.0
0.6
0.015
4.6
8.0 4.5
9
5.0
0.6
0.030
10.5
9.0 4.5
12
5.0
0.6
0.080
22.0
9.0 5.5
12
5.0
0.6
0.100
29.0 11.0 6.5
12
7.5
0.6
0.010
2.0
7.0 4.5
7
5.0
0.6
0.015
4.0
8.0 4.5
9
5.0
0.6
0.080
18.0
9.0 5.5
12
5.0
0.6
0.100
24.0 11.0 6.5
12
7.5
0.6
0.010
1.8
7.0 4.5
7
5.0
0.6
0.015
3.5
8.0 4.5
9
5.0
0.6
0.080
13.0
9.0 4.5
12
5.0
0.6
0.100
18.0 11.0 6.5
12
7.5
0.6
0.200
14.0 22.5 4.6
24
10.0
1.0
0.300
28.0 22.5 5.6
24
10.0
1.0
0.010
1.3
7.0 4.5
7
5.0
0.6
0.015
2.0
8.0 4.5
9
5.0
0.6
0.080
12.0
9.0 4.5
12
5.0
0.6
0.200
13.5 22.5 4.6
24
10.0
1.0
0.300
26.0 22.5 5.6
24
10.0
1.0
0.010
1.1
7.0 4.5
7
5.0
0.6
0.015
1.8
8.0 4.5
9
5.0
0.6
0.080
6.6
9.0 4.5
12
5.0
0.6
0.200
12.5 22.5 4.6
24
10.0
1.0
0.300
24.0 22.5 5.6
24
10.0
1.0
12V
24V
42V
Types AVL/AVYL35 are available upon request
