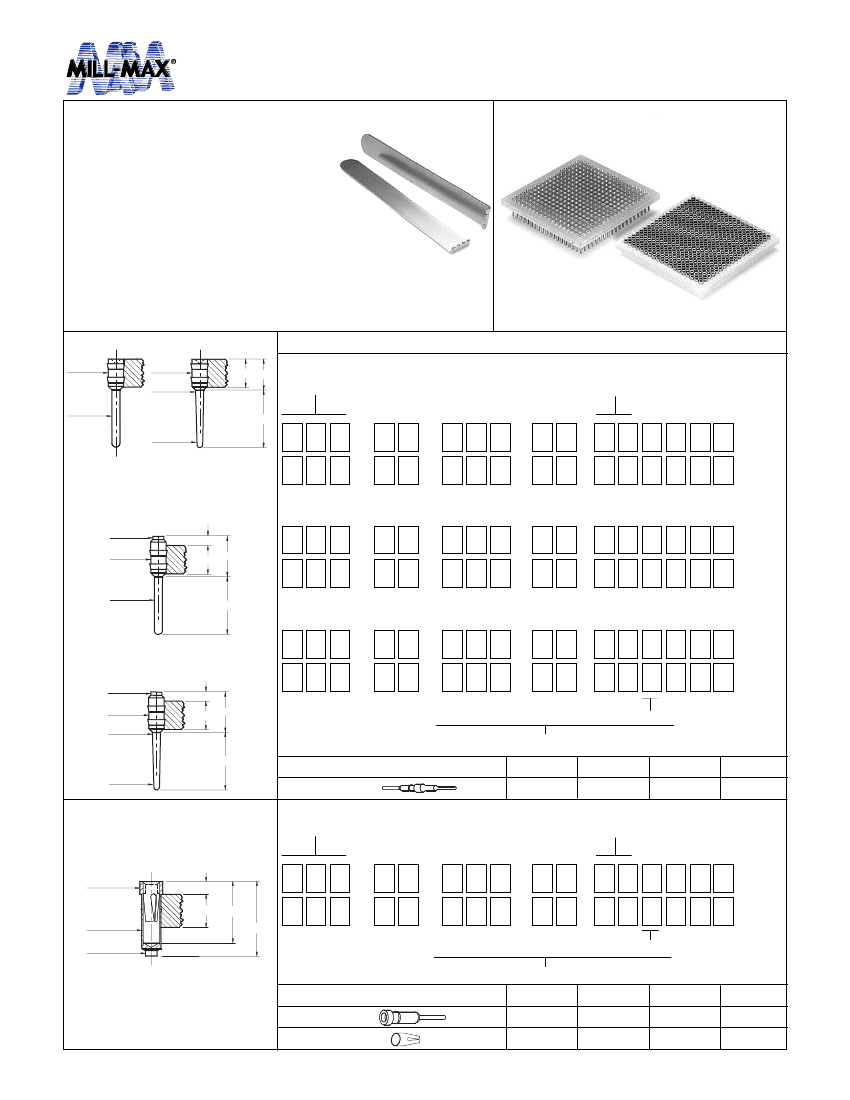

BALL GRID ARRAYS
For .050” Grid
Male Pin Adapters & Female Socket
•
BGA adapter/socket systems are a reliable way to make BGAs pluggable,
they may also be used as a high density board-to-board interconnect.
•
The BGA device is soldered to a 8737/4048 adapter
(or a 4098/4054 adapter is soldered to a PCB);
and then either one can be plugged into a 8214
surface mount socket.
•
Both socket and adapter have the same footprint as
the BGA device.
•
Insertion force is .40N per pin for standard pins 8737/4098.
Tapered EZ-IN pins 4048/4054 reduce insertion force to only
.08N, and are recommended for pin counts greater than 500.
A pry-bar tool (part #828-01-010) is available for extraction.
•
Insulator material is FR-4 epoxy having a TCE to match the BGA device and
circuit board.
•
Mill-Max offers the option of having the solder surfaces of the 4098/4054
adapters and 8214 socket pre-tinned.
Series 587, 582
BGA MOUNT ADAPTER PINS
.034 DIA.
.034 DIA.
.016 DIA.
.018 DIA.
.013 DIA.
.127
.062 .068
Ordering Information
FOR BGA MOUNT ADAPTER PINS
Series
Plating
Code
Window
5 8 7
5 4 0
STANDARD
PIN
#8737
EZ-IN
PIN
#4048
-
-
-
-
-
-
1 0
1 0
-
-
-
-
-
-
No. of pins
-
-
-
-
-
-
10
10µ” Au
-
-
-
-
-
-
Grid size
Pattern #
4 3 7
4 4 8
STAN-
DARD
EZ-IN
PIN
PCB MOUNT STANDARD
ADAPTER
PIN
#4098
.022 DIA.
.034 DIA.
.023
.062 .091
FOR PCB MOUNT STANDARD ADAPTER PIN
5 4 0
5 9 7
1 0
1 0
4 9 8
4 1 6
PRE-
TINNED
.018 DIA.
.127
FOR PCB MOUNT EZ-IN ADAPTER PIN
5 4 0
PCB MOUNT EZ-IN
ADAPTER
PIN
#4054
.022 DIA.
.034 DIA.
.016 DIA.
.023
.062 .091
1 0
1 0
4 5 4
4 3 0
PRE-
TINNED
5 9 7
Determined from footprint pattern pages 113 to 115
.127
.013 DIA.
PLATING CODE XX=
Pin Plating
FOR BGA FEMALE SOCKET
Series
SMT RECEPTACLE
TYPE
#8214
.043 DIA.
.024
.062 .115
.036 DIA.
.022 DIA.
.140
Plating
Code
Window
5 8 2
5 9 5
-
-
1 1
1 1
-
-
No. of pins
-
-
11
10µ” Au
10µ” Au
-
-
Grid size
Pattern #
4 1 4
4 2 6
PRE-
TINNED
Determined from footprint pattern pages 113 to 115
SPECIFY PLATING CODE XX=
Sleeve (Pin)
Contact (Clip)
w w w. m i l l - m a x . c o m
112
516-922-6000
