HMC745LC3C
v03.1010
13 Gbps, FAST RISE TIME XOR / XNOR GATE
w/ PROGRAMMABLE OUTPUT VOLTAGE & POSITIVE SUPPLY
Typical Applications
The HMC745LC3C is ideal for:
• RF ATE Applications
Features
Inputs Terminated Internally in 50 Ohms
Differential & Singe-Ended Operation
Fast Rise and Fall Times: 21 / 19 ps
Low Power Consumption: 240 mW typ.
Programmable Differential
Output Voltage Swing: 600 - 1200 mV
Propagation Delay: 95 ps
Single Supply: +3.3V
16 Lead Ceramic 3x3mm SMT Package: 9mm
2
3
HIGH SPEED LOGIC - SMT
• Broadband Test & Measurement
• Serial Data Transmission up to 13 Gbps
• Digital Logic Systems up to 13 GHz

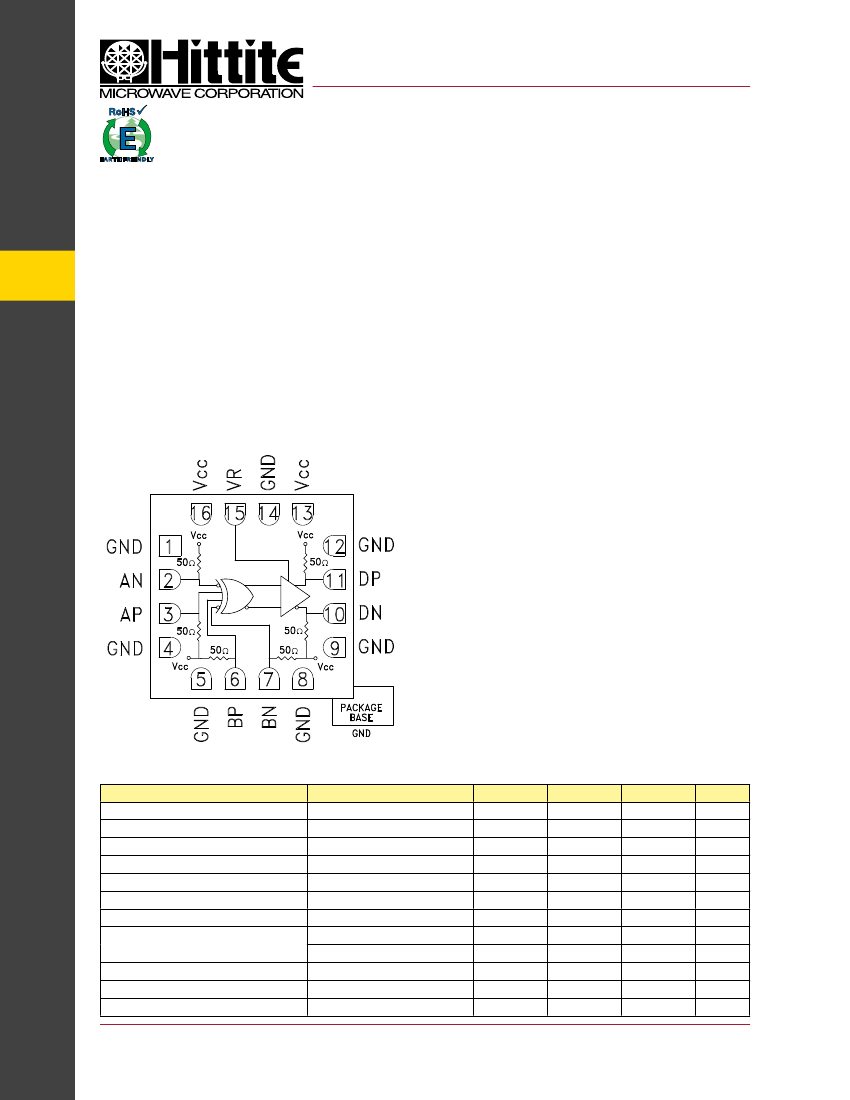

Functional Diagram
General Description
The HMC745LC3C is a XOR/XNOR gate function
designed to support data transmission rates of up to 13
Gbps, and clock frequencies as high as 13 GHz. The
HMC745LC3C also features an output level control pin,
VR, which allows for loss compensation or for signal
level optimization.
All input and output signals to the HMC745LC3C are
terminated with 50 Ohms to Vcc on-chip, and may
be either AC or DC coupled. Inputs or outputs can
be connected directly to a 50 Ohm to Vcc terminated
system, while DC blocking capacitors may be used
if the terminating system is 50 Ohms to ground. The
HMC745LC3C operates from a single +3.3V DC supply,
and is available in a ceramic RoHS compliant 3x3 mm
SMT package.
Electrical Specifications,
T
A
= +25 °C,
Vcc = +3.3V
Parameter
Power Supply Voltage
Power Supply Current
Maximum Data Rate
Maximum Clock Rate
Input High Voltage
Input Low Voltage
Input Return Loss
Output Amplitude
Output High Voltage
Output Low Voltage
Output Rise / Fall Time
Differential, 20% - 80%
Frequency <13 GHz
Single-Ended, peak-to-peak
Differential, peak-to-peak
2.8
2.1
10
550
1100
3.25
2
21 / 19
Conditions
Min.
3.0
Typ.
3.3
72
13
13
3.8
3.3
Max
3.6
Units
V
mA
Gbps
GHz
V
V
dB
mVp-p
mVp-p
V
V
ps
3-1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC745LC3C
v03.1010
13 Gbps, FAST RISE TIME XOR / XNOR GATE
w/ PROGRAMMABLE OUTPUT VOLTAGE & POSITIVE SUPPLY
Electrical Specifications,
(continued)
Parameter
Output Return Loss
Small Signal Gain
Random Jitter Jr
Deterministic Jitter, Jd
Propagation Delay, td
rms
peak-to-peak, 2
15
-1 PRBS input
[1]
2
95
Conditions
Frequency <13 GHz
Min.
Typ.
10
27
0.2
Max
Units
dB
dB
ps rms
ps, p-p
ps
3
HIGH SPEED LOGIC - SMT
[1] Deterministic jitter calculated by simultaneously measuring the jitter of a 300 mV, 13 GHz, 2
15
-1 PRBS input, and a single-ended output

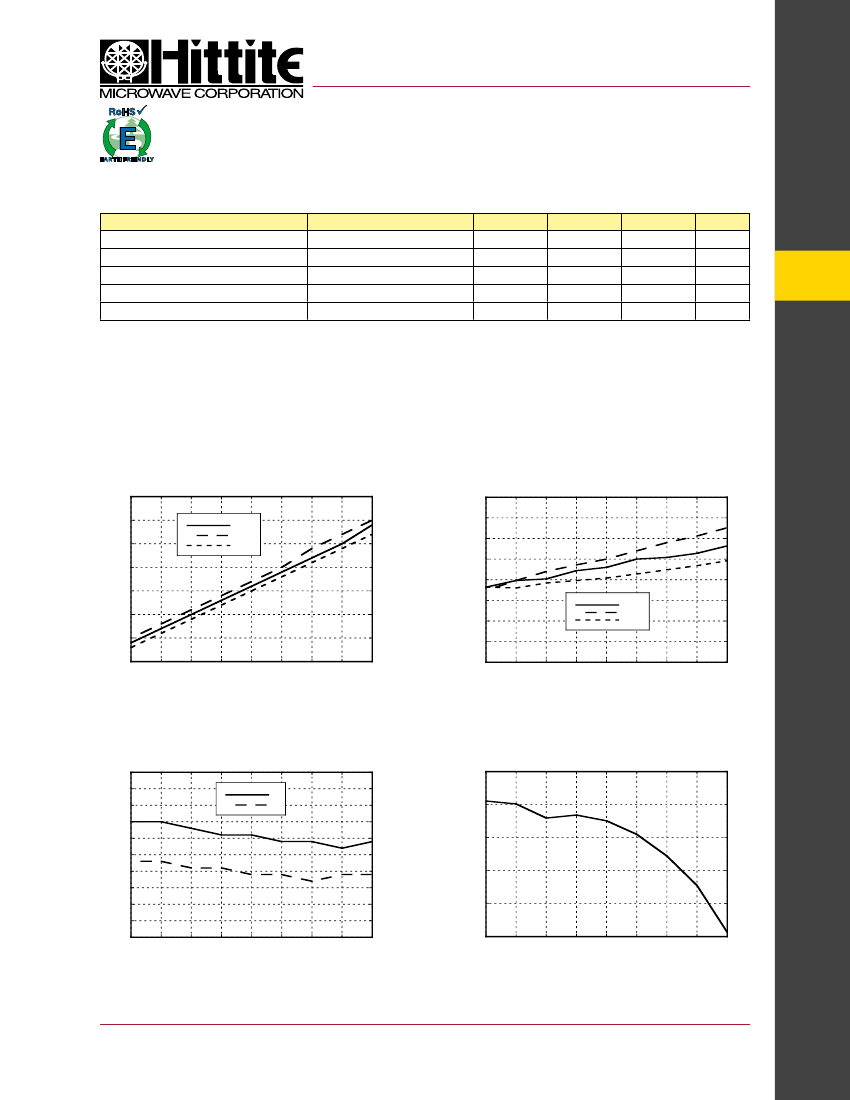

DC Current vs. Supply Voltage
90
+25C
+85C
-40C
[1] [2]
Output Differential
vs. Supply Voltage
[1] [2]
1200
DIFFERENTIAL VOLTAGE (mV)
1175
1150
1125
1100
1075
1050
1025
1000
2.9
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
+25C
+85C
-40C
85
DC CURRENT (mA)
80
75
70
65
60
55
2.9
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
SUPPLY VOLTAGE (V)
SUPPLY VOLTAGE (V)
Rise / Fall Time vs. Supply Voltage
[2]
25
tr
tf
Output Differential vs. Frequency
[1]
1400
OUTPUT DIFFERENTIAL (mV)
23
RISE/FALL TIME (ps)
1200
21
1000
19
800
17
600
15
2.9
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
400
2
4
6
8
10
12
14
16
18
SUPPLY VOLTAGE (V)
FREQUENCY (GHz)
[1] VR = +3.3V
[2] Frequency = 13 GHz
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
3-2
HMC745LC3C
v03.1010
13 Gbps, FAST RISE TIME XOR / XNOR GATE
w/ PROGRAMMABLE OUTPUT VOLTAGE & POSITIVE SUPPLY

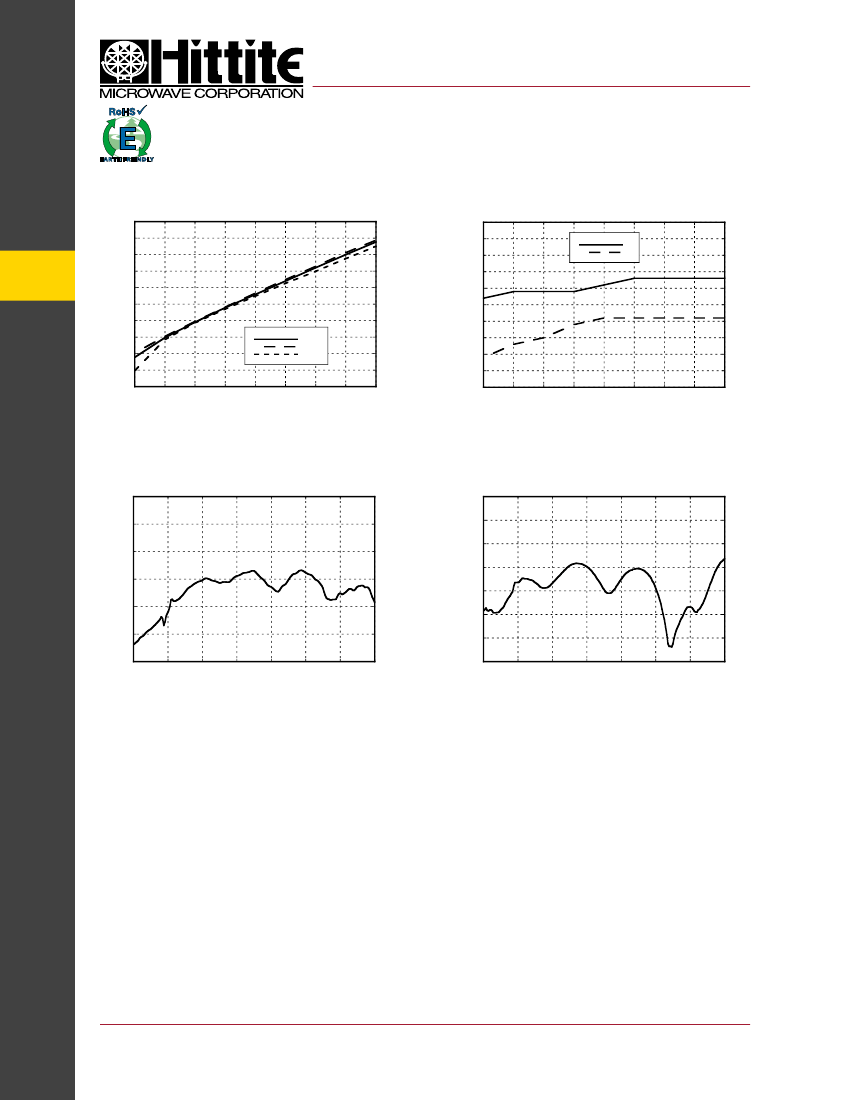

Output Differential vs. VR
[2]
1400
Rise / Fall Time vs. VR
[2]
25
tr
tf
1000
RISE/FALL TIME (ps)
3
HIGH SPEED LOGIC - SMT
DIFFERENTIAL VOLTAGE (mV)
1200
23
21
800
+25C
+85C
-40C
19
600
17
400
2.1
2.3
2.5
2.7
2.9
VR (V)
3.1
3.3
3.5
3.7
15
2.1
2.3
2.5
2.7
2.9
VR (V)
3.1
3.3
3.5
3.7
Input Return Loss vs. Frequency
0
-5
RETURN LOSS (dB)
Output Return Loss vs. Frequency
0
-5
-10
RETURN LOSS (dB)
-15
-20
-25
-30
-35
-10
-15
-20
-25
-30
0
2
4
6
8
10
12
14
FREQUENCY (GHz)
0
2
4
6
8
10
12
14
FREQUENCY (GHz)
[1] VR = +3.3V
[2] Frequency = 13 GHz
3-3
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC745LC3C
v03.1010
13 Gbps, FAST RISE TIME XOR / XNOR GATE
w/ PROGRAMMABLE OUTPUT VOLTAGE & POSITIVE SUPPLY

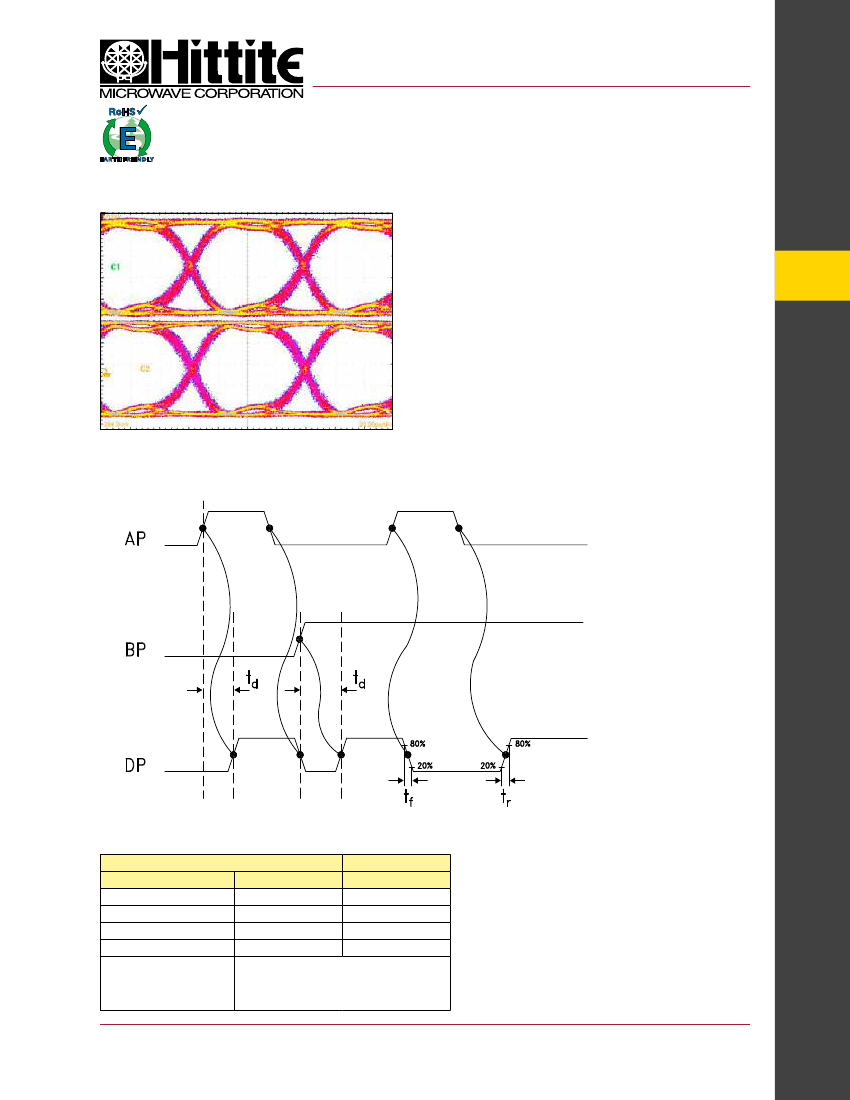

Eye Diagram
[1] Test Conditions:
Waveform generated with an Agilent N4903A J-Bert. Rate = 13
Gbps.
Eye diagram data presented on a Tektronix CSA 8000. Device is
AC coupled to scope.
3
HIGH SPEED LOGIC - SMT
Timing Diagram
Truth Table
Input
A
L
L
H
H
Notes:
A = AP - AN
B = BP - BN
D = DP - DN
B
L
H
L
H
H - Positive voltage level
L - Negative voltage level
Outputs
D
L
H
H
L
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
3-4
HMC745LC3C
v03.1010
13 Gbps, FAST RISE TIME XOR / XNOR GATE
w/ PROGRAMMABLE OUTPUT VOLTAGE & POSITIVE SUPPLY
Absolute Maximum Ratings
Power Supply Voltage (Vee)
Input Signals
Output Signals
Continuous Pdiss (T = 85 °C)
(derate 17 mW/°C above 85 °C)
Thermal Resistance (R
th j-p
) Worst
case junction to package paddle
Maximum Junction Temperature
Storage Temperature
Operating Temperature
-3.75V to +0.5V
-2V to +0.5V
-1.5V to +1V
0.68 W
59 °C/W
125 °C
-65°C to +150°C
-40°C to +85°C
3
HIGH SPEED LOGIC - SMT
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

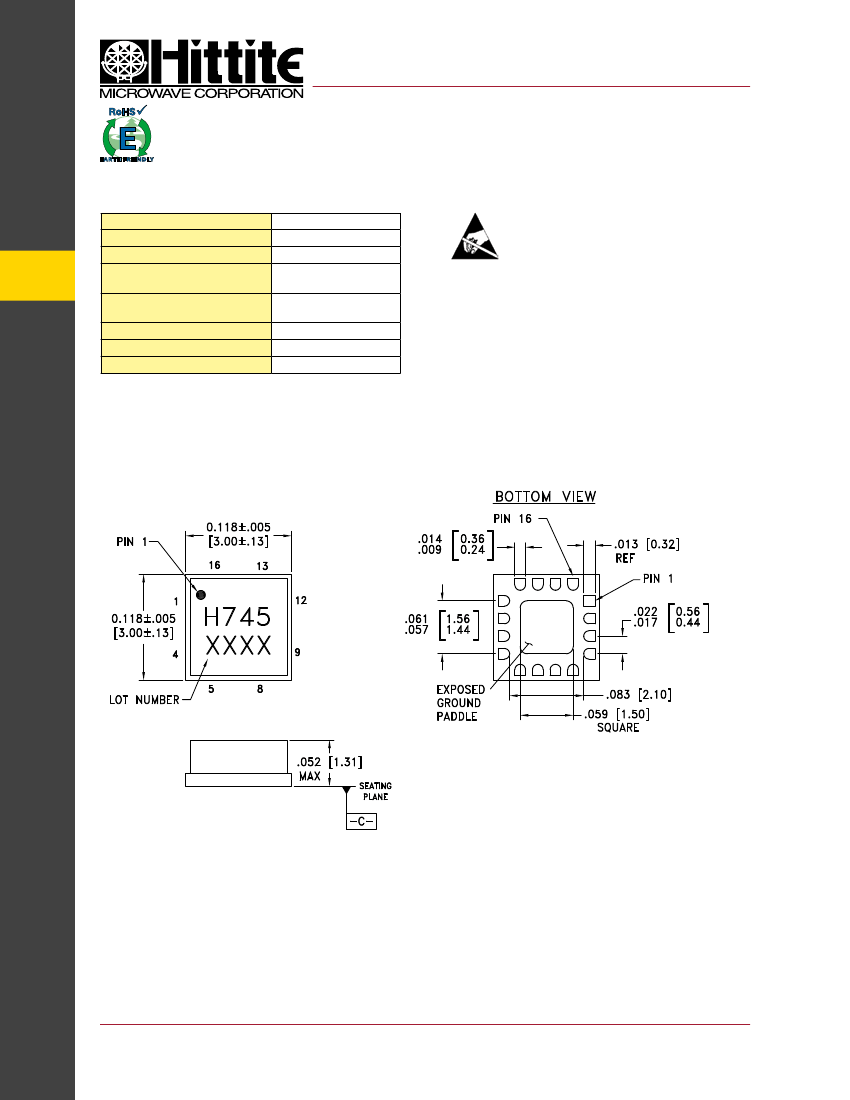

Outline Drawing
NOTES:
1. PACKAGE BODY MATERIAL: ALUMINA
2. LEAD AND GROUND PADDLE PLATING:
30-80 MICROINCHES GOLD OVER 50 MICROINCHES MINIMUM NICKEL.
3. DIMENSIONS ARE IN INCHES [MILLIMETERS].
4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm DATUM -C-
6. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND.
7. PADDLE MUST BE SOLDERED TO GND.
3-5
