HMC698LP5
/
698LP5E
v03.0709
7 GHz INTEGER N SYNTHESIZER
(N = 12 - 259)
Features
Ultra Low ssB Phase Noise Floor:
-153 dBc/hz @ 10 khz offset @ 100 Mhz
Reference Frequency.
Programmable Divider (N= 12 - 259) Operating
up to 7 Ghz
Open Collector Output Buffer Amplifiers for
Interfacing w/ Op-Amp Based Loop Filter
Reversible Polarity PFD w/ Lock Detect Output
32 Lead 5x5mm sMT Package: 25mm
2
Typical Applications
The hMC698LP5(E) is ideal for:
• satellite Communication systems
• Point-to-Point Radios
• Military Applications
• sonet Clock Generation
6
PLL - INTEGER-N syNThEsIzER - sMT

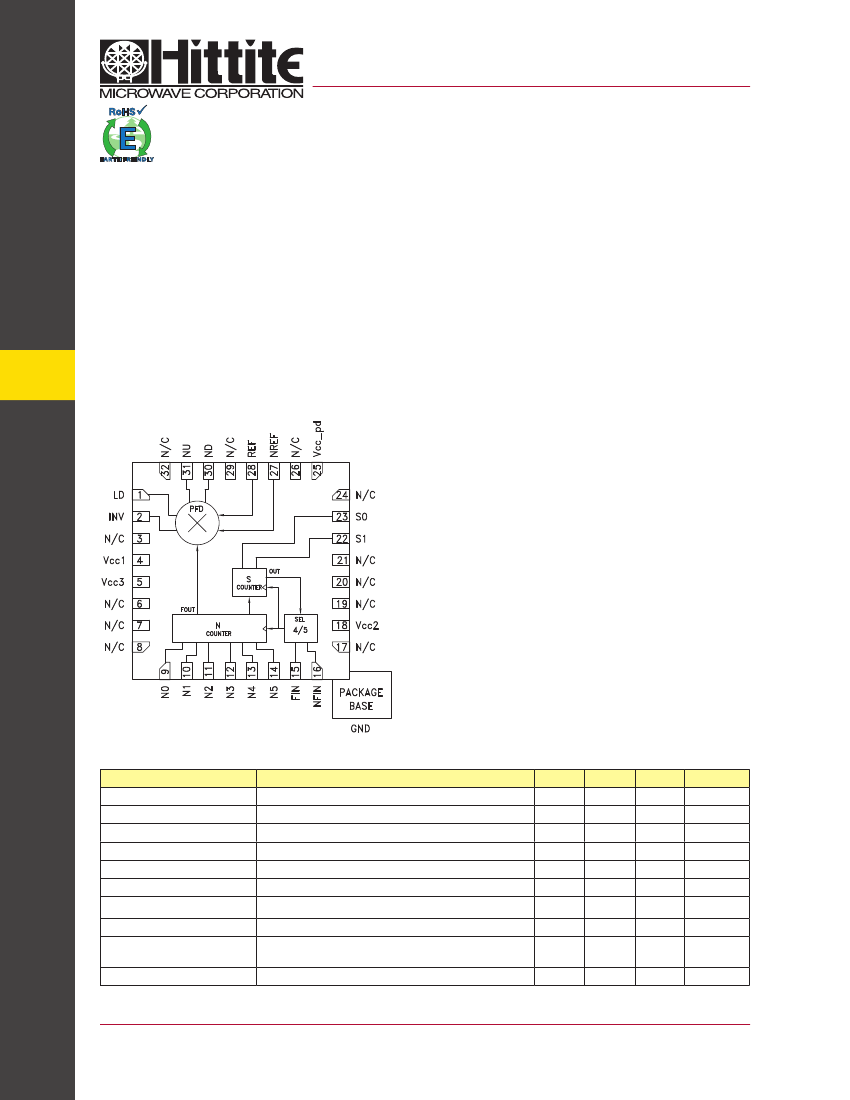

Functional Diagram
General Description
The hMC698LP5(E) is a frequency synthesizer with
a wideband reversible polarity digital PFD and lock
detect output. The divider operates unconditionally
from 80 - 7000 Mhz with a continuous integer
division ratio of 12 to 259. The hMC698LP5(E) high
frequency operation along with ultra low phase noise
floor make possible synthesizers with wide loop
bandwidth and low N resulting in fast settling and
very low phase noise. When used in conjunction with
a differential loop filter, the hMC698LP5(E) can be
used to phase lock a VCO to a reference oscillator.
Electrical Specifications,
T
A
= +25° C, Vcc = Vcc1 = Vcc2 = Vcc3 = Vcc_pd = 5V
Parameter
Maximum Ref. Input Frequency
Minimum Ref. Input Frequency
Reference Input Power Range
Maximum VCO Input Frequency
Minimum VCO Input Frequency
VCO Input Power Range
PFD Output Voltage
PFD Gain
ssB Phase Noise
Total supply Current
[1] Maximum frequencies may be limited by available counter division ratio.
[2] square wave input achieves best phase noise at lower ref. frequency (see sine & square wave comparison plots)
Gain = Vpp / 2π Rad.
@ 10 khz Offset @ 100 Mhz square Wave Ref. Input
Pin= 0 dBm
100 Mhz Input Frequency
-10
2000
0.32
-153
310
Conditions
sine or square Wave Input
[1]
square Wave Input
[2]
100 Mhz Frequency
-5
7000
80
+5
Min.
1300
10
+5
Typ.
Max.
Units
Mhz
Mhz
dBm
Mhz
Mhz
dBm
mV, Pk - Pk
V/Rad.
dBc/hz
mA
6-1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC698LP5 / 698LP5E
v03.0709
7 GHz INTEGER N SYNTHESIZER
(N = 12 - 259)

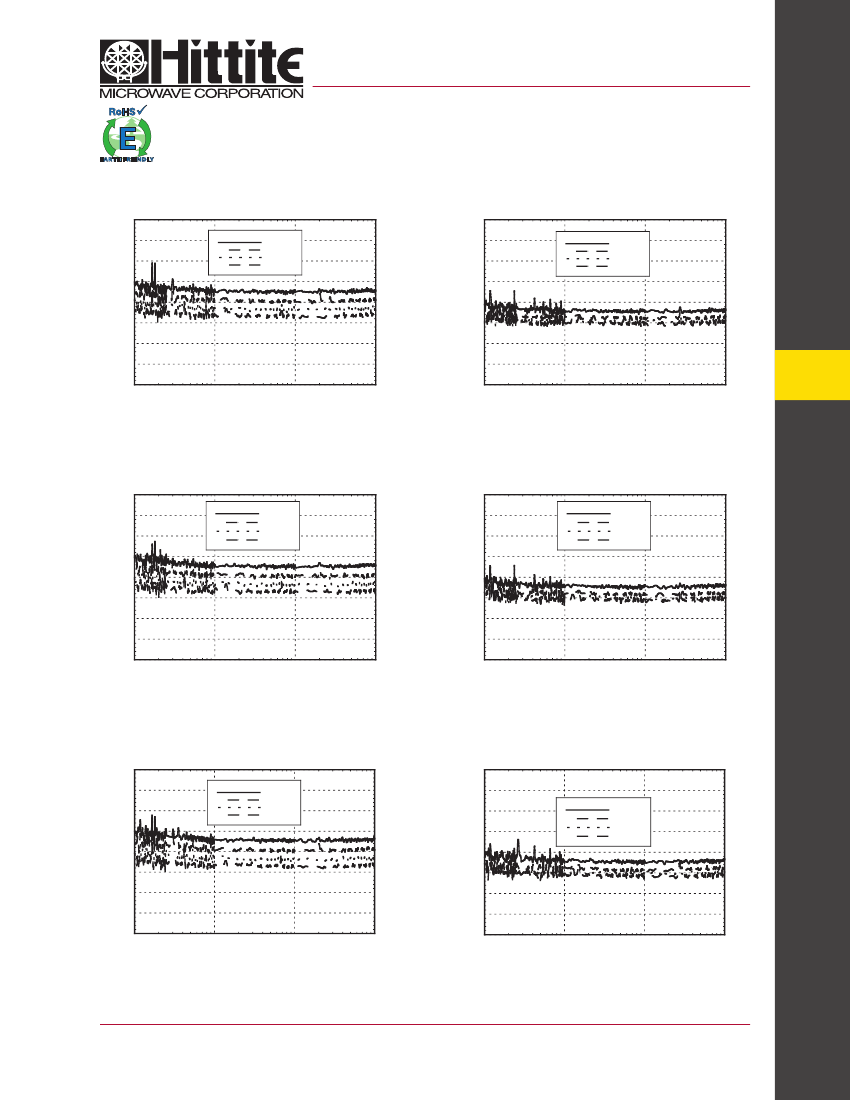

Phase Noise Floor
[1][2][3]
Ref = Sine Wave, Vcc = 4.75V
-100
SSB PHASE NOISE (dBc/Hz)
SSB PHASE NOISE (dBc/Hz)
-110
-120
-130
-140
-150
-160
-170
-180
2
10
-10 dBm
-5 dBm
0 dBm
+5 dBm
Phase Noise Floor
[1][2][3]
Ref = Square Wave, Vcc = 4.75V
-100
-110
-120
-130
-140
-150
-160
-170
-180
2
10
-10 dBm
-5 dBm
0 dBm
+5 dBm
10
3
10
4
10
5
10
3
10
4
10
5
6
PLL - INTEGER-N syNThEsIzER - sMT
6-2
OFFSET FREQUENCY (Hz)
OFFSET FREQUENCY (Hz)
Phase Noise Floor
[1][2][3]
Ref = Sine Wave, Vcc = 5V
-100
SSB PHASE NOISE (dBc/Hz)
-110
-120
-130
-140
-150
-160
-170
-180
2
10
-10 dBm
-5 dBm
0 dBm
+5 dBm
Phase Noise Floor
[1][2][3]
Ref = Square Wave, Vcc = 5V
-100
SSB PHASE NOISE (dBc/Hz)
-110
-120
-130
-140
-150
-160
-170
-180
2
10
-10 dBm
-5 dBm
0 dBm
+5 dBm
10
3
10
4
10
5
10
3
10
4
10
5
OFFSET FREQUENCY (Hz)
OFFSET FREQUENCY (Hz)
Phase Noise Floor
[1][2][3]
Ref = Sine Wave, Vcc = 5.25V
-100
SSB PHASE NOISE (dBc/Hz)
-110
-120
-130
-140
-150
-160
-170
-180
2
10
3
4
5
Phase Noise Floor
[1][2][3]
Ref = Square Wave, Vcc = 5.25V
-100
SSB PHASE NOISE (dBc/Hz)
-110
-120
-130
-140
-150
-160
-170
-10 dBm
-5 dBm
0 dBm
+5 dBm
-10 dBm
-5 dBm
0 dBm
+5 dBm
10
10
10
-180
2
10
10
3
10
4
10
5
OFFSET FREQUENCY (Hz)
OFFSET FREQUENCY (Hz)
[1] Phase Noise Floor vs Offset Frequency with varying Ref Power Level
[2] Fin= 7000 Mhz @ 0 dBm, Ref Frequency = 100 Mhz, N = 70
[3] Phase Noise Floor remains constant beyond 100 khz offset frequency
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC698LP5 / 698LP5E
v03.0709
7 GHz INTEGER N SYNTHESIZER
(N = 12 - 259)
Phase Noise Floor
[1][2][3]
Ref = Sine Wave @ 5 dBm, Vcc = 5V
-100
SSB PHASE NOISE (dBc/Hz)
SSB PHASE NOISE (dBc/Hz)
-110
-120
-130
-140
-150
-160
-170
-180
2
10
+25C
+85C
-45C
Phase Noise Floor
[1][2][3]
Ref = Square Wave @ 5 dBm, Vcc = 5V
-100
-110
-120
-130
-140
-150
-160
-170
-180
2
10
+25C
+85C
-45C
6
PLL - INTEGER-N syNThEsIzER - sMT
10
3
10
4
10
5
10
3
10
4
10
5
OFFSET FREQUENCY (Hz)
OFFSET FREQUENCY (Hz)

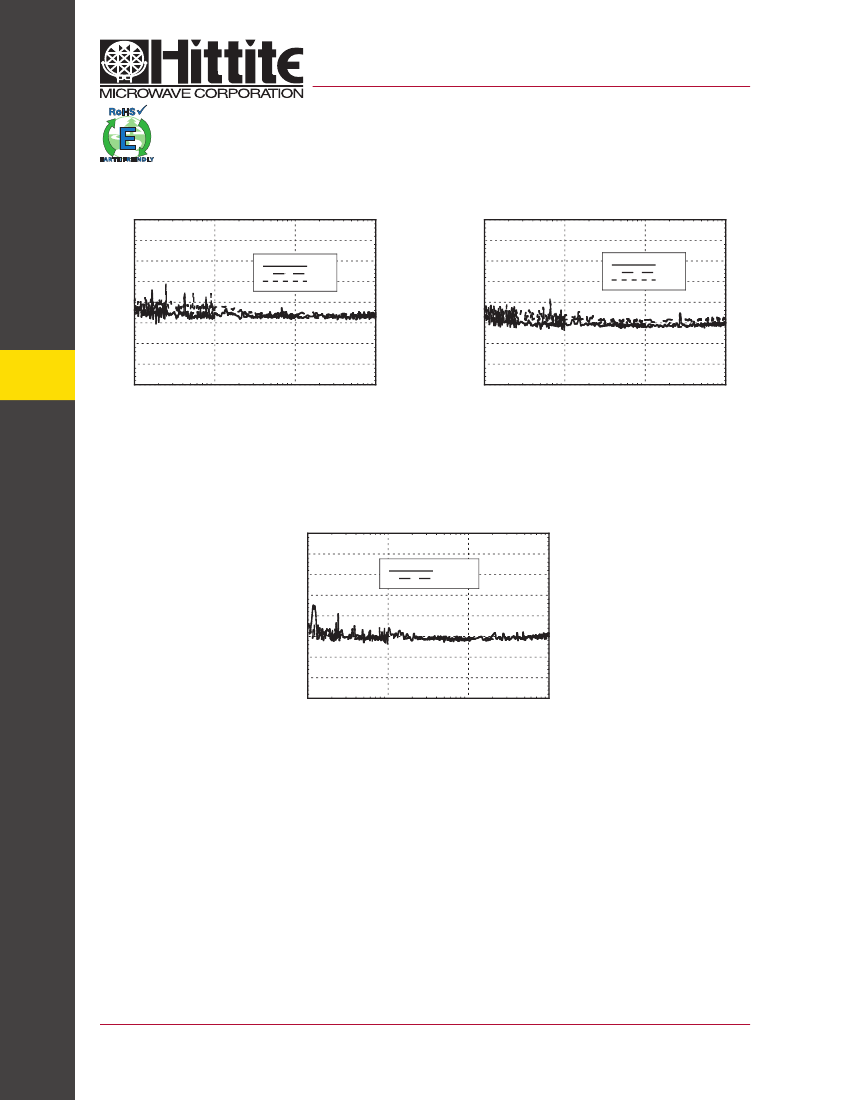

Phase Noise Floor vs Offset Frequency
with varying Fin @ 0 dbm, Ref = 100 MHz
Square Wave @ 5 dBm, Vcc = 5V
[3]
-100
SSB PHASE NOISE (dBc/Hz)
-110
-120
-130
-140
-150
-160
-170
-180
2
10
1000 MHz
7000 MHz
10
3
10
4
10
5
OFFSET FREQUENCY (Hz)
[1] Phase Noise Floor vs Offset Frequency over temperature
[2] Fin= 7000 Mhz @ 0 dBm, Ref Frequency = 100 Mhz, N = 70
[3] Phase Noise Floor remains constant beyond 100 khz offset frequency
6-3
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC698LP5 / 698LP5E
v03.0709
7 GHz INTEGER N SYNTHESIZER
(N = 12 - 259)
Absolute Maximum Ratings
RF Input (Vcc= +5V)
supply Voltage (Vcc)
Logic Inputs
Junction Temperature (Tc)
Continuous Pdiss (T = 85 °C)
(derate 78 mW/° C above 85 °C)
Thermal Resistance
(Junction to ground paddle)
storage Temperature
Operating Temperature
+10 dBm
+5.5V
-0.5V to (0.5V + Vcc)
135 °C
3.9 W
12.90 °C/W
-65 to +150 °C
-40 to +85 °C
Typical Supply Current vs. Vcc
Vcc (Vdc)
4.75
5.00
5.25
Icc (mA)
294
310
342
Note: hMC698LP5 will work over full voltage range above.
ELECTROsTATIC sENsITIVE DEVICE
OBsERVE hANDLING PRECAUTIONs
6
PLL - INTEGER-N syNThEsIzER - sMT
6-4
Typical DC Characteristics @ Vcc = +5V
symbol
Icc
Voh
Vol
Characteristics
Power supply
Current
Output high
Voltage, (NU, ND)
Output Low
Voltage, (NU, ND)
+25C
Min.
280
5
2.9
Typ.
310
5
3.0
Max.
340
5
3.1
Units
mA
V
V
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC698LP5 / 698LP5E
v03.0709
7 GHz INTEGER N SYNTHESIZER
(N = 12 - 259)

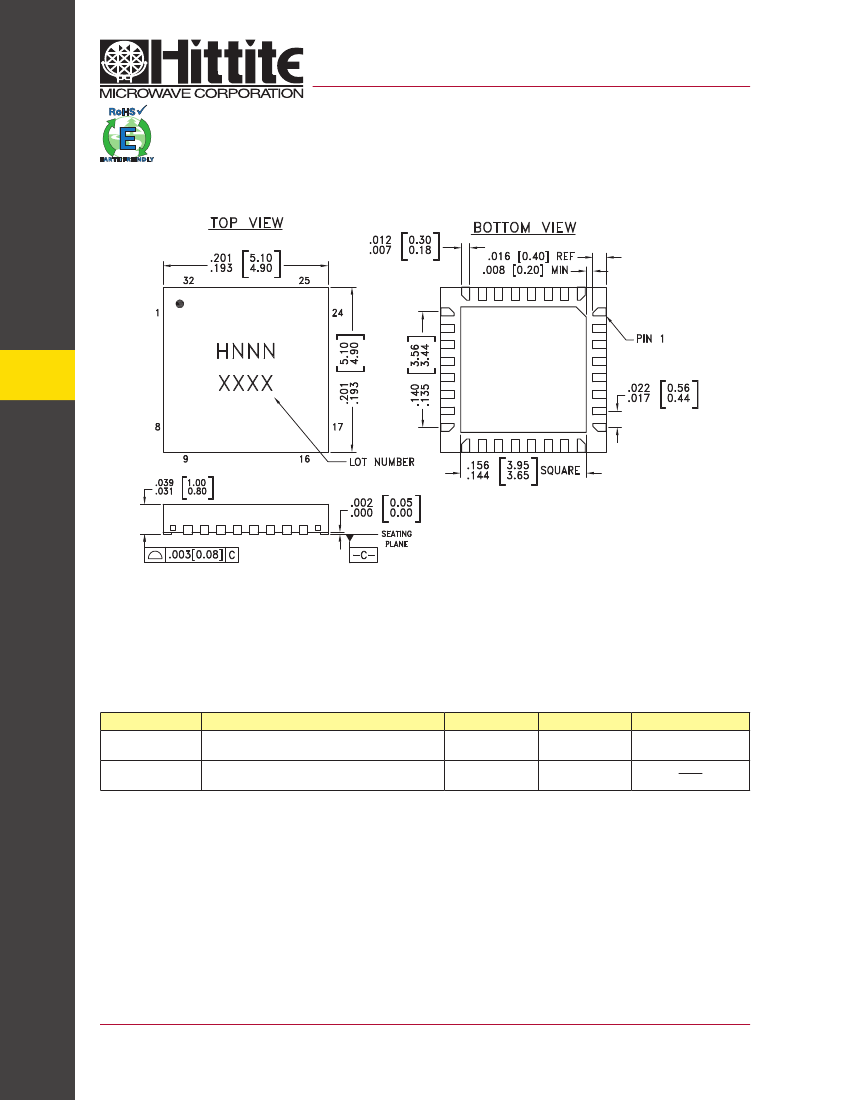

Outline Drawing
6
PLL - INTEGER-N syNThEsIzER - sMT
NOTEs:
1. LEADFRAME MATERIAL: COPPER ALLOy
2. DIMENsIONs ARE IN INChEs [MILLIMETERs].
3. LEAD sPACING TOLERANCE Is NON-CUMULATIVE
4. PAD BURR LENGTh shALL BE 0.15mm MAXIMUM.
PAD BURR hEIGhT shALL BE 0.05mm MAXIMUM.
5. PACKAGE WARP shALL NOT EXCEED 0.05mm.
6. ALL GROUND LEADs AND GROUND PADDLE MUsT
BE sOLDERED TO PCB RF GROUND.
7. REFER TO hITTITE APPLICATION NOTE FOR sUGGEsTED
PCB LAND PATTERN.
Package Information
Part Number
hMC698LP5
hMC698LP5(E)
Package Body Material
Low stress Injection Molded Plastic
Rohs-compliant Low stress Injection Molded Plastic
Lead Finish
sn/Pb solder
100% matte sn
MsL Rating
MsL1
MsL1
[1]
Package Marking
[3]
h698
XXXX
h698
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
6-5
