717LP3E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> 717LP3E

717LP3E: Description4800 MHz - 6000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER; CategoryTopical application Wireless rf/communication; File Size426KB，10 Pages; ManufacturerHittite Microwave（ADI）; Websitehttp://www.hittite.com/

Download Datasheet Parametric Compare View All

717LP3E Overview

4800 MHz - 6000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER

717LP3E Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum input power	10 dBm
Maximum operating frequency	6000 MHz
Minimum operating frequency	4800 MHz
Processing package description	3 X 3 MM, ROHS COMPLIANT, PLASTIC, SMT, QFN-16
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
structure	COMPONENT
terminal coating	MATTE TIN (394) OVER COPPER
Impedance characteristics	50 ohm
Microwave RF Type	WIDE BAND LOW POWER

Preview

Download Datasheet

View All

HMC717LP3 / 717LP3E

v02.0809

GaAs PHEMT MMIC LOW NOISE

AMPLIFIER, 4.8 - 6.0 GHz

Features

Noise figure: 1.1 dB

Gain: 16.5 dB

output ip3: +31.5 dBm

single supply: +3V to +5V

16 lead 3x3mm QfN package: 9 mm

Amplifiers - low Noise - smT

Typical Applications

The HmC717lp3(e) is ideal for:

• fixed wireless and lTe/wimAX/4G

• BTs & infrastructure

• repeaters and femtocells

• public safety radio

• Access points

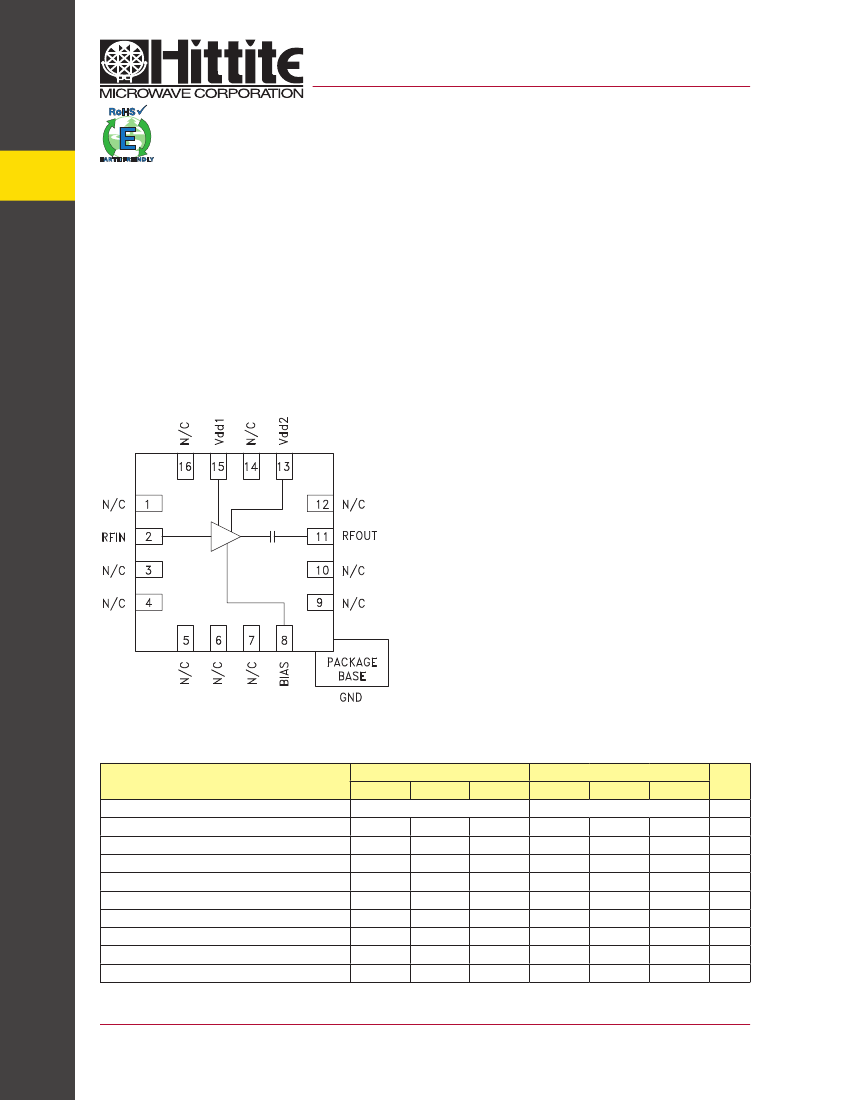

Functional Diagram

General Description

The HmC717lp3(e) is a GaAs pHemT mmiC

low Noise Amplifier that is ideal for fixed wireless

and lTe/wimAX/4G basestation front-end receivers

operating between 4.8 and 6.0 GHz. The amplifier

has been optimized to provide 1.1 dB noise figure,

16.5 dB gain and +31.5 dBm output ip3 from a single

supply of +5V. input and output return losses are

excellent and the lNA requires minimal external

matching and bias decoupling components. The

HmC717lp3(e) can be biased with +3V to +5V and

features an externally adjustable supply current

which allows the designer to tailor the linearity

performance of the lNA for each application.

Electrical Specifications

parameter

frequency range

Gain

Gain Variation over Temperature

Noise figure

input return loss

output return loss

= +25° C, Rbias = 2k Ohms for Vdd = 5V, Rbias = 20k Ohms for Vdd = 3V

[1] [2]

Vdd = +3V

min.

Typ.

4.8 - 6.0

14.3

0.01

1.25

25.5

1.5

13.5

max.

min.

Vdd = +5V

Typ.

4.8 - 6.0

16.5

0.01

1.1

18.5

19.5

31.5

100

1.4

max.

Units

mHz

dB/ °C

dBm

output power for 1 dB Compression (p1dB)

saturated output power (psat)

output Third order intercept (ip3)

Total supply Current (idd)

[1] rbias resistor sets current, see application circuit herein

[2] Vdd = Vdd1 = Vdd2

7-1

For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824

Phone: 978-250-3343

Fax: 978-250-3373

Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

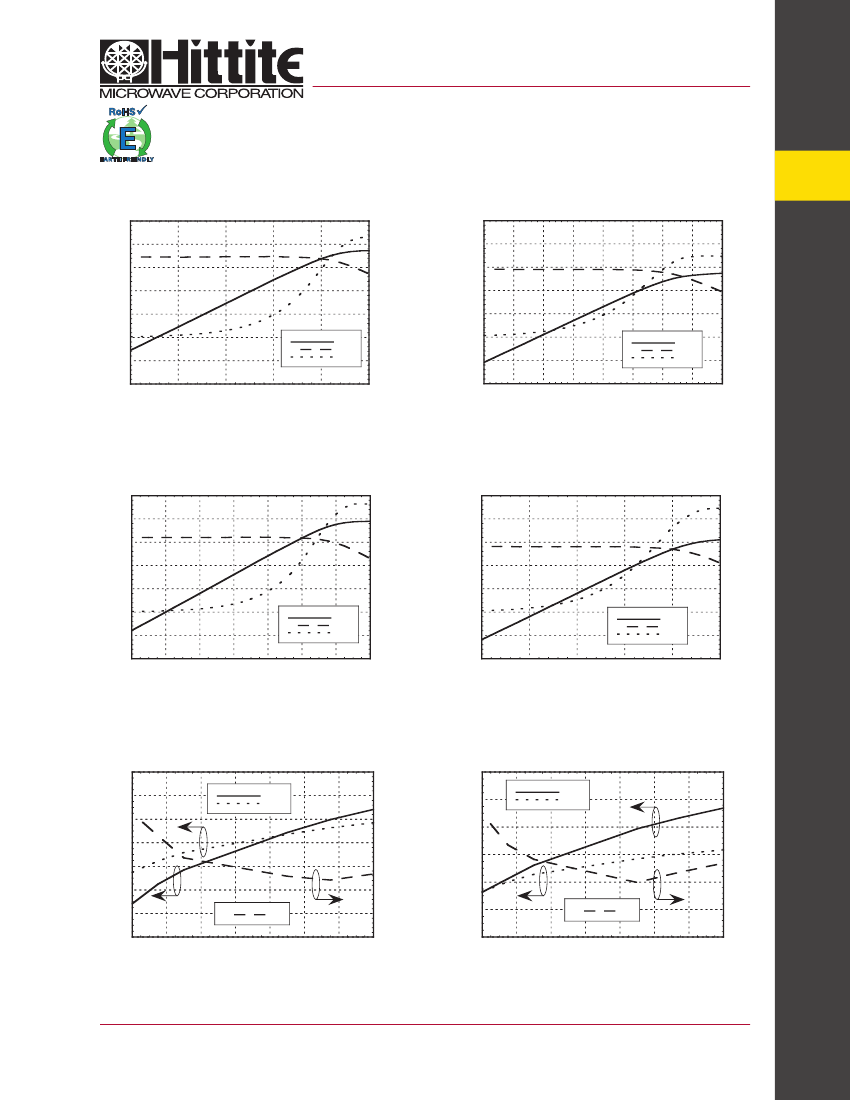

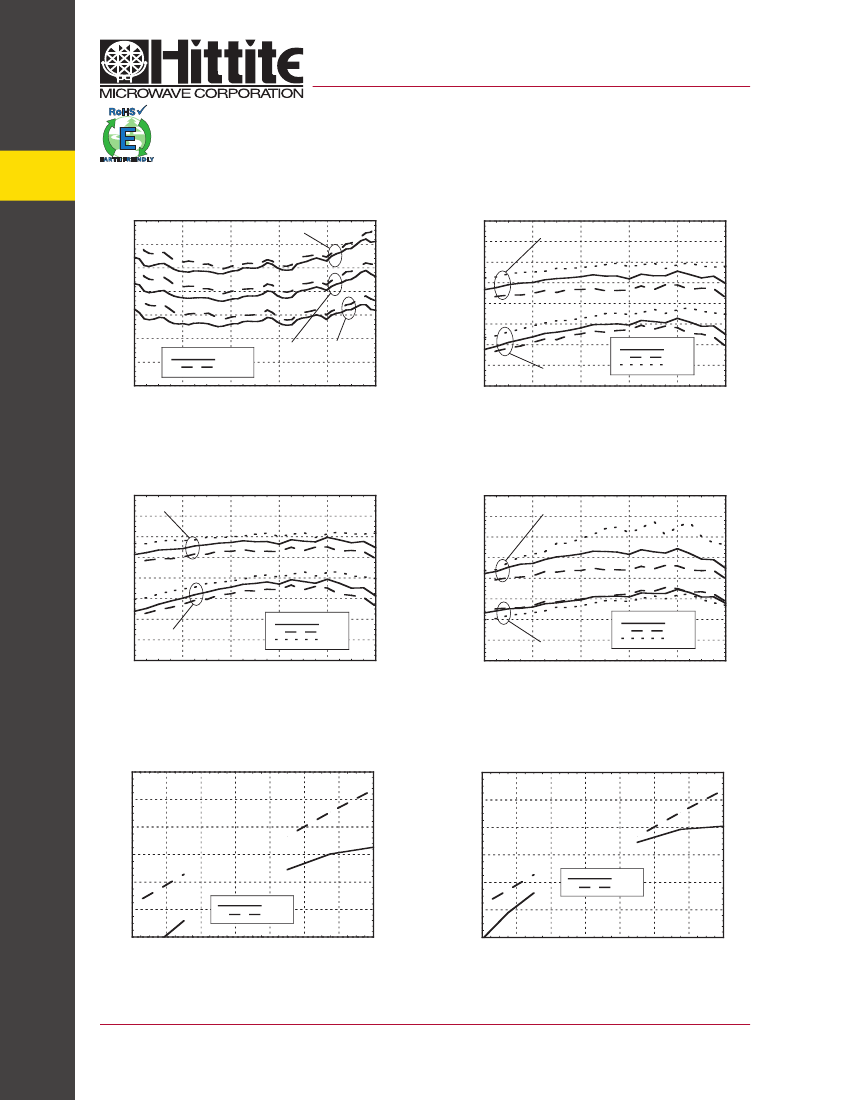

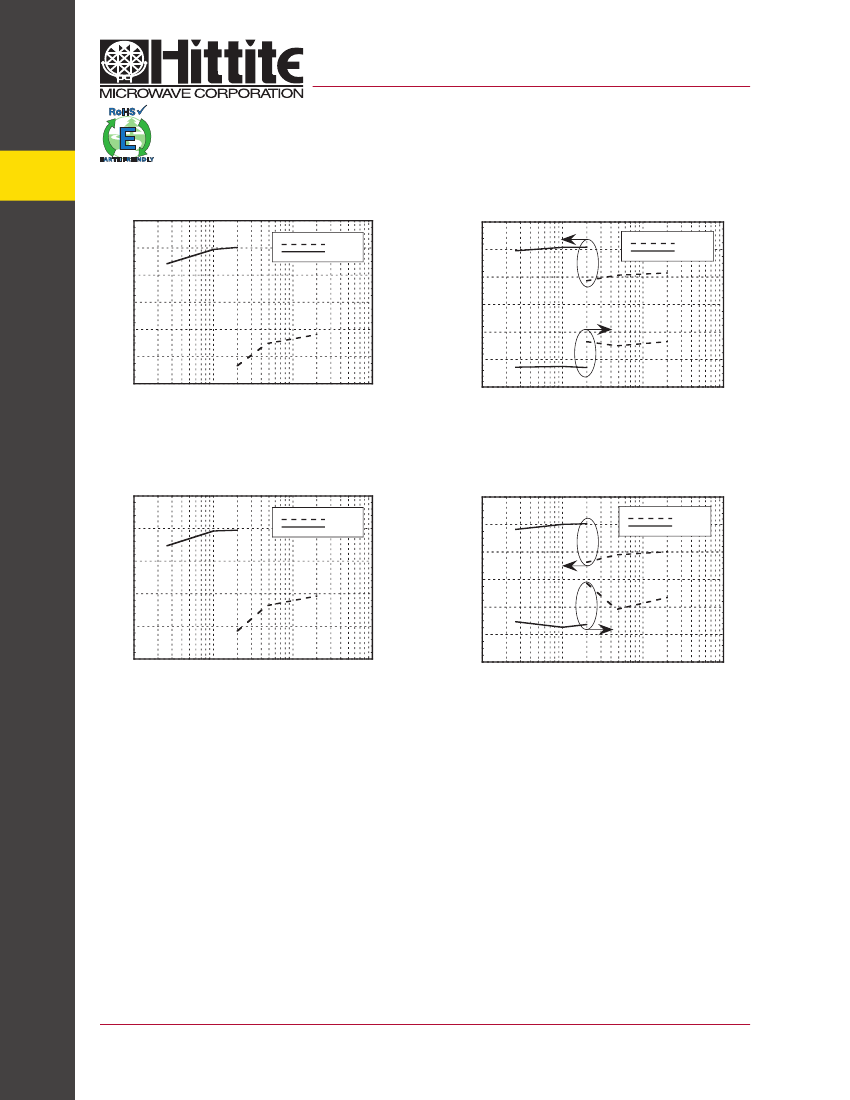

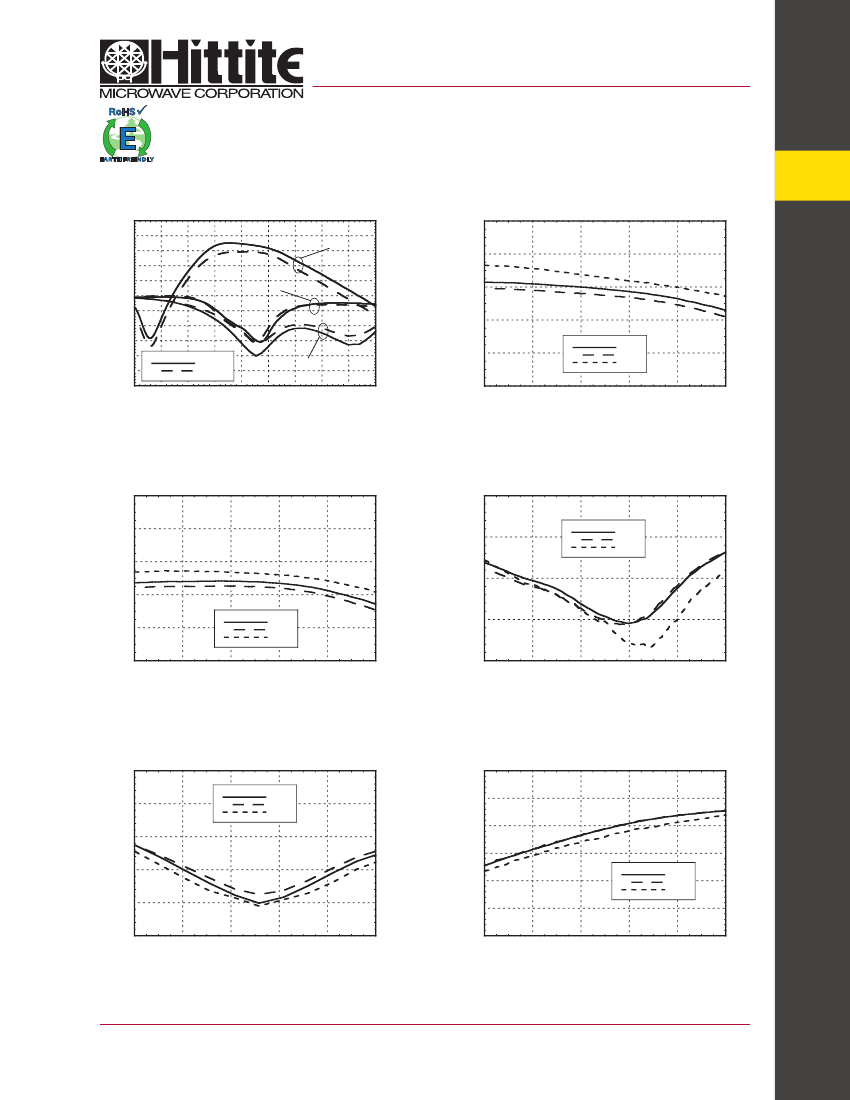

717LP3E Related Products

	717LP3E	HMC717LP3	HMC717LP3E
Description	4800 MHz - 6000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER	4800 MHz - 6000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER	4800 MHz - 6000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER
Maximum operating temperature	85 Cel	85 °C	85 °C
Minimum operating temperature	-40 Cel	-40 °C	-40 °C
Maximum operating frequency	6000 MHz	6000 MHz	6000 MHz
Minimum operating frequency	4800 MHz	4800 MHz	4800 MHz
structure	COMPONENT	COMPONENT	COMPONENT
Is it lead-free?	-	Contains lead	Lead free
Is it Rohs certified?	-	incompatible	conform to
Maker	-	Hittite Microwave（ADI）	Hittite Microwave（ADI）
package instruction	-	LCC16,.12SQ,20	LCC16,.12SQ,20
Reach Compliance Code	-	compli	compli
ECCN code	-	EAR99	EAR99
Other features	-	LOW NOISE	LOW NOISE
Characteristic impedance	-	50 Ω	50 Ω
Gain	-	12 dB	12 dB
Maximum input power (CW)	-	10 dBm	10 dBm
JESD-609 code	-	e0	e3
Installation features	-	SURFACE MOUNT	SURFACE MOUNT
Number of functions	-	1	1
Number of terminals	-	16	16
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	-	LCC16,.12SQ,20	LCC16,.12SQ,20
power supply	-	3/5 V	3/5 V
RF/Microwave Device Types	-	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum slew rate	-	100 mA	100 mA
surface mount	-	YES	YES
technology	-	GAAS	GAAS
Terminal surface	-	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
