NXP dual-channel, up to
14 bit, 750 Msps D/A converter
DAC1408D series
JESD204A-compliant D/A conversion for
wideband communication & instrumentation
Optimized for high-speed applications, such as 2.5/3/4G wireless, video broadcast, and
instrumentation, this advanced DAC has selectable interpolating filters and a four-lane CGV™
serial interface, and complies with the new JEDEC JESD204A.
Key features
}
Dual-channel, 14 bit resolution
}
750 Msps maximum output rate
}
Four-lane JEDEC204A serial digital input
}
32 bit programmable NCO frequency synthesizer
with low-power option
}
SPI control/status interface
}
HVQFN64 package
}
MDS (Multi-DAC Synchronisation)
}
Interpolation filters : 2x, 4x, 8x
Applications
}
Wireless infrastructure: Multicarrier GSM, EDGE, CDMA,
WCDMA, TD-SCDMA, WiMAX, LTE
}
Multipoint communication infrastructure: LMDS/MMDS
}
Broadband wireless systems
}
Digital radio links
}
High-speed instrumentation
}
Automated Test Equipment (ATE)
}
Video broadcast equipment
The NXP DAC1408D series, 14 bit digital-to-analog converters
with two channels, are equipped with interpolation filters
selectable as 2x, 4x, or 8x. It is a high-speed solution optimized
for a variety of advanced applications, including single- and
multi-carrier wireless infrastructure transmitter signals.
It uses fully configurable digital on-chip modulation to manage
I and Q inputs, up-converting them from baseband to IF. The
mixing frequency is adjusted, via an SPI (Serial Peripheral
Interface) interface with a 32 bit NCO (Numerically Controlled
Oscillator). The phase is controlled by a 16 bit register.
Supporting input data rates up to 375 Msps as well as polarity
and lane swapping, the DAC1408D series has fourlane CGV™
receivers.
CGV™ (Convertisseur Grande Vitesse) designates NXP’s
compliant, superset implementation of the JEDEC JESD204A
interface standard, with enhanced rate (4.0 Gbps typical),
enhanced reach (100 cm typical), enhanced features (multiple
DAC synchronization) and assured FPGA interoperability.
Specifically, NXP offers enhancements in terms of transceiver
rate (up to 4.0 Gbps versus the standard rate of 3.125 Gbps,
a 28% increase) and transmitter reach (up to 100 cm versus
the standard reach of 20 cm, a 400% increase). The enhanced
CGV features include Multi Device Synchronization (MDS),
which is not specified, but informatively discussed in the
JEDEC specification. NXP has implemented this optional
feature to enable LTE MIMO base station and other advanced
multichannel applications. NXP’s implementation of MDS
enables up to sixteen DACs data streams to be sample
synchronized and phase coherent.
This new interface has numerous advantages over the traditional
parallel one: easy PCB layout, lower pin count, reduced PCB
layers and cost, lower radiated noise, selfsynchronous link, skew
compensation.

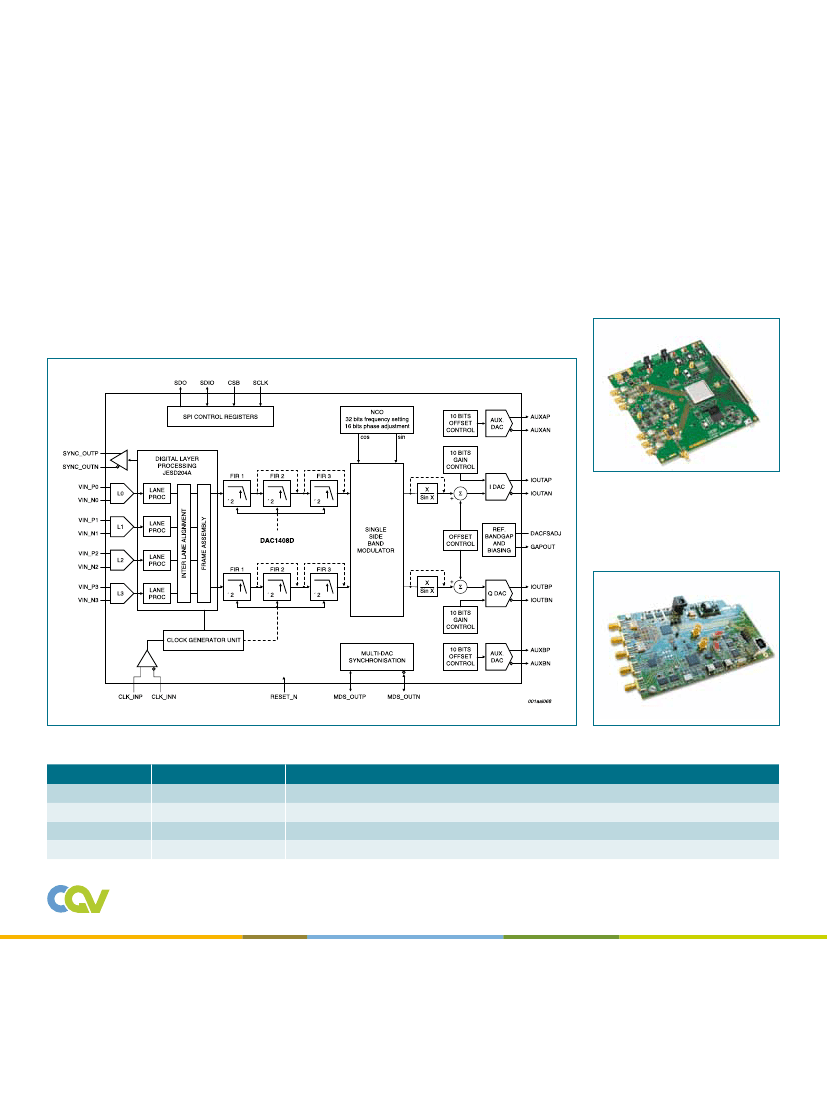

DAC1408D750 block diagram
Other features include a two’s complement or binary-offset data
format, and 74 dBc IMD3 at F
DAC
= 640 Msps and F
OUT
= 154 MHz.
DAC1408D series also include an LVDS compatible clock with
multiplier capable of x2, x4 and x8 operation and internal
regulation to adjust the output full scale current up to 20 mA.
A digital offset correction can be used to adjust the common
mode level at the DAC output. And 2 embedded auxiliary DACs
-current mode sources allow offset compensation between the
DAC and the next stage in your transmission path.
Example of reference design
with DAC1408D750 and FPGA
DAC1408D750 demonstration
board, for easy connection to
Altera, Xilinx or Lattice
evaluation kit
DAC1408D series
Type
DAC1408D series
Related demoboard
DAC1408D650W0/DB
DAC1408D650W1/DB
DAC1408D750W0/DB
DAC1408D750W1/DB
DAC1408D650 demo board
DAC1408D650 demo board with Virtex 5 FPGA
DAC1408D750 demo board
DAC1408D750 demo board with Virtex 5 FPGA
Description
www.nxp.com/dataconverters
www.nxp.com
© 2010 NXP B.V.
All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The
information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and
may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof
does not convey nor imply any license under patent- or other industrial or intellectual property rights.
Date of release: June 2010
Document order number : 9397 750 16888
Printed in the Netherlands
