8STA60605PB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8STA60605PB

8STA60605PB: DescriptionCircular Connector, 5 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size885KB，4 Pages; ManufacturerEsterline Technologies Corporation; Environmental Compliance

Download Datasheet Parametric View All

8STA60605PB Overview

Circular Connector, 5 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug,

8STA60605PB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Esterline Technologies Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	ZINC PLATED
Shell material	ALUMINUM ALLOY
Housing size	6
Termination type	CRIMP
Total number of contacts	5

Preview

Download Datasheet

View All

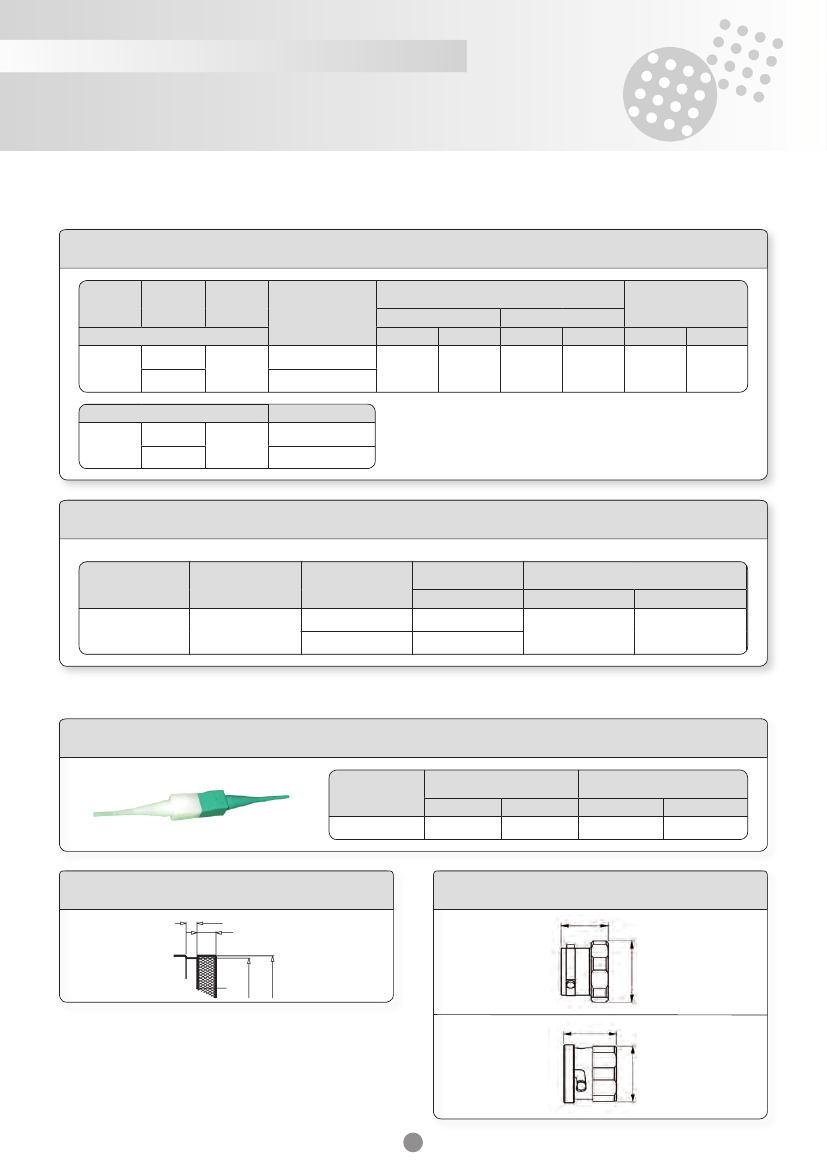

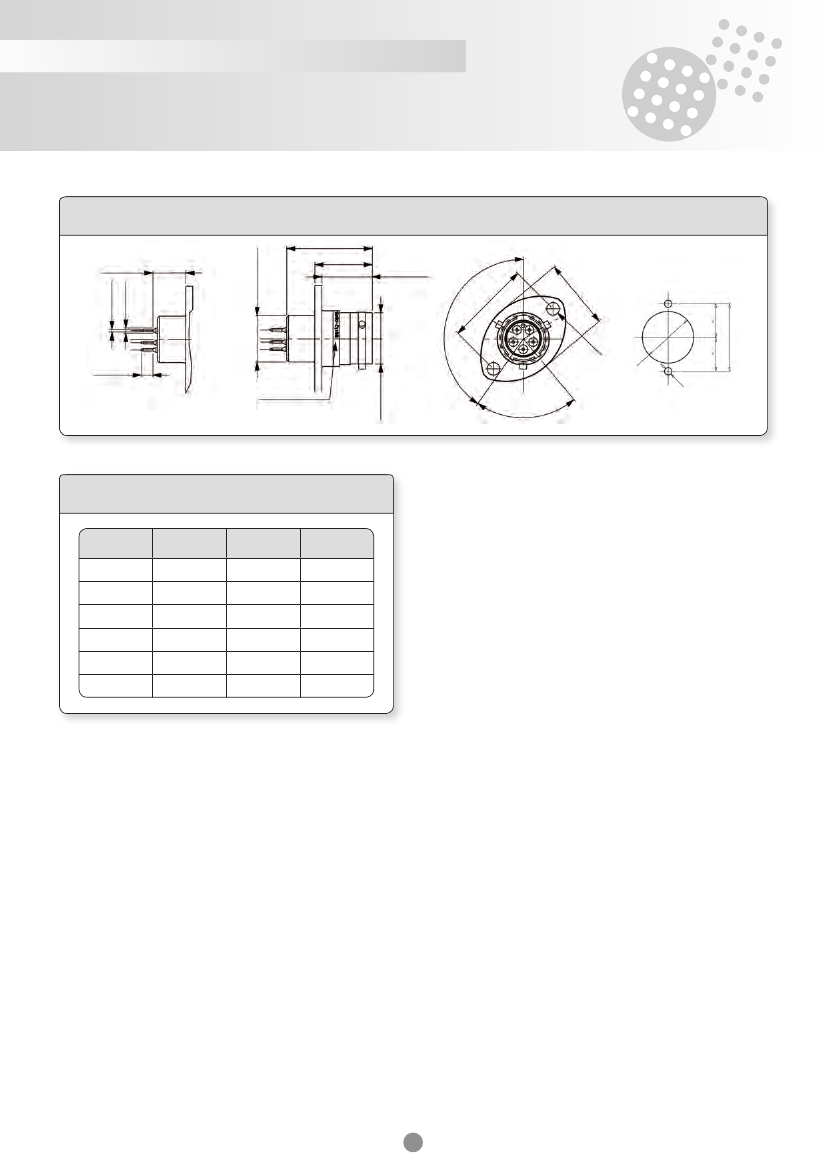

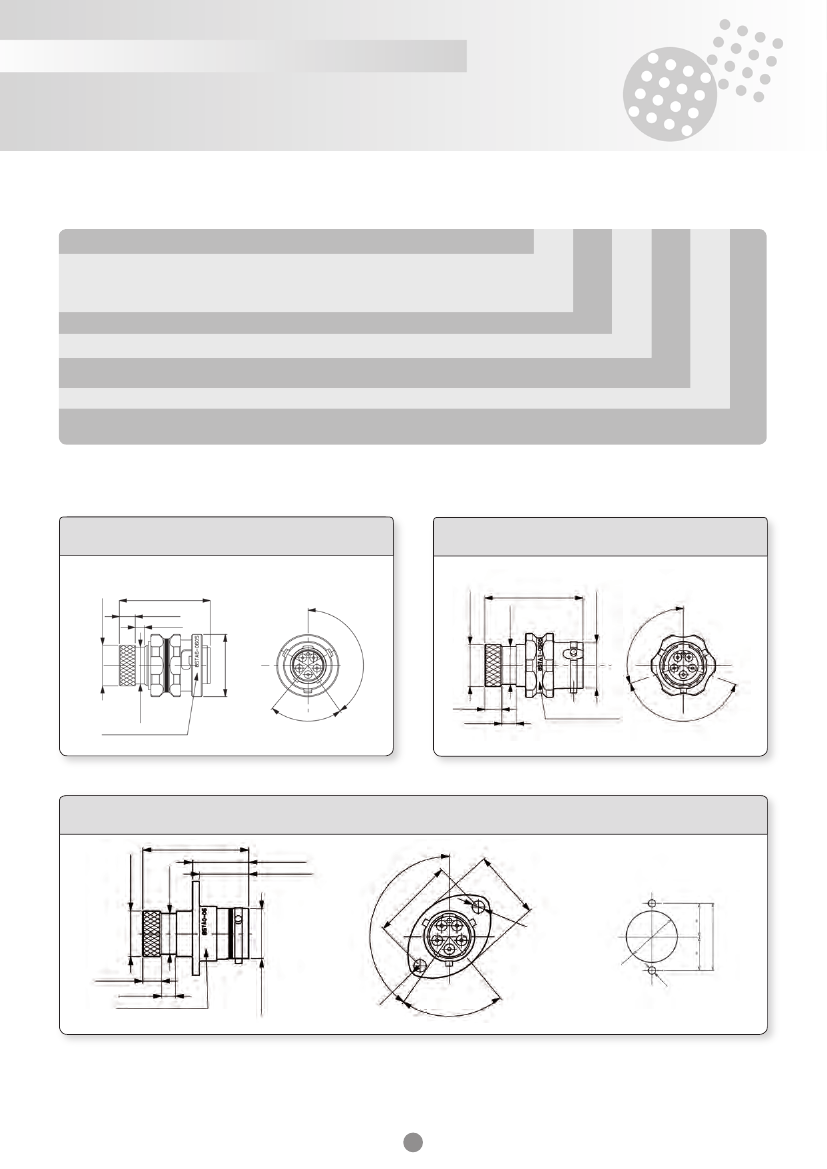

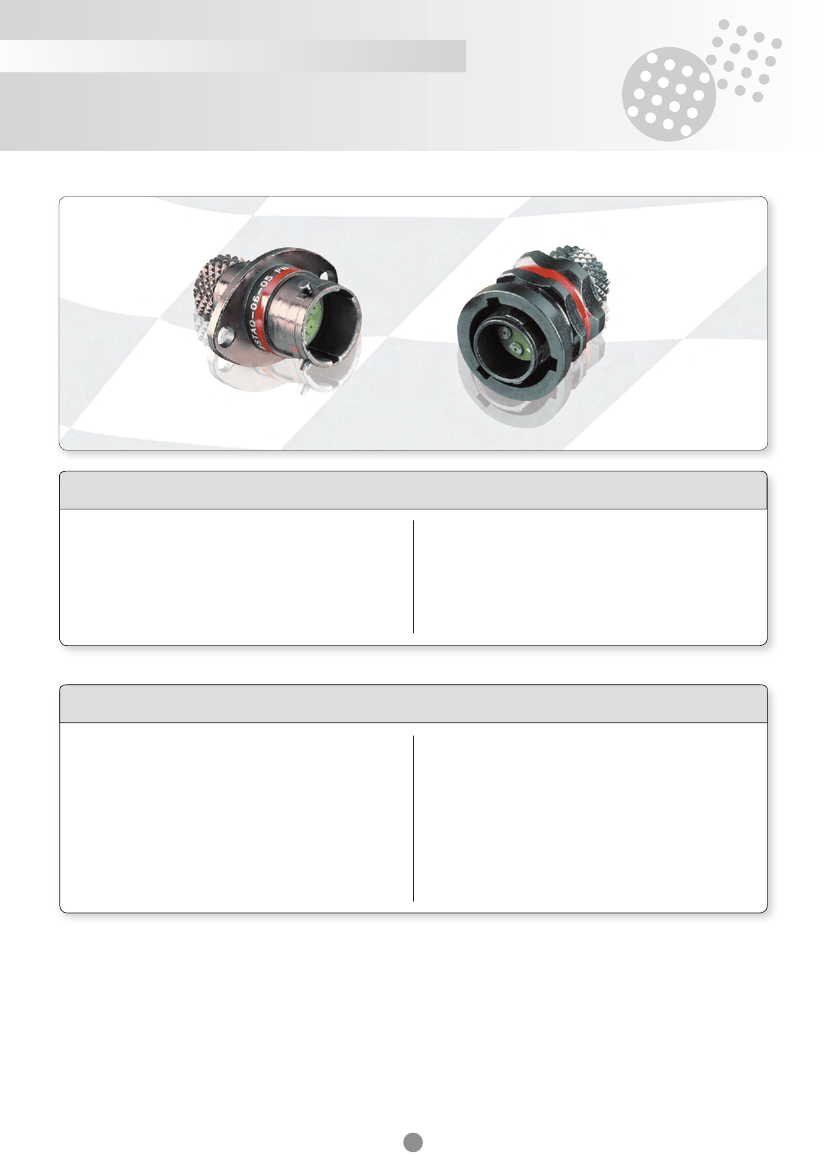

8STA shell size 06-05

Features & Benefits

• Rugged aluminium body to ensure long service life in the

harshest environment

• Small compact connector with boot termination feature

• Environmental sealing from interfacial seal and rear grommet

• Positive locking mechanism with locked colour indicators

• 6 colour-coded keyway orientations

• Conductive black zinc plating

• Available with 5 contacts #26 (crimp or PCB)

Technical characteristics

Mechanical

• Shell

• Shell plating

• Insulator

• Grommet & seal

• Contact

• Contact plating

• Endurance

• Shock

• Vibration

• Contact retention

Aluminium alloy

Conductive black zinc

Thermoplastic

Liquid silicone rubber

Copper alloy

Gold

500 matings/unmatings

300 g for 3 ms and EIA-364-27

1 m/s2, 10 to 2000 Hz

45 N

Electrical

• Test voltage

• Contact resistance

• Insulation resistance

• Contact rating

300 Vrms

< 16 mΩ

> 5000 mΩ

(at

500 Vdc)

Climatic

• Temperature range

• Sealing mated connectors

• Salt spray

-55°C to +1

75°C

IP67

(1 metre for 30 min. minimum)

48 hours
