HMC689LP4
/
689LP4E
v01.1010
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 2.0 - 2.7 GHz
Features
High Input IP3: +32 dBm
Low Conversion Loss: 7.5 dB
Low LO Drive: 0 dBm
Optimized for High Side LO Input
Upconversion & Downconversion Applications
24 Lead 4x4mm SMT Package: 16mm
2
Typical Applications
The HMC689LP4(E) is Ideal for:
• Cellular/3G & LTE/WiMAX/4G
10
MIXERS - SINGLE & DOUBLE BALANCED - SMT
• Basestations & Repeaters
• GSM, CDMA & OFDM
• Transmitters and Receivers

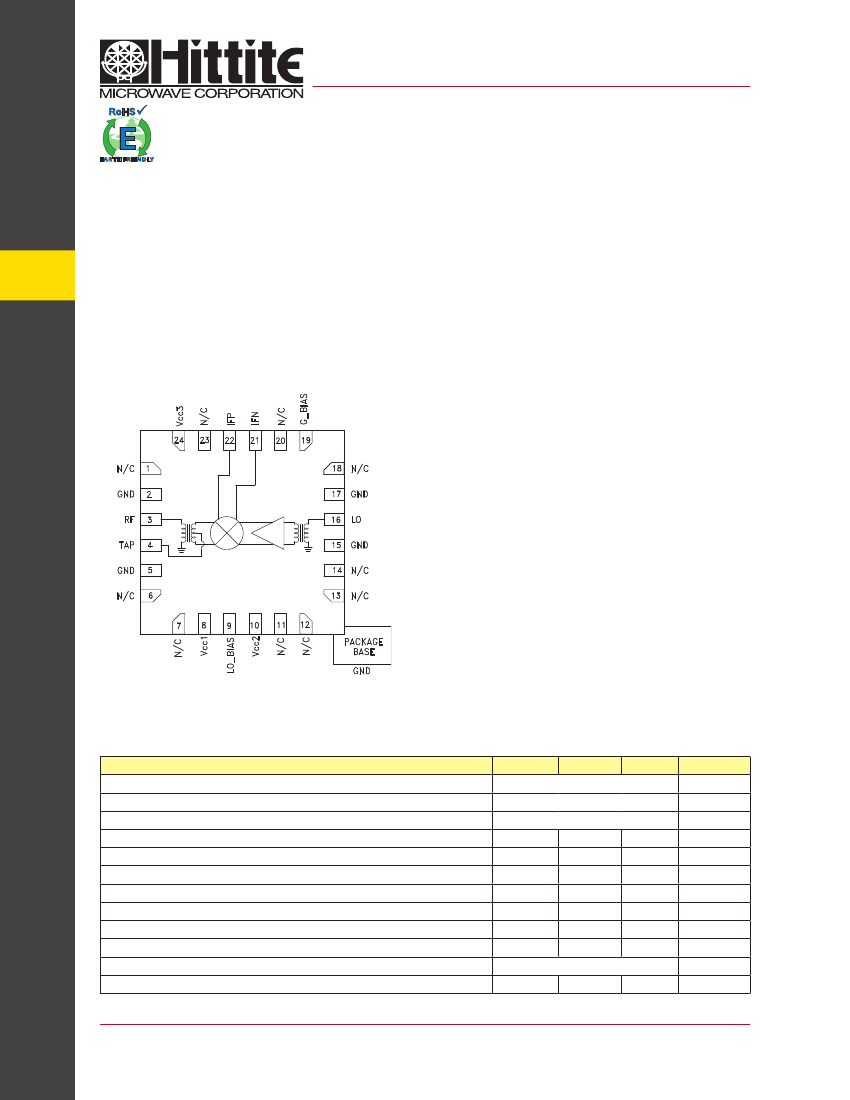

Functional Diagram
General Description
The HMC689LP4(E) is a high dynamic range passive
MMIC mixer with integrated LO amplifier in a 4x4 SMT
QFN package covering 2.0 - 2.7 GHz. Excellent input
IP3 performance of +32 dBm for down conversion is
provided for 3G & 4G GSM/CDMA applications at an
LO drive of 0 dBm. With an input 1 dB compression
of +23 dBm, the RF port will accept a wide range of
input signal levels. Conversion loss is 7.5 dB typical.
The DC to 800 MHz IF frequency response will sat-
isfy GSM/CDMA transmit or receive frequency plans.
The HMC689LP4(E) is pin for pin compatible with the
HMC688LP4(E) which is a 2.0 - 2.7 MHz mixer with
LO amplifier, amplifier is optimized for low side LO
applications.
Electrical Specifications,
T
A
= +25° C, IF = 300 MHz, LO = 0 dBm, Vcc = Vcc1, 2, 3 = +5V, G_Bias = +2.8V*
Parameter
Frequency Range, RF
Frequency Range, LO
Frequency Range, IF
Conversion Loss
Noise Figure (SSB)
LO to RF Isolation
LO to IF Isolation
RF to IF Isolation
IP3 (Input)
1 dB Compression (Input)
LO Drive Input Level (Typical)
Supply Current (Icc total)
26
20
24
Min.
Typ.
2.0 - 2.7
2-3
DC - 800
7.5
7.5
34
26
30
32
23
-3 to +3
152
185
11
Max.
Units
GHz
GHz
MHz
dB
dB
dB
dB
dB
dBm
dBm
dBm
mA
* Unless otherwise noted all measurements performed as downconverter with high side LO & IF = 300 MHz.
10 - 1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC689LP4 / 689LP4E
v01.1010
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 2.0 - 2.7 GHz
Isolation
0
RF/IF
LO/RF
LO/IF

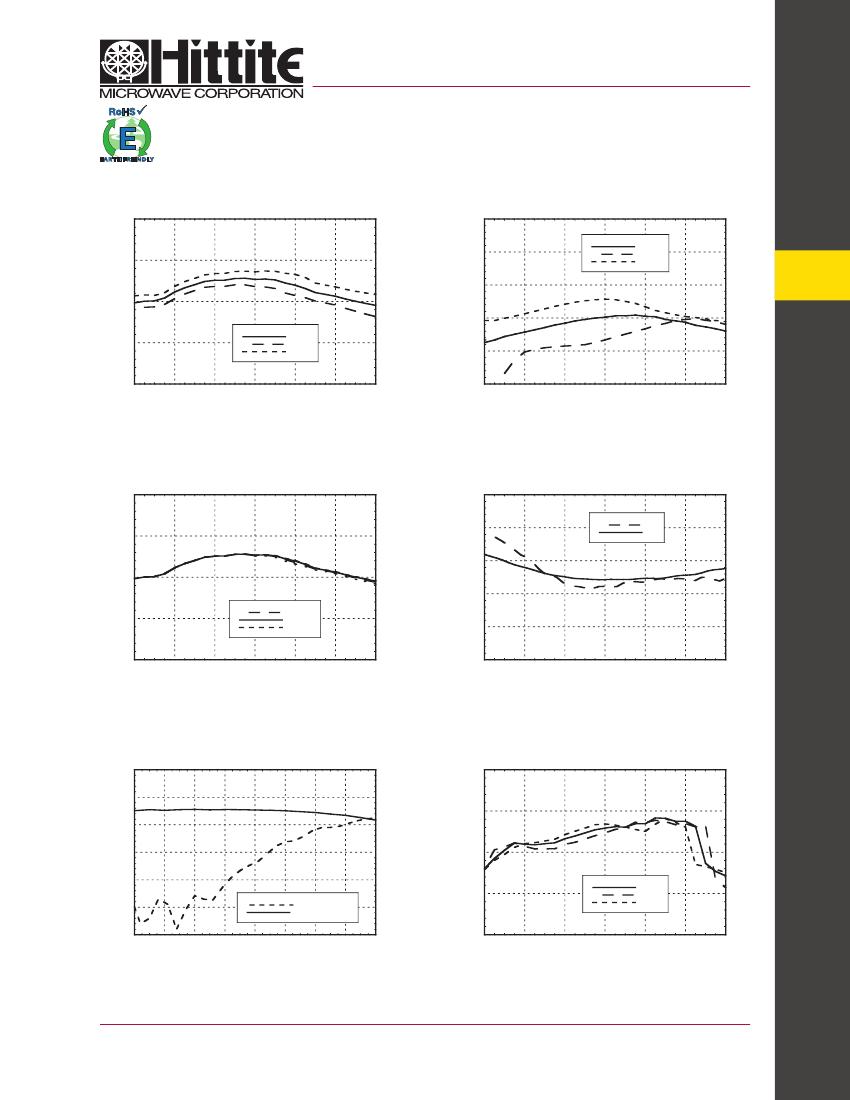

Conversion Gain vs. Temperature
0
CONVERSION GAIN (dB)
-5
ISOLATION (dB)
-10
-20
-10
10
2.8
3
-30
-15
+25 C
+85 C
-40 C
-40
-20
1.8
2
2.2
2.4
2.6
2.8
3
-50
1.8
2
2.2
2.4
2.6
FREQUENCY (GHz)
FREQUENCY (GHz)
Conversion Gain vs. LO Drive
0
Return Loss
0
RF
LO
CONVERSION GAIN (dB)
RETURN LOSS (dB)
-5
-5
-10
-10
-15
-15
-3 dBm
0 dBm
+3 dBm
-20
-20
1.8
2
2.2
2.4
2.6
2.8
3
-25
1.8
2
2.2
2.4
2.6
2.8
3
FREQUENCY (GHz)
FREQUENCY (GHz)
IF Bandwidth (LO = 2.8 GHz)
0
-5
Input P1dB vs. Temperature
30
25
RESPONSE (dB)
P1dB (dBm)
-10
-15
-20
15
-25
-30
0.1
IF Return Loss
Conversion Gain
20
+25 C
+85 C
-40 C
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
10
1.8
2
2.2
2.4
2.6
2.8
3
FREQUENCY (GHz)
FREQUENCY (GHz)
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 2
MIXERS - SINGLE & DOUBLE BALANCED - SMT
HMC689LP4 / 689LP4E
v01.1010
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 2.0 - 2.7 GHz

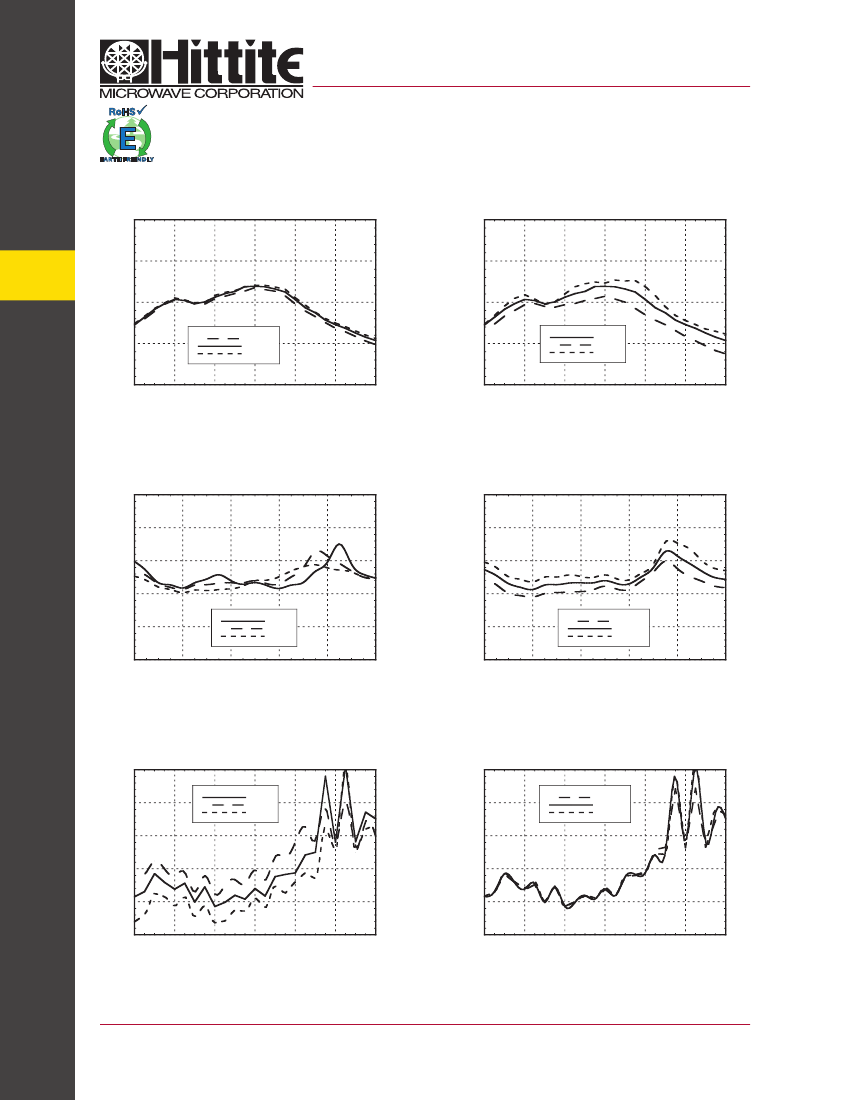

Input IP3 vs. Temperature
[1]
40
Input IP3 vs. LO Drive
[1]
40
IP3 (dBm)
30
IP3 (dBm)
10
MIXERS - SINGLE & DOUBLE BALANCED - SMT
35
35
30
25
-3 dBm
0 dBm
+3 dBm
25
+25 C
+85 C
-40 C
20
1.8
2
2.2
2.4
2.6
2.8
3
20
1.8
2
2.2
2.4
2.6
2.8
3
FREQUENCY (GHz)
FREQUENCY (GHz)
-2RF +2LO Response vs. Temperature
[2]
90
-2RF+2LO RESPONSE (dBc)
-2RF +2LO Response vs. LO Drive
[2]
90
-2RF+2LO RESPONSE (dBc)
80
80
70
70
60
+25 C
+85 C
-40 C
60
-3 dBm
0 dBm
+3 dBm
50
50
40
1.8
2
2.2
2.4
2.6
2.8
40
1.8
2
2.2
2.4
2.6
2.8
FREQUENCY (GHz)
FREQUENCY (GHz)
-3RF +3LO Response vs. Temperature
[2]
90
-3RF+3LO RESPONSE (dBc)
+25 C
+85 C
-40 C
-3RF +3LO Response vs. LO Drive
[2]
90
-3RF+3LO RESPONSE (dBc)
-3 dBm
0 dBm
+3 dBm
85
85
80
80
75
75
70
70
65
1.8
2
2.2
2.4
2.6
2.8
3
65
1.8
2
2.2
2.4
2.6
2.8
3
FREQUENCY (GHz)
FREQUENCY (GHz)
[1] Two-tone input power = +9 dBm each tone, 1 MHz spacing.
[2] Referenced to RF Input power at 0 dBm
10 - 3
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC689LP4 / 689LP4E
v01.1010
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 2.0 - 2.7 GHz

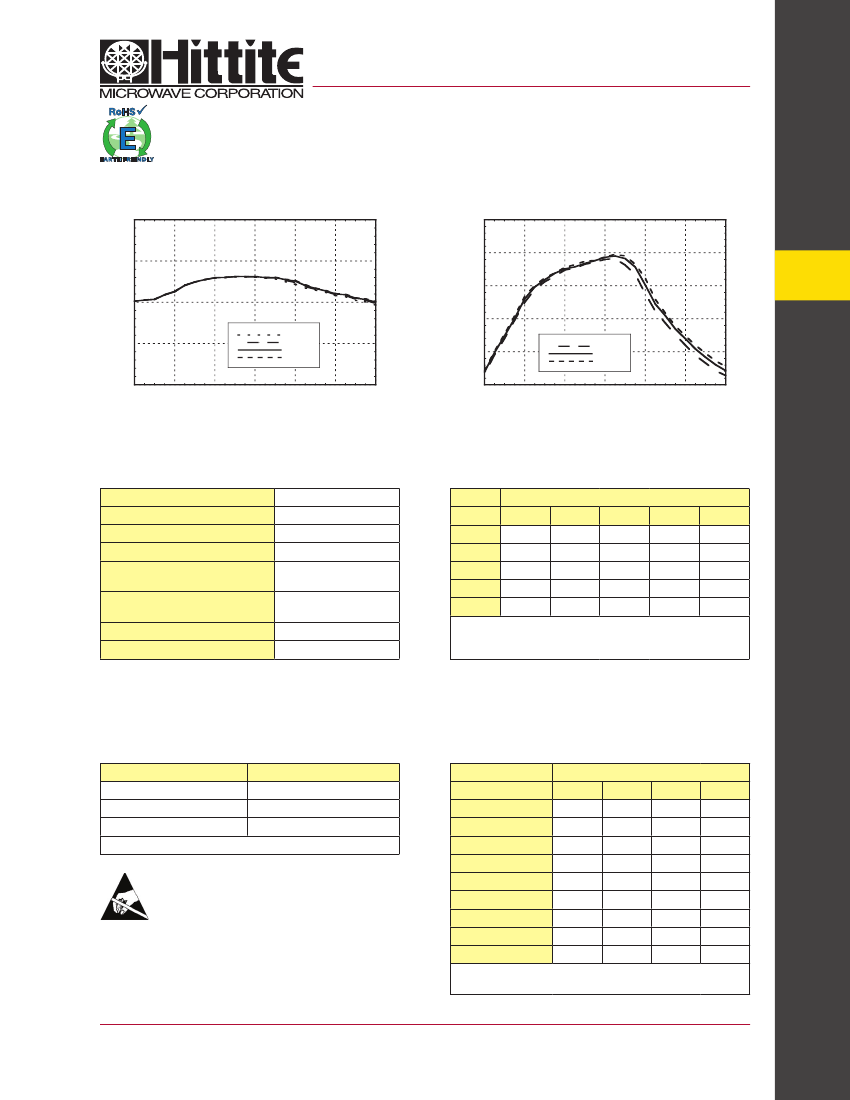

Upconverter Performance
Input IP3 vs. LO Drive
[1]
32
Upconverter Performance
Conversion Gain vs. LO Drive
0
CONVERSION GAIN (dB)
-5
IP3 (dBm)
30
28
-10
10
-3 dBm
0 dBm
+3 dBm
26
-15
-6 dBm
-3 dBm
0 dBm
+3 dBm
24
-20
1.8
2
2.2
2.4
2.6
2.8
3
22
1.8
2
2.2
2.4
2.6
2.8
3
FREQUENCY (GHz)
FREQUENCY (GHz)
Absolute Maximum Ratings
RF / IF Input (Vcc1, 2, 3 = +5V)
LO Drive (Vcc1, 2, 3 = +5V)
Vcc1, 2, 3
Channel Temperature
Continuous Pdiss (T = 85°C)
(derate 36.23 mW/°C above 85°C)
Thermal Resistance
(channel to ground paddle)
Storage Temperature
Operating Temperature
+23 dBm
+10 dBm
+5.5V
125 °C
1.45 W
27.6 °C/W
-65 to 150 °C
-40 to +85 °C
MxN Spurious @ IF Port
nLO
mRF
0
1
2
3
4
0
xx
28
73
109
120
1
23
0
73
81
117
2
34
46
52
94
120
3
34
42
66
67
111
4
38
55
85
96
110
RF Freq. = 2.5 GHz @ 0 dBm
LO Freq. = 2.8 GHz @ 0 dBm
All values in dBc below IF power level (-1RF + 1LO).
Typical Supply Current vs. Vcc
Vcc1, 2, 3 (V)
4.75
5.00
5.25
Icc total (mA)
140
152
164
Harmonics of LO
nLO Spur @ RF Port
LO Freq. (GHz)
2.1
2.2
2.3
2.4
1
32
30
29
28
26
25
24
25
26
2
26
26
27
26
25
24
23
24
22
3
55
51
42
44
41
42
42
40
38
4
29
30
29
29
26
26
22
26
34
Downconverter will operate over full voltage range shown above.
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
2.5
2.6
2.7
2.8
2.9
LO = 0 dBm
All values in dBc below input LO level measured at RF port.
[1] Two-tone input power = +9 dBm each tone, 1 MHz spacing.
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
10 - 4
MIXERS - SINGLE & DOUBLE BALANCED - SMT
HMC689LP4 / 689LP4E
v01.1010
BiCMOS MMIC MIXER W/ INTEGRATED
LO AMPLIFIER, 2.0 - 2.7 GHz

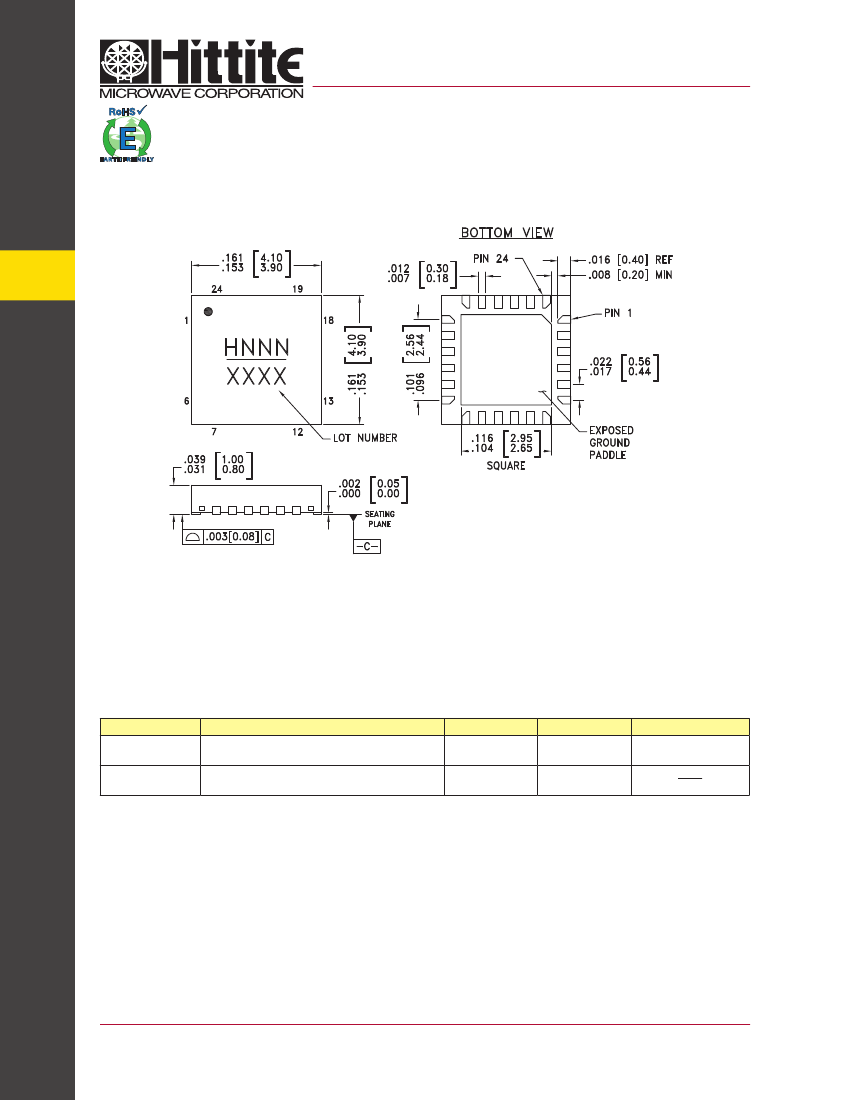

Outline Drawing
10
MIXERS - SINGLE & DOUBLE BALANCED - SMT
NOTES:
1. PACKAGE BODY MATERIAL: LOW STRESS INJECTION MOLDED
PLASTIC SILICA AND SILICON IMPREGNATED.
2. LEAD AND GROUND PADDLE MATERIAL: COPPER ALLOY.
3. LEAD AND GROUND PADDLE PLATING: 100% MATTE TIN.
4. DIMENSIONS ARE IN INCHES [MILLIMETERS].
5. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
6. PAD BURR LENGTH SHALL BE 0.15mm MAX.
PAD BURR HEIGHT SHALL BE 0.25mm MAX.
7. PACKAGE WARP SHALL NOT EXCEED 0.05mm
8. ALL GROUND LEADS AND GROUND PADDLE
MUST BE SOLDERED TO PCB RF GROUND.
9. REFER TO HITTITE APPLICATION NOTE
FOR SUGGESTED PCB LAND PATTERN.
Package Information
Part Number
HMC689LP4
HMC689LP4E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
[3]
H689
XXXX
H689
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
10 - 5
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
