BT09VG
5-4000 MHz Wideband Medium Power Amplifier
Device Features
OIP3 = 41.0 dBm @ 1900 MHz
Gain = 15.5 dB @ 1900 MHz
Output P1 dB = 25.5 dBm @ 1900 MHz
50 Ω Cascadable
Lead-free/RoHS-compliant SOT-89 SMT package
Typical Performance
1
Parameter
900
Gain
S11
S22
OIP3
2
P1dB
Noise Figure
1
2
Product Description
BeRex’s BT09VG is a high performance and a
high dynamic range amplifier in a low cost
surface mount package(SOT-89) with a RoHS
-compliant, that incorporates reliable het-
erojunction-bipolar-transistor (HBT) devices
fabricated with InGaP GaAs technology.
This device is designed for use where high
linearity is required and features high OIP3
and P1 with low consumption current
(85mA) and requires a few external match-
ing components such as a DC blocking ca-
pacitors on the In/Output pin, a bypass ca-
pacitor and a RF choke for the out port.
All devices are 100% RF/DC tested.
Applications
Base station Infrastructure/RFID
Commercial/Industrial/Military wireless system
Frequency
1900
15.5
-30.0
-19.0
41.0
25.5
4.0
2450
13.5
-14.0
-19.0
41.0
27.0
4.7
3500
10.8
-15.0
-14.0
42.0
25.0
5.4
Unit
MHz
dB
dB
dB
dBm
dBm
dB
21.5
-16.0
-24.0
39.0
24.5
3.7
Device performance _ measured on a BeRex evaluation board at 25°C, 50 Ω system.
OIP3 _ measured with two tones at an output of 13 dBm per tone separated by 1 MHz.
Min.
Bandwidth
I
C
@ (Vc = 5V)
V
C
R
TH
5
140
Typical
160
5.0
50
Max.
4000
180
Unit
MHz
mA
V
°C/W
Absolute Maximum Ratings
Parameter
Operating Case Temperature
Storage Temperature
Junction Temperature
Operating Voltage
Supply Current
Input RF Power
Rating
-40 to +85
-55 to +155
+220
+7.0
220
23
Unit
°C
°C
°C
V
mA
dBm
Application Circuits
Vcc
Bypass
RF Choke
RF In
DC
Block
BT09VG
RF Out
DC
Block
*Operation of this device above any of these parameters may result in permanent damage.
*external matching circuit: refer to the page 5 to 14.
BeRex
●
website:
www.berex.com
●
email:
sales@berex.com
1
Specifications and information are subject to change and products may be discontinued without notice. BeRex is a trademark of BeRex.
All other trademarks are the property of their respective owners. © 2010 BeRex
Rev. C
BT09VG
5-4000 MHz Wideband Medium Power Amplifier

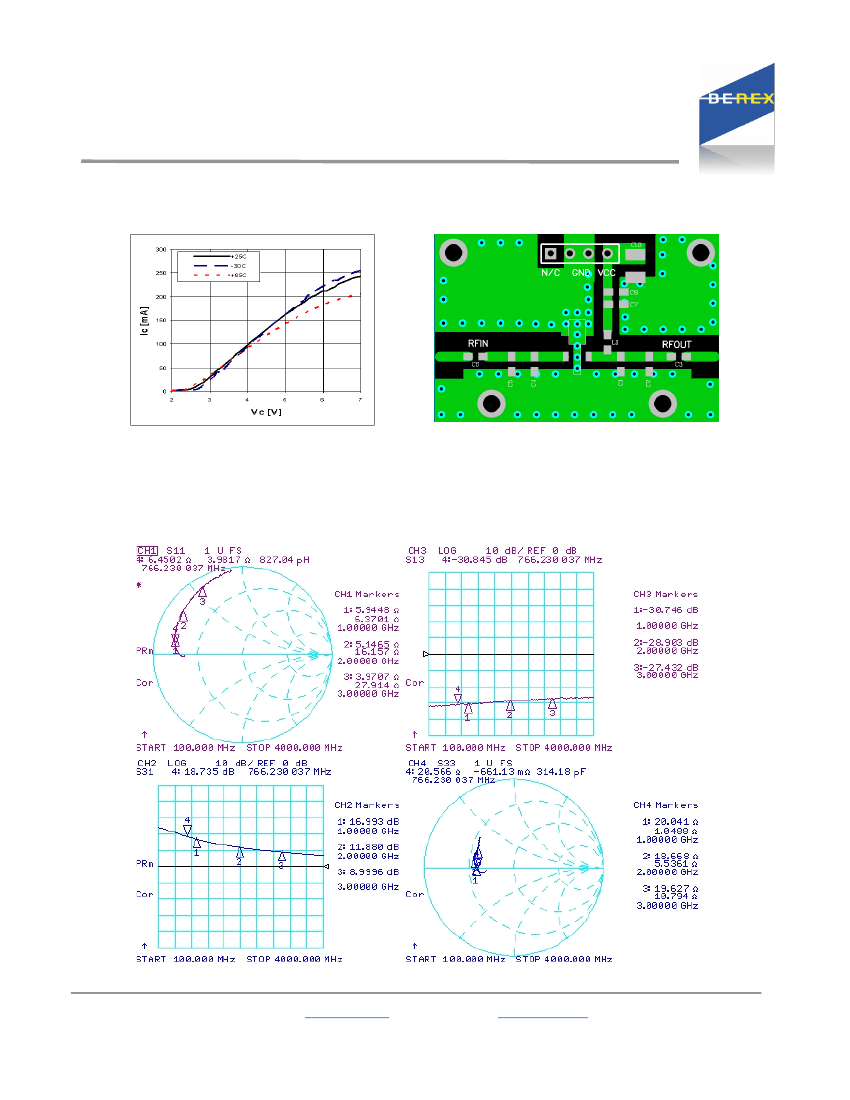

V-I Characteristics
BeRex SOT89 Evaluation Board
BeRex
Evaluation Board
*Dielectric constant _ 4.2 *
RF pattern width 52mil *31mil thick FR4 PCB
Typical Device Data
S-parameters (Vc=5V, Ic=160mA, T=25°C)
BeRex
●
website:
www.berex.com
●
email:
sales@berex.com
2
Specifications and information are subject to change and products may be discontinued without notice. BeRex is a trademark of BeRex.
All other trademarks are the property of their respective owners. © 2010 BeRex
Rev. C
BT09VG
5-4000 MHz Wideband Medium Power Amplifier
S-Parameter
(Vdevice = 5.0V, Icc = 160mA, T = 25 °C, calibrated to device leads)
Freq
[MHz]
100
500
1000
1500
2000
2500
3000
3500
4000
S11
Mag
0.65
0.74
0.79
0.81
0.83
0.85
0.88
0.92
0.96
S11
Ang
-180.00
180.00
170.00
150.00
140.00
130.00
120.00
110.00
98.00
S21
Mag
16.00
11.00
7.00
5.00
3.90
3.20
2.80
2.50
2.20
S21
Ang
170.00
130.00
98.00
82.00
69.00
57.00
46.00
35.00
23.00
S12
Mag
0.03
0.03
0.03
0.03
0.04
0.04
0.04
0.04
0.05
S12
Ang
2.50
8.90
14.00
18.00
19.00
19.00
18.00
14.00
11.00
S22
Mag
0.30
0.38
0.42
0.44
0.46
0.45
0.45
0.48
0.51
S22
Ang
-170.00
-170.00
180.00
170.00
170.00
160.00
150.00
140.00
140.00
BeRex
●
website:
www.berex.com
●
email:
sales@berex.com
3
Specifications and information are subject to change and products may be discontinued without notice. BeRex is a trademark of BeRex.
All other trademarks are the property of their respective owners. © 2010 BeRex
Rev. C
BT09VG
5-4000 MHz Wideband Medium Power Amplifier

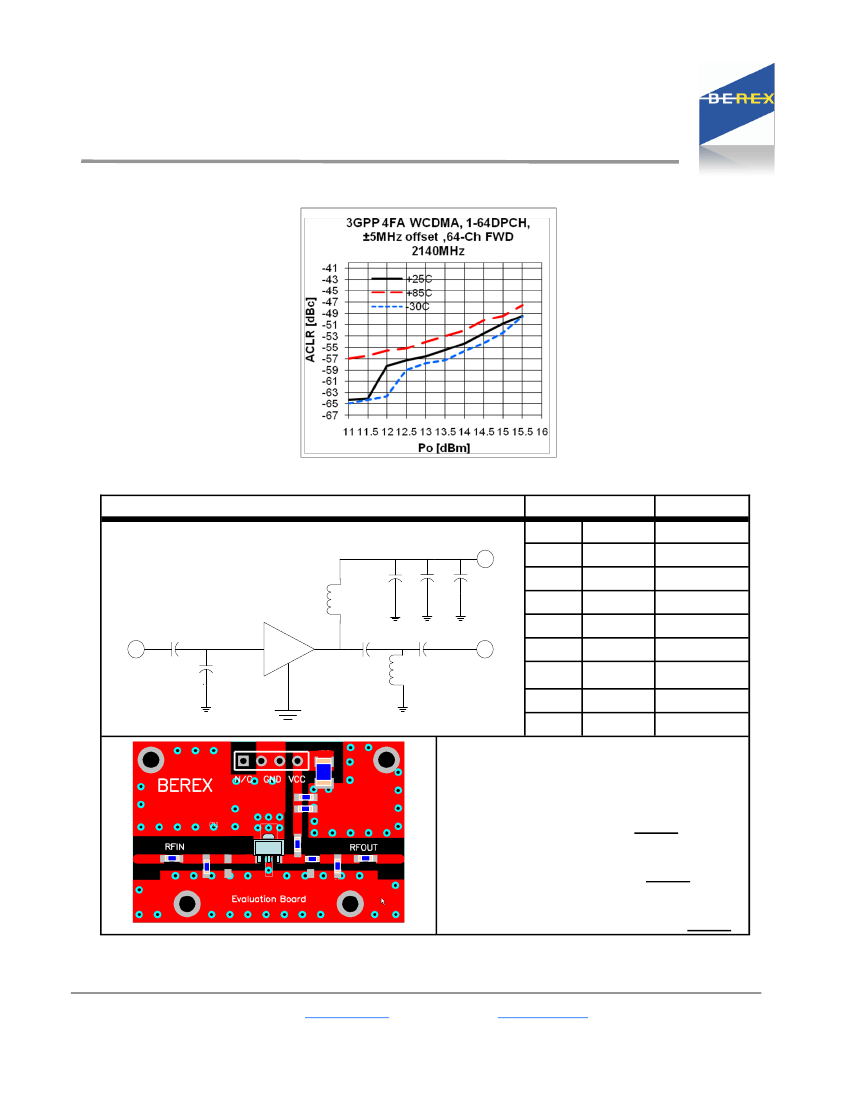

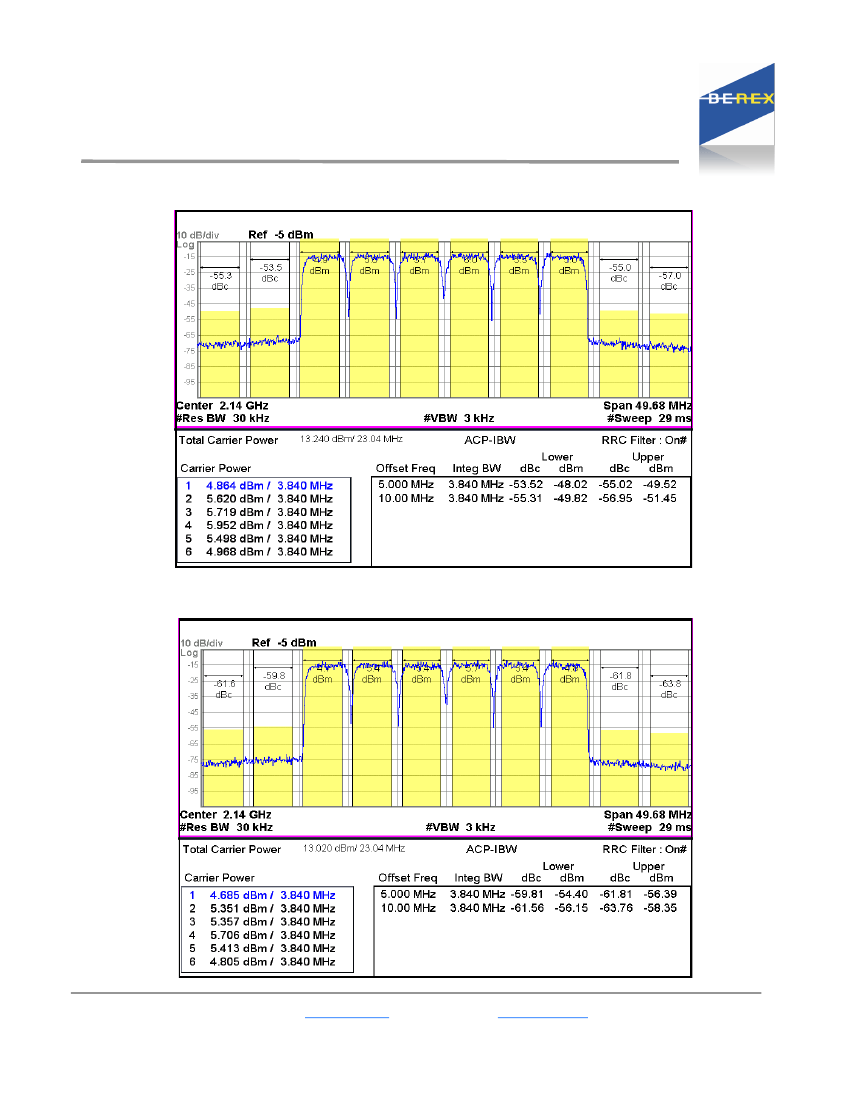

ACLR
