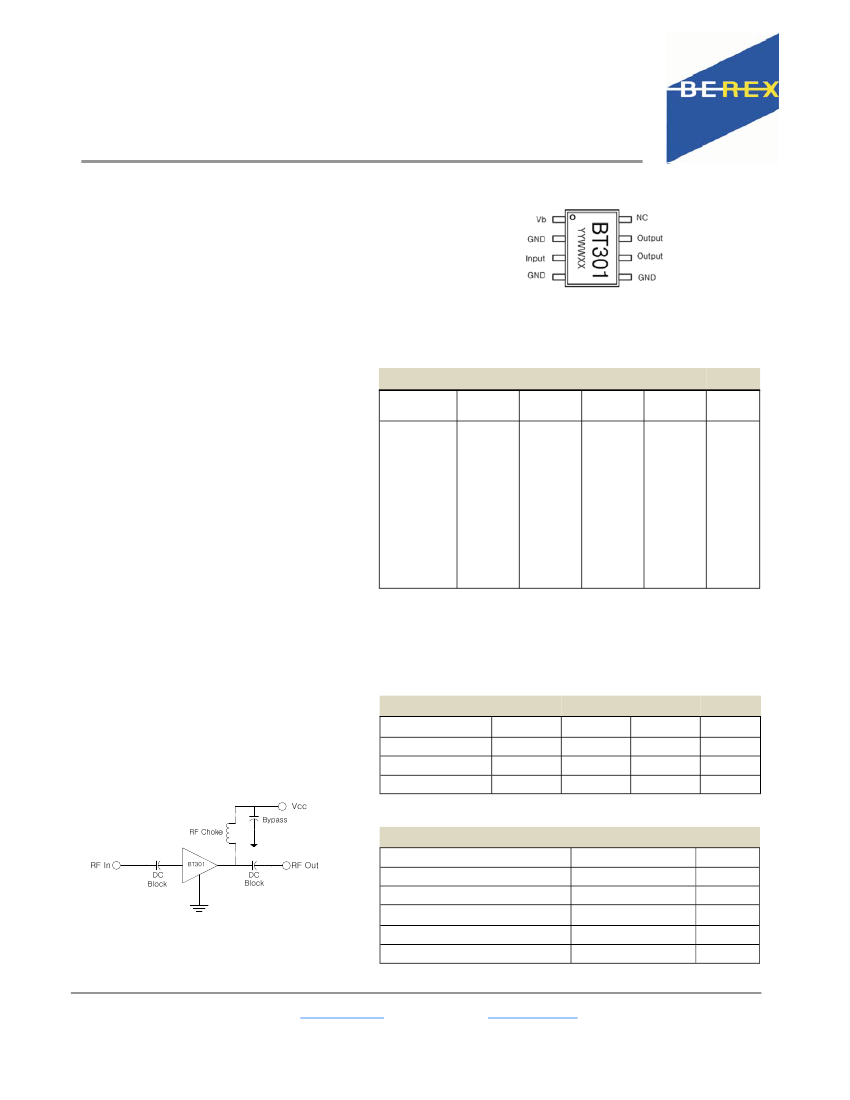

BT301
500‐4000 MHz High Power Amplifier
Device Features
OIP3 = 49.0 dBm @ 1900 MHz
Gain = 12.5 dB @ 1900 MHz
Output P1 dB = 30.3 dBm @ 1900 MHz
50 Ω Cascadable
Patented Over Voltage Protec on Circuit
Lead‐free/RoHS‐compliant SOIC 8 SMT package
Typical Performance
1
Parameter
Gain
S11
S22
OIP3
2
P1dB
IS‐95C ACPR
WCDMA ACLR
1
2
YY = Year, WW = Work week,
XX = Wafer Number
Product Descrip on
BeRex’s BT301 is a high power and a high
dynamic range amplifier in a low cost sur‐
face mount package(SOIC‐8) with a RoHS‐
compliant, that incorporates reliable hetero‐
junc on‐bipolar‐transistor (HBT) devices
fabricated with InGaP GaAs technology.
This device is designed for use where high
linearity is required and features high OIP3
and Power with low consump on current
(350mA) and requires a few external match‐
ing components such as a DC blocking ca‐
pacitors on the In/Output pin, a bypass ca‐
pacitor and a RF choke for the out port.
All devices are 100% RF/DC tested.
Applica ons
Frequency
900
18.5
‐15.0
‐7.0
49.0
29.5
22.5
‐
8.5
1900
12.5
‐18.0
‐12.0
49.0
30.3
22.5
‐
8.6
2140
11.5
‐18.0
‐12.0
47.0
30.3
‐
21.0
7.5
2450
10.5
‐12.0
‐11.0
49.0
30.3
‐
21.0
7.5
Unit
MHz
dB
dB
dB
dBm
dBm
dBm
dBm
dB
Noise Figure
Device performance _ measured on a BeRex evalua
*ACPR&ACLR CH Power _ measured at 50dBc.
on board at 25°C, 50 Ω system.
OIP3 _ measured with two tones at an output of 16 dBm per tone separated by 1 MHz.
*ACPR Test set‐up: IS‐95 CDMA, 9Ch. FWD, +885KHz offset.
*ACLR Test set‐up: 3GPP WCDMA, TM1+64DPCH, +5MHz offset.
Base sta on Infrastructure/RFID
Bandwidth
Commercial/Industrial/Military wireless system
I
C
@ (Vc = 5V)
V
C
Applica on Circuits
R
TH
Min.
500
310
Typical
Max.
4000
350
390
5.0
19.6
Unit
MHz
mA
V
°C/W
Absolute Maximum Ra
ngs
Parameter
Opera ng Case Temperature
Storage Temperature
Junc on Temperature
Opera ng Voltage
Supply Current
Input RF Power
Ra ng
‐40 to +85
‐55 to +155
+220
+6.0
600
28
Unit
°C
°C
°C
V
mA
dBm
*external matching circuit: refer to the page 4 to 11.
*Opera on of this device above any of these parameters may result in permanent damage.
1
BeRex ●website: www.berex.com ● email: sales@berex.com
Specifica ons and informa on are subject to change and products may be discon nued without no ce. BeRex is a trademark of BeRex.
All other trademarks are the property of their respec ve owners. © 2010 BeRex
Rev. C
BT301
500‐4000 MHz High Power Amplifier

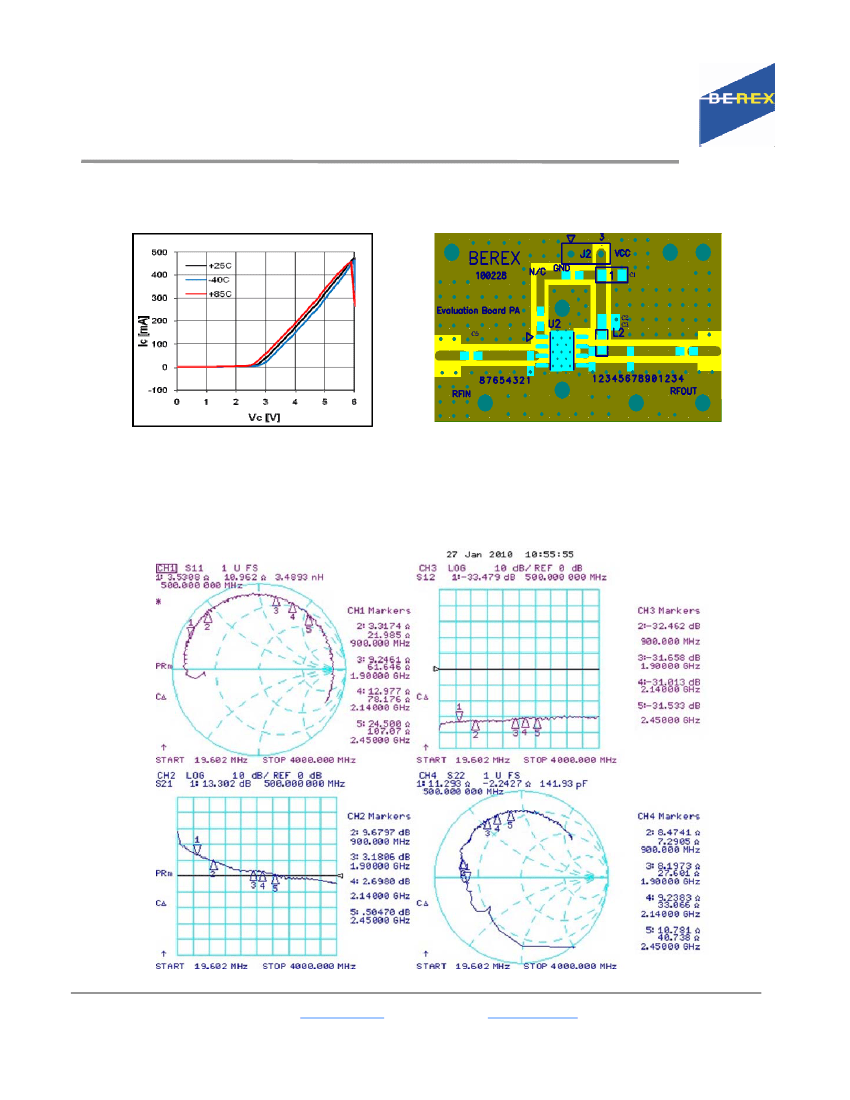

V‐I Characteris cs
BeRex SOT89 Evalua on Board
*Dielectric constant _ 4.2 *
RF pa
ern width 52mil *31mil thick FR4 PCB
Typical Device Data
S‐parameters (Vc=5V, Ic=340mA, T=25°C)
2
BeRex ●website: www.berex.com ● email: sales@berex.com
Specifica ons and informa on are subject to change and products may be discon nued without no ce. BeRex is a trademark of BeRex.
All other trademarks are the property of their respec ve owners. © 2010 BeRex
Rev. C
BT301
500‐4000 MHz High Power Amplifier
S‐Parameter
(Vdevice = 5.0V, Icc = 340mA, T = 25 °C, calibrated to device leads)
Freq
[MHz]
100
500
1000
1500
2000
2500
3000
3500
4000
S11
[Mag]
0.842
0.895
0.893
0.870
0.852
0.840
0.841
0.850
0.879
S11
[Ang]
‐178.0
157.3
130.8
106.2
82.2
58.8
35.6
12.5
‐6.4
S21
[Mag]
11.489
4.894
2.766
1.658
1.512
1.047
0.888
0.840
0.542
S21
[Ang]
131.4
104.8
83.9
75.1
64.0
47.2
50.8
36.8
24.0
S12
[Mag]
0.019
0.023
0.022
0.025
0.027
0.026
0.029
0.031
0.031
S12
[Ang]
18.2
10.6
9.8
21.7
21.5
21.6
16.4
23.4
16.3
S22
[Mag]
0.534
0.659
0.754
0.773
0.761
0.773
0.792
0.659
0.634
S22
[Ang]
‐134.7
‐176.7
160.4
139.8
120.1
101.7
83.2
62.6
41.3
3
BeRex ●website: www.berex.com ● email: sales@berex.com
Specifica ons and informa on are subject to change and products may be discon nued without no ce. BeRex is a trademark of BeRex.
All other trademarks are the property of their respec ve owners. © 2010 BeRex
Rev. C
BT301
500‐4000 MHz High Power Amplifier

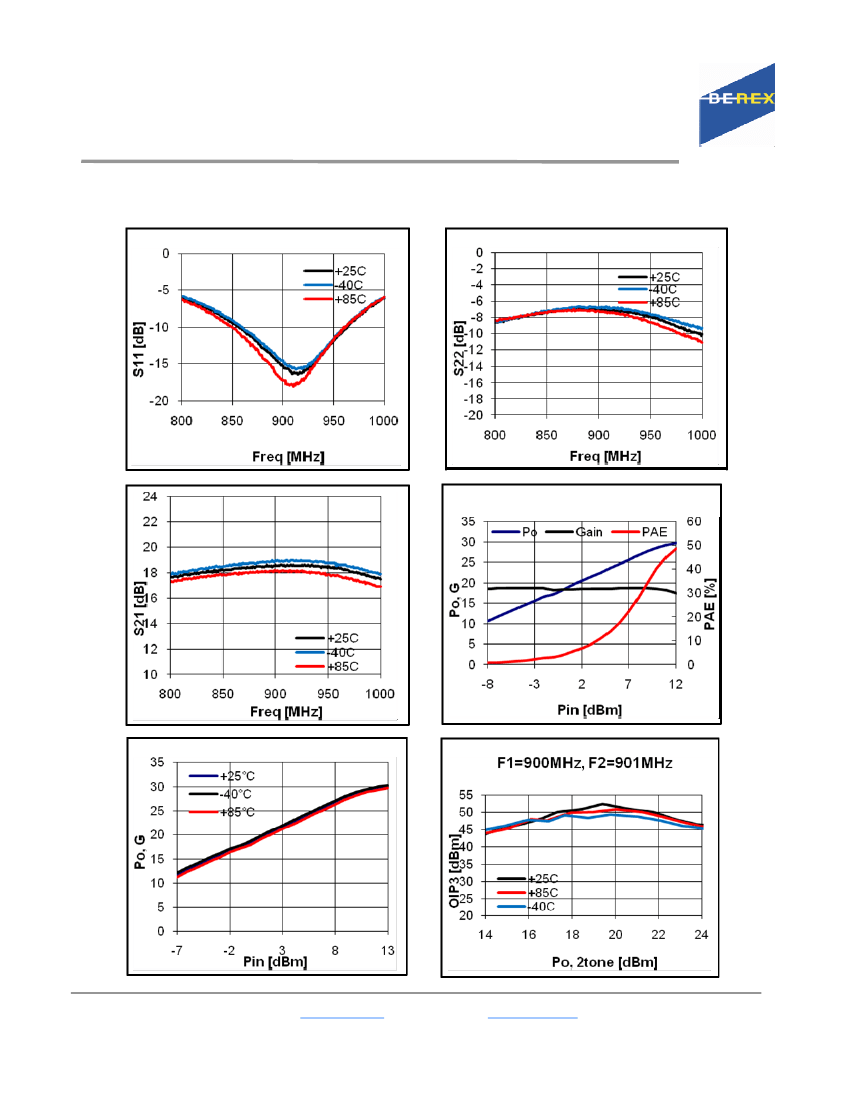

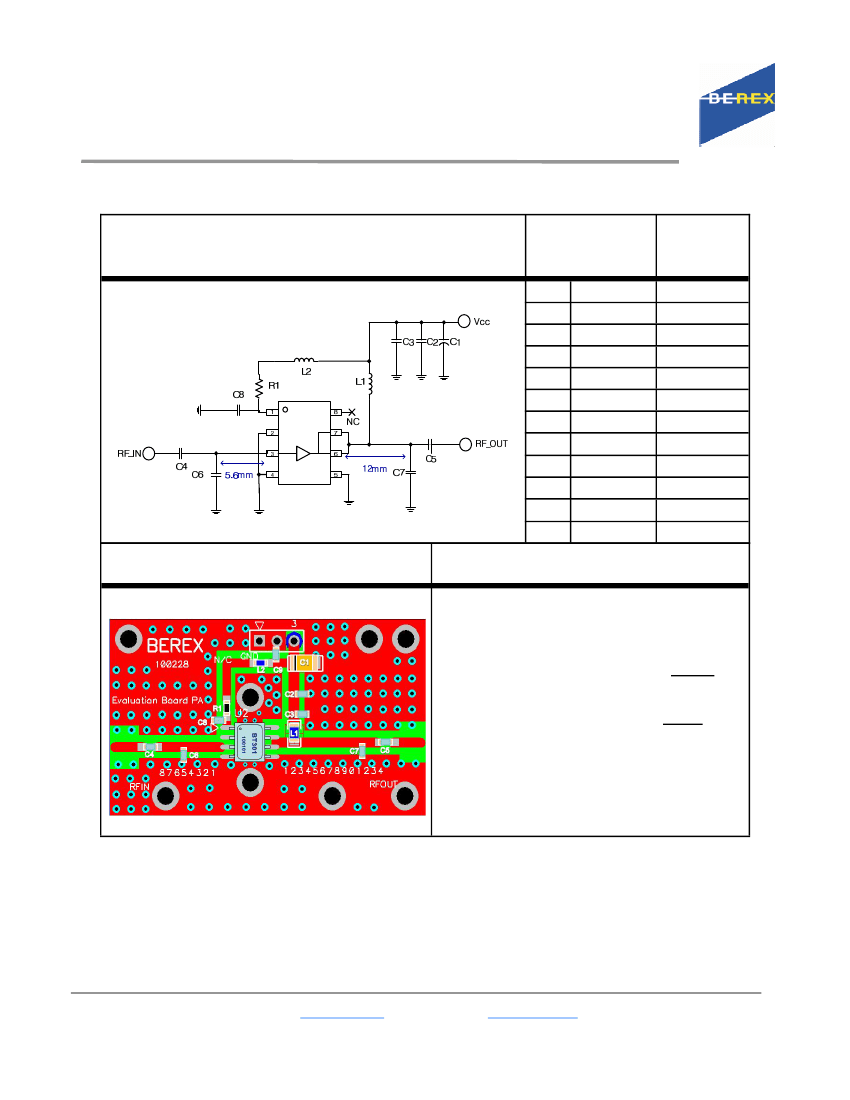

Applica on Circuit: 900 MHz
Schema c Diagram
C1
C2
C3
C4
C5
C6
C7
C8
R1
L1
L2
BOM
10uF
1.0nF
100pF
3pF
100pF
4.7pF
5.0pF
2.7pF
12ohm
56nH
4.7nH
No ce
1. PCB: 31mil thick FR4
2. Distance between the center of the shunt Induc‐
tor(C6) and the input pin of BT301 _ 5.6 mm.
Tolerance
±20%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
PCB Diagram
3. Distance between the center of the shunt cap.
(C7) and the output pin of BT301 _ 12 mm.
※
BT301 with both input and output ports opened
simultaneously may cause instability. Please See an
applica on note or contact company for applica on
support.
4
BeRex ●website: www.berex.com ● email: sales@berex.com
Specifica ons and informa on are subject to change and products may be discon nued without no ce. BeRex is a trademark of BeRex.
All other trademarks are the property of their respec ve owners. © 2010 BeRex
Rev. C
