HMC585MS8G
/
585MS8GE
v01.0907
HIGH IP3 GaAs MMIC MIXER with
INTEGRATED LO AMPLIFIER, 400 - 650 MHz
Typical Applications
The HMC585MS8G / HMC585MS8GE are ideal for:
• Basestations & Repeaters
• GSM, GPRS & EDGE
• CDMA & W-CDMA
Features
High Input IP3: +33 dBm
Conversion Loss: 9 dB
Low LO Drive: -2 to +4 dBm
Single Supply: +5V @ 50 mA
Compact MSOP Package: 14.8mm
2
9
MIXERS - HIGH IP3 - SMT
• Cable Modem Termination Systems
Functional Diagram
General Description
The HMC585MS8G & HMC585MS8GE are high
dynamic range passive MMIC mixers with integrated
LO amplifiers in plastic surface mount 8 lead Mini
Small Outline Packages (MSOP) covering an RF
range of 400 MHz to 650 MHz. The LO range of
300 MHz to 750 MHz supports both high side and
low side LO applications. Excellent input IP3
performance of +33 dBm for down conversion and
+27 dBm for up conversion is provided for 2.5G & 3G
applications at an LO drive of 0 dBm. RF conversion
loss is 9 dB typical. The DC to 250 MHz IF frequency
response will satisfy a wide range of Tx and Rx
frequency plans.
Electrical Specifi cations,
T
A
= +25°C, LO = 0 dBm, IF = 50 MHz*, Vdd= 5V
Parameter
Frequency Range, RF
Frequency Range, LO
Frequency Range, IF
Conversion Loss
LO to RF Isolation
LO to IF Isolation
IP3 (Input)
1 dB Gain Compression (Input)
LO Input Drive Level (Typical)
Supply Current
10
30
Min.
Typ.
400 - 650
300 - 750
DC - 0.25
9.0
7
15
33
22
-2 to +4
50
11
Max.
Units
MHz
MHz
GHz
dB
dB
dB
dBm
dBm
dBm
mA
*Unless otherwise noted, all measurements performed as a downconverter, with high side LO & IF = 50 MHz.
9 - 356
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC585MS8G
/
585MS8GE
v01.0907
HIGH IP3 GaAs MMIC MIXER with
INTEGRATED LO AMPLIFIER, 400 - 650 MHz

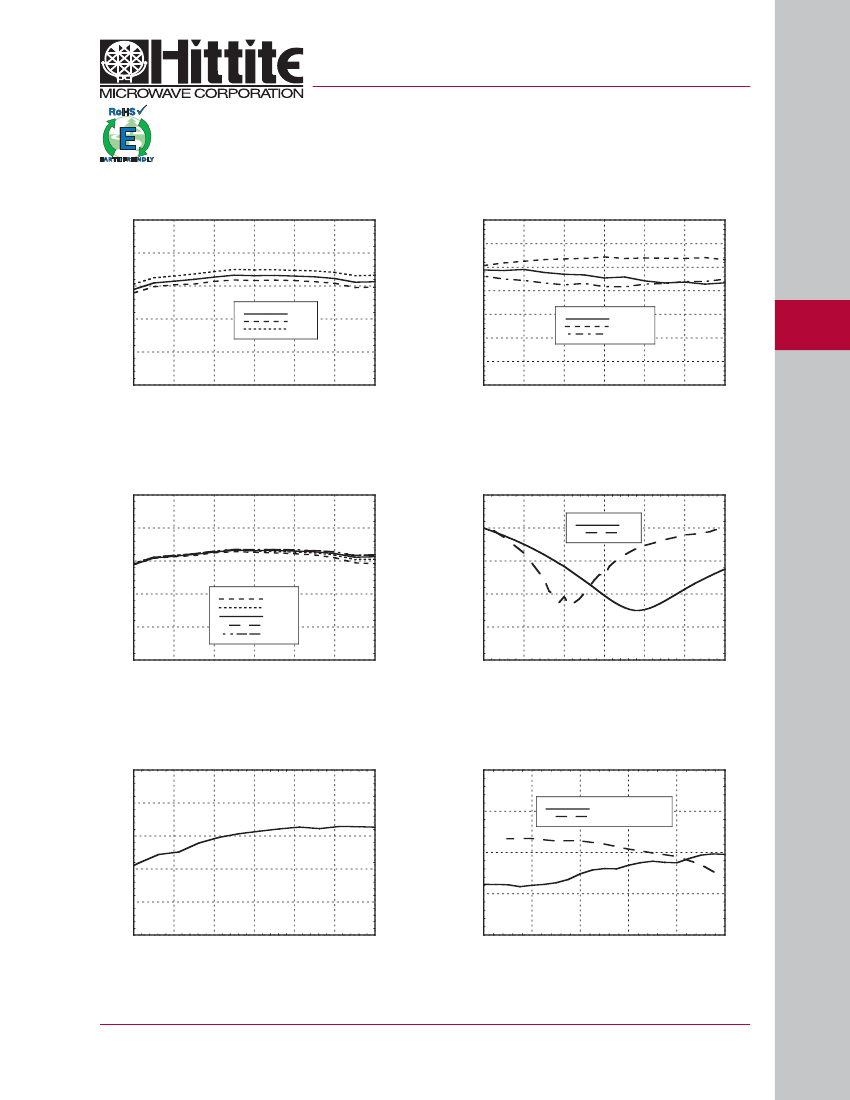

Conversion Gain vs.
Temperature @ LO = 0 dBm
0
Isolation @ LO = 0 dBm
10
0
CONVERSION GAIN (dB)
-5
ISOLATION (dB)
-10
-20
-30
-40
-50
-25
0.37
-60
0.37
RF TO IF
LO TO RF
LO TO IF
-10
+25C
+85C
-40C
-15
9
0.62
0.67
-20
0.42
0.47
0.52
0.57
0.62
0.67
0.42
0.47
0.52
0.57
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Conversion Gain vs. LO Drive
0
Return Loss @ LO = 0 dBm
0
CONVERSION GAIN (dB)
-5
RETURN LOSS (dB)
-5
LO
RF
-10
-10
-15
-20
-4dBm
-2dBm
0dBm
+2dBm
+4dBm
-15
-20
-25
0.37
0.42
0.47
0.52
0.57
0.62
0.67
-25
0.25
0.35
0.45
0.55
0.65
0.75
0.85
RF FREQUENCY (GHz)
FREQUENCY (GHz)
Upconverter Performance
Conversion Gain @ LO = 0 dBm
0
IF Bandwidth @ LO = 0 dBm
0
CONVERSION GAIN (dB)
-5
-5
-10
RESPONSE (dB)
RETURN LOSS
CONVERSION GAIN
-10
-15
-15
-20
-25
0.37
-20
0.42
0.47
0.52
0.57
0.62
0.67
0
0.05
0.1
0.15
0.2
0.25
RF FREQUENCY (GHz)
IF FREQUENCY (GHz)
Unless otherwise noted, all measurements performed as a downconverter, with high side LO & IF = 50 MHz.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
9 - 357
MIXERS - HIGH IP3 - SMT
HMC585MS8G
/
585MS8GE
v01.0907
HIGH IP3 GaAs MMIC MIXER with
INTEGRATED LO AMPLIFIER, 400 - 650 MHz

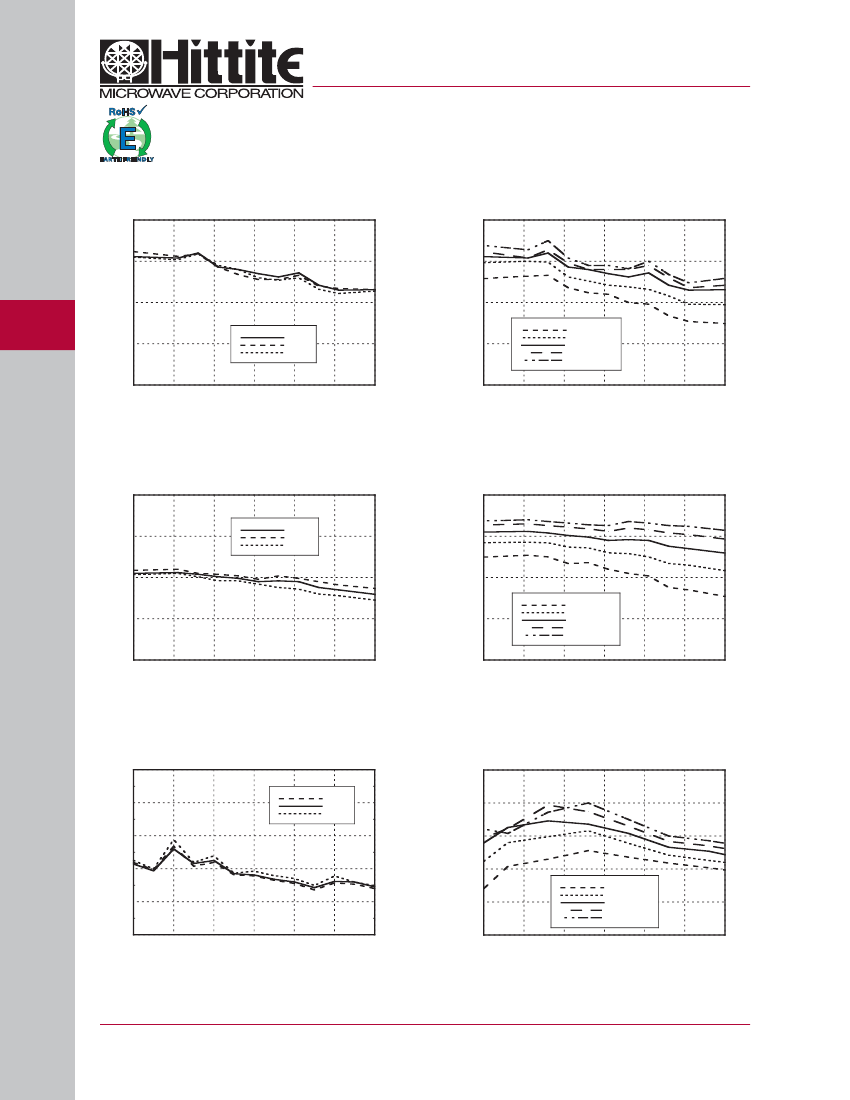

Input IP3 vs.
Temperature @ LO= 0 dBm
40
Input IP3 vs. LO Drive
40
35
INPUT IP3 (dBm)
INPUT IP3 (dBm)
35
30
30
LO = -4dBm
LO = -2dBm
LO = 0dBm
LO = +2dBm
LO = +4dBm
9
MIXERS - HIGH IP3 - SMT
25
+ 25C
- 40C
+ 85C
25
20
0.37
0.42
0.47
0.52
0.57
0.62
0.67
20
0.37
0.42
0.47
0.52
0.57
0.62
0.67
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Input IP2 vs.
Temperature @ LO= 0 dBm
45
Input IP2 vs. LO Drive
40
40
INPUT IP2 (dBm)
35
INPUT IP3 (dBm)
+ 25C
- 40C
+ 85C
35
30
LO = -4dBm
LO = -2dBm
LO = 0dBm
LO = +2dBm
LO = +4dBm
30
25
25
0.37
0.42
0.47
0.52
0.57
0.62
0.67
20
0.37
0.42
0.47
0.52
0.57
0.62
0.67
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Input P1dB vs.
Temperature @ LO= 0 dBm
30
+ 25C
+ 85C
- 40C
Upconverter IP3
vs. LO Drive, IF= 50 MHz
40
28
INPUT IP3 (dBm)
35
INPUT IP3 (dBm)
26
30
24
25
LO = -4dBm
LO = -2dBm
LO = 0dBm
LO = +2dBm
LO = +4dBm
22
20
20
0.37
0.42
0.47
0.52
0.57
0.62
0.67
15
0.37
0.42
0.47
0.52
0.57
0.62
0.67
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Unless otherwise noted, all measurements performed as a downconverter, with high side LO & IF = 50 MHz.
9 - 358
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC585MS8G
/
585MS8GE
v01.0907
HIGH IP3 GaAs MMIC MIXER with
INTEGRATED LO AMPLIFIER, 400 - 650 MHz

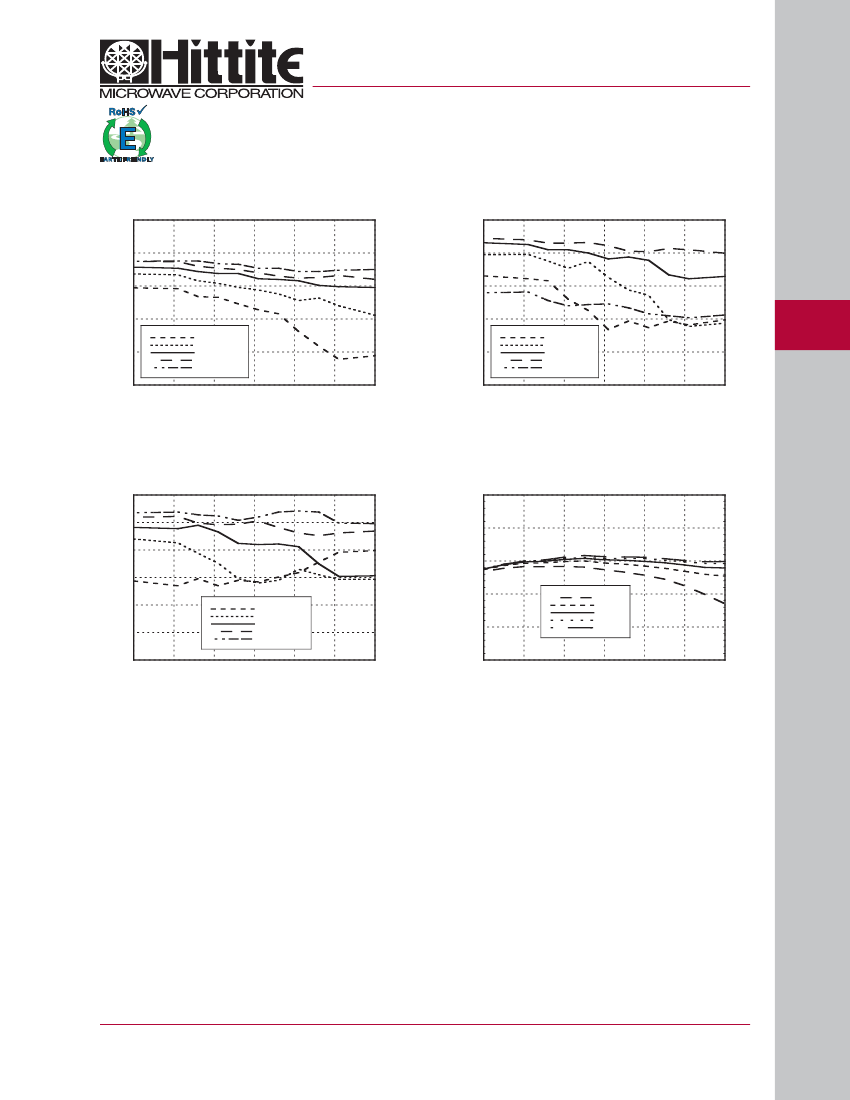

Input IP3 vs. LO Drive, IF= 100 MHz
40
Input IP3 vs. LO Drive, IF= 150 MHz
35
35
INPUT IP3 (dBm)
INPUT IP3 (dBm)
30
30
25
25
LO = -4dBm
LO = -2dBm
LO = 0dBm
LO = +2dBm
LO = +4dBm
20
LO = -4dBm
LO = -2dBm
LO = 0dBm
LO = +2dBm
LO = +4dBm
9
0.52
0.57
0.62
0.67
20
15
15
0.37
0.42
0.47
0.52
0.57
0.62
0.67
10
0.37
0.42
0.47
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Input IP3 vs. LO Drive, IF= 200 MHz
35
30
25
20
15
10
5
0.37
Conversion Gain vs.
LO Drive, IF= 200 MHz
0
CONVERSION GAIN (dB)
-5
-10
-15
LO =
LO =
LO =
LO =
LO =
-4dBm
-2dBm
0dBm
+2dBm
+4dBm
-20
-4dBm
-2dBm
0dBm
+2dBm
+4dBm
0.42
0.47
0.52
0.57
0.62
0.67
-25
0.37
0.42
0.47
0.52
0.57
0.62
0.67
RF FREQUENCY (GHz)
RF FREQUENCY (GHz)
Unless otherwise noted, all measurements performed as a downconverter, with high side LO & IF = 50 MHz.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
9 - 359
MIXERS - HIGH IP3 - SMT
INPUT IP3 (dBm)
HMC585MS8G
/
585MS8GE
v01.0907
HIGH IP3 GaAs MMIC MIXER with
INTEGRATED LO AMPLIFIER, 400 - 650 MHz
MxN Spurious Outputs
nLO
mRF
0
1
2
0
xx
5
61
20
7
1
-4
0
63
24
8
2
26
27
50
22
-1
3
-1
22
50
27
26
4
8
24
63
0
-4
Harmonics of LO
nLO Spur at RF Port
LO Freq GHz
0.3
0.4
0.5
0.6
0.7
0.8
1
17
10
6
6
6
6
2
36
40
32
34
28
26
3
31
20
18
23
34
48
4
39
33
31
33
41
xx
9
MIXERS - HIGH IP3 - SMT
3
4
RF Freq = 0.5 GHz @ -10 dBm
LO Freq = 0.4 GHz @ 0 dBm
All values in dBc below IF power level (RF - LO).
LO power = 0 dBm
All values in dBc below input LO level measured at RF port.
9 - 360
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
