595E Overview

GaAs MMIC 3 WATT T/R SWITCH, DC - 3 GHz

Preview

Download Datasheet

View All

HMC595

595E

v00.0805

GaAs MMIC 3 WATT T/R SWITCH,

DC - 3 GHz

Typical Applications

The HMC595 / HMC595E is ideal for:

• Cellular/3G Infrastructure

• Private Mobile Radio Handsets

• WLAN, WiMAX & WiBro

• Automotive Telematics

• Test Equipment

Features

Low Insertion Loss: 0.3 dB

High Input IP3: +65 dBm

Isolation: 30 dB

Positive Control: 0/+3V to 0/+10V

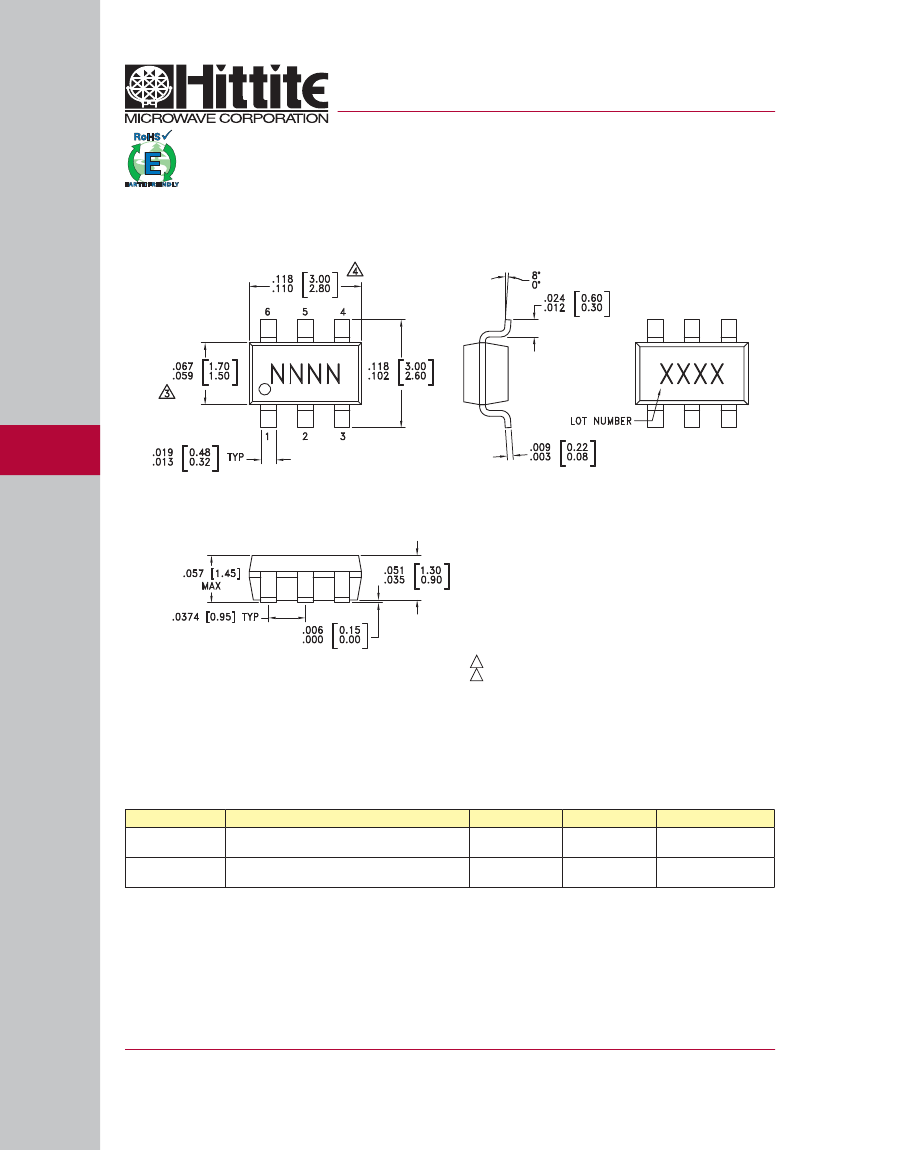

Ultra Small Package: SOT26

Included in the HMC-DK005 Designer’s Kit

Functional Diagram

General Description

The HMC595 & HMC595E are low-cost SPDT swit-

ches in 6-lead SOT26 packages for use in transmit/

receive applications which require very low distortion

at high incident power levels. The device can control

signals from DC to 3 GHz and is especially suited

for Cellular/3G infrastructure, WiMAX and WiBro

applications with only 0.3 dB typical insertion loss.

The design provides a 3 watt power handling and

+65 dBm third order intercept at +8 Volt bias. RF1

and RF2 are reflective shorts when “Off”. Control

inputs A & B are compatible with CMOS and some

TTL logic families. These products are form, fit and

function replacements for HMC195 & HMC195E while

offering superior electrical performance.

SWITCHES - SMT

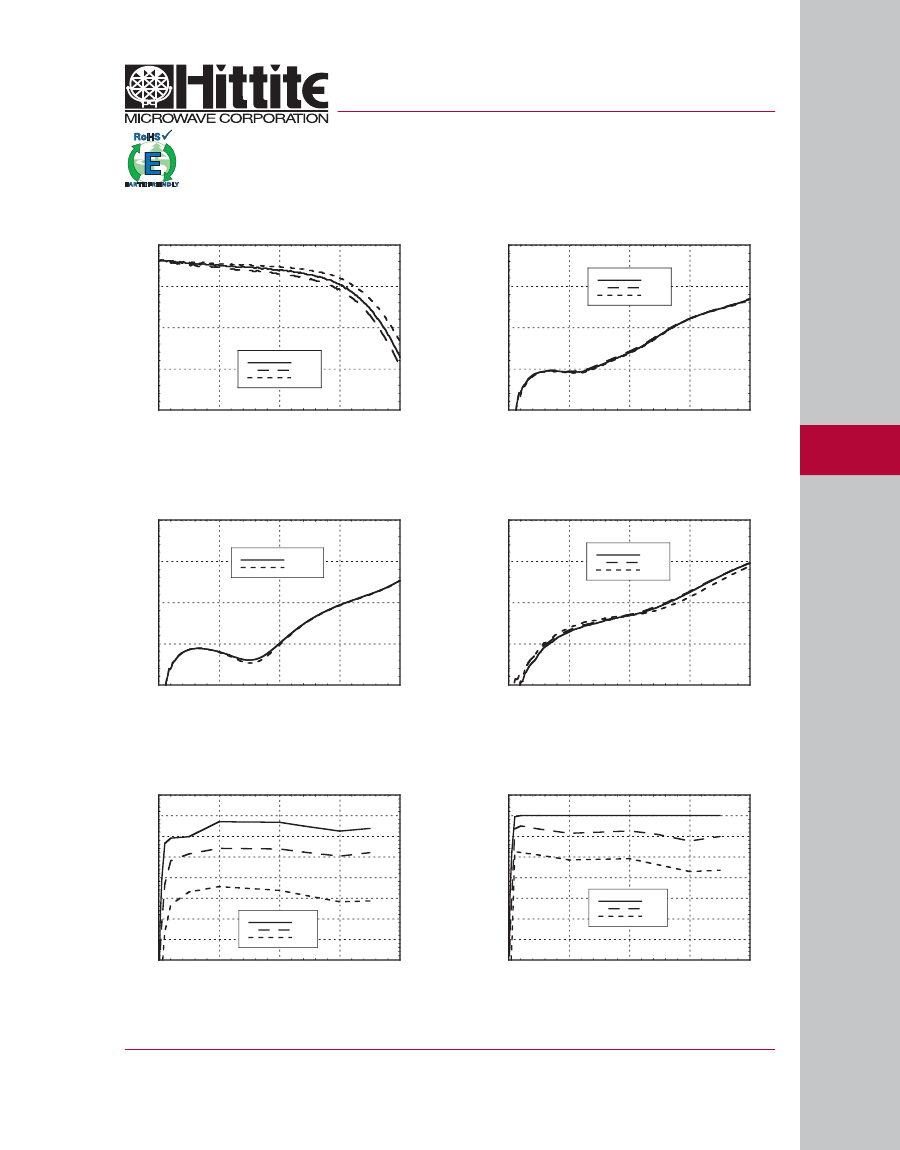

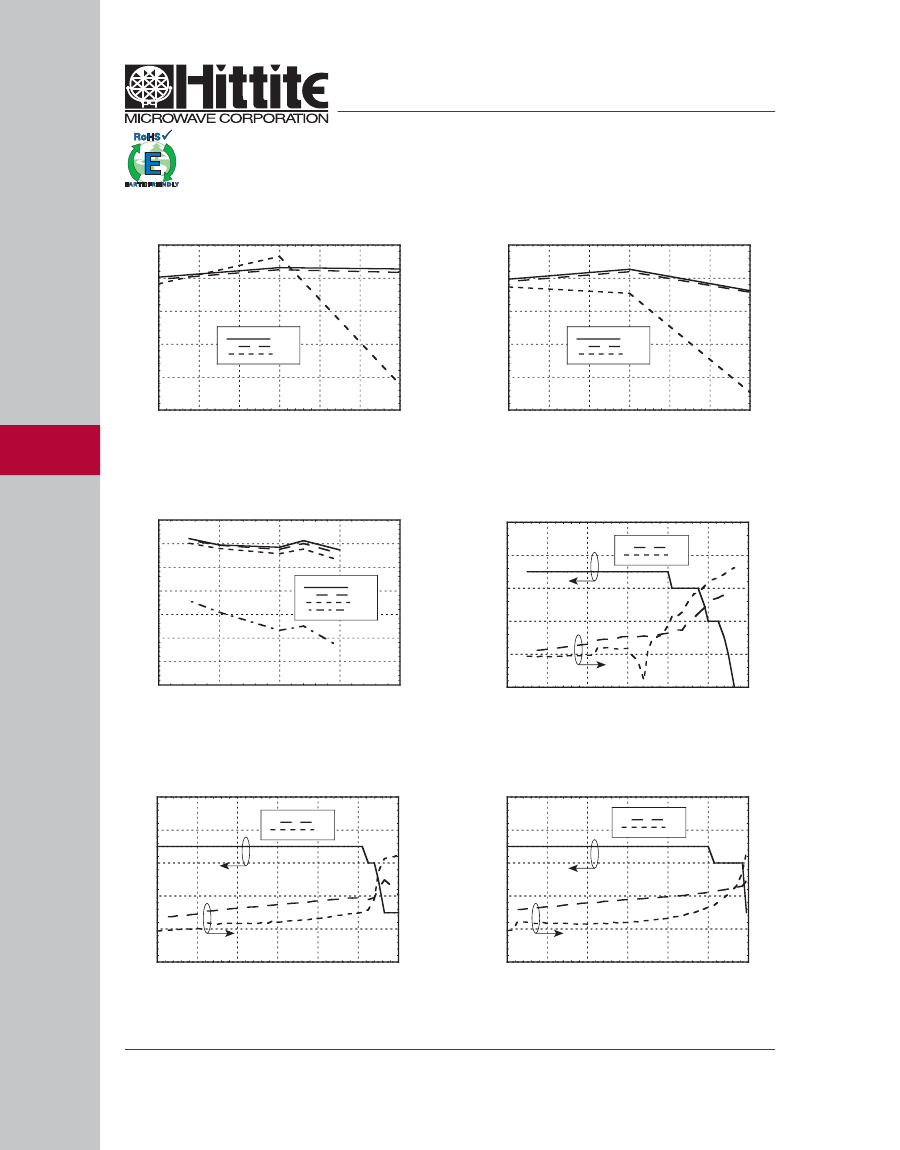

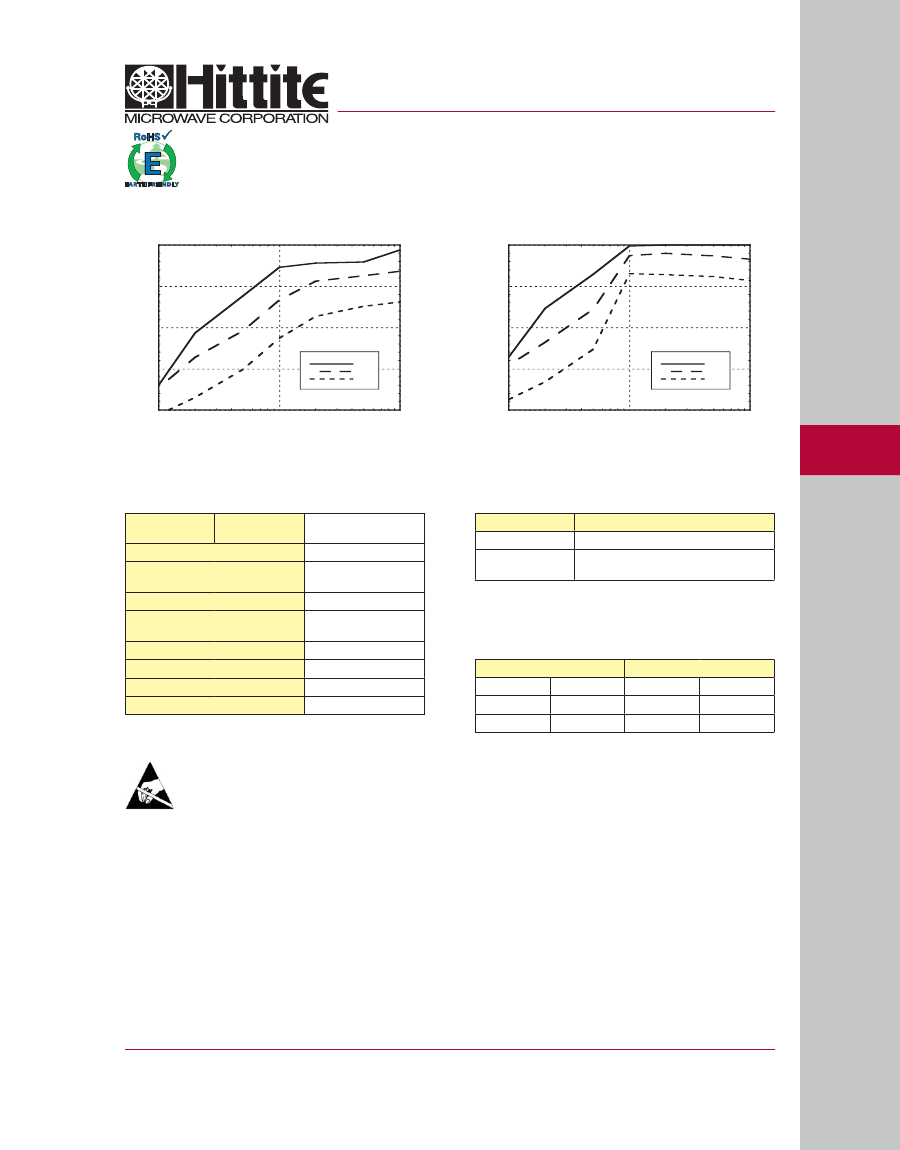

Electrical Specifi cations,

= +25° C, Vctl = 0/+5 Vdc

(Unless Otherwise Stated)

, 50 Ohm System

Parameter

Frequency

DC - 1.0 GHz

DC - 2.0 GHz

DC - 2.5 GHz

DC - 3.0 GHz

DC - 1.0 GHz

DC - 2.0 GHz

DC - 2.5 GHz

DC - 3.0 GHz

DC - 1.0 GHz

DC - 2.0 GHz

DC - 2.5 GHz

DC - 3.0 GHz

Vctl = 0/+3V

Vctl = 0/+5V

Vctl = 0/+8V

Vctl = 0/+3V

Vctl = 0/+5V

Vctl = 0/+8V

0.5 - 3.0 GHz

Min.

Typ.

0.25

0.3

0.4

0.5

Max.

0.5

0.6

0.7

0.8

Units

dBm

Insertion Loss

Isolation

Return Loss

Input Power for 1dB Compression

Input Third Order Intercept

(Two-tone Input Power = +27 dBm Each Tone)

Switching Characteristics

0.5 - 3.0 GHz

DC - 3.0 GHz

tRISE, tFALL (10/90% RF)

tON, tOFF (50% CTL to 10/90% RF)

120

10 - 356

For price, delivery, and to place orders, please contact Hittite Microwave Corporation:

20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373

Order On-line at www.hittite.com
