SECTION 1

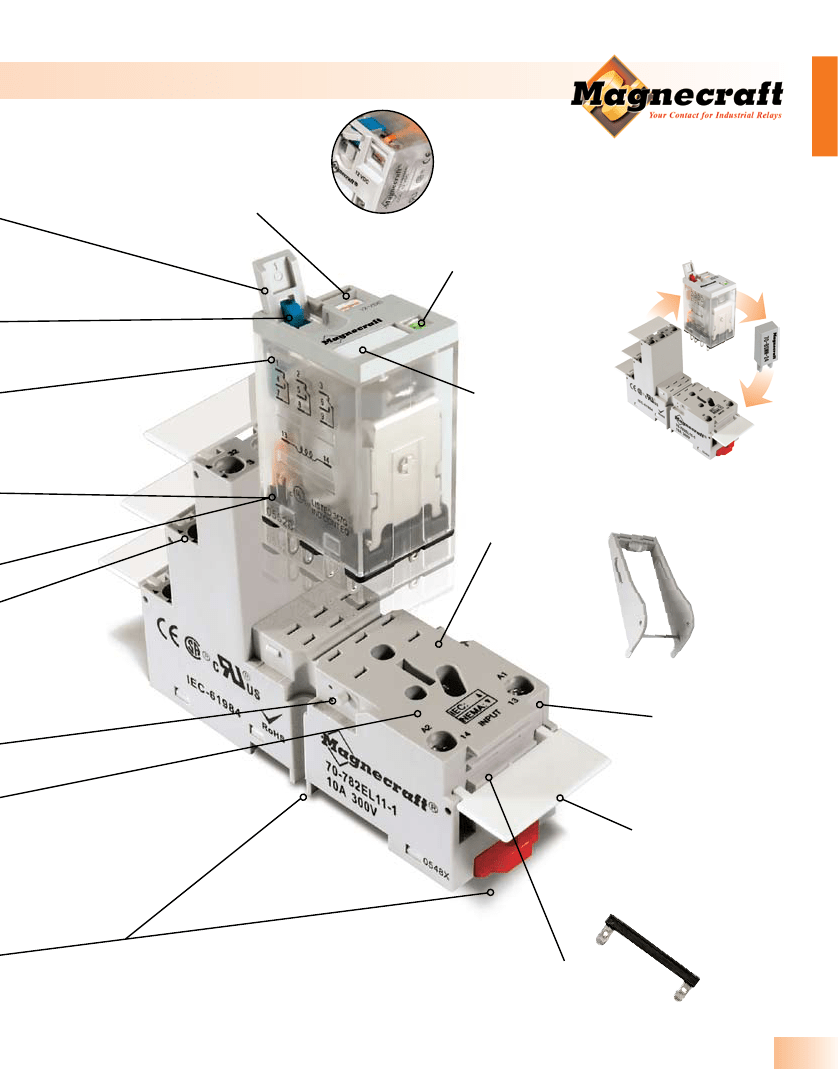

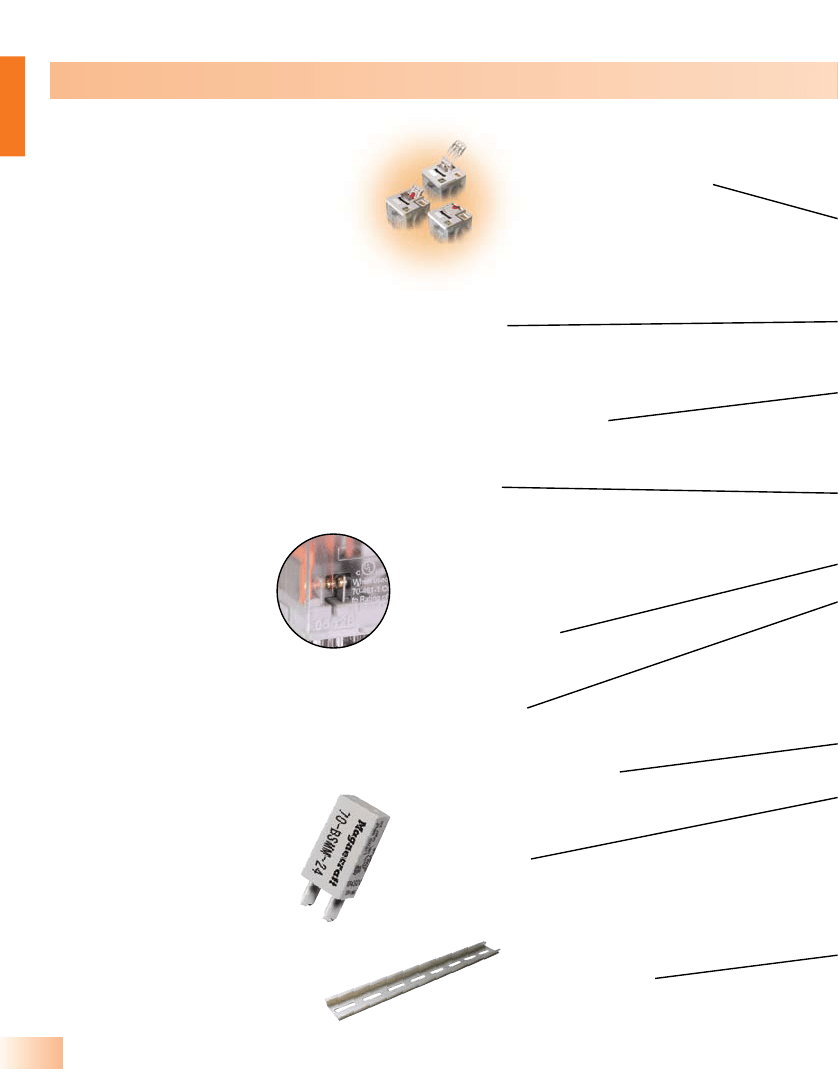

Advantages of a Full Featured 700 Series Relay
Removable Lock-Down Door
When Activated, Locks Push
Button and Contacts in the
Powered Position.
Since the launch of the 700 series
relays in 2000, this product line
has continuously evolved both
functionally and visually. The 700
series product line has the perfect
mix of historical Magnecraft relay
quality combined with a dynamic
arsenal of options. When mated
with the Magnecraft sockets and
accessories, these RoHs compliant
relays provide a complete modular
system that will meet all your plug-
in relay requirements in a package
that is both visually appealing and
functionally outstanding.
Color-Coded Push Button
Allows Manual Operation of Relay.
AC Coils Red or DC Coils Blue.
Finger Grip Cover
Easy Removal of
Relay from Socket.
Gold Flashed Contacts
Prevents Premature Oxidation
and Increases Shelf-life.
• Offers a “one stop solution” for
your power management
system.
• Several Contact configurations
and materials to meet your
individual needs.
• Plug-In switching capabilities
from 10 mA to 20 Amps.
• Several Feature Code and
Operation combinations avail-
able for all budgets.
• Ejector clips, ribbed relay hous-
ings and space-saving sockets
allow for easy removal from
crowded DIN rails.
• Color and appearance designed
for high visibility in all environ-
ments.
• Wiring diagrams include NEMA
and IEC standards.
• Engineering availability allows
for customized relay solutions.
Contact Viewing Window
Shows Position of Contacts.
Isolated Input and Output Terminals
Separates Control Circuits from
Load Circuits.
Slim Design
Minimizes Space
on DIN Rail.
Module Compatible
Allows for Optional
Protection or LED Modules
to be Used With Sockets.
2-Way Side or DIN
Rail Mounting System
Retrofits Existing Panel
Mounting and 35mm DIN Rail.
1/2
www.magnecraft.com
847-441-2540
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
Flag Indicator
Shows Relay Status
in Manual or Powered
Condition.
Bi-Polar LED Status Lamp
Shows Coil “ON” or “OFF” Status.
The Complete
System
Solution!
I.D. Tag/Write-On
Plastic Label
Used for Identification
of Relays in Multi-Relay
Circuits.
Mating Hold-Down
Clip Available
Safely Secures
Relay to Socket.
Finger-Safe
Protects Operators
from Live Circuits.
I.D. Tag/Write-On
Plastic Label
Used to Match Wire
Identification Tags with
Socket Connections.
Internal Coil Bus Jumper System
Allows Connection to Adjacent
Sockets Without Additional Wiring.
Magnecra f t So l u t io n Gu i de 1 0 5 A
1/3
SECTION 1
SECTION 1

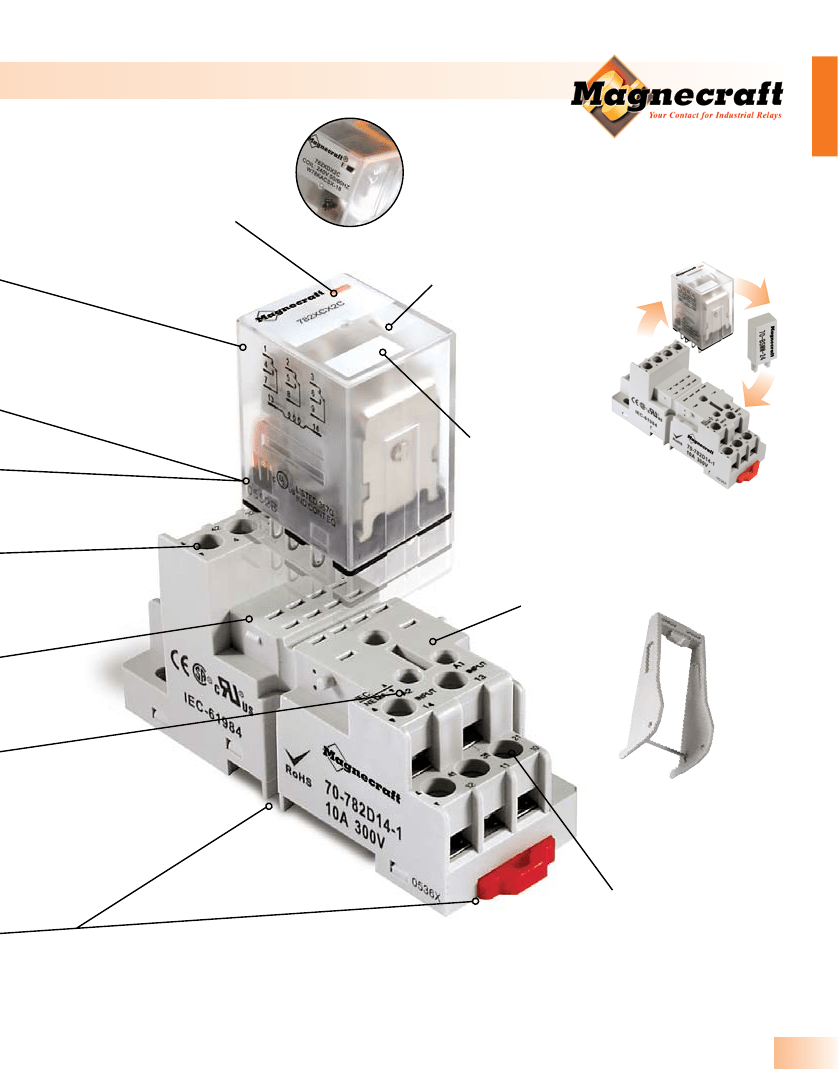

Advantages of a Plain Cover 700 Series Relay

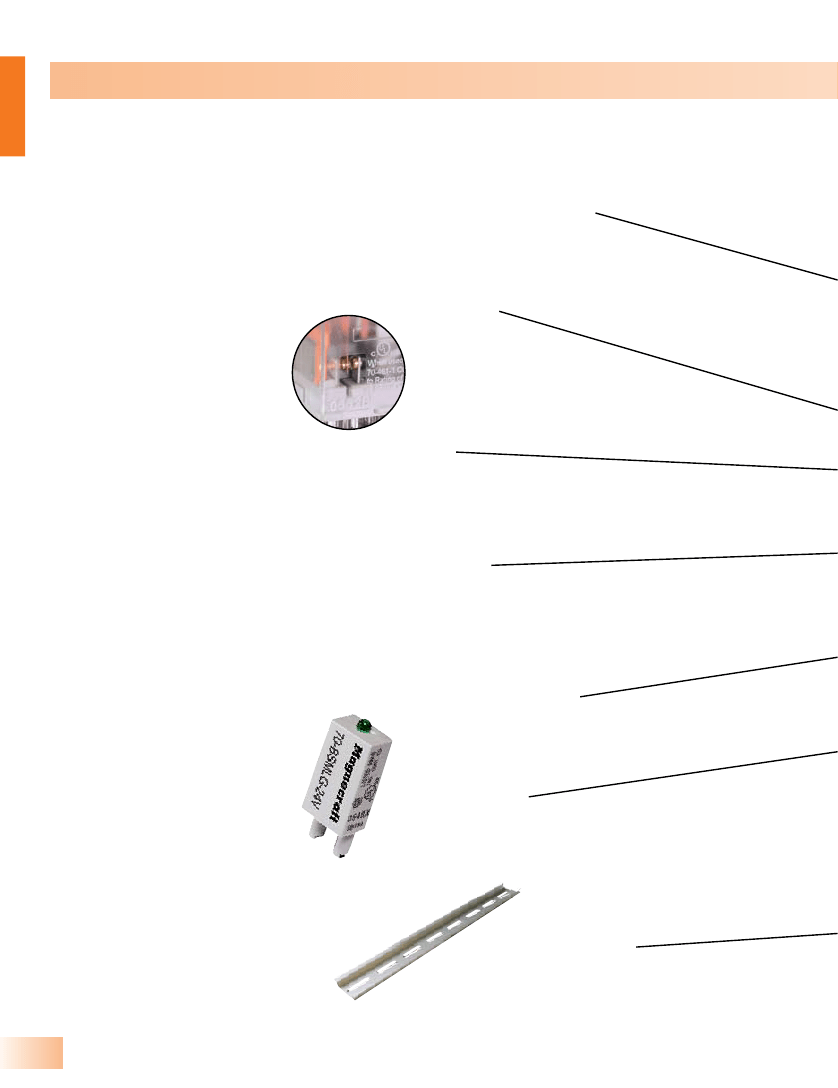

The Plain Cover Super Series relays
support budget minded applications with
premium performance. Maintaining the
same ratings and internal components as
the Full Feature Series; the Plain Cover
Series perform as well as premium relays
while maintaining low costs by offering
several option configurations.
Finger Grip Cover
Easy Removal of Relay
from Socket.
Contact Viewing Window
Shows Position of Contacts.
Gold Flashed Contacts
Prevents Premature Oxidation
and Increases Shelf-life.
• Offers a “one stop solution” for
your power management
system.
• Several Contact configurations
and materials to meet your
individual needs.
• Plug-In switching capabilities
from 10 mA to 20 Amps.
• Several Feature Code and
Operation combinations avail-
able for all budgets.
• Ejector clips, ribbed relay hous-
ings and space-saving sockets
allow for easy removal from
crowded DIN rails.
• Color and appearance designed
for high visibility in all environ-
ments.
• Wiring diagrams include NEMA
and IEC standards.
• Engineering availability allows
for customized relay solutions.
Isolated Input and
Output Terminals
Separates Control
Circuits from Load Circuits.
Slim Design
Minimizes Space
on DIN Rail.
Module Compatible
Allows for Optional
Protection or LED Modules
to be Used With Sockets.
2-Way Side or DIN
Rail Mounting System
Retrofits Existing Panel
Mounting and 35mm DIN Rail.
1/4
www.magnecraft.com
847-441-2540
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
Flag Indicator
Shows Relay Status
in Manual or Powered
Condition.
Optional Bi-Polar LED Status Lamp
Shows Coil “ON” or “OFF” Status.
The Complete
System
Solution!
I.D. Tag/Write-On
Plastic Label
Used for Identification
of Relays in Multi-Relay
Circuits.
Mating Hold-Down
Clip Available
Safely Secures
Relay to Socket.
Finger-Safe
Protects Operators
from Live Circuits.
Magnecra f t So l u t io n Gu i de 1 0 5 A
1/5
SECTION 1
SECTION 1

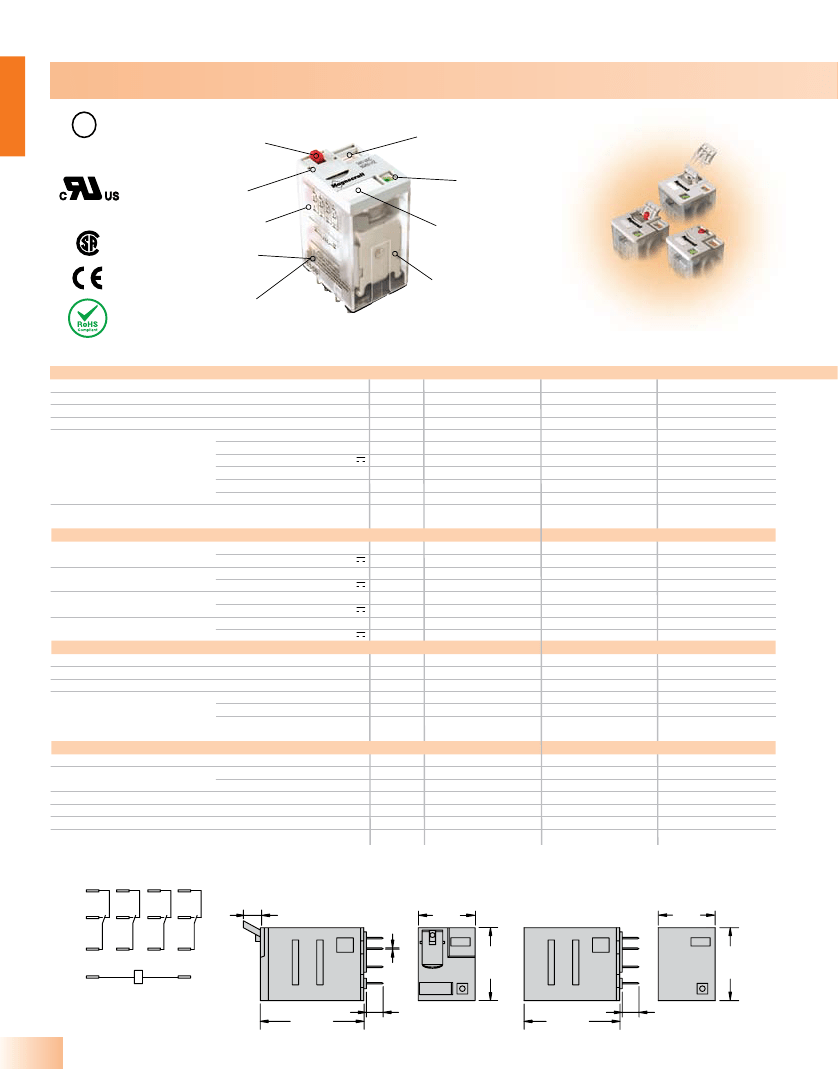

782 Ice Cube Relays/4PDT,
3-10 Amp Rating (DC & AC)
C
UL
US
UL Listed When Used
With Magnecraft
Sockets.
Push-To-Test Button
Removable
Lock-Down Door
Flag indicator
LED Status Lamp
UL Recognized
File No. E43641
Finger Grip Cover
Contact Viewing
Window
Gold Flashed Contacts
Removable I.D. Tag
Contact options for
different power levels
WHITE
General Specifications
Contact Characteristics
Number and type of Contacts
Contact materials
Thermal (Carrying) Current
Maximum Switching Voltage
Switching Current @ Voltage
(UL 508)
Units
782XDX1
Low Level
4PDT
Fine Silver, Gold Diffused
A
3
V
240
Resistive 3A @120V 50/60Hz
Resistive 3A @240V 50/60Hz
Resistive
3A @30V
HP
1/10 @120VAC
HP
1/10 @240VAC
Pilot Duty
C300
mA
3 @17VDC (.04W)
V
V
VA
W
6....240
6....125
85% to 110%
80% to 110%
1.2
0.9
15%
10%
200,000
10,000,000
20
1500
1500
1500
UL, CSA, CE
-40...+85
-40...+55
3, 10 - 55 Hz
10
IP 40
36
0.83
(21)
0.83
(21)
782XDX2
Standard
4PDT
Silver Alloy
10
300
10A @120V 50/60Hz
8A @277V 50/60Hz
8A @28V
1/3 @120VAC
1 @277 VAC
B300
100 @5VDC (.5W)
6....240
6....125
85% to 110%
80% to 110%
1.2
0.9
15%
10%
200,000
10,000,000
20
1500
1500
1500
UL, CSA, CE
-40...+85
-40...+55
3, 10 - 55 Hz
10
IP 40
36
782XDX3
Low Level
4PDT
Bifurcated
3
240
3A @120V 50/60Hz
3A @240V 50/60Hz
3A @30V
1/16 @120VAC
3 @17VDC (.04W)
6....240
6....125
85% to 110%
80% to 110%
1.2
0.9
15%
10%
200,000
10,000,000
20
1500
1500
1500
UL, CSA, CE
-40...+85
-40...+55
3, 10 - 55 Hz
10
IP 40
36
0.83
(21)
0.83
(21)
~
~
Minimum Switching Requirement
Coil Characteristics
Voltage Range
Operating Range
Average consumption
Drop-out voltage threshold
Performance Characteristics
Electrical Life (UL508)
Mechanical Life
Operating time (response time)
Dielectric strength
% of Nominal
~
~
~
~
Operations @ Rated Current
Unpowered
Between coil and contact
Between poles
Between contacts
Standard version
Storage
Operation
Operational
(Resistive)
ms
V(rms)
V(rms)
V(rms)
~
~
~
Environment
Product certifications
Ambient air temperature
around the device
Vibration resistance
Shock resistance
Degree of protection
Weight
°C
°C
g-n
g-n
grams
782XDX1, 2, 3
1
12
5
2
3
14
32
22
6
9
7
34
11
24
2
3
32
22
6
7
43
4
34
24
32
42
42
10
87
11
8
44
44
21
34
31
12
11
31
41
12
41
4
42
8
44
12
41
4
A2
1
12
5
14
9
11
13
A1
21
12
22
65
24
14
4
42
8
44
12
41
14
A2
0.27
Full Featured Dimensions
0.02
(7)
(0.5)
0.27
(7)
0.27
(7)
0.02
(0.5)
0.83
0.02 (21)
(0.5)
Plain Cover Dimensions
0.83
(21)
1.1
(27.9)
1.1
(27.9)
10
13
10
11
9
31
11
21
A1
21
13
A1
1.1
1.1
(27.9) (27.9)
1.1
1.1
(27.9) (27.9)
1/18
Wiring
NEMA NEMA
Diagram
IEC
Bottom View
IEC
14
NEMA
14
IEC
A2
A2
1.54
(39.1)
1.54
1.54
(39.1) (39.1)
0.24
(6.0)
0.24
(6.0)
0.24
(6.0)
1.4
1.4
(35.5) (35.5)
1.4
(35.5)
0.24
(6.0)
0.24
(6.0)
0.24
(6.0)
