W107DIP-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> W107DIP-3

W107DIP-3: DescriptionDry Reed Relay, 1 Form A, SPST, 13.2VDC (Coil), 290mW (Coil), 0.5A (Contact), 100VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size102KB，1 Pages; ManufacturerMagnecraft

Download Datasheet Parametric View All

W107DIP-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	W107DIP-3	-	-	View	Buy Now

W107DIP-3 Overview

Dry Reed Relay, 1 Form A, SPST, 13.2VDC (Coil), 290mW (Coil), 0.5A (Contact), 100VDC (Contact), DC Input, Random, AC/DC Output

W107DIP-3 Parametric

Parameter Name	Attribute value
Maker	Magnecraft
Reach Compliance Code	unknown
ECCN code	EAR99
body width	7.37 mm
body height	7.62 mm
Body length or diameter	20.14 mm
Coil operating voltage (DC)	9.6 V
Coil power	290 mW
Coil release voltage (DC)	1.2 V
Coil resistance	1000 Ω
Maximum coil voltage (DC)	13.2 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	0.5A@120VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	0.5A@100VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	100 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	150 Vrms
Electrical life	50000000 Cycle(s)
End contact material	Rhodium
Input switching control type	Random
Insulation resistance	1000000000 Ω
Manufacturer's serial number	107DIP
Number of terminals	8
operating hours	1 ms
Maximum operating temperature	55 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	20.14mm x 7.37mm x 7.62mm
Relay style	1 FORM A
Relay function	SPST
Relay type	DRY REED RELAY
release time	1 ms
seal	EPOXY
Terminal length	0.003 inch
Termination type	SOLDER
weight	1 g

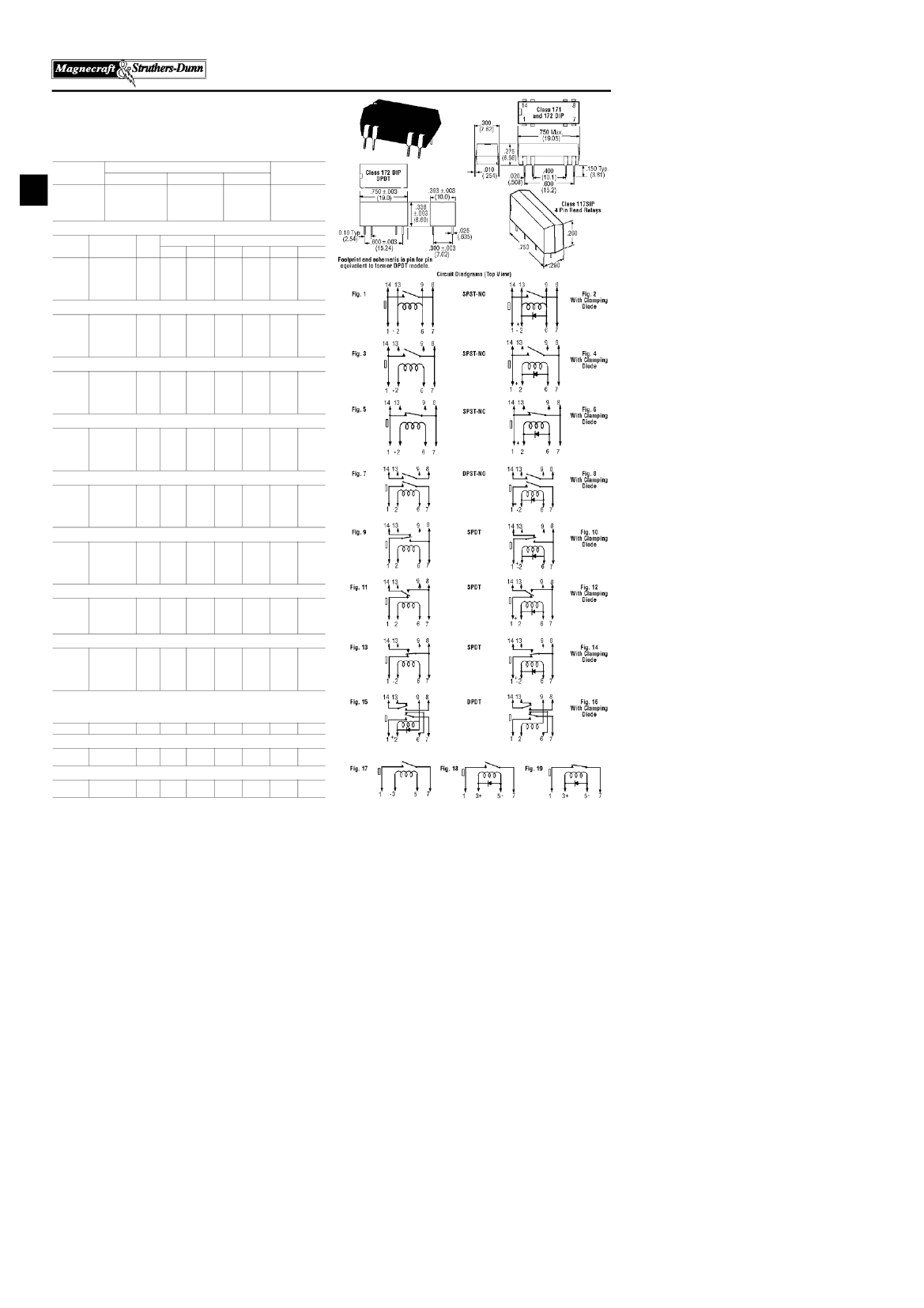

Preview

Download Datasheet

View All

Magnecraft &

Struthers-Dunn

Dry Reed Relays

Manufactured Under QS 9000 and ISO 9001

Dry Reed Relays

107, 171 and 172 DIP Dry Reed Relays

Specifications

Contact Resistance:

200 milliohms typical.

Insulation Resistance:

ohms at 100 VDC minimum.

Dielectric

Withstanding Voltage:

Between contacts Ñ 200 VDC; Between coil and contacts Ñ 1000 VDC.

Shock, Non-Operational:

100 Gs. 11 mS @

sine wave.

Vibration:

20 Gs, 0-5000 Hz operating.

Ambient Temperature:

Ð15¡C to 85¡C.

Type

SPST-NO

SPST-NC

DPST-NO

SPDT

DPDT

Max. Switching Rating

Volt Amperes

Voltage DC

100

Current

0.50

0.25

0.50

Max. Carry

Current

1.5

0.5

1.0

Class 107DIP, SPST-NO, 0.5 Amp

Stock

No.

850-1550

850-1551

850-1640

850-1554

850-1642

850-1643

Type

W107DIP-1

W107DIP-3

W107DIP-4

W107DIP-5

W107DIP-7

W107DIP-8

Fig.

Coil

Volts

Ohms

500

1200

2200

500

1200

2200

1-9

3.83

4.33

4.86

10-24

3.54

3.84

4.32

EACH

25-49

3.24

3.52

3.96

50-99

2.99

3.25

3.66

Class 171DIP, SPST-NO, 0.5 Amp (No Connection pin 9 and 13)

850-1602

850-1604

850-1605

850-1607

850-1701

850-1702

W171DIP-2

W171DIP-4

W171DIP-5

W171DIP-7

W171DIP-9

W171DIP-10

500

1200

2200

500

1200

2200

3.94

4.32

5.53

3.51

3.84

4.90

3.21

3.52

4.49

2.97

3.25

4.14

Class 171DIP, SPST-NC, 0.5 Amp

850-1703

850-1704

850-1705

850-1706

850-1729

850-1708

W171DIP-12

W171DIP-14

W171DIP-15

W171DIP-17

W171DIP-19

W171DIP-20

500

1200

2200

500

1200

2200

6.09

6.20

6.69

5.42

5.49

5.92

4.96

5.03

5.42

4.58

4.64

5.01

Class 171DIP, DPST-NO, 0.5 Amp

850-1621

850-1652

850-1624

850-1625

850-1627

850-1709

W171DIP-21

W171DIP-23

W171DIP-24

W171DIP-25

W171DIP-27

W171DIP-28

200

500

2200

200

500

2200

5.80

6.20

3.62

6.20

6.69

5.14

5.49

3.21

5.49

5.92

4.71

5.03

2.94

5.03

5.42

4.35

4.64

2.71

4.64

5.01

Class 172DIP, SPDT, 0.25 Amp

850-1631

850-1633

850-1634

850-1635

850-1637

850-1638

W172DIP-1

W172DIP-3

W172DIP-4

W172DIP-5

W172DIP-7

W172DIP-8

200

500

2200

200

500

2200

7.79

8.94

8.07

4.91

9.40

6.81

7.81

7.07

4.29

8.22

6.24

7.16

6.48

3.93

7.53

5.76

6.61

5.98

3.63

6.95

Class 172DIP, SPDT, 0.25 Amp

850-1710

850-1711

850-1712

850-1713

850-1714

850-1730

W172DIP-31

W172DIP-33

W172DIP-34

W172DIP-35

W172DIP-37

W172DIP-38

200

500

2200

200

500

2200

8.23

8.37

8.53

9.01

9.36

7.20

7.33

7.46

7.88

8.18

6.60

6.71

6.83

7.23

7.50

6.09

6.20

6.31

6.67

6.92

Class 172DIP, SPDT, 0.25 Amp

850-1716

850-1717

850-1718

850-1719

850-1720

W172DIP-141

W172DIP-146

W172DIP-147

W172DIP-149

W172DIP-150

200

3200

200

1000

3200

7.13

7.49

9.51

6.34

6.66

8.46

5.81

6.10

7.75

5.37

5.63

7.16

Class 172DIP, DPDT, 0.5 Amp

850-1721

850-1722

850-1723

850-1673

850-1724

850-1676

W172DIP-17

W172DIP-19

W172DIP-20

W172DIP-21

W172DIP-23

W172DIP-24

266

1066

266

1066

27.14

30.34

23.70

26.50

21.73

24.29

20.05

22.42

Class 117SIP 4 Pin Reed Relays

850-1725

W117SIP-1

The 117SIP has a pin spacing of 0.2 between pins. The 117SIP is rated @ 10 VA, 0.5 amp switching and can carry up to 1.5 amps.

117SIP, SPST-NO, without Clamping Diode

500

4.62

4.12

3.77

3.48

117SIP, SPST-NO, with Clamping Diode

850-1558

850-1726

W117SIP-6

W117SIP-8

500

1870

4.91

4.38

4.01

3.70

117SIP, SPST-NC, with Clamping Diode

850-1727

850-1728

W117SIP-18

W117SIP-25

500

1200

7.53

7.90

6.69

7.03

6.14

6.44

5.66

5.95

134

ALLIED

See Our Manufacturer Index Located In Section 1

Recommended Resources

LED flashlight drive circuit schematic diagram

Input stage with bias current introduced by positive power supply

Universal intelligent charging control circuit 02

Y-△ step-down starting control circuit using intermediate and time relay delay switching

The pointer type moving coil meter is changed to an analog bar graph display circuit

Additional combo sound circuit in 555 electronic musical instrument

Target tracking system based on SensorTile Kit: 1. Project Name: Target Tracking System Based on SensorTile Kit Tahoma. 2、Description of the functions implemented by the project Use SensorTile Kit to implement the target tracking and measurement un...; lark100 MEMS sensors

About 15 years of wind power pendulum control system: I would like to ask about the 15-year wind pendulum control system. What are the specific components that need to be purchased? Is there anyone who knows how to explain it to me? I want to learn about...; 执念8834 Electronics Design Contest

The Cube MX: I am a beginner in STM32 and have been using CUBE MX to generate initialization code. Today, I learned about the common timer, but the generated code always failed to enter the timer interrupt. After ...; blablab stm32/stm8

How to disable JTAG and enable IO function in STM32: Things to note: When turning off jtag, remember to turn on the multiplexing function clock and io port clock.As followsRCC->APB2ENR |= 0x00000001; //Turn on afio clock//GPIO_PinRemapConfig(GPIO_Remap_...; sukit_bbs stm32/stm8

STM32 interrupt vector table problem?: The compiler I use is IAR FOR ARM. The chip I use is STM32. It's probably like this. The startup code changes the entry function. Reset_Handler LDR R0, =SystemInit ;BLX R0 LDR R0, =main ;Assembly labe...; chenfengjie90 stm32/stm8

English translation of graduation project: :) :) :) :) :) :)...; thf186 MCU
