HMC392LH5
v00.0707
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz
8
LOW NOISE AMPLIFIERS - SMT
Typical Applications
The HMC392LH5 is ideal for:
• Point-to-Point Radios
• VSAT
• LO Driver for HMC Mixers
• Military EW, ECM, C
3
I
• Space
Features
High Gain: 15.4 dB
Low Noise Figure: 2.5 dB
Single Positive Supply: +5V
DC Blocked & 50 Ohm Matched RF I/Os
No External Matching Components Required
Hermetic SMT Package, 25 mm
2

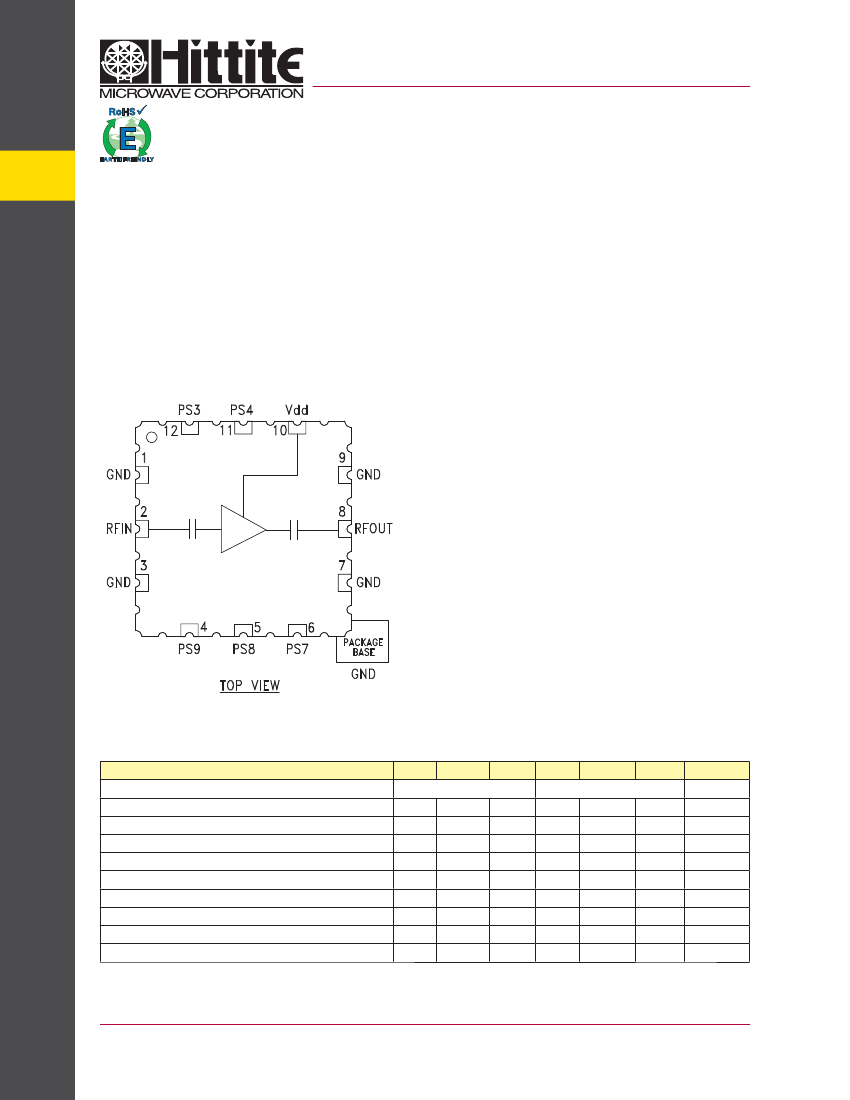

Functional Diagram
General Description
The HMC392LH5 is a GaAs MMIC Low Noise
Amplifier packaged in a hermetic surface mount
package which operates between 3.5 and 7 GHz. The
amplifier provides 15.4 dB of gain, 2.5 dB noise figure,
and +24.5 dBm output IP3 from a single+5V supply.
The HMC392LH5 has six biasing options which allow
the user to select the bias point and output power of the
device (+13 to +17 dBm). The HMC392LH5 functions
well as a low noise or driver amplifier and is ideal for
driving the LO port of Hittite mixers. The HMC392LH5
is well suited for high reliability military, industrial and
space applications.
Electrical Specifi cations
,
T
A
= +25° C, Vdd = +5V, PS4= PS8= GND
Parameter
Frequency Range
Gain
Gain Variation Over Temperature
Noise Figure
Input Return Loss
Output Return Loss
Output Power for 1 dB Compression (P1dB)
Saturated Output Power (Psat)
Output Third Order Intercept (IP3)
Supply Current (Idd)
22
11
12.8
Min.
Typ.
4-6
15.4
0.018
2.5
15
17
13.5
17.5
24.5
43
60
21
0.025
3.2
12
Max.
Min.
Typ.
3.5 - 7
15.2
0.018
2.7
12
15
14
17.5
24.5
43
60
0.025
3.7
Max.
Units
GHz
dB
dB/ °C
dB
dB
dB
dBm
dBm
dBm
mA
Note: Data taken with pins PS4 & PS8 connected to ground and pins PS3, PS4, PS6 & PS7 unconnected (state 5) unless otherwise
noted.
8 - 90
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC392LH5
v00.0707
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz

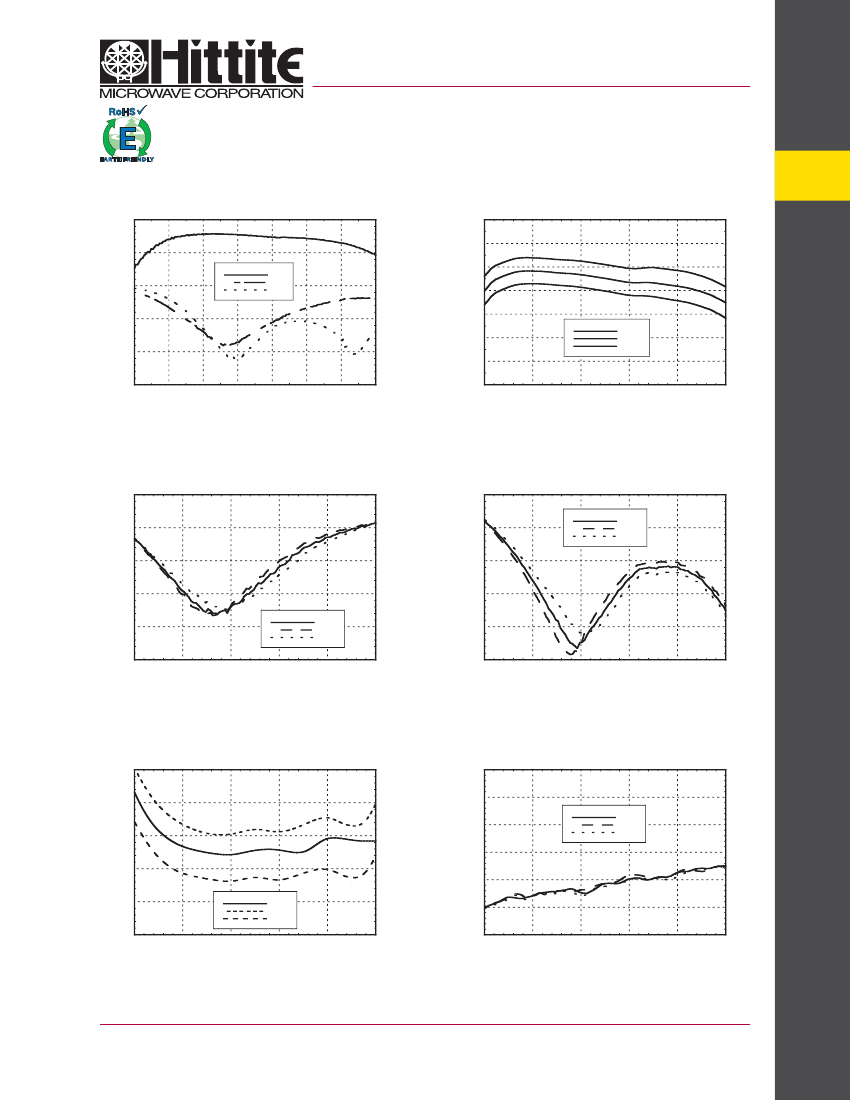

Broadband Gain & Return Loss
20
Gain vs. Temperature
20
18
8
LOW NOISE AMPLIFIERS - SMT
8 - 91
10
RESPONSE (dB)
GAIN (dB)
S21
S11
S22
16
14
12
10
+25 C
+85 C
-40 C
0
-10
-20
8
-30
2
3
4
5
6
7
8
9
FREQUENCY (GHz)
6
3
4
5
6
7
8
FREQUENCY (GHz)
Input Return Loss vs. Temperature
0
Output Return Loss vs. Temperature
0
+25C
+85C
- 40C
-5
RETURN LOSS (dB)
RETURN LOSS (dB)
+25C
+85C
- 40C
-5
-10
-10
-15
-15
-20
-20
-25
3
4
5
6
7
8
FREQUENCY (GHz)
-25
3
4
5
6
7
8
FREQUENCY (GHz)
Noise Figure vs. Temperature
5
Reverse Isolation vs. Temperature
0
-10
ISOLATION (dB)
-20
-30
-40
-50
-60
+25C
+85C
- 40C
4
NOISE FIGURE (dB)
3
2
1
+25C
+85C
- 40C
0
3
4
5
6
7
8
FREQUENCY (GHz)
3
4
5
6
7
8
FREQUENCY (GHz)
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC392LH5
v00.0707
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz
8
LOW NOISE AMPLIFIERS - SMT

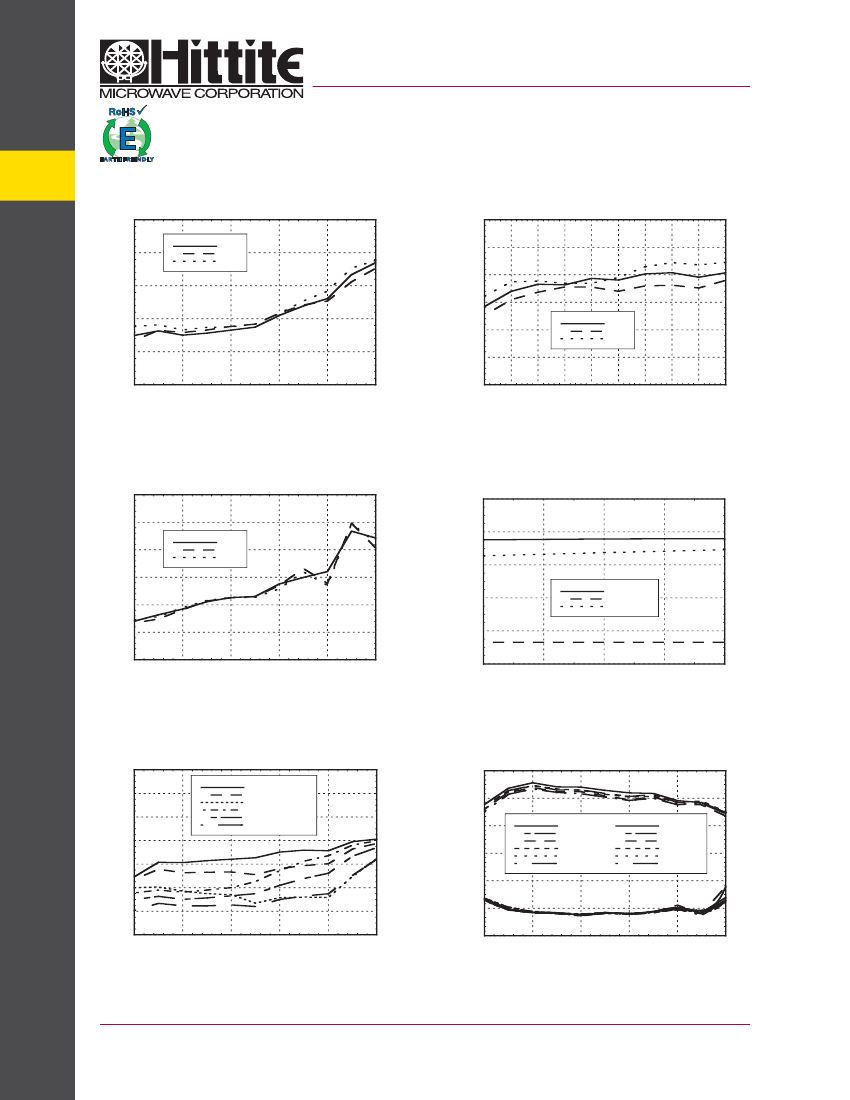

Output P1dB vs. Temperature
20
+25C
+85C
- 40C
Psat vs. Temperature
22
20
18
16
14
+25C
+85C
- 40C
18
P1dB (dBm)
16
14
12
Psat (dBm)
3
4
5
6
7
8
12
10
3
3.5
4
4.5
5
5.5
6
6.5
7
7.5
FREQUENCY (GHz)
FREQUENCY (GHz)
10
Output IP3 vs. Temperature
32
30
28
IP3 (dBm)
26
24
22
20
3
4
5
6
7
8
FREQUENCY (GHz)
+25C
+85C
- 40C
Gain, Noise Figure & Output Power vs.
Supply Voltage @ 5.5 GHz
GAIN (dB), NOISE FIGURE (dB), P1dB (dBm)
20
16
12
Gain
Noise Figure
P1dB
8
4
0
4.5
4.7
5
Vdd (V)
5.2
5.5
Output P1dB vs. Power Select State
24
22
20
P1dB (dBm)
18
16
14
12
10
3
4
5
6
7
8
FREQUENCY (GHz)
State 1 Idd=60mA
State 2 Idd=50mA
State 3 Idd=43mA
State 4 Idd=53mA
State 5 Idd=43mA
State 6 Idd=38mA
Gain & Noise Figure vs.
Power Select State
18
GAIN, NOISE FIGURE (dB)
15
12
9
6
3
0
3
4
5
6
7
8
FREQUENCY (GHz)
Gain State 1
Gain State 2
Gain State 3
Gain State 4
Gain State 5
Gain State 6
NF State 1
NF State 2
NF State 3
NF State 4
NF State 5
NF State 6
8 - 92
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC392LH5
v00.0707
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz

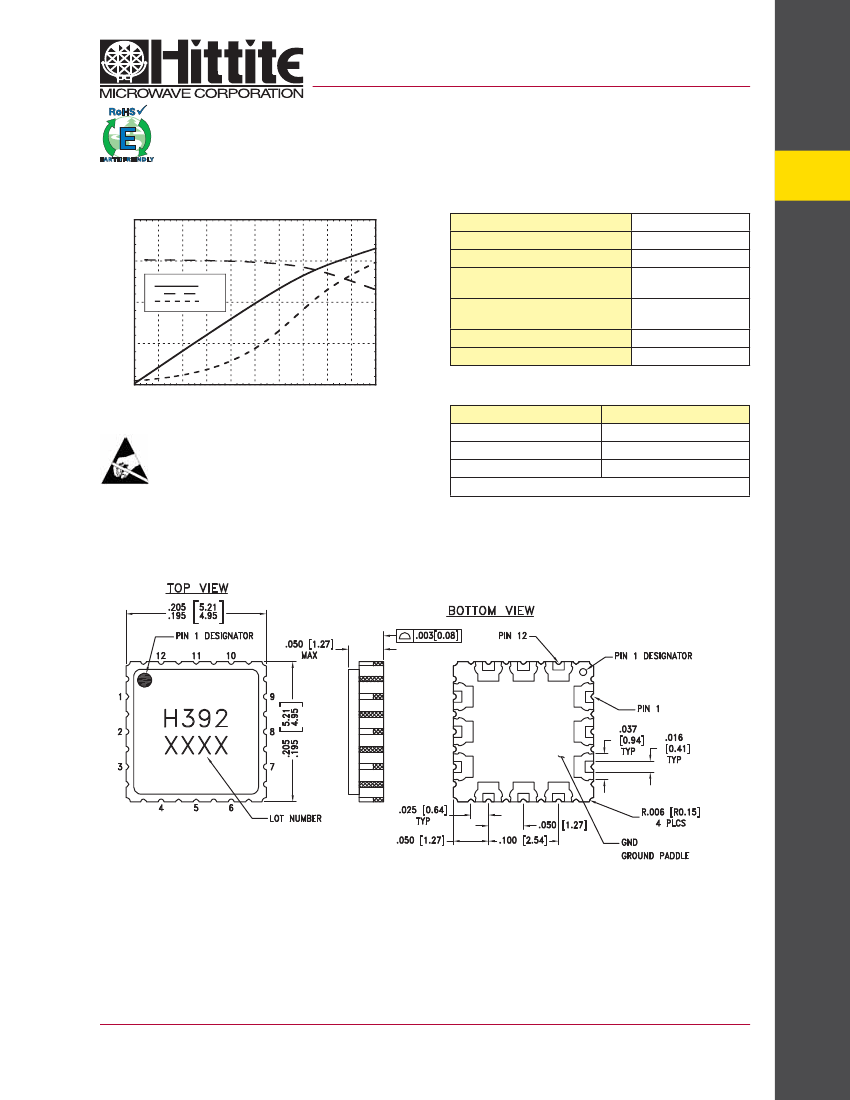

Power Compression @ 5.5 GHz
20
Pout (dBm), GAIN (dB), PAE (%)
Absolute Maximum Ratings
Drain Bias Voltage (Vdd)
RF Input Power (RFIN)(Vdd = +5 Vdc)
Channel Temperature
+8 Vdc
+10 dBm
175 °C
0.629 W
143.08 °C/W
-65 to +150 °C
-40 to +85° C
8
LOW NOISE AMPLIFIERS - SMT
8 - 93
15
Pout
Gain
PAE
Continuous Pdiss (T= 85 °C)
(derate 6.99 mW/°C above 85 °C)
Thermal Resistance
(channel to ground paddle)
Storage Temperature
Operating Temperature
10
5
0
-15
-13
-11
-9
-7
-5
-3
-1
1
3
5
Typical Supply Current vs. Vdd
Vdd (Vdc)
+4.5
+5.0
+5.5
(State 5 Depicted)
Idd (mA)
43
44
45
INPUT POWER (dBm)
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
Outline Drawing
NOTES:
1. PACKAGE BODY MATERIAL: CERAMIC & KOVAR
2. LEAD AND GROUND PADDLE PLATING: GOLD 40 - 80 MICROINCHES.
3. DIMENSIONS ARE IN INCHES [MILLIMETERS].
4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE
5. PAD BURR LENGTH 0.15mm MAX.
PAD BURR HEIGHT 0.25mm MAX.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO
PCB RF GROUND.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC392LH5
v00.0707
GaAs MMIC LOW NOISE
AMPLIFIER, 3.5 - 7.0 GHz
8
LOW NOISE AMPLIFIERS - SMT
Pin Descriptions
Pin Number
2
Function
RFIN
Description
This pin is AC coupled and matched to 50 Ohms.
Interface Schematic
Power Select
12
11
PS3
PS4
One of these pins must be connected to
ground and one must be unconnected.
See Power Select Table for selection criteria.
Power Select
6
5
4
PS7
PS8
PS9
One of these pins must be connected to
ground and two must be unconnected.
See Power Select Table for selection criteria.
10
Vdd
Power supply voltage for amplifier.
External bypass 100pF, 1000pF and
4.7 μF are required.
8
RFOUT
This pin is AC coupled and matched to 50 Ohms.
1, 3, 7, 9
GND
These pins and package bottom
must be connected to RF/DC ground.
Power Select Table
State
1
2
3
4
5
6
Pins Connected
to Ground
PS3 & PS7
PS3 & PS8
PS3 & PS9
PS4 & PS7
PS4 & PS8
PS4 & PS9
Typical Idd
(mA)
60
50
43
53
43
38
Typical Output
P1dB (dBm)
16.8
15.7
13.5
15.5
14.0
12.8
Typical Gain
(dB)
16.0
15.5
15.3
15.4
15.2
15.2
Typical Noise Figure
(dB)
2.7
2.7
2.9
2.9
2.7
2.7
8 - 94
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
