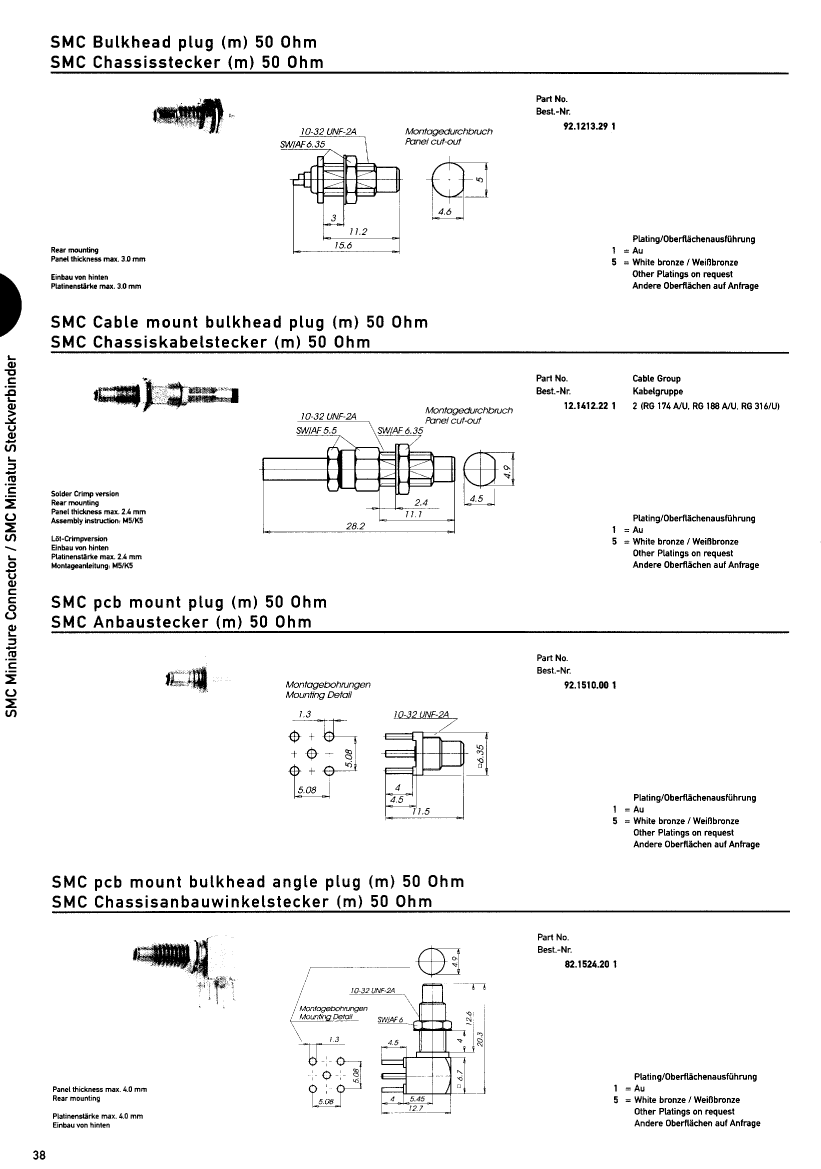

RF SMC Connector, 1 Contact(s), Male, Panel Mount, Board Mount, Solder Terminal, Plug
| Parameter Name | Attribute value |
| Maker | IMS Connector Systems Gmbh |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | STANDARDS: MIL-C-39012; IEC 169-9 |
| body width | 0.343 inch |
| subject depth | 0.799 inch |
| body length | 0.264 inch |
| Body/casing type | PLUG |
| Characteristic impedance | 50 Ω |
| Connector type | RF SMC CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact resistance | 5 mΩ |
| Contact style | COAX |
| Coupling type | THREADED |
| DIN compliance | NO |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | YES |
| Insulation resistance | 10000000000 Ω |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | YES |
| Manufacturer's serial number | SMC |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating frequency | 10 GHz |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | YES |
| Rated current (signal) | 1.5 A |
| reliability | MIL-C-39012 |
| Terminal length | 0.157 inch |
| Termination type | SOLDER |
| Total number of contacts | 1 |
| 82.1524.205 | 12.1412.225 | 92.1213.291 | 12.1412.221 | 82.1524.201 | 92.1510.001 | 92.1213.295 | 92.1510.005 | |
|---|---|---|---|---|---|---|---|---|
| Description | RF SMC Connector, 1 Contact(s), Male, Panel Mount, Board Mount, Solder Terminal, Plug | RF SMC Connector, 1 Contact(s), Male, Panel Mount, Cable Mount, Crimp Solder Terminal, Locking, Plug | RF SMC Connector, 1 Contact(s), Male, Panel Mount, Solder Terminal, Locking, Plug | RF SMC Connector, 1 Contact(s), Male, Panel Mount, Cable Mount, Crimp Solder Terminal, Locking, Plug | RF SMC Connector, 1 Contact(s), Male, Panel Mount, Board Mount, Solder Terminal, Plug | RF SMC Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Locking, Plug | RF SMC Connector, 1 Contact(s), Male, Panel Mount, Solder Terminal, Locking, Plug | RF SMC Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Locking, Plug |
| Reach Compliance Code | compliant | compli | compli | compli | compli | compliant | compliant | compliant |
| Other features | STANDARDS: MIL-C-39012; IEC 169-9 | STANDARDS: MIL-C-39012; IEC 169-9, APPLICABLE CABLES: RG 174A/U, RG 188A/U, RG 316/U | STANDARDS: MIL-C-39012; IEC 169-9 | STANDARDS: MIL-C-39012; IEC 169-9, APPLICABLE CABLES: RG 174A/U, RG 188A/U, RG 316/U | STANDARDS: MIL-C-39012; IEC 169-9 | STANDARDS: MIL-C-39012; IEC 169-9 | STANDARDS: MIL-C-39012; IEC 169-9 | STANDARDS: MIL-C-39012; IEC 169-9 |
| subject depth | 0.799 inch | 0.343 inch | 0.441 inch | 0.343 inch | 0.799 inch | 0.295 inch | 0.441 inch | 0.295 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF SMC CONNECTOR | RF SMC CONNECTOR | RF SMC CONNECTOR | RF SMC CONNECTOR | RF SMC CONNECTOR | RF SMC CONNECTOR | RF SMC CONNECTOR | RF SMC CONNECTOR |
| Contact to complete cooperation | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | GOLD | Gold (Au) | GOLD | GOLD |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact resistance | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ |
| Contact style | COAX | COAX | COAX | COAX | COAX | COAX | COAX | COAX |
| Coupling type | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | YES | YES | YES | YES | YES | YES | YES | YES |
| Insulation resistance | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | YES | YES | YES | YES | YES | YES | YES | YES |
| Manufacturer's serial number | SMC | SMC | SMC | SMC | SMC | SMC | SMC | SMC |
| Installation method | RIGHT ANGLE | STRAIGHT | STRAIGHT | STRAIGHT | RIGHT ANGLE | STRAIGHT | STRAIGHT | STRAIGHT |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating frequency | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | YES | YES | YES | YES | YES | NO | YES | NO |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| Termination type | SOLDER | CRIMP SOLDER | SOLDER | CRIMP SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 |
| Installation type | BOARD | CABLE | - | CABLE | BOARD | BOARD | - | BOARD |
| Terminal length | 0.157 inch | 0.374 inch | - | 0.374 inch | 0.157 inch | 0.157 inch | - | 0.157 inch |
| Installation option 1 | - | LOCKING | LOCKING | LOCKING | - | LOCKING | LOCKING | LOCKING |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | - | - |
