TL1-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> TL1-10

TL1-10: DescriptionGeneral Purpose Inductor, 90.7uH, 20%, 1 Element; CategoryPassive components inductor; File Size23KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric Compare View All

TL1-10 Overview

General Purpose Inductor, 90.7uH, 20%, 1 Element

TL1-10 Parametric

Parameter Name	Attribute value
Maker	Inductor Supply Inc
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.04 Ω
Nominal inductance(L)	90.7 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	TL1
Number of functions	1
Number of terminals	2
Maximum rated current	3.5 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	PRINTED WIRING PIN
Tolerance	20%

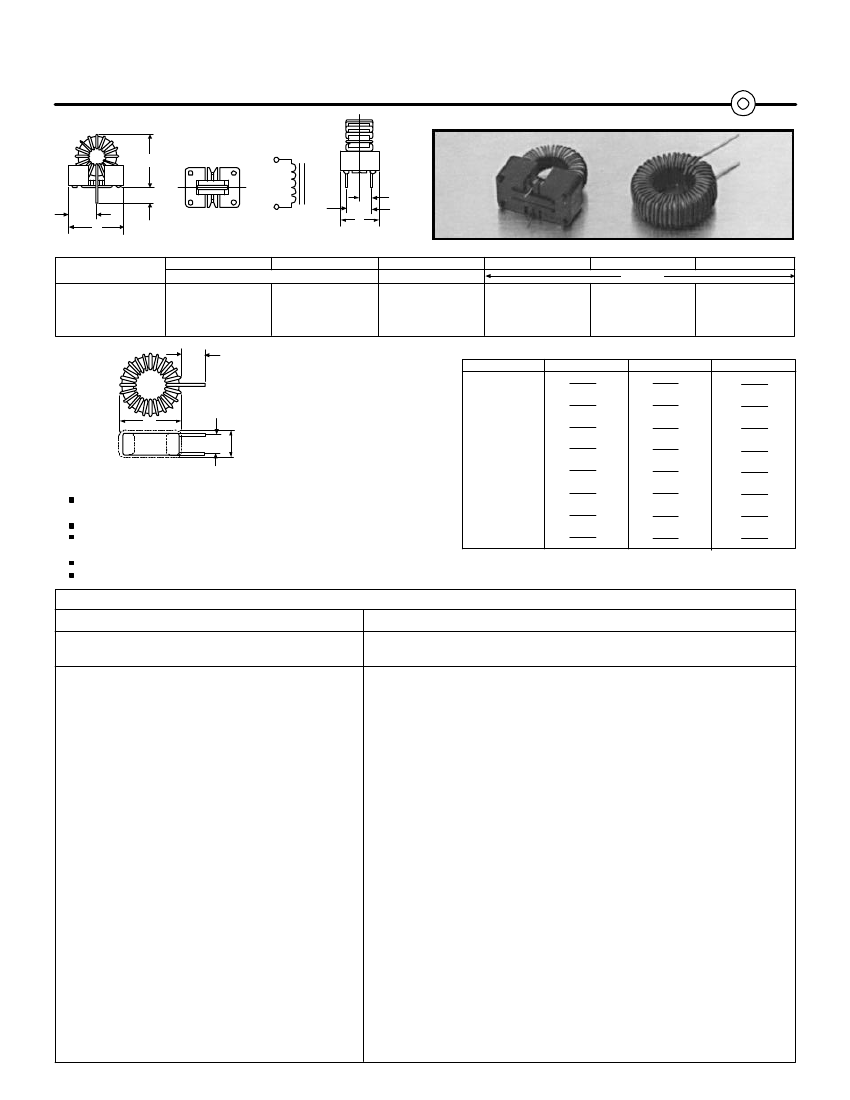

Preview

Download Datasheet

View All

Toroids

TL1 Series

COIL INSTALLED N MOUNT

NOMINAL ± .005

.340

.450

.600

.700

.578

.648

.828

.948

1.248

NOMINAL

.60

.65

.85

.95

1.25

.29

.325

.415

.475

.625

TYPIC AL

.110

.150

.225

.250

.110

STANDARD

PACKAGE

Mount - 1

Mount - 2

Mount - 3

Mount - 4

Mount - 5

SIZE CODE

P MAX

.50

12,70

16,25

.79

20,06

1.00

25,40

1.23

31,24

1.50

38,10

.78

19,81

.61

15,49

N MAX

.22

5,58

.32

8,12

.32

8,12

.49

12,44

.56

14,22

.62

15,74

.29

7,36

.26

6,60

L = ± .125 - .025

0.375

9,53

0.375

9,53

0.375

9,53

0.375

9,53

0.875

22,23

0.875

22,23

0.75

19,05

0.75

19,05

BARE COIL

GENERAL CHARACTERISTICS

Characterized for general purpose uses and

Ripple Filters

Single layer designs

Can be used as Differential Mode Inductors in

EMI Filters

Mounting package available upon request

Supplied in bulk only

Dimensions D and H ar e typical for par t number shown and may var y

depending on wire size for other part numbers using the same core size

ELECTRICAL CHARACTERISTICS AT 25°C

REFERENCE OPERATING VALUES

PART

NUMBER

TL1-01

TL1-02

TL1-03

TL1-04

TL1-05

TL1-06

TL1-07

TL1-08

TL1-09

TL1-10

TL1-11

TL1-12

TL1-13

TL1-14

TL1-15

TL1-16

TL1-17

TL1-18

TL1-19

TL1-20

MOUNT

OPTION

L TYPICAL

(µHy) (1)

100

145

285

450

100

165

270

100

170

(V-µSec)

140

300

425

130

240

350

200

300

100

225

150

175

L NO D.C.

±20% -12%

(µHy)

32.8

20.7

45.7

94.1

28.4

61.0

141.8

264.1

436.3

90.7

152.0

263.9

37.9

20.3

90.7

159.7

54.9

96.0

49.1

55.9

1000 Hz

TEST VOLTS

NO D.C.

.0034

.0023

.0047

.0094

.0037

.0076

.015

.035

.053

.012

.027

.041

.006

.0038

.021

.032

.009

.025

.015

.019

DESIGN CONTROL VALUES

DC RESISTANCE

OHMS

MAXIMUM (Ω)

.06

.04

.07

.10

.04

.05

.09

.14

.20

.04

.07

.10

.03

.04

.05

.02

.03

.02

COIL

SIZE

CODE

M-5

M-4

M-5

M-3

M-4

M-5

M-1

M-2

M-3

M-2

M-3

M-4

M-5

MOUNT

PACKAGE

LEAD DIA.

IN. ±.003

.020

.025

.032

.042

.051

.064

MIN.

ENERG Y

STORAGE (µJ)

150

300

110

300

650

1275

2000

600

1300

2150

300

150

1250

2100

650

2300

1300

2750

Idc (AMPS)

2.0

2.5

3.0

3.5

4.0

5.0

7.0

10.0

TL1-10 Related Products

	TL1-10	TL1-06	TL1-08	TL1-07	TL1-03	TL1-01	TL1-09
Description	General Purpose Inductor, 90.7uH, 20%, 1 Element	General Purpose Inductor, 61uH, 20%, 1 Element	General Purpose Inductor, 264.1uH, 20%, 1 Element	General Purpose Inductor, 141.8uH, 20%, 1 Element	General Purpose Inductor, 45.7uH, 20%, 1 Element	General Purpose Inductor, 32.8uH, 20%, 1 Element	General Purpose Inductor, 436.3uH, 20%, 1 Element
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.04 Ω	0.05 Ω	0.14 Ω	0.09 Ω	0.07 Ω	0.06 Ω	0.2 Ω
Nominal inductance(L)	90.7 µH	61 µH	264.1 µH	141.8 µH	45.7 µH	32.8 µH	436.3 µH
Inductor Applications	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	TL1	TL1	TL1	TL1	TL1	TL1	TL1
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum rated current	3.5 A	3 A	3 A	3 A	2.5 A	2 A	3 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Tolerance	20%	20%	20%	20%	20%	20%	20%
Maker	Inductor Supply Inc	-	Inductor Supply Inc	Inductor Supply Inc	Inductor Supply Inc	Inductor Supply Inc	Inductor Supply Inc
