HMC363G8
v00.0203
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 12 GHz
6
FREQUENCY DIVIDERS & DETECTORS - SMT
Typical Applications
Prescaler for DC to X Band PLL Applications:
• Point-to-Point / Multi-Point Radios
• VSAT Radios
• Test Equipment
• Fiber Optic
• Military & Space
Features
Ultra Low SSB Phase Noise: -153 dBc/Hz
Wide Bandwidth
Output Power: 4 dBm
Single DC Supply: +5V
8 Lead Hermetic SMT Package
Functional Diagram
General Description
The HMC363G8 is a low noise Divide-by-8 Static
Divider with InGaP GaAs HBT technology in an 8
lead glass/metal (hermetic) surface mount package.
This device operates from DC (with a square wave
input) to 12 GHz input frequency with a single +5V
DC supply. The low additive SSB phase noise of -153
dBc/Hz at 100 kHz offset helps the user maintain good
system noise performance.
Electrical Specifications,
T
A
= +25° C, 50 Ohm System, Vcc = 5V
Parameter
Maximum Input Frequency
Minimum Input Frequency
Input Power Range
Sine Wave Input. [1]
Fin = 1 to 6 GHz
Fin = 6 to 8 GHz
Fin = 8 to 12 GHz
Output Power
Reverse Leakage
SSB Phase Noise (100 kHz offset)
Output Transition Time
Supply Current (Icc)
Fin = 12 GHz
Both RF Outputs Terminated
Pin = 0 dBm, Fin = 6 GHz
Pin = 0 dBm, Fout = 882 MHz
-15
-15
-10
1
Conditions
Min.
12
Typ.
13
0.2
>-20
>-20
>-15
4.0
55
-153
100
90
0.5
+10
+5
0
Max.
Units
GHz
GHz
dBm
dBm
dBm
dBm
dB
dBc/Hz
ps
mA
1. Divider will operate down to DC for square-wave input signal.
6 - 14
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC363G8
v00.0203
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 12 GHz

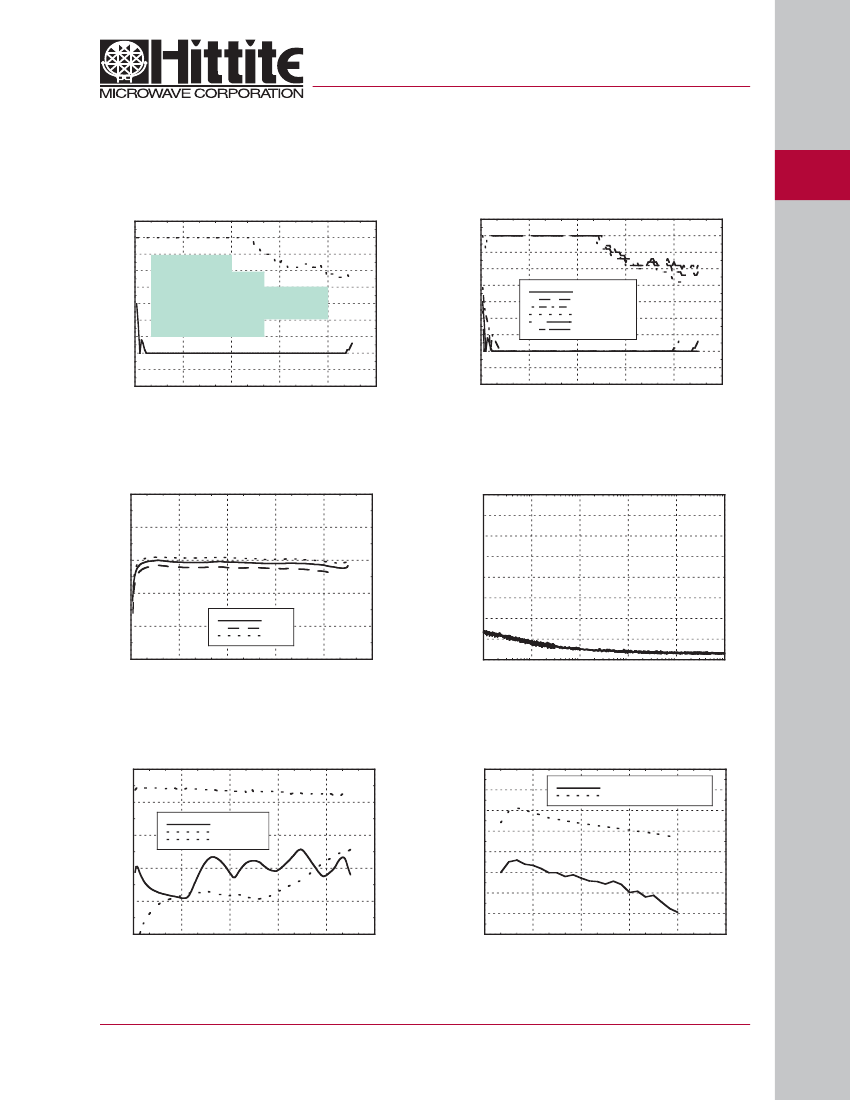

Input Sensitivity Window, T= 25 °C
20
Input Sensitivity Window vs. Temperature
20
6
FREQUENCY DIVIDERS & DETECTORS - SMT
6 - 15
10
INPUT POWER (dBm)
INPUT POWER (dBm)
10
0
Recommended
Operating Window
0
-10
-10
MIN Pin +25 C
MAX Pin +25 C
MIN Pin +85 C
MAX Pin +85 C
MIN Pin -40 C
MAX Pin -40 C
-20
-20
-30
0
3
6
9
12
INPUT FREQUENCY (GHz)
15
-30
0
3
6
9
12
INPUT FREQUENCY (GHz)
15
Output Power vs. Temperature
10
SSB Phase Noise
Performance, Pin= 0 dBm, T= 25 °C
0
-20
SSB PHASE NOISE (dBc/Hz)
OUTPUT POWER (dBm)
7
-40
-60
-80
-100
-120
-140
-160
2
10
4
1
+25 C
+85 C
-40 C
-2
-5
0
3
6
9
12
INPUT FREQUENCY (GHz)
15
10
3
10
4
10
5
10
6
10
7
OFFSET FREQUENCY (Hz)
Output Harmonic
Content, Pin= 0 dBm, T= 25 °C
0
Reverse Leakage, Pin= 0 dBm, T= 25 °C
0
-10
Both Output Ports Terminated
One Output Ports Terminated
OUTPUT LEVEL (dBm)
POWER LEVEL (dBm)
15
-10
Pfeedthru
2nd Harmonic
3rd Harmonic
-20
-30
-40
-50
-60
-70
-20
-30
-40
-50
0
3
6
9
12
INPUT FREQUENCY (GHz)
-80
0
3
6
9
INPUT FREQUENCY (GHz)
12
15
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC363G8
v00.0203
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 12 GHz
Absolute Maximum Ratings
RF Input (Vcc = +5V)
Vcc
Channel Temperature (Tc)
+13 dBm
+5.5V
135 °C
609 mW
-65 to +150 °C
-40 to +85 °C
82 °C/W
6
FREQUENCY DIVIDERS & DETECTORS - SMT
Output Voltage Waveform,
Pin= 0 dBm, Fout= 882 MHz, T= 25 °C
600
400
AMPLTIUDE (mV)
200
0
-200
-400
-600
22.7
23.1
23.5
23.9
TIME (nS)
24.3
24.7
Continuous Pdiss (T= 85 °C)
(derate 12.2 mW/ °C above 85 °C)
Storage Temperature
Operating Temperature
Thermal Resistance
(junction to ground paddle)
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
Typical Supply Current vs. Vcc
Vcc (V)
4.75
5.0
5.25
Icc (mA)
85
90
100
Note: Divider will operate over full voltage range shown above

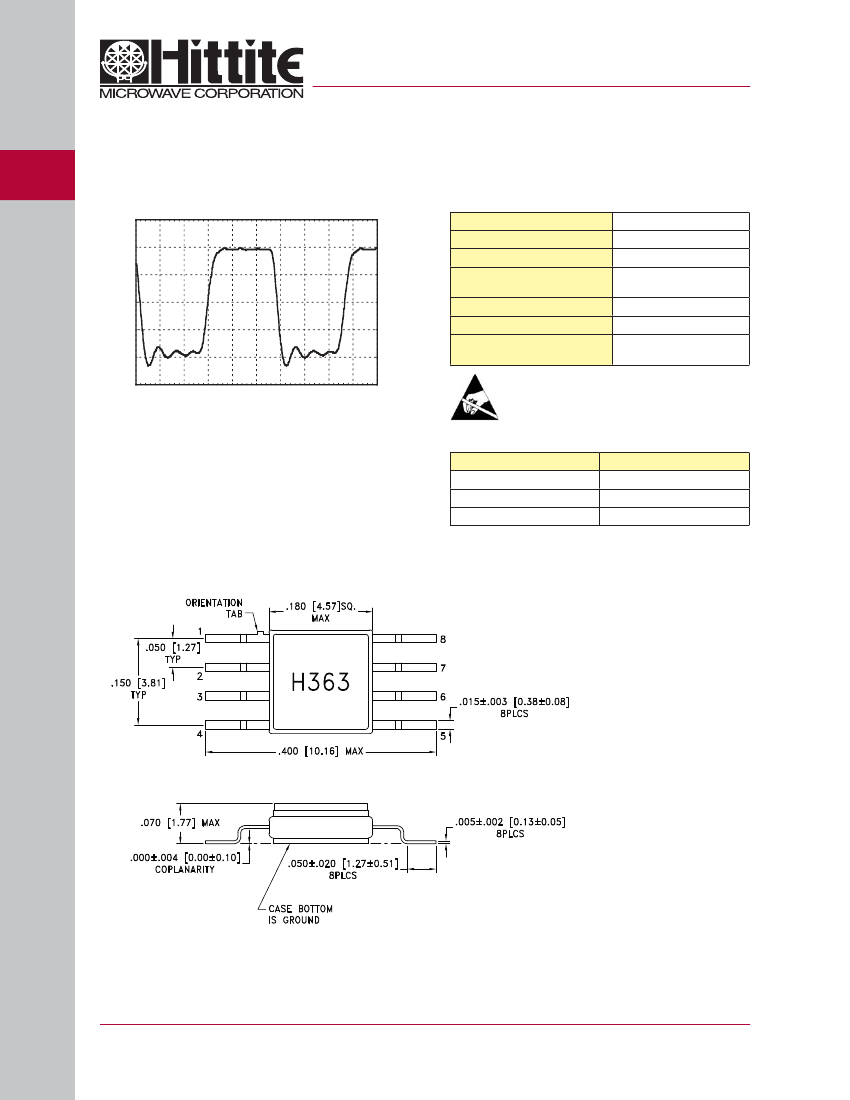

Outline Drawing
NOTES:
1. PACKAGE MATERIAL: ALUMINA LOADED BOROSILICATE GLASS.
2. LEAD, BASE, COVER MATERIAL: KOVAR™ (#7052 CORNING).
3. PLATING: ELECTROLYTIC GOLD 50 MICROINCHES MIN., OVER
ELECTROLYTIC NICKEL 50 MICROINCHES MIN.
4. DIMENSIONS ARE IN INCHES [MILLIMETERS].
5. TOLERANCES: ±.005 [0.13] UNLESS OTHERWISE SPECIFIED.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED
TO PCB RF GROUND.
6 - 16
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC363G8
v00.0203
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 12 GHz
Pin Description
Pin Number
Function
Description
Interface Schematic
6
IN
RF Input must be DC blocked.
1
2, 6
N/C
No connection.
3
IN
RF Input 180° out of phase with pin 1 for differential operation.
AC ground for single ended operation.
4
GND
Ground: Backside of package has exposed metal ground which
must be connected to a RF/DC ground.
5
OUT
Divided output 180° out of phase with pin 7.
7
OUT
Divided Output.
8
VCC
Supply voltage 5V ± 0.25V.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
6 - 17
FREQUENCY DIVIDERS & DETECTORS - SMT
HMC363G8
v00.0203
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 12 GHz
6
FREQUENCY DIVIDERS & DETECTORS - SMT

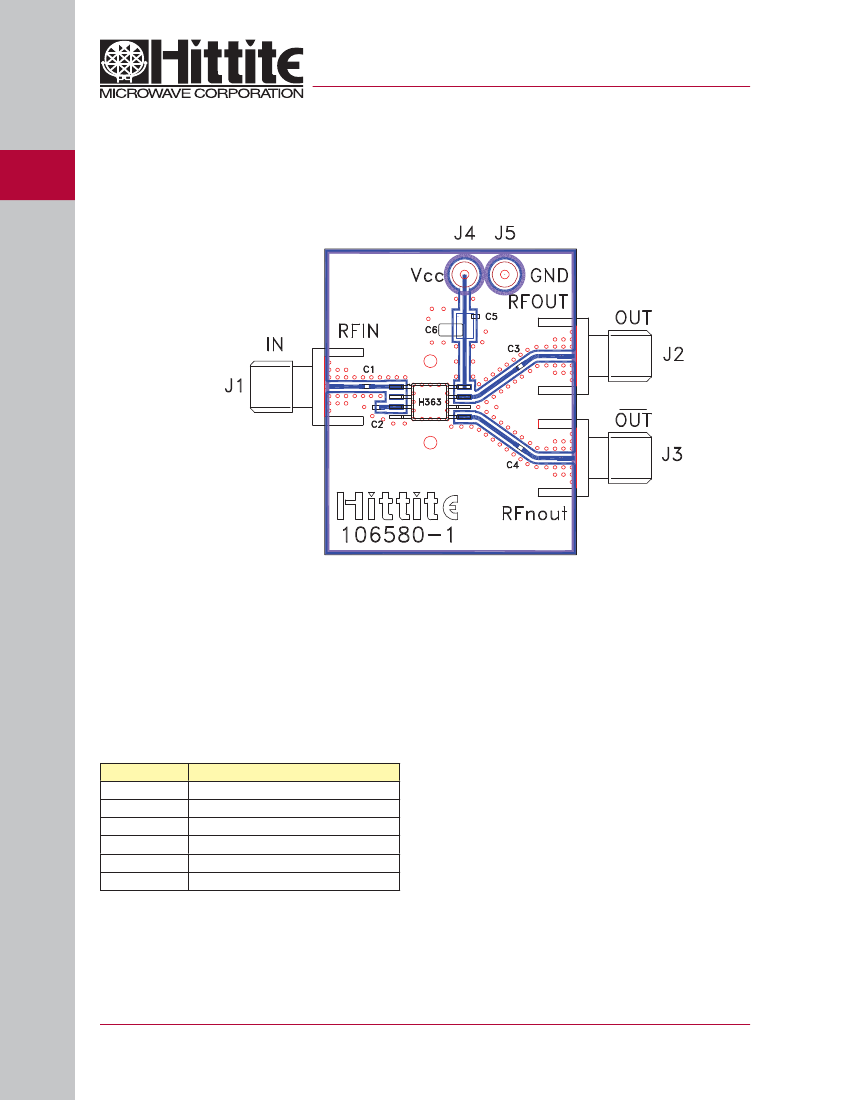

Evaluation PCB
List of Materials for Evaluation PCB 106582
[1]
Item
J1 - J3
C1 - C4
C5
C6
U1
PCB
[2]
Description
PCB Mount SMA RF Connector
100 pF Capacitor, 0402 Pkg.
1000 pF Capacitor, 0603 Pkg.
10 μF Tantalum Capacitor
HMC363G8 Divide-by-8
106580 Eval Board
[1] Reference this number when ordering complete evaluation PCB
[2] Circuit Board Material: Rogers 4350
The circuit board used in the final application should
use RF circuit design techniques. Signal lines
should have 50 ohm impedance while the package
ground leads and backside ground slug should be
connected directly to the ground plane similar to that
shown. A sufficient number of via holes should be
used to connect the top and bottom ground planes.
The evaluation circuit board shown is available
from Hittite upon request. This evaluation board is
designed for single ended input testing. J2 and J3
provide differential output signals.
6 - 18
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
