HMC370LP4_10 Overview

14400 MHz - 16400 MHz RF/MICROWAVE FREQUENCY QUADRUPLER

HMC370LP4_10 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum input power	20 dBm
Maximum operating frequency	16400 MHz
Minimum operating frequency	14400 MHz
Processing package description	4 × 4 MM, ROHS COMPLIANT, MINIATURE, plastic, SMT, 24 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
structure	COMPONENT
terminal coating	MATTE tin (394) OVER copper
Impedance characteristics	50 ohm
Microwave RF Type	frequency quadrupler

Preview

Download Datasheet

View All

HMC370LP4

370LP4E

v04.0110

SMT GaAs HBT MMIC x4 ACTIVE

FREQUENCY MULTIPLIER, 14.4 - 16.4 GHz OUTPUT

Typical Applications

Features

Output Power: 0 dBm

Sub-Harmonic Suppression: >22 dBc

SSB Phase Noise: -140 dBc/Hz

Single Supply: +5V @ 55 mA

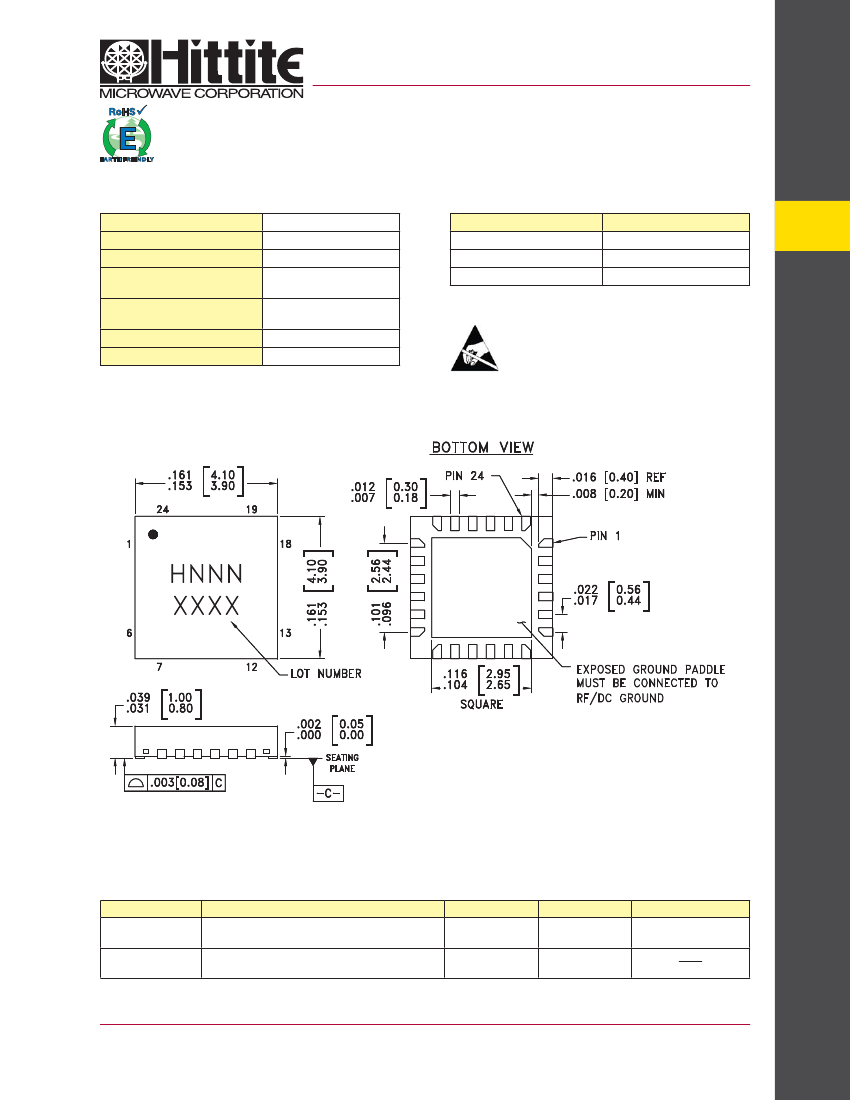

24 Lead 4x4 mm SMT Package: 16 mm

FREQ. MULTIPLIERS - ACTIVE - SMT

The HMC370LP4(E) is ideal for:

• Point-to-Point & VSAT Radios

• Fiber Optic

• Military

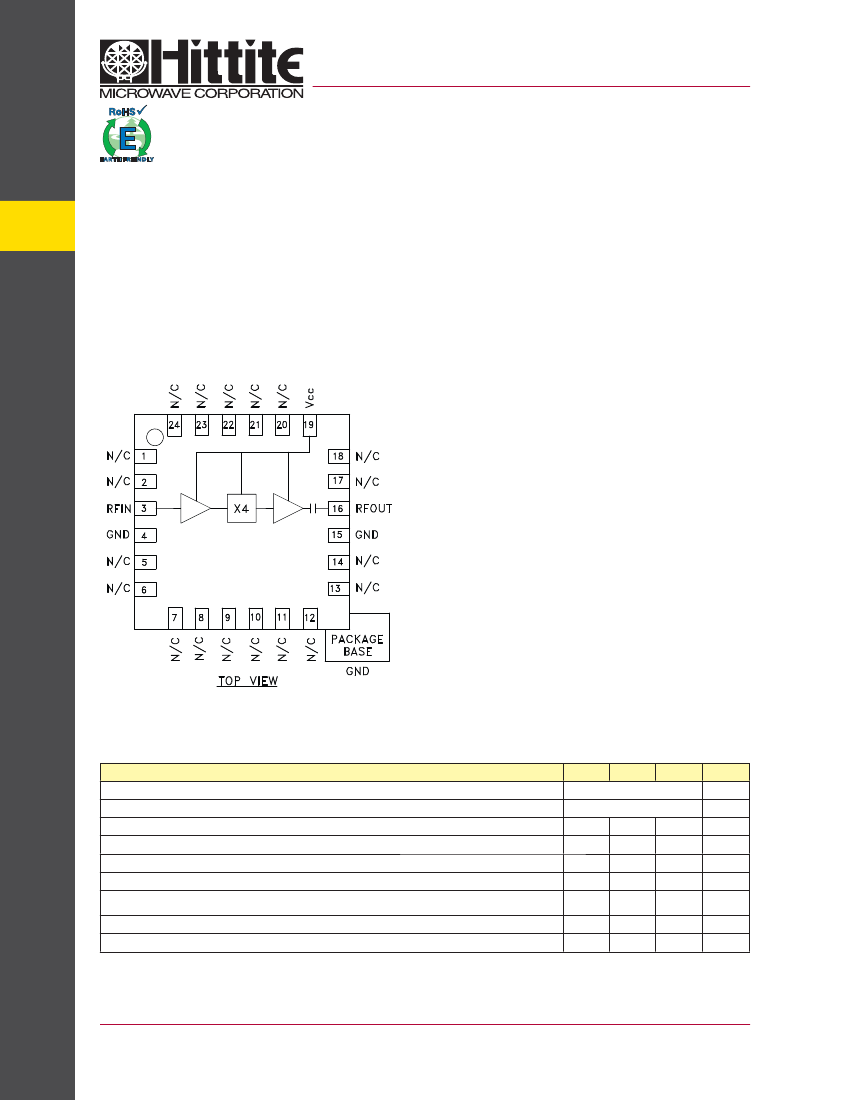

Functional Diagram

General Description

The HMC370LP4(E) is an active miniature x4 fre-

quency multiplier utilizing InGaP GaAs HBT

technology in a 4x4 mm leadless surface mount

package. Power output is 0 dBm typical from a

5V supply voltage and varies little vs. input power,

temperature and supply voltage. Suppression of

undesired fundamental and sub-harmonics is >22

dBc typical with respect to output signal level. The

low additive SSB phase noise of -140 dBc/Hz at

100 kHz offset helps the user maintain good sys-

tem noise performance. The HMC370LP4(E) are ideal

for use in LO multiplier chains allowing reduced parts

count vs. traditional approaches.

Electrical Specifi cations,

= +25° C, Vcc = 5V

Parameter

Frequency Range, Input

Frequency Range, Output

Input Power Range

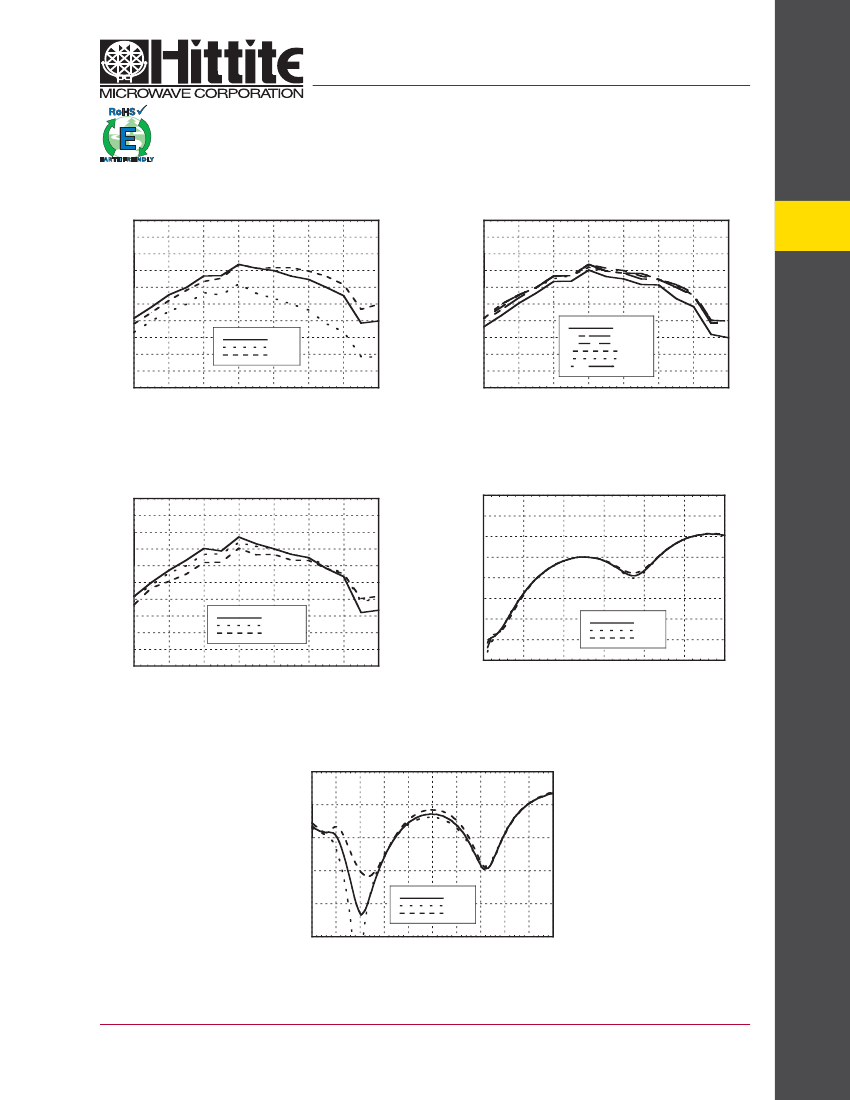

Output Power

Sub-Harmonic Suppression

Input Return Loss

Output Return Loss

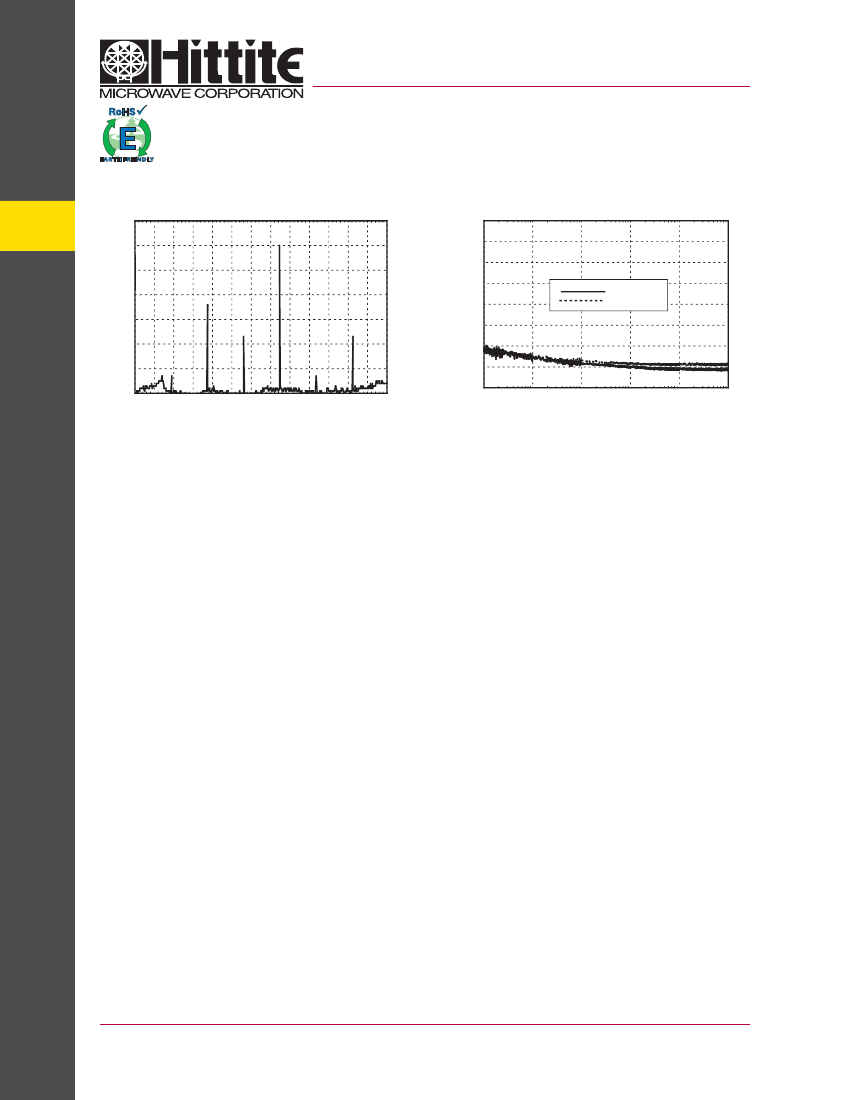

SSB Phase Noise (100 kHz Offset)

Supply Current (Icc)

Pin = 0 dBm

-15

-4

-140

Min.

Typ.

3.6 - 4.1

14.4 - 16.4

Max.

Units

GHz

dBm

dBc

dBc/Hz

7 - 46

For price, delivery, and to place orders, please contact Hittite Microwave Corporation:

20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373

Order On-line at www.hittite.com
