YSESD3Z08T1G Overview

UNIDIRECTIONAL TVS DIODE

Preview

Download Datasheet

View All

DATA SHEET

SEMICONDUCTOR

YSESD3ZxxT1G Series

UNIDIRECTIONAL TVS DIODE

APPLICATIONS

◆

Cell Phone Handsets and Accessories

◆

Microprocessor based equipment

◆

Personal Digital Assistants (PDA’s)

◆

Notebooks, Desktops, and Servers

◆

Portable Instrumentation

◆

Peripherals

◆

Pagers

SOD-323

IEC COMPATIBILITY

◆

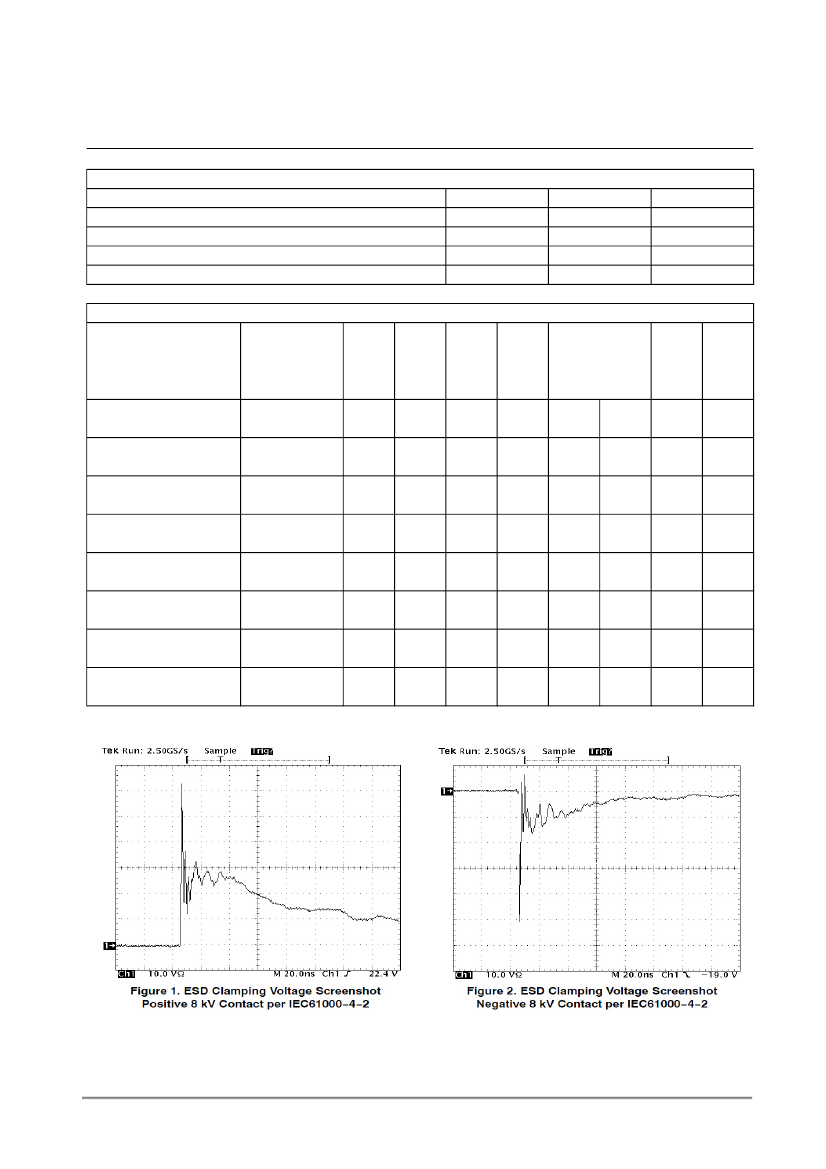

IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact) -- 3.3V ~ 20V

◆

IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) -- 24V ~ 36V

◆

IEC61000-4-4 (EFT) 40A (5/50ηs)

03W

PIN CONFIGURATION

FEATURES

◆

350 Watts Peak Pulse Power per Line (tp=8/20µs)

◆

Protects one I/O or power line

◆

Low clamping voltage

◆

Working voltages: 3.3V ~ 36V

◆

Low leakage current

MECHANICAL CHARACTERISTICS

◆

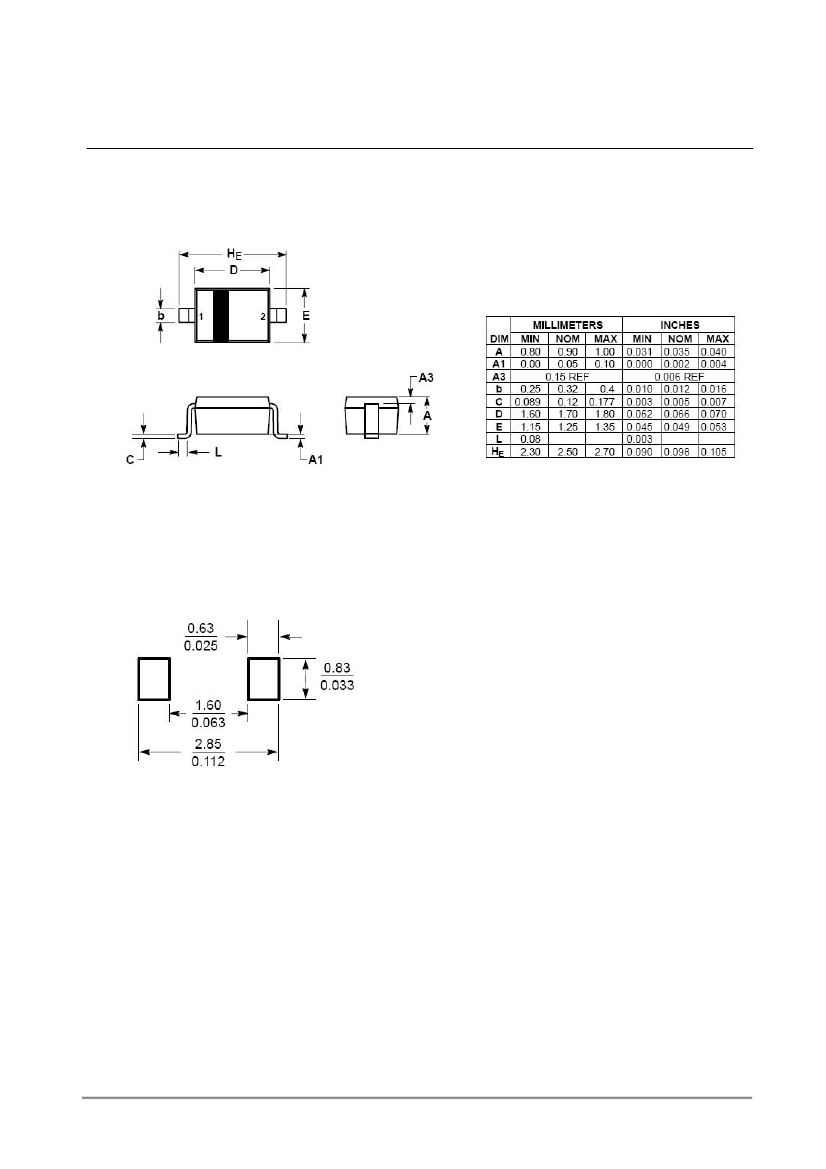

JEDEC SOD-323 Package

◆

Molding Compound Flammability Rating : UL 94V-O

◆

Weight 5 Millgrams (Approximate)

◆

Quantity Per Reel : 3,000pcs

◆

Reel Size : 7 inch

◆

Lead Finish : Lead Free

http://www.yeashin.com

REV.04 20140318
