FMVPCL25CDB/L-160.000000-GW datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> FMVPCL25CDB/L-160.000000-GW

FMVPCL25CDB/L-160.000000-GW: DescriptionOscillator; CategoryPassive components oscillator; File Size66KB，1 Pages; ManufacturerFrequency Management International

Download Datasheet Parametric View All

FMVPCL25CDB/L-160.000000-GW Overview

Oscillator

FMVPCL25CDB/L-160.000000-GW Parametric

Parameter Name	Attribute value
Maker	Frequency Management International
package instruction	GULLWING, SMD, DIP-14/4
Reach Compliance Code	compliant
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	125 ppm
frequency stability	25%
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	160 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	PECL
longest rise time	2 ns
Maximum supply voltage	5.7 V
Minimum supply voltage	4.7 V
Nominal supply voltage	5.2 V
surface mount	YES
maximum symmetry	40/60 %

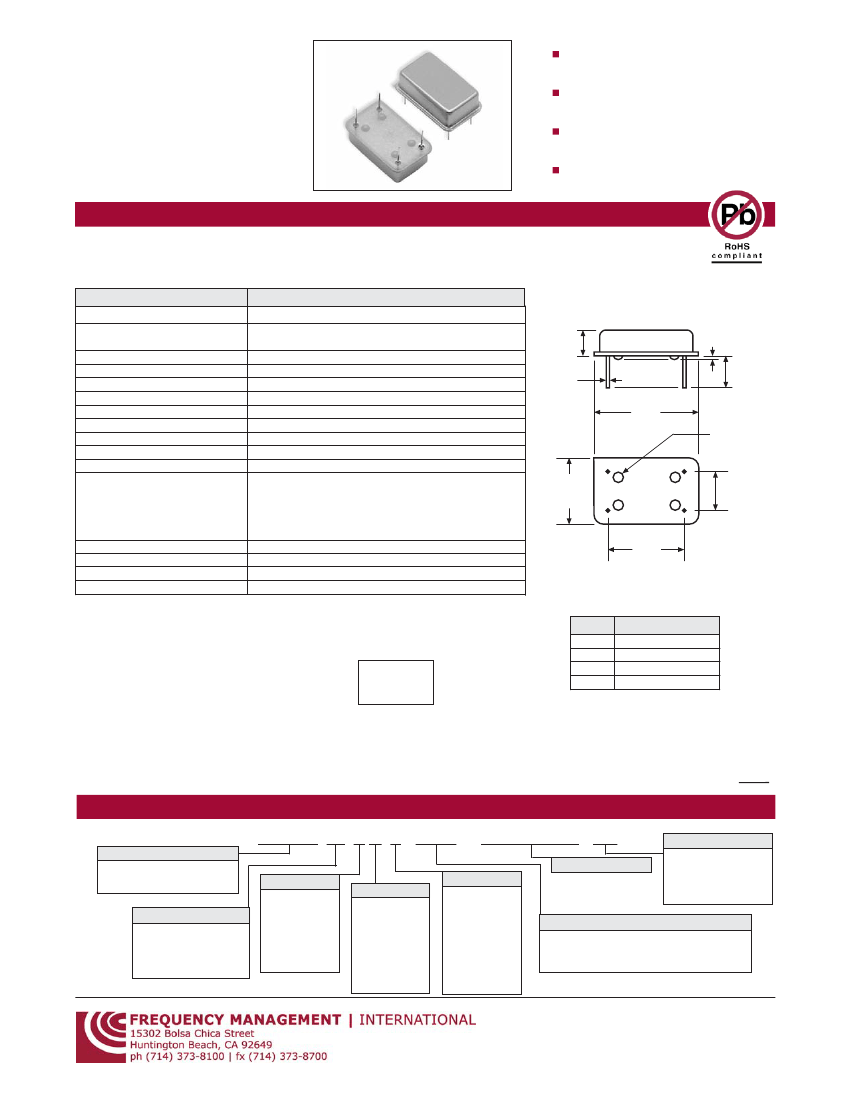

Preview

Download Datasheet

View All

FMVPCL

SERIES

5.0 Vdc PECL VCXO

5.0 Vdc PECL

Precise Clock Edges

High Frequency /Low Noise

SMD Gull-Wing Option

14 PIN DIP

SPECIFICATIONS

09 - Issue 2 - 021209

Parameter

Frequency Range

Overall Frequency Tolerance

Operating Temperature Range

Storage Temperature

Supply Voltage (Vdd)

Supply Current

Symmetry (Duty Cycle)

Logic Type

Output “0” Level (VOL)

Output “1” Level (VOH)

Jitter (typical)

Phase Noise (typical)

Specification

30.0 - 160.0 MHz

±25 ppm to ±100 ppm

(Inclusive of Operating Temp., Supply Voltage and Load)

0 to +70° C Std. (See Temp. Range)

-55° to +125° C

+5.2 Vdc (±0.5 Vdc)

100 mA max.

40/60% Std., 45/55% Avail. (See Spec. Options S)

ECL Squarewave, 100K Compatible

Vdd - 1.60 Vdc max.

Vdd - 1.02 Vdc min.

< 10 pico seconds, one sigma

10 Hz

-75dBc/Hz

100 Hz

-110dBc/Hz

1kHz -125dBc/Hz

10kHz

-130dBc/Hz

100kHz

-140dBc/Hz

Nominal 2.5 Vdc, Range 0.5-4.5 Vdc, Positive Transfer

2 nS max.

±20% max. Std. , ±10% Available (See Spec. Option L)

±3 ppm first year max.

0.240

(6.1)

MAX.

0.018

(0.46)

FULL SIZE 14 PIN DIP

0.031

(0.76)

MAX

0.250

(6.35)

MAX.

0.800

(20.3)

MAX.

0.510

(12.95)

MAX.

0.600

(15.24)

Insulated

Stand-Offs

0.300

(7.62)

Control Voltage (Vc)

Rise and Fall Time

Linearity

Aging

All specifications subject to change without notice.

PIN FUNCTION TABLE

Function

Control Voltage (Vc)

Case Ground

Output

Supply Voltage (Vdd)

STANDARD MARKING

XX.XXM

XXXXXXX

• FMI YYWW

XX.XXM FREQUENCY in MHz

XXXXXXX Part Number

ESD/Pin 1 Symbol, FMI, Date Code

Standard Specifications for product indicated in

color

Dimensions:

Inches

(mm)

PART DESCRIPTION SYSTEM

FMVPCL 00 C G A S / L

XXX.XXXXXX

Product Family

+5.0 Vdc PECL VCXO

Full-Size 14 Pin DIP

Overall Frequency Tol.

25 ±25 ppm

50 ±50 ppm

00 ±100 ppm

nn ±Custom Value

Frequency (MHz)

Min. Pullability

B ±75 ppm

C ±100 ppm

D ±125 ppm

E ±150 ppm

X Custom

Z No Spec.

Max. Pullability

C ±100 ppm

D ±125 ppm

E ±150 ppm

F ±175 ppm

G ±200 ppm

X Custom

Z No Spec.

Temp. Range

A 0 to 70 °C

B -20 to 70 °C

C -40 to 85 °C

D -10 to 50 °C

E -10 to 60 °C

F -30 to 60 °C

0 to 50 °C

X Custom

Options

GW - Gull Wing

PD - Parameter Data

CM - Custom Mark

BLANK - None Req’d.

Spec. Options

S - Tight Symmetry (45/55%) Duty Cycle

L - Linearity ±10% Max.

Blank - None Required (Std.)

1-800-800-XTAL

[9825]

www.fmi-inc.com
