85122-R04B Overview

Single Color LED, Red, ROHS COMPLIANT PACKAGE-2

85122-R04B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Oxley Group Ltd
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	RED
Configuration	SINGLE
JESD-609 code	e4
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	CYLINDRICAL
surface mount	NO
Terminal surface	Silver (Ag)

Preview

Download Datasheet

View All

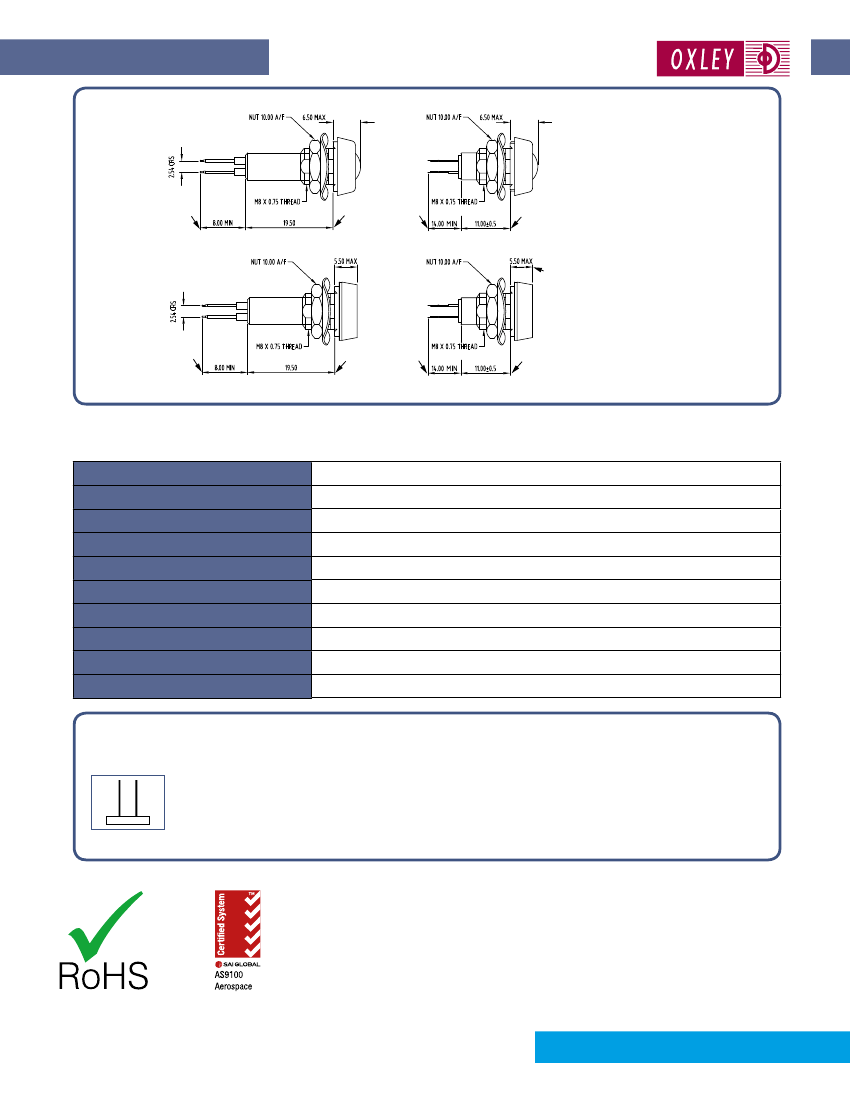

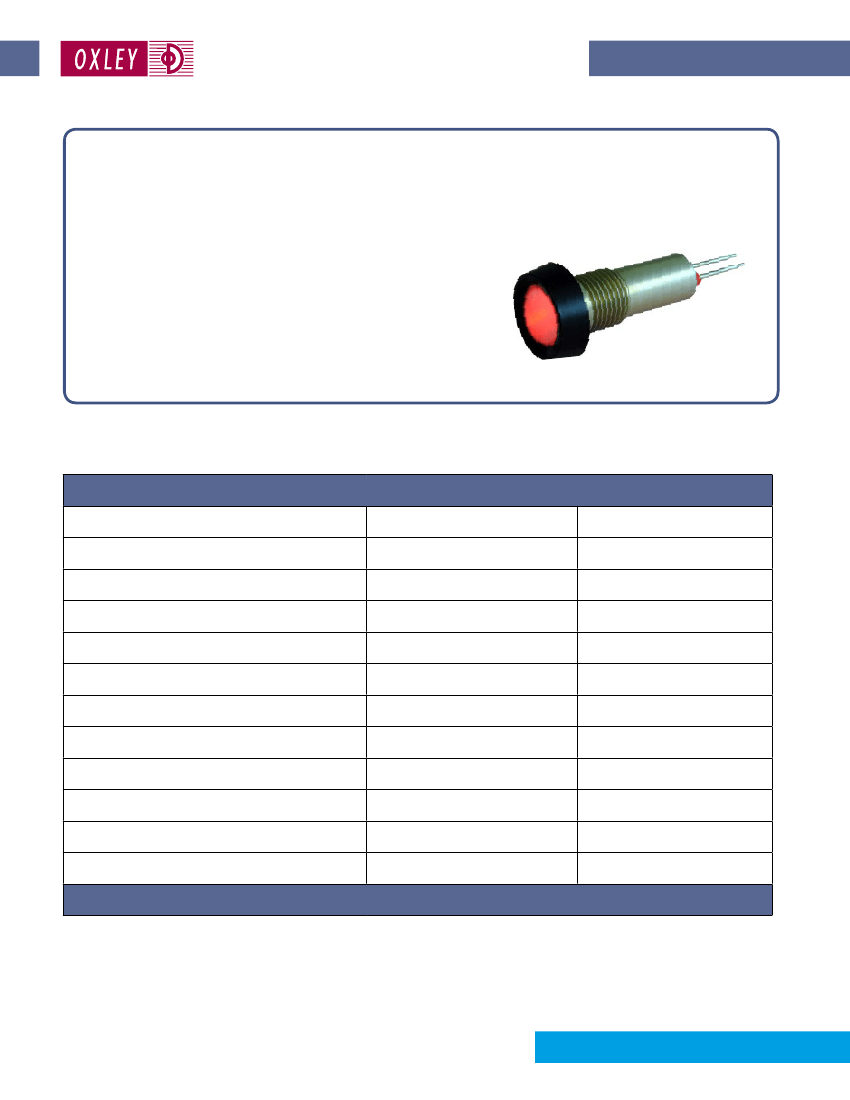

DESC 85122 Series

DESC 85122 Approved Indicator Lamps

[

Key Characteristics

Functional

• 8mm mounting

• DESC approved for use in DoD projects

• Approved to DESC drawing 85122

Adaptable

• Full color range

• Operating and storage temp -55˚ to 100˚

Resilient

• IP68 sealed

• Glass and metal construction

• 00% screened against Table I and II of DESC drawing 85122.

Including burn-in, seal temperature cycling and luminous intensity

[

Specifications

DESC Drawing Dash Number

85122-X01

85122-X02

85122-X11

85122-X05

85122-X06

85122-X07

85122-X08

85122-X09

85122-X010

85122-X03

85122-X04

85122-X12

Oxley Part Number

OX1100X

OX2100X

OX2101X

OX2200X

OX2300X

OX2210X

OX2310X

OX2211X

OX2311X

OX1200X

OX1300X

OX1250X

Oxley Series Type

PS/LH/8

STR/LH/8

STR/LH/8/SES

STR/LH/8/RAF

STR/LH/8/RAPP

STR/LH/8/HS/RAF

STR/LH/8/HS/RAPP

STR/LH/8/RAF/SES

STR/LH/8/RAPP/SES

PS/LH/8/RAF

PS/LH/8/RAPP

PS/LH/8/RAF/FL

* Where X equals the color, R - Red, G - Green and Y - Yellow

Example: 85122-R01 (OX1100R) Red Desc Lamp

Telephone: (+1) 203 488 1033 • inquire@oxleygroup.com

www.oxleygroup.com

HIGH PERFORMANCE PANEL LAMPS
