DIMM Sockets
No. DIMM-01-0799
Meritec’s DIMM (Dual In-Line Memory
Modules) Sockets are the latest addition to
Meritec’s family of Card Edge Connectors.
DIMM Sockets enable the user to easily
upgrade memory using industry standard mod-
ules. The DIMM Sockets are designed to
accept and meet the JEDEC standards for
high-density dual in line memory modules. To
combat the increasing height restrictions inside
the box, Meritec has developed a 25° and 90°
Low Profile DIMM Socket. This socket is avail-
able in the 168 and 200 circuit configuration
with options in tail length, voltage, and function
key location.

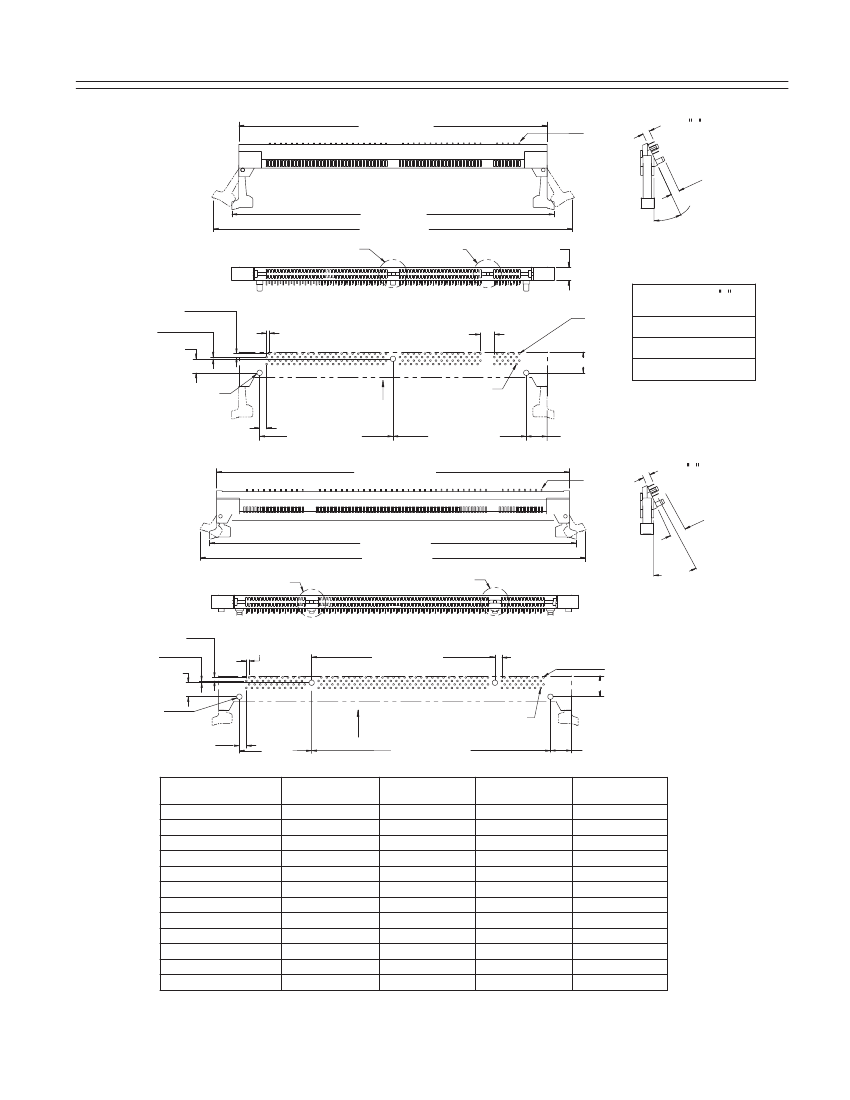

25° 168 Position Socket

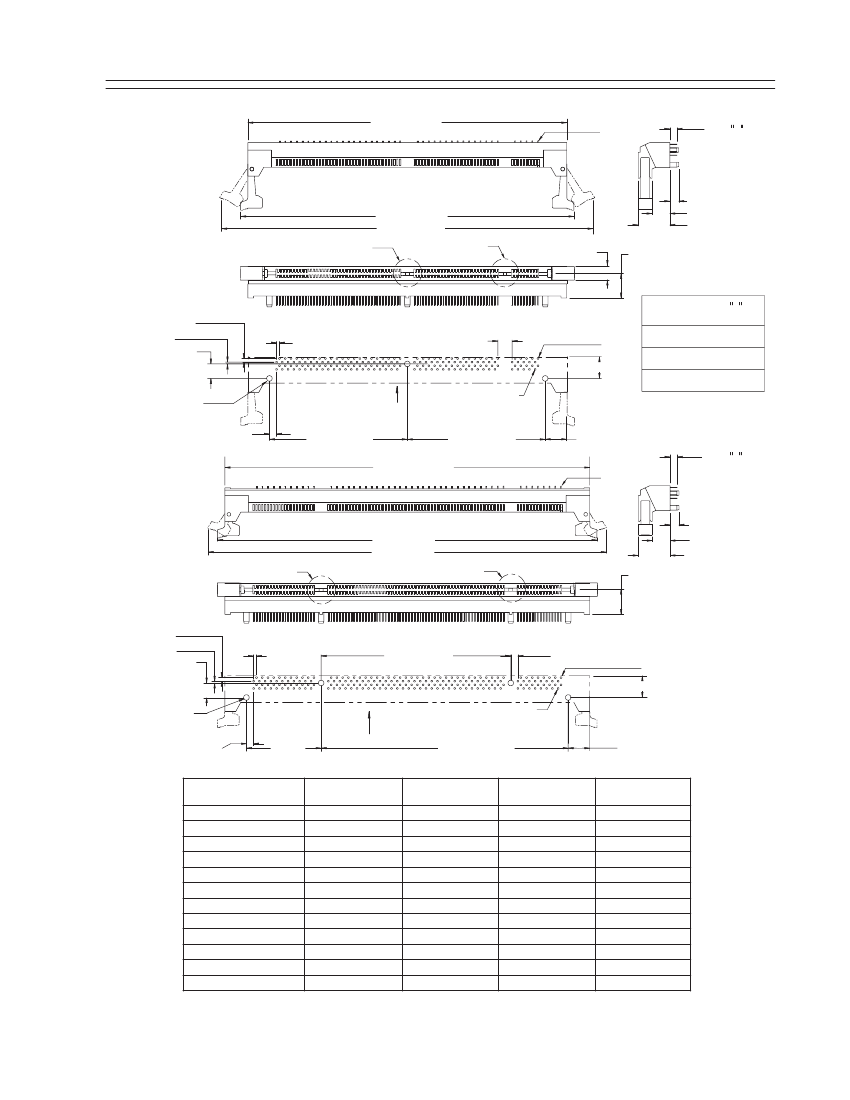

90° 168 Position Socket
FEATURES and BENEFITS
• Socket housing accepts all JEDEC module
outlines; stackable on .50'' centers - the
smallest in the industry
• PdNi/Au flash plating for improved plating
porosity and durability
• Housing includes molded-in function and
voltage key
• LCP housing provides stability during the
wave and reflow soldering processes.
• Plastic pegs hold down socket during the
soldering process
• Dual latches provide latch and eject function
• Narrow profile allows better air flow
SPECIFICATIONS
ELECTRICAL:
• Voltage - 100V
• Current rating (continuous) - 1.0 amp/contact
• Contact resistance - 30 milliohms (maximum)
• Dielectric withstanding voltage - 500V AC
• Insulation resistance - 1000 Megaohms (minimum)
MECHANICAL:
• Contact material - Copper alloy
• Contact finish - 2-10µ'' gold flash over 30µ'' palladium
nickel. Solder tails are 100µ'' tin-lead over 50µ'' nickel
• Insertion force - 3.7 oz. nominal per contact pair
• Normal force - 100 grams nominal
• Dielectric material - Liquid crystal polymer resin
ENVIRONMENTAL:
• Material - U.L. rated 94 V-0
• Operating temperature rating - 0°C to 85°C
For custom connector solutions or the name and
location of your nearest Meritec Sales
Representative, call 1-888-MERITEC (888-637-4832)
or visit our website at www.meritec.com.
All statements, specifications and technical information on this data sheet are
subject to change at any time without notice.
Where quality assures performance
MERITEC •
1359 WEST JACKSON STREET
•
POST OFFICE BOX 8003
•
PAINESVILLE, OHIO 44077
PHONE: 888-MERITEC or (888-637-4832) / (440) 354-3148
•
FAX: (440) 354-0509
•
INTERNET: WWW.MERITEC.COM
© Meritec DIMM 01 0799 7.5M
DIMM Sockets
No. DIMM-01-0799
Meritec produces a full line of connectors and assemblies for
application in the 3ns to sub nanosecond range. We are
equipped to match your requirements for controlled impedance
and propagation rate while minimizing crosstalk.
We are a vertically integrated company housed in over 130,000
square foot facilities nationwide. Every step . . .design,
CAD/CAM engineering, tooling fabrication, prototyping, manu-
facturing and assembly of component parts . . . is performed in-
house, using the most efficient processes available. At work in
all these phases are our comprehensive testing, quality assur-
ance and SPC programs. We are a group dedicated to excel-
lence, flexibility and responsiveness; providing our customers
with on-time delivery of competitive products as well as inno-
vative, high quality and cost-effective solutions to unique inter-
connection problems.
Flat Flex Cable
Assemblies

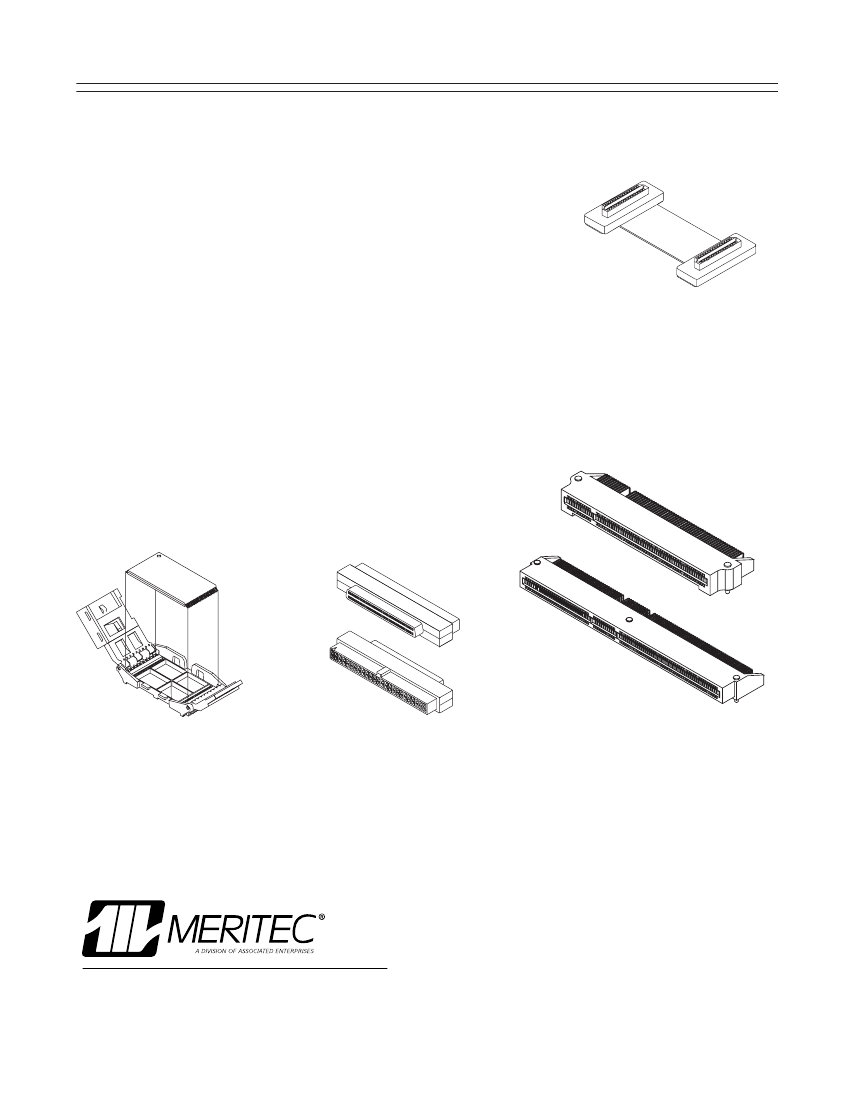

Some other examples of our complete line include:
