HMC188MS8
/
188MS8E
v04.0709
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 1.25 - 3.0 GHz INPUT
Typical Applications
Features
Conversion Loss: 15 dB
Fo, 3Fo, 4Fo Isolation: 45 dB
Input Drive Level: 10 to 20 dBm
7
FREQ. MULTIPLIERS - PASSIVE - SMT
The HMC188MS8 / HMC188MS8E is suitable for:
• Wireless Local Loop
• LMDS, VSAT, and Point-to-Point Radios
• UNII & HiperLAN
• Test Equipment
Functional Diagram
General Description
The HMC188MS8 & HMC188MS8E are miniature
frequency doublers in plastic 8-lead MSOP packages.
The suppression of undesired fundamental and higher
order harmonics is 45 dB typical with respect to input
signal levels. The doubler uses the same diode/balun
technology used in Hittite MMIC mixers. The doubler
is ideal for high volume applications where frequency
doubling of a lower frequency is more economical than
directly generating a higher frequency. The passive
Schottky diode doubler technology contributes no
measurable additive phase noise onto the multiplied
signal.
Electrical Specifi cations,
T
A
= +25° C, As a Function of Drive Level
Input = +10 dBm
Parameter
Frequency Range, Input
Frequency Range, Output
Conversion Loss
FO Isolation
(with respect to input level)
3FO Isolation
(with respect to input level)
4FO Isolation
(with respect to input level)
Min.
Typ.
1.75 - 2.75
3.5 - 5.5
19
22
35
43
38
Max.
Min.
Input = +15 dBm
Typ.
1.5 - 2.5
3.0 - 5.0
15
45
50
45
18
Max.
Min.
Input = +20 dBm
Typ.
1.25 - 3.0
2.5 - 6.0
16
19
Max.
Units
GHz
GHz
dB
dB
dB
dB
7 - 16
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC188MS8
/
188MS8E
v04.0709
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 1.25 - 3.0 GHz INPUT

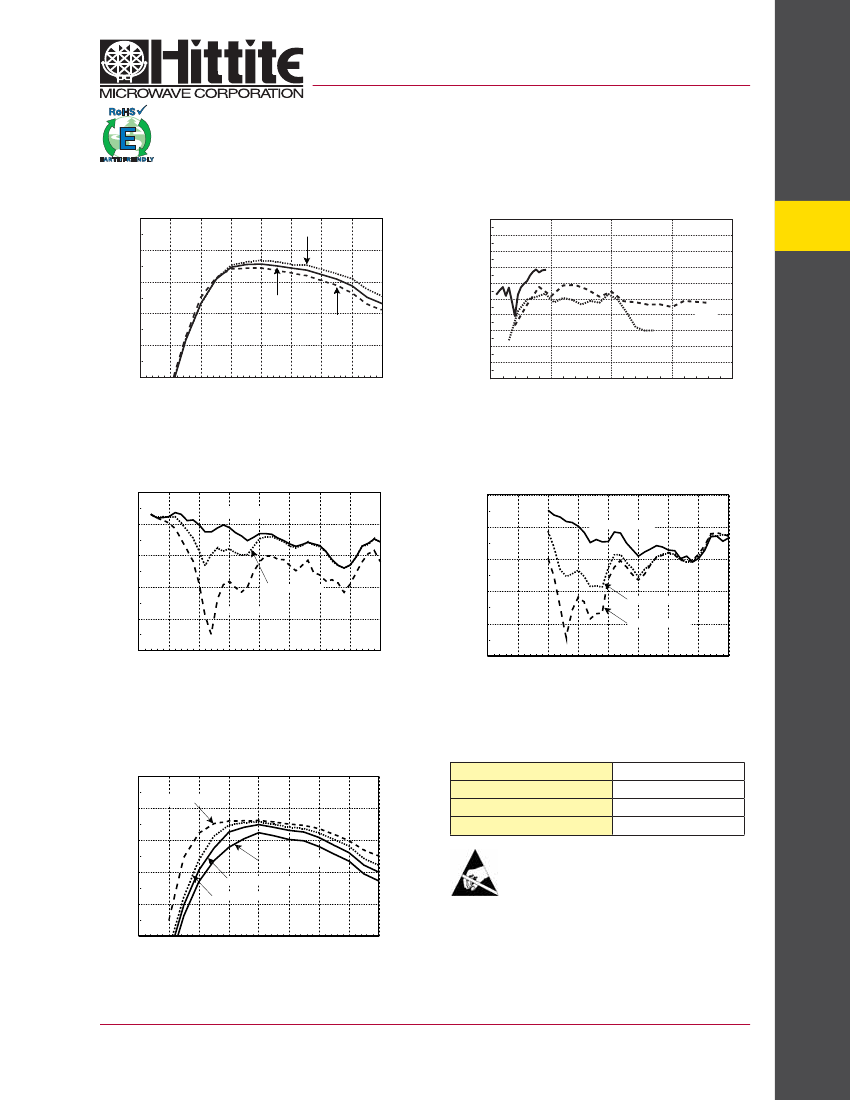

Conversion Loss @ +15 dBm Drive Level
0
-40C
CONVERSION LOSS (dB)
-10
Isolation @ +15 dBm Drive Level*
0
-10
-20
ISOLATION (dB)
-30
-40
-50
-60
-70
-80
-90
7
Fo
4Fo
3Fo
-20
+25C
-30
-40
-50
0
1
2
3
4
5
6
7
8
OUTPUT FREQUENCY (GHz)
+85C
-100
0
5
10
FREQUENCY (GHz)
15
20
*With respect to input level
Input Return Loss vs. Drive Level
0
INPUT RETURN LOSS (dB)
Input = +10 dBm
Output Return Loss vs. Drive Level
0
OUTPUT RETURN LOSS (dB)
-5
-10
-15
-20
-25
0
1
2
3
4
5
6
7
8
OUTPUT FREQUENCY (GHz)
Input = +10 dBm
-5
-10
-15
-20
-25
0
1
2
3
4
5
6
7
8
Input = +15 dBm
Input = +20 dBm
Input = +15 dBm
Input = +20 dBm
INPUT FREQUENCY (GHz)
Note: Output return loss measured at 2fo, with +10dBm,
+15 dBm, and +20 dBm drive levels on input of doubler.
Conversion Loss vs. Drive Level
0
CONVERSION LOSS (dB)
Input = +20 dBm
Absolute Maximum Ratings
Input Drive
Storage Temperature
+27 dBm
-65 to +150 °C
-40 to +85 °C
Class 1A
-10
-20
Input = +10 dBm
Operating Temperature
ESD Sensitivity (HBM)
-30
Input = +13 dBm
-40
Input = +15 dBm
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
-50
0
1
2
3
4
5
6
7
8
OUTPUT FREQUENCY (GHz)
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
7 - 17
FREQ. MULTIPLIERS - PASSIVE - SMT
HMC188MS8
/
188MS8E
v04.0709
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 1.25 - 3.0 GHz INPUT

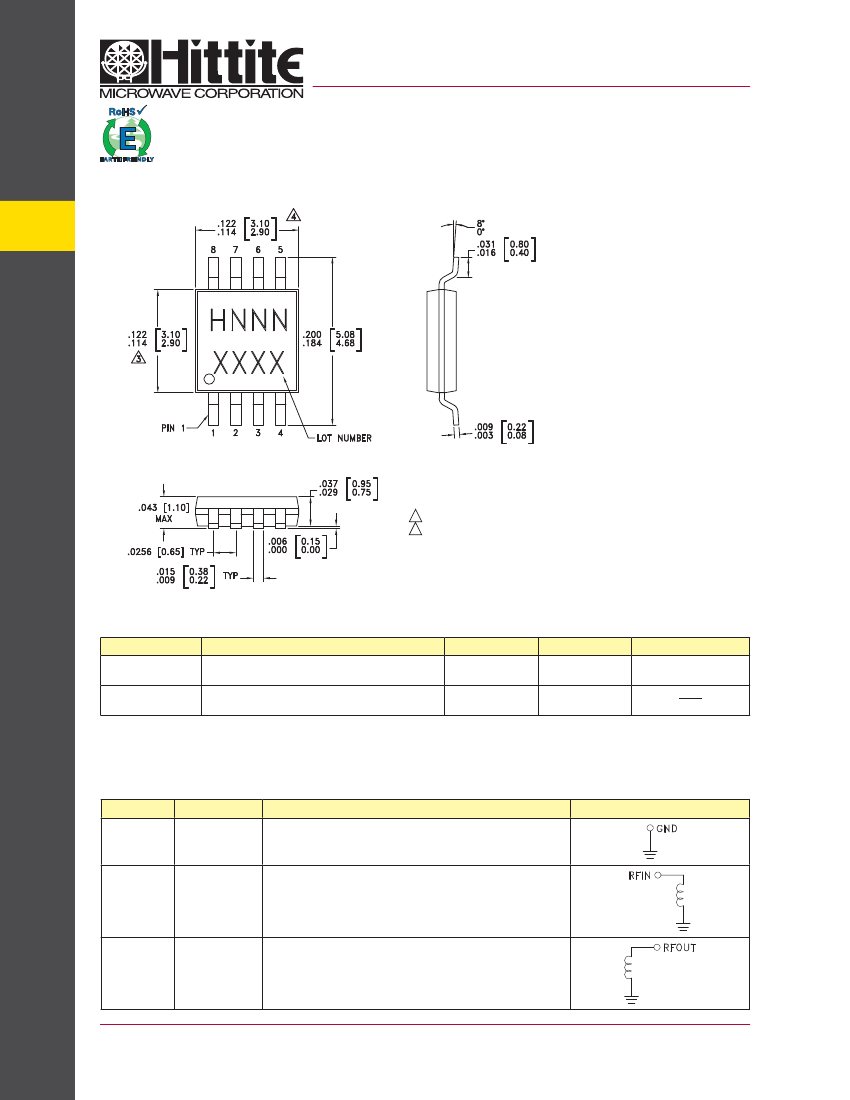

Outline Drawing
7
FREQ. MULTIPLIERS - PASSIVE - SMT
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS].
3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE.
4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE.
5. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND.
Package Information
Part Number
HMC188MS8
HMC188MS8E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
[3]
H188
XXXX
H188
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
Pin Description
Pin Number
1, 3 - 6, 8
Function
GND
Description
All ground leads must be soldered to PCB RF/DC ground.
Interface Schematic
2
RFIN
Pin is DC coupled and matched to 50 Ohms from 1.25 to 3.0 GHz
7
RFOUT
Pin is DC coupled and matched to 50 Ohms from 2.5 to 6.0 GHz
7 - 18
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC188MS8
/
188MS8E
v04.0709
GaAs MMIC SMT PASSIVE FREQUENCY
DOUBLER, 1.25 - 3.0 GHz INPUT

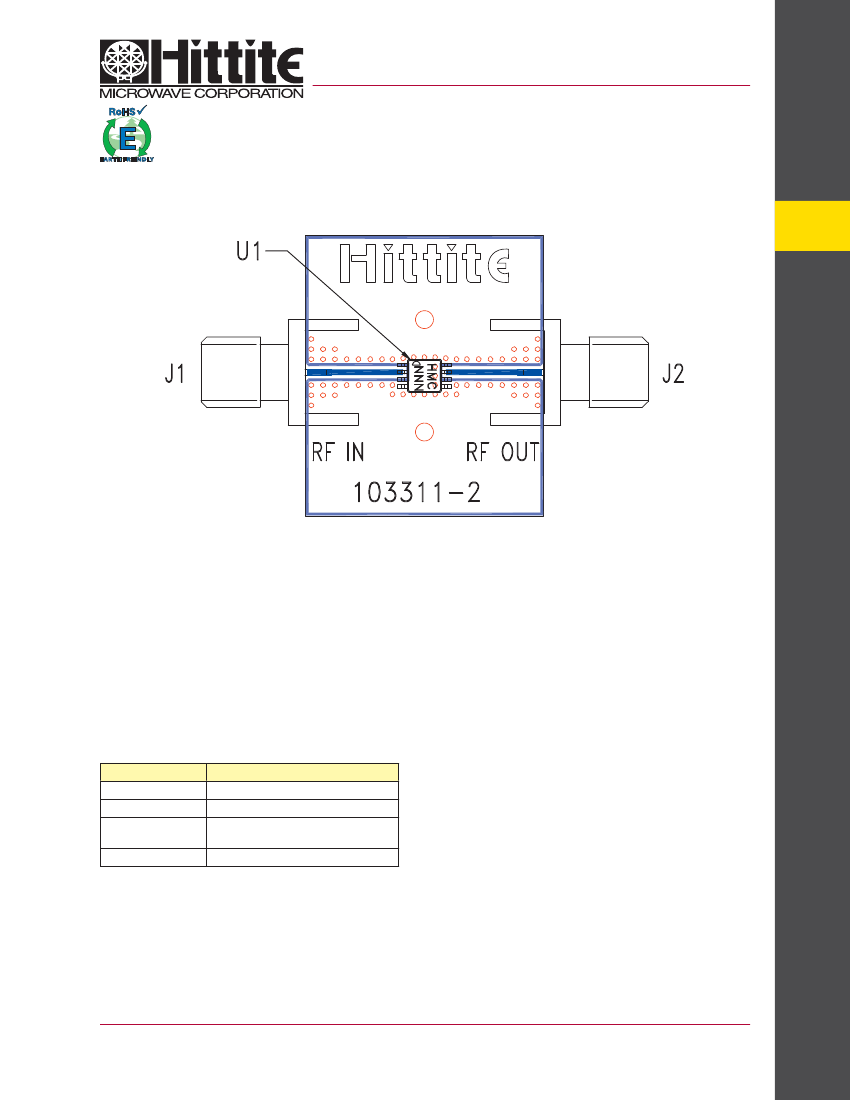

Evaluation PCB
7
FREQ. MULTIPLIERS - PASSIVE - SMT
List of Materials for Evaluation PCB 103313
[1]
Item
J1 - J3
C1
U1
PCB
[2]
Description
PCB Mount SMA Connector
1,000 pF Capacitor, 0603 Pkg.
HMC188MS8 / HMC188MS8E
x4 Active Multiplier
104610 Eval Board
[1] Reference this number when ordering complete evaluation PCB
[2] Circuit Board Material: Rogers 4350
The circuit board used in the final application should
be generated with proper RF circuit design tech-
niques. Signal lines should have 50 ohm imped-
ance while the package ground leads and exposed
paddle should be connected directly to the ground
plane similar to that shown. The evaluation circuit
board shown is available from Hittite upon request.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
7 - 19
