MSB32W: DescriptionRED LED LAMPS; CategoryLED optoelectronic/LED photoelectric; File Size61KB，1 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

MSB32W Overview

RED LED LAMPS

MSB32W Parametric

Parameter Name	Attribute value
Maker	Micro Electronics
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknow
color	RED
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	CLEAR DIFFUSED
Nominal luminous intensity	2.5 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.32 mm
method of packing	BULK
peak wavelength	700 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.5 mm
perspective	50 deg

Preview

Download Datasheet

View All

MSB32C

MSB32D

MSB32T

MSB32W

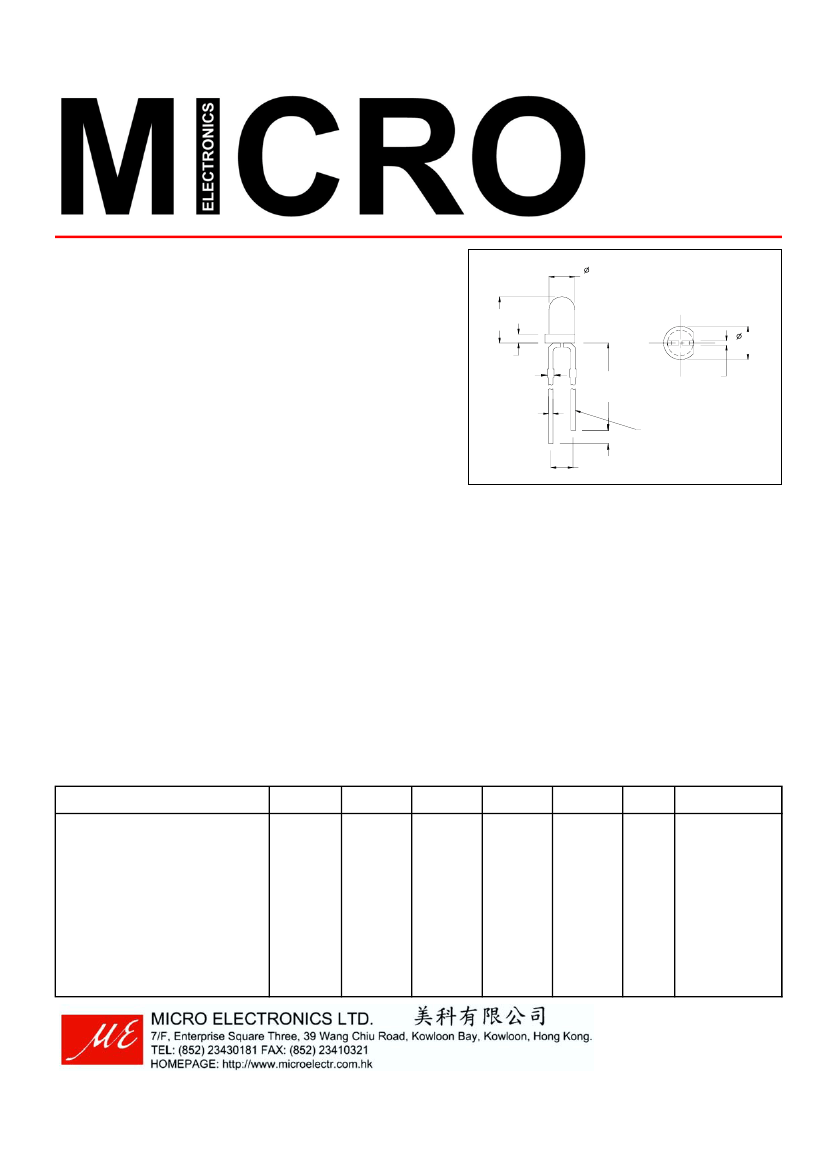

RED LED LAMPS

DESCRIPTION

MSB32 Series are red LED lamp with 3mm

diameter epoxy package.

MSB32C is red chip with red transparent lens.

MSB32D is red chip with red diffused lens.

MSB32T is red chip with clear transparent lens.

MSB32W is red chip with clear diffused lens.

5.32

(0.21)

1.02

(0.04)

0.75(0.03)

max.

0.5

(0.02)

2.94

(0.116)

3.85

(0.15)

27.2

(1.07)

min.

Cathode

0.5

(0.02)

1.5(0.06)

2.5(0.1)

All dimension in mm (inch)

No scale

ABSOLUTE MAXIMUM RATINGS

Power Dissipation @ Ta=25

o

C

Forward Current, DC (IF)

Reverse Voltage

Operating Temperature Range

Storage Temperature Range

Lead Soldering Temperature (1/16" from body)

Tol. : +/- 0.3mm

45mW

25mA

5V

-20 to +80

o

C

-30 to +100

o

C

260

o

C for 5 sec.

ELECTRO-OPTICAL CHARACTERISTICS (Ta=25

o

C)

PARAMETER

Forward Voltage

Reverse Breakdown Voltage

Luminous Intensity

SYMBOL

MSB32C

MSB32D

MSB32T

MSB32W

UNIT

CONDITIONS

MAX

MIN

TYP

VF

BVR

IV

λρ

Δλ

2θ 1/2

3.0

5

7.5

700

100

30

3.0

5

1.8

2.5

700

100

50

3.0

5

7.5

700

100

30

3.0

5

1.8

2.5

700

100

50

V

mcd

nm

degree

IF=20mA

IR=100μA

IF=10mA

IF=20mA

IF=10mA

Peak Wavelength

Spectral Line Half Width

Viewing Angle

TYP

Rev C

MSB32W Related Products

	MSB32W	MSB32T
Description	RED LED LAMPS	RED LED LAMPS
Maker	Micro Electronics	Micro Electronics
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Reach Compliance Code	unknow	unknow
color	RED	RED
Configuration	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A
Lens type	CLEAR DIFFUSED	TRANSPARENT CLEAR
Nominal luminous intensity	2.5 mcd	7.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.32 mm	5.32 mm
method of packing	BULK	BULK
peak wavelength	700 nm	700 nm
shape	ROUND	ROUND
size	3 mm	3 mm
surface mount	NO	NO
T code	T-1	T-1
Terminal pitch	2.5 mm	2.5 mm
perspective	50 deg	30 deg
