ZH-R-13

Description
Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size99KB,1 Pages
ManufacturerMorethanall Co., Ltd.
Websitehttp://www.morethanall.com
Download Datasheet Parametric Compare View All

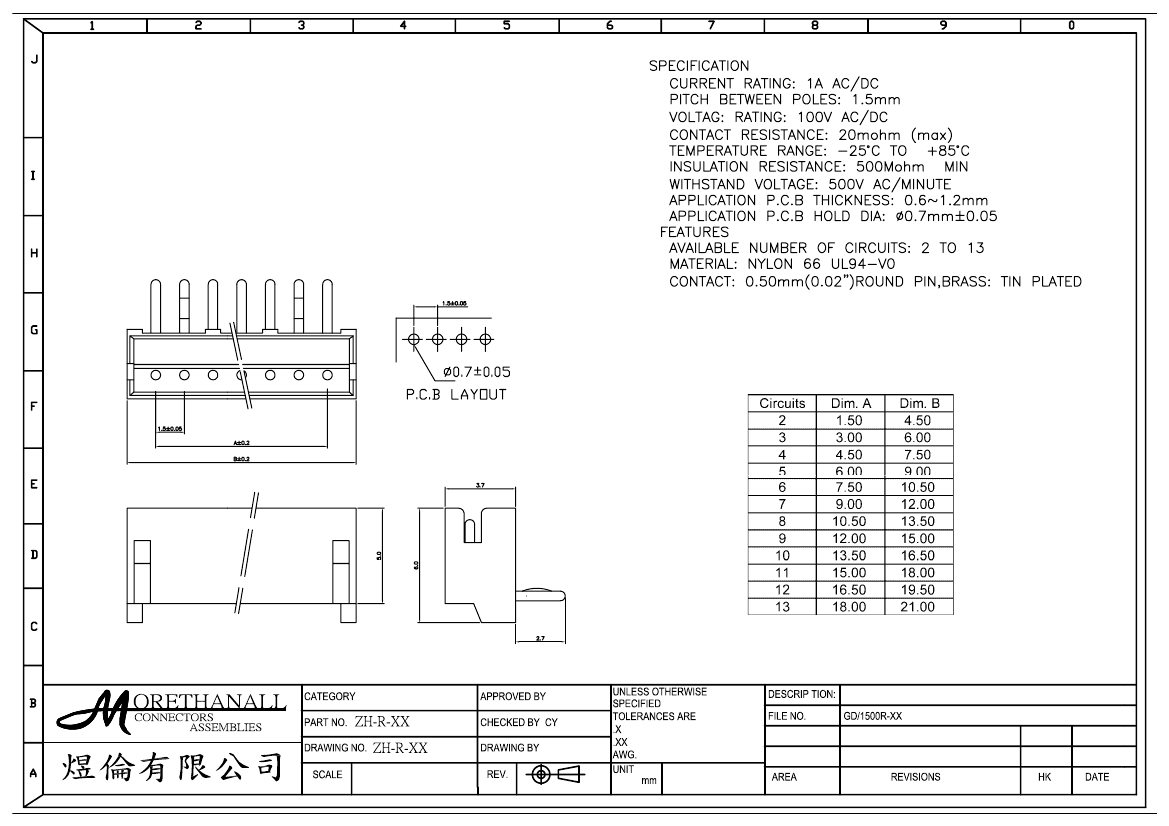

ZH-R-13 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Solder Terminal, Locking, Receptacle

ZH-R-13 Parametric

Parameter NameAttribute value
MakerMorethanall Co., Ltd.
Reach Compliance Codeunknown
body width0.146 inch
subject depth0.236 inch
body length0.838 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance500000000 Ω
insulator materialNYLON
Manufacturer's serial numberZH-R
Plug contact pitch0.059 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.106 inch
Terminal pitch1.4986 mm
Termination typeSOLDER
Total number of contacts13

ZH-R-13 Related Products

ZH-R-13 ZH-R-09
Description Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.059 inch Pitch, Solder Terminal, Locking, Receptacle
Maker Morethanall Co., Ltd. Morethanall Co., Ltd.
Reach Compliance Code unknown unknown
body width 0.146 inch 0.146 inch
subject depth 0.236 inch 0.236 inch
body length 0.838 inch 0.591 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN SN
Contact completed and terminated TIN TIN
Contact point gender MALE MALE
Contact material BRASS BRASS
contact mode RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ
Contact style RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 500VAC V 500VAC V
Insulation resistance 500000000 Ω 500000000 Ω
insulator material NYLON NYLON
Manufacturer's serial number ZH-R ZH-R
Plug contact pitch 0.059 inch 0.059 inch
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 1 1
Number of rows loaded 1 1
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -25 °C -25 °C
PCB contact pattern RECTANGULAR RECTANGULAR
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 1 A 1 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.106 inch 0.106 inch
Terminal pitch 1.4986 mm 1.4986 mm
Termination type SOLDER SOLDER
Total number of contacts 13 9
