821-00246: DescriptionTelecom Transformer; CategoryPower management transformer; File Size50KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric View All

821-00246 Overview

Telecom Transformer

821-00246 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HEIGHT DIM. INCLUDE TERMINAL ALSO; TURNS RATIO: 1:1
high	12.32 mm
length	13.46 mm
Manufacturer's serial number	821-00246
Installation features	SURFACE MOUNT
method of packing	TAPE & REEL
physical size	13.46mm X 13.11mm X 12.32mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.11 mm

Preview

Download Datasheet

View All

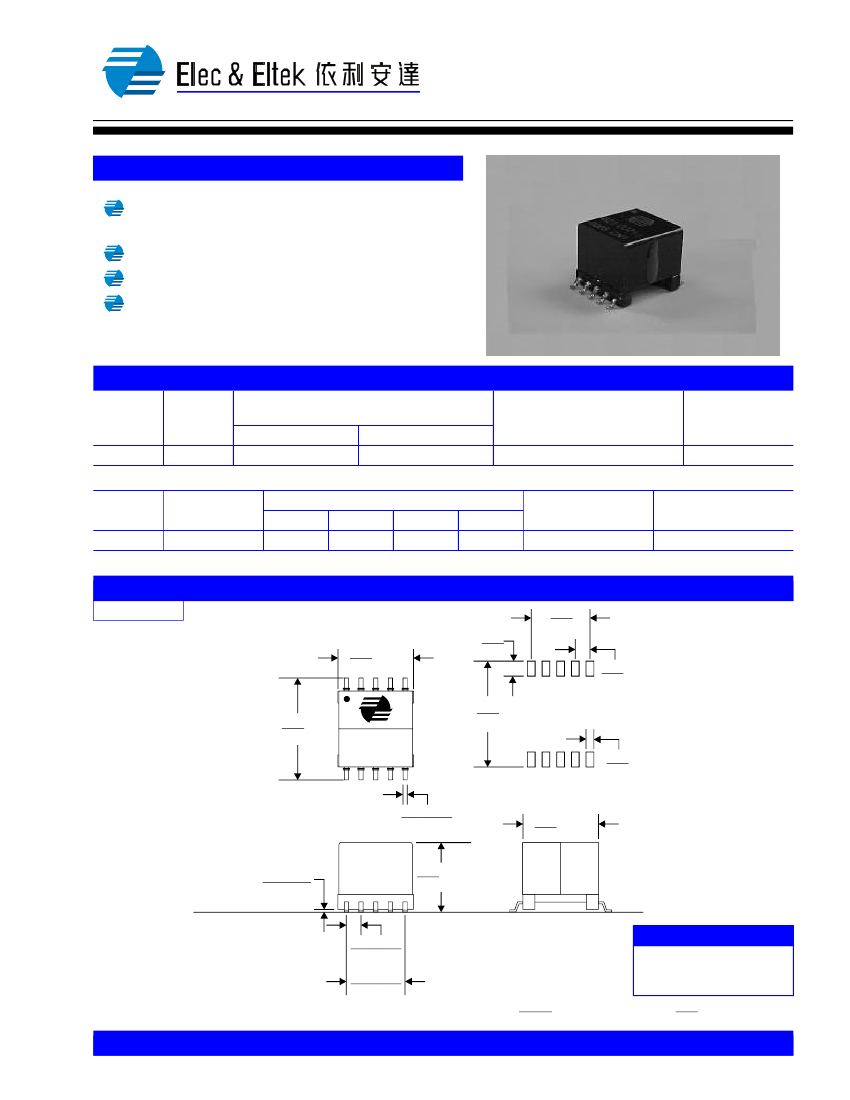

ADSL LINE TRANSFORMERS

E & E Magnetic Products Limited

For Globespan G7000 ADSL Chipset

Features

Designed to match with Globespan G7000 ADSL

Chipsets

Available in SMD packages

Excellent THD performance

Designed to meet IEC950, UL1950 and EN60950

supplementary insulation requirements for working

voltages up to 250Vrms

Electrical Specification @ 25°C

Part

Number

821-00246

Turns Ratio

(±2%)

1:1

OCL@10KHz, 0.1Vrms

(uH±10%)

(1-5) with 2-4 shorted

430

(10-6) with 9-7 shorted

430

Leakage Inductance

@100KHz, 0.1V (uH Max)

(1-5) with 2-4, 7-9, 10-6 shorted

10.0

Longitudinal

Balance (dB Min)

(25KHz-1.1MHz)

40

Part

Number

821-00246

THD@100KHz

(dB Typ)

-80

DCR(Ohm Max)

(1-4)

0.45

(2-5)

0.45

(10-7)

0.35

(9-6)

0.35

Isolation

Voltage(Vrms)

1875

Insertion Loss

@772KHz(dB Max)

0.5

Mechanical Dimensions

821-00246

.530

13.46 MAX

.100

2.54

.098

2.50

.705

17.91

.394

10.00

.695

17.65 MAX

821-00246

(DATE)

.051

1.30

RECOMMENDED

PAD LAYOUT

.028±.003

0.71±0.08

.516 MAX

13.11

.005-.020

0.13-0.51

.485

12.32 MAX

REFERENCE OR

GAUGE PLANE

.098±.010

2.50±0.25

.394±.010

10.00 ±0.25

Packaging Information

Weight(in gm.):

Tape & Reel:

6.2 typ.

150 / reel

Note: Unless otherwise specified, all dimensions are specified in

inches

with tolerance of ±

.010

.

mm

0.25

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong • Tel:(852)2954 3333 • Fax:(852)2954 3304

Preliminary

1

BB004(05) Revised in 02/12
