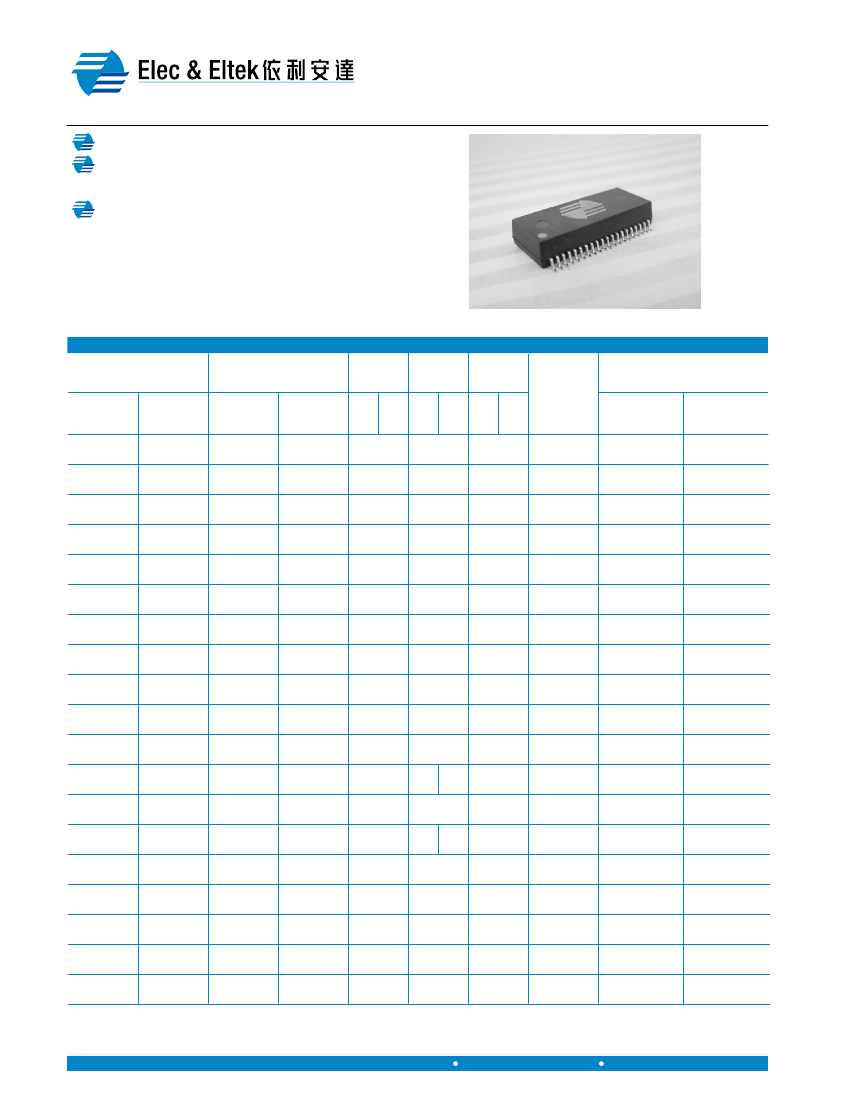

T1/E1/CEPT/ISDN-Pri TRANSFORMER
E & E Magnetic Products Limited
Quad Port with 8 transformers, 1500Vrms
Standard and Extended Temperature Range
E
LECTRICAL
S
PECIFICATION @25°C
Part Number
Std. Temp
(0°C to
+70°C)
821-M0416
821-M0417
----
----
----
----
----
----
Ext. Temp
(-40°C to
+85°C)
----
----
821-M1624
821-M1643
821-M1014
821-M1015
821-M1016
821-M1644
Turns Ratio
(Pri: Sec ±2%)
Tx
1:2.1CT
1:2.45CT
1:2
1:2CT
1:1.36
1:1CT
1:1.26CT
1:1
Rx
1:2.1CT
1:2.45CT
1:2
1CT:1
1:1
1:1CT
1:1.26CT
1:1
OCL
(mH Min)
Tx
1.2
1.2
Rx
0.6
0.6
LL
(uH Max)
Tx
0.6
0.6
0.7
0.6
0.6
0.6
0.6
0.7
Rx
Cww
(pF Max)
Schematic
Tx
35
35
35
35
40
35
35
35
Rx
2
2
6
3
5
3
3
5
Tx
1-2, 6-7,
11-12, 16-17
1-2, 6-7,
11-12, 16-17
1-2, 6-7,
11-12, 16-17
4-5, 9-10
14-15, 19-20
1-3, 6-8,
11-13, 16-18
4-5, 9-10
14-15, 19-20
4-5, 9-10
14-15, 19-20
1-3, 6-8
11-13, 16-18
Rx
21-22, 26-27
31-32, 36-37
21-22, 26-27
31-32, 36-37
3-4, 8-9
13-14, 18-19
1-3, 6-8
11-13, 16-18
4-5, 9-10
14-15, 19-20
24-25, 29-30
34-35, 39-40
24-25, 29-30
34-35, 39-40
4-5, 9-10
14-15, 19-20
Primary Pins
1.2
1.2
1.2
1.2
1.2
1.2
M
ECHANICAL
D
IMENSIONS
Package: SO040A
1.100
MAX
27.94
.090
2.29
.950
24.13
.050
1.27
.625±.010
15.88±0.25
821-Mxxxx
1
(DATE)
.660
16.76
(COUNTRY)
.030
0.76
.018±.003
0.46±0.08
Recommended
Pad Layout
.480 MAX
12.19
.005-.015
0.13-0.38
REFERENCE OR
GAUGE PLANE
.050±.005
1.27±0.13
.950±.010
24.13±0.25
.225 MAX
5.72
0-8°
.045±.010
1.14±0.25
Notes: All dimensions are specified in inches with higher precedence in inches.
mm
Unless otherwise specified, all tolerances are
±
.010
.
0.25
Weight (in gram)
Tape & Reel
:
:
4.0 typ.
350 / reel
Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong
2
Tel: (852) 2954 3333
Fax: (852) 2954 3304
TE012(02)
Revised in 04/07
T1/E1/CEPT/ISDN-Pri TRANSFORMER
E & E Magnetic Products Limited
Quad Port with 8 transformers, 1500Vrms
Standard and Extended Temperature Range
S
CHEMATICS

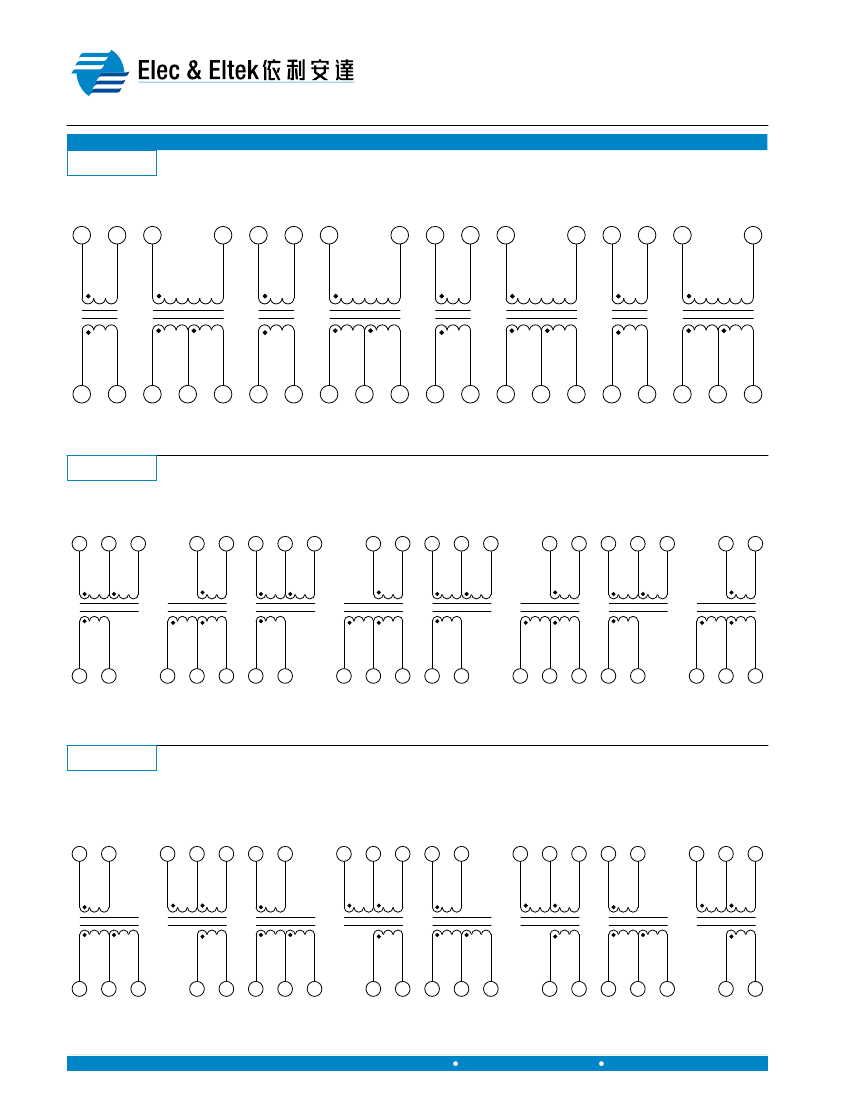

Schematic 1
40
39
38
36
35
34
33
31
30
29
28
26
25
24
23
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

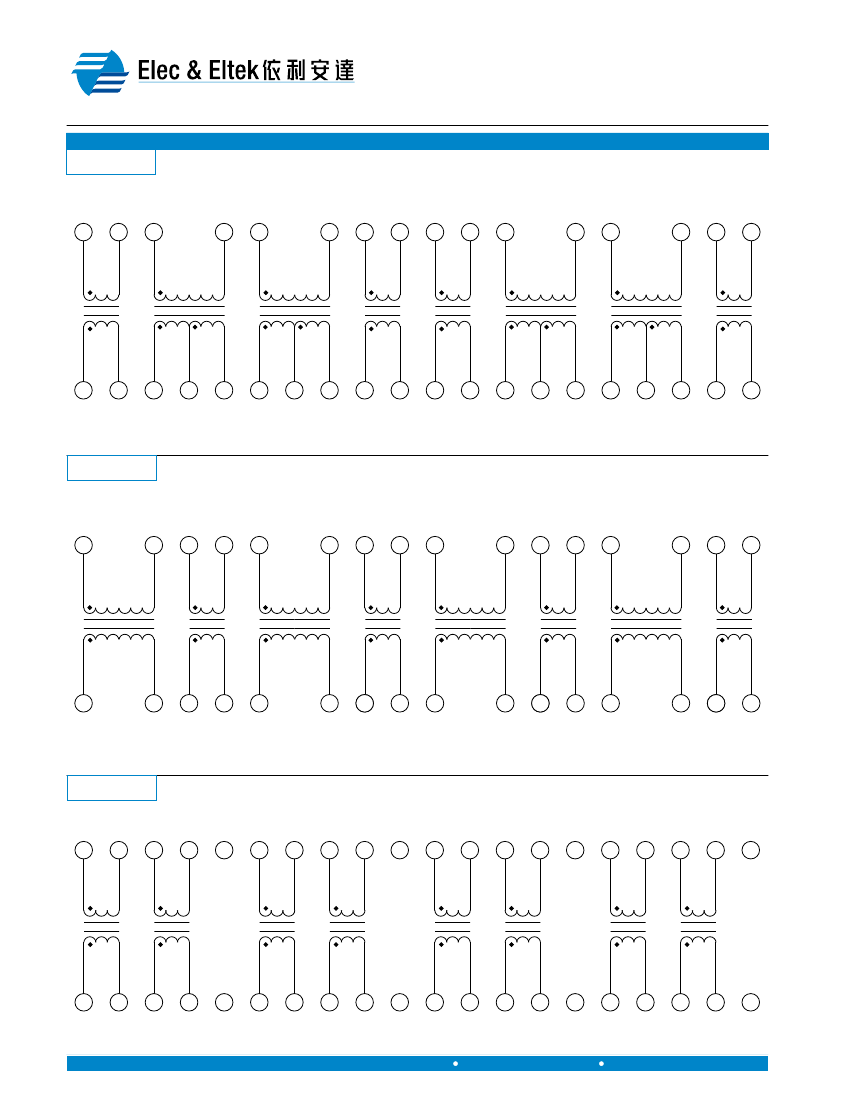

Schematic 2
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Schematic 3
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong
3
Tel: (852) 2954 3333
Fax: (852) 2954 3304
TE012(02)
Revised in 04/07
T1/E1/CEPT/ISDN-Pri TRANSFORMER
E & E Magnetic Products Limited
Quad Port with 8 transformers, 1500Vrms
Standard and Extended Temperature Range
S
CHEMATICS
Schematic 4
40
39
38
36
35
33
32
31
30
29
28
26
25
23
22
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Schematic 5
40
38
37
36
35
33
32
31
30
28
27
26
25
23
22
21
1
3
4
5
6
8
9
10
11
13
14
15
16
18
19
20
Schematic 6
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong
4
Tel: (852) 2954 3333
Fax: (852) 2954 3304
TE012(02)
Revised in 04/07
T1/E1/CEPT/ISDN-Pri TRANSFORMER
E & E Magnetic Products Limited
Quad Port with 8 transformers, 1500Vrms
Standard and Extended Temperature Range
S
CHEMATICS
Schematic 7
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
