824-M0052R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 824-M0052R

824-M0052R: DescriptionDatacom Transformer, 10/100 BASE-T Application(s), 1CT:1; 1CT:1CT, SM012A, ROHS COMPLIANT; CategoryPower management transformer; File Size99KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

824-M0052R Overview

Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1; 1CT:1CT, SM012A, ROHS COMPLIANT

824-M0052R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
package instruction	SM012A, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDE TERMINAL ALSO
application	10/100 BASE-T
high	5.13 mm
Insulation voltage	1500 V
length	14.81 mm
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	L14.81XB11.94XH5.13 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1CT
width	11.94 mm

Preview

Download Datasheet

View All

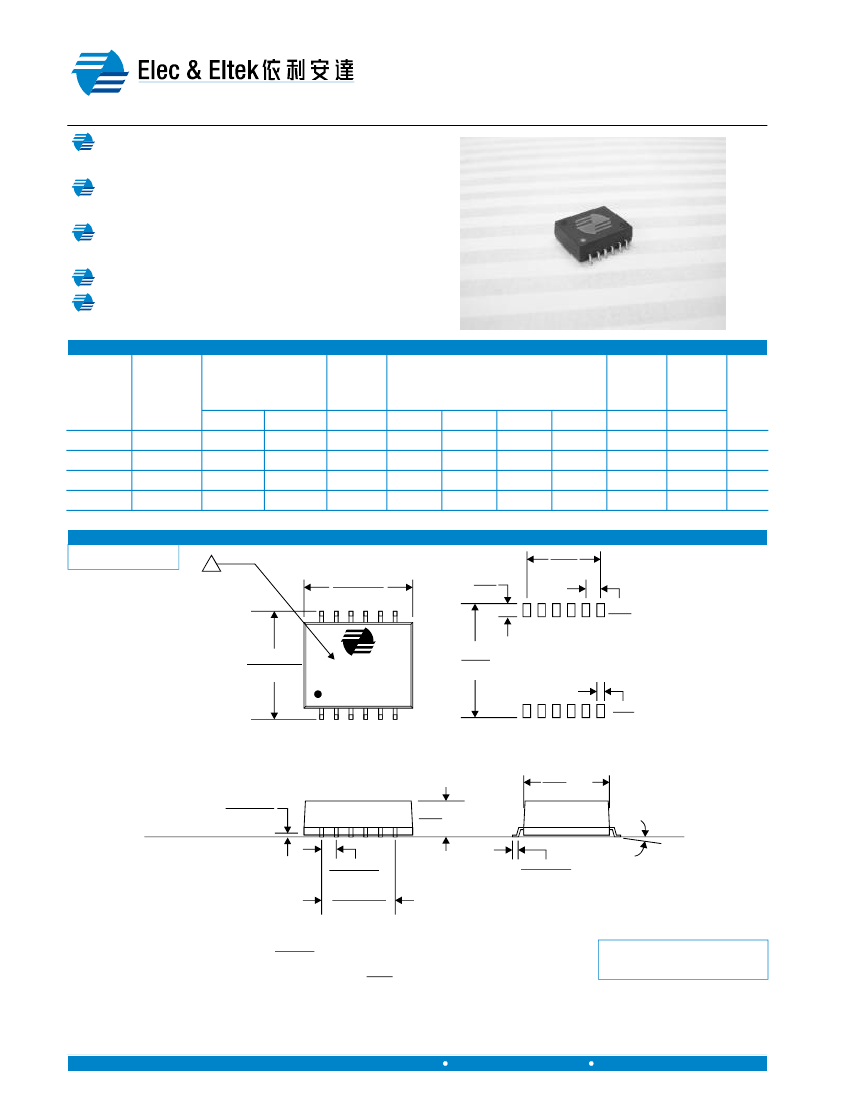

E & E Magnetic Products Limited

10/100 Base-T Single Port

Magnetic Module

For Transceiver Requiring Various Turns Ratios

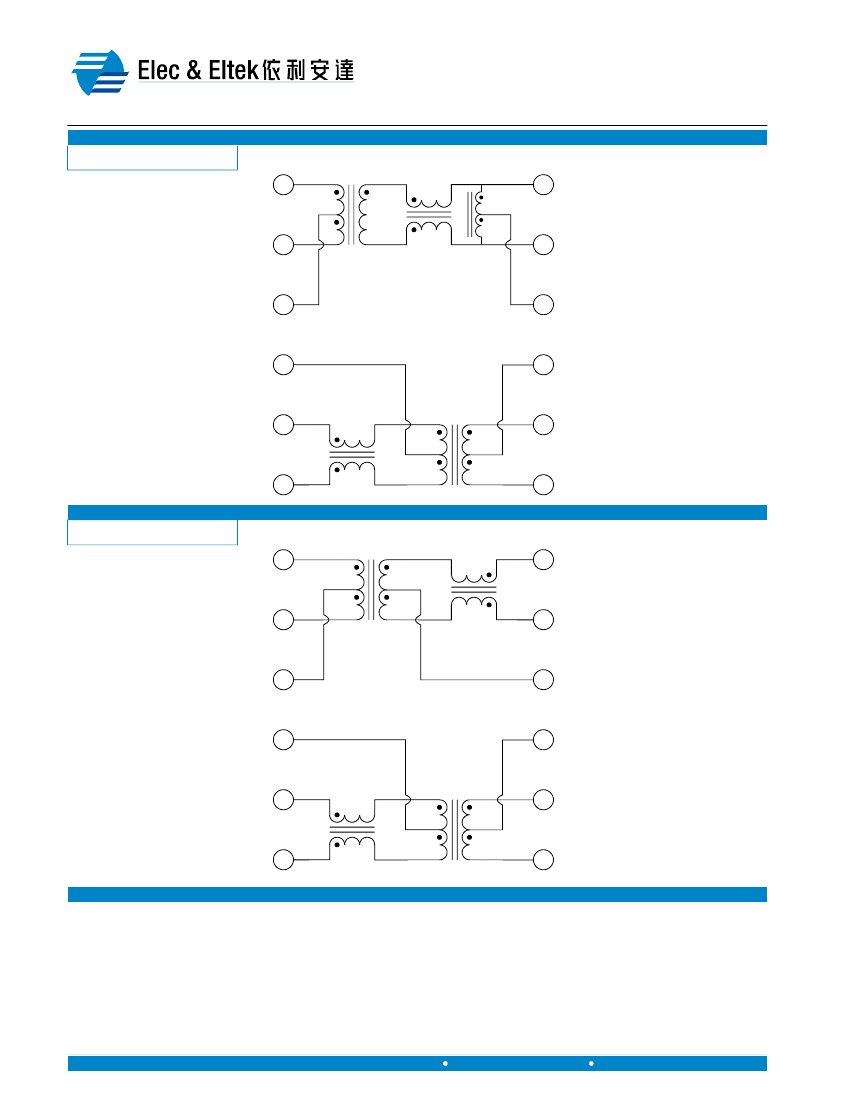

CHEMATICS

Compliant with IEEE802.3 standard including

350uH

OCL with 8mA DC bias

Compact and symmetrical surface mount package

design

Designed to withstand IR-Reflow with peak

temperature per IPC/JEDEC J-STD-020C

Operating temperature 0°C to +70°C

RoHS compliant versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

Turns Ratio

824-M0052 824-M0052R

824-M0062 824-M0062R

824-M0064 824-M0064R

1CT:1

1CT:1CT

1CT:1.41

1CT:1CT

Insertion

Loss

(dB Typ)

.1-100MHz 1-30MHz

0.5

16.0

Return Loss

(dB Min)

40MHz

15.5

50MHz

13.5

CMRR

(dB Min)

Crosstalk

(dB Min)

Hipot

(Vrms)

60-80MHz .1-100MHz .1-100MHz

12.0

33.0

35.0

1500

824-M0065 824-M0065R 1CT:1.41CT 1CT:1CT

CHEMATICS

ECHANICAL

IMENSIONS

Package: SM012A

.583±.010

14.81±0.25

.070

1.78

.079

2.01

.395

10.03

.580±.010

14.73±0.25

4M00xx

(DATE)

.610

15.49

.040

1.02

RECOMMENDED

PAD LAYOUT

.470 MAX

11.94

.004-.020

0.10-0.51

.202

5.13 MAX

REFERENCE OR

GAUGE PLANE

.079±.005

2.01±0.13

.395±.010

10.03±0.25

0-8°

.030±.010

0.76±0.25

Notes:

Weight (in gram)

1. All dimensions are specified in inches with higher precedence in inches.

Tape & Reel

2. Unless otherwise specified, all tolerances are ± .010 .

0.25

3. For available RoHS part number, the part will be marked with “4M00xxR”, instead of “4M00xx”.

2.0 typ.

450 / reel

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH022(06)

Revised in 06/07

824-M0052R Related Products

	824-M0052R	824-M0065R	824-M0065	824-M0052	824-M0062	824-M0062R	824-M0064	824-M0064R
Description	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1; 1CT:1CT, SM012A, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1.41CT; 1CT:1CT, SM012A, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1.41CT; 1CT:1CT, SM012A	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1; 1CT:1CT, SM012A	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1CT; 1CT:1CT, SM012A	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1CT; 1CT:1CT, SM012A, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1.41; 1CT:1CT, SM012A	Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1.41; 1CT:1CT, SM012A, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Contains lead	Contains lead	Contains lead	Lead free	Contains lead	Lead free
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	incompatible	conform to	incompatible	conform to
package instruction	SM012A, ROHS COMPLIANT	SM012A, ROHS COMPLIANT	SM012A	SM012A	SM012A	SM012A, ROHS COMPLIANT	SM012A	SM012A, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HEIGHT DIM INCLUDE TERMINAL ALSO	HEIGHT DIM INCLUDE TERMINAL ALSO	HEIGHT DIM INCLUDE TERMINAL ALSO	HEIGHT DIM INCLUDE TERMINAL ALSO	HEIGHT DIM INCLUDE TERMINAL ALSO	HEIGHT DIM INCLUDE TERMINAL ALSO	HEIGHT DIM INCLUDE TERMINAL ALSO	HEIGHT DIM INCLUDE TERMINAL ALSO
application	10/100 BASE-T	10/100 BASE-T	10/100 BASE-T	10/100 BASE-T	10/100 BASE-T	10/100 BASE-T	10/100 BASE-T	10/100 BASE-T
high	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm	5.13 mm
Insulation voltage	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V
length	14.81 mm	14.81 mm	14.81 mm	14.81 mm	14.81 mm	14.81 mm	14.81 mm	14.81 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
method of packing	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
physical size	L14.81XB11.94XH5.13 (mm)	L14.81XB11.94XH5.13 (mm)	14.81mm X 11.94mm X 5.13mm	14.81mm X 11.94mm X 5.13mm	14.81mm X 11.94mm X 5.13mm	L14.81XB11.94XH5.13 (mm)	14.81mm X 11.94mm X 5.13mm	L14.81XB11.94XH5.13 (mm)
Primary inductance	350 µH	350 µH	350 µH	350 µH	350 µH	350 µH	350 µH	350 µH
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1CT	1CT:1.41CT; 1CT:1CT	1CT:1.41CT; 1CT:1CT	1CT:1; 1CT:1CT	1CT:1CT; 1CT:1CT	1CT:1CT; 1CT:1CT	1CT:1.41; 1CT:1CT	1CT:1.41; 1CT:1CT
width	11.94 mm	11.94 mm	11.94 mm	11.94 mm	11.94 mm	11.94 mm	11.94 mm	11.94 mm
Maker	Elec & Eltek	-	-	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek
