832-00098: DescriptionData Line Filter, 2 Function(s), 250V, 0.8A, LEAD FREE PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size63KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric View All

832-00098 Overview

Data Line Filter, 2 Function(s), 250V, 0.8A, LEAD FREE PACKAGE-4

832-00098 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.76 Ω
filter type	DATA LINE FILTER
high	21.59 mm
inductance	10800 µH
length	19.05 mm
Manufacturer's serial number	832-00098
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
physical size	L19.05XB16.51XH21.59 (mm)/L0.75XB0.65XH0.85 (inch)
Rated current	0.8 A
Rated voltage	250 V
width	16.51 mm

Preview

Download Datasheet

View All

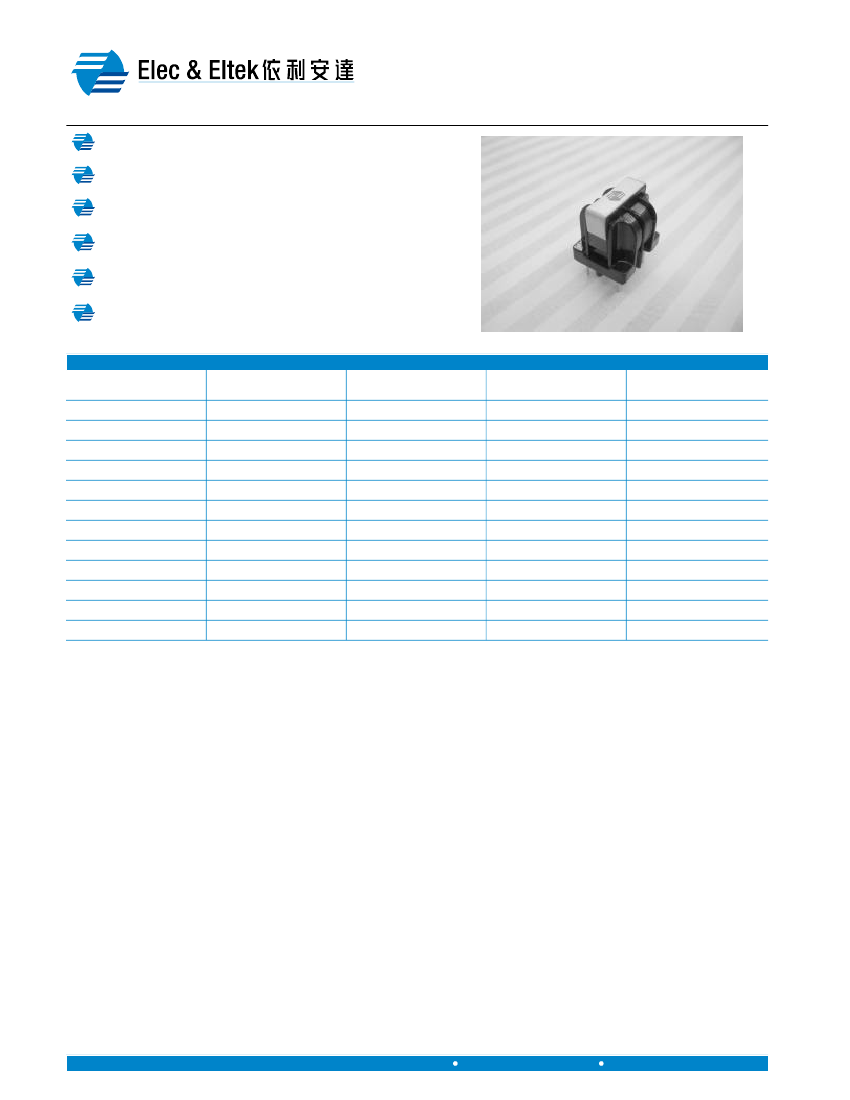

COMMON MODE CHOKE

E & E Magnetic Products Limited

THRU THOLE, 4 PIN

Rated voltage: 250V, DC to 400Hz

2000VAC isolation between winding

750VAC isolation between winding to core

S

CHEMATICS

Operating temperature range: -55°C to +105°C

Temperature rise: 50°C max

Lead(Pb)-free versions are available

E

LECTRICAL

S

PECIFICATION @

25°C

Part

Number

832-00093

832-00094

832-00095

832-00096

832-00097

832-00098

832-00099

832-00100

832-00101

832-00102

832-00103

832-00104

Notes:

1. Inductance is measured at 1kHz.

OCL

¹

(mH) Min.

0.9

1.8

2.5

4.0

6.2

10.8

16.3

26.0

38.3

57.6

90.0

147.0

Rated Current, Irms

(A) Max.

2.60

2.00

1.60

1.30

1.00

0.80

0.65

0.50

0.42

0.34

0.27

0.21

DCR

(

Ω)

Max.

0.08

0.13

0.19

0.30

0.46

0.76

1.17

1.80

2.73

4.44

6.72

10.80

Marking

(xxx)

093

094

095

096

097

098

099

100

101

102

103

104

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong

1

Tel: (852) 2954 3333

Fax: (852) 2954 3304

PC002(02)

Revised in 04/06
