BL
Galaxy Electrical
Silicon Epitaxial Planar Transistor
FEATURES
High DC current gain.h
FE
: 200TYP
(V
CE
=-1.0V,I
C
=-100mA)
Complimentary to the 2SD596.
Production specification
2SB624
Pb
Lead-free
APPLICATIONS
Audio frequency amplifier.
Switching appilication.
SOT-23
ORDERING INFORMATION
Type No.
2SB624
Marking
BV1/BV2/BV3/BV4/BV5
Package Code
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j,
T
stg
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Collector Dissipation
Junction and Storage Temperature
Value
-30
-25
-5
-700
200
-55~150
Units
V
V
V
mA
mW
℃
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Document number: BL/SSSTC014
Rev.A
www.galaxycn.com
1
BL
Galaxy Electrical
Silicon Epitaxial Planar Transistor
Parameter
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
V
CE(sat)
V
BE(on)
f
T
C
ob
Test conditions
I
C
=-100μA,I
E
=0
I
C
=-1mA,I
B
=0
I
E
=-100μA,I
C
=0
V
CB
=-30V,I
E
=0
V
EB
=-5V,I
C
=0
V
CE
=-1V,I
C
=-100mA
V
CE
=-1V,I
C
=-700mA
I
C
=-700mA, I
B
=-70mA
V
CE
=-6V,I
C
=10mA
V
CE
=-6V, I
C
=-10mA
V
CB
=-6V,I
E
=0,f=1MHz
Production specification
2SB624
MIN
-30
-25
-5
-0.1
-0.1
110
50
-0.25
-0.6
-0.7
160
17
V
V
MHz
pF
200
400
TYP
MAX
UNIT
V
V
V
μA
μA
CLASSIFICATION
Range
Marking
OF
h
FE(1)
135-220
BV2
170-270
BV3
200-320
BV4
250-400
BV5
110-180
BV1
Document number: BL/SSSTC014
Rev.A
www.galaxycn.com
2
BL
Galaxy Electrical
Silicon Epitaxial Planar Transistor
Production specification
2SB624

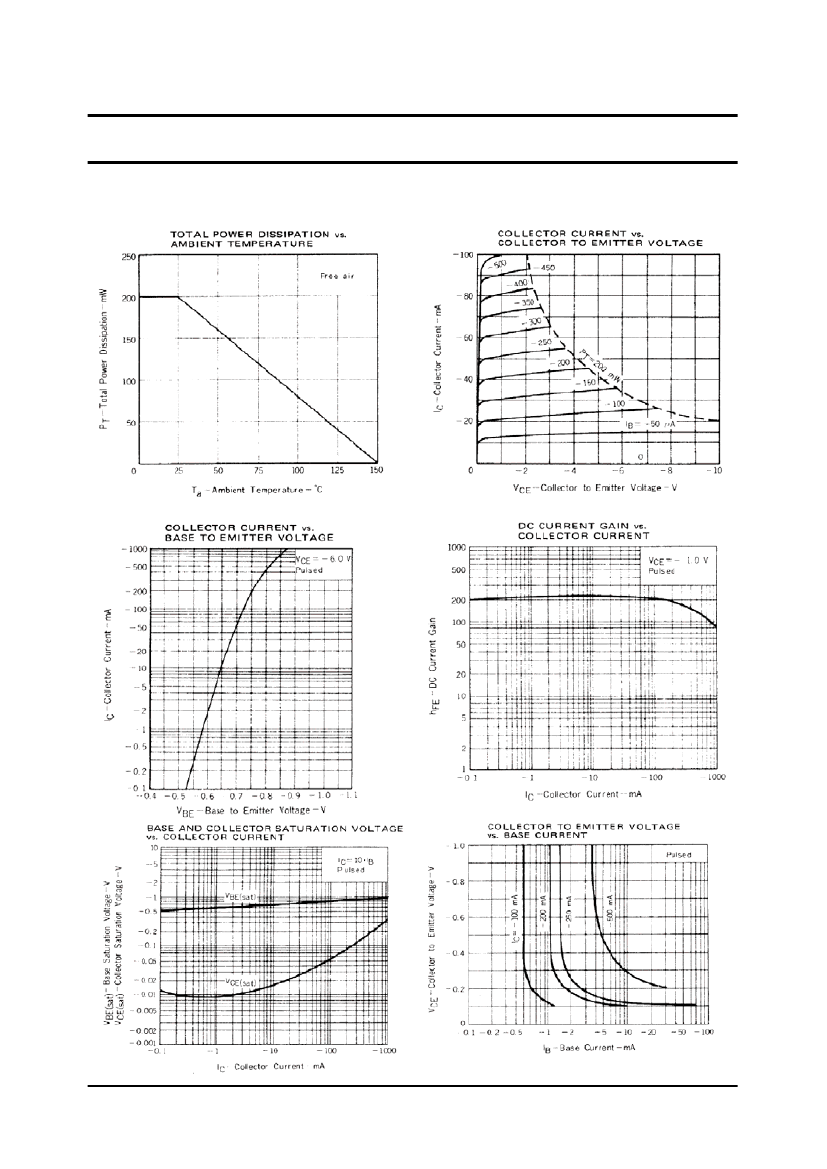

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Document number: BL/SSSTC014
Rev.A
www.galaxycn.com
3
BL
Galaxy Electrical
Silicon Epitaxial Planar Transistor
PACKAGE OUTLINE
Plastic surface mounted package
Production specification
2SB624
SOT-23
SOT-23
Dim
A
B
C
D
E
G
H
J
K
Min
2.85
1.25
0.37
0.35
1.85
0.02
2.35
Max
2.95
1.35
0.43
0.48
1.95
0.1
2.45
1.0Typical
0.1Typical
All Dimensions in mm
SOLDERING FOOTPRINT
Unit : mm
PACKAGE
Device
2SB624
INFORMATION
Package
SOT-23
Shipping
3000/Tape&Reel
Document number: BL/SSSTC014
Rev.A
www.galaxycn.com
4
