SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 296, REV. B
SHD118534
SHD118534A
SHD118534B
HERMETIC POWER SCHOTTKY RECTIFIER
Ultra Low Reverse Leakage
DESCRIPTION:
A 100 VOLT, 60 AMP, DUAL POWER SCHOTTKY RECTIFIERS IN A HERMETIC SHD-5 / 5A /
5B PACKAGE.
ALL RATINGS ARE @ T
J
= 25
°C
UNLESS OTHERWISE SPECIFIED.
MAXIMUM RATINGS
RATING
PEAK INVERSE VOLTAGE
SYMBOL
PIV
I
O
I
FSM
MAX.
100
120
860
UNITS
Volts
Amps
Amps
MAXIMUM DC OUTPUT CURRENT (With Cathode Maintained @ T
C
=100
O
C)
MAXIMUM NONREPETITIVE FORWARD SURGE CURRENT
(t=8.3ms, Sine)
MAXIMUM JUNCTION CAPACITANCE
(V
r
=5V)
C
T
R
θJC
Top/Tstg
1500
0.35
-65 to
+200
pF
°C/W
°C
MAXIMUM THERMAL RESISTANCE (Junction to Mounting Surface, Cathode)
MAXIMUM OPERATING AND STORAGE TEMPERATURE RANGE
ELECTRICAL CHARACTERISTICS
CHARACTERISTIC
MAXIMUM FORWARD VOLTAGE DROP, Pulsed (per leg, I
f
= 60 Amps)
T
J
= 25
°C
T
J
= 125
°C
MAXIMUM REVERSE CURRENT (per leg, I
r
@ 100 V PIV)
T
J
= 25
°C
T
J
= 125
°C
I
r
0.3
3.0
mA
V
f
0.87
0.72
Volts
SYMBOL
MAX.
UNITS
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SHD118534
SHD118534A
SHD118534B
SENSITRON
DATA SHEET 296, REV. B

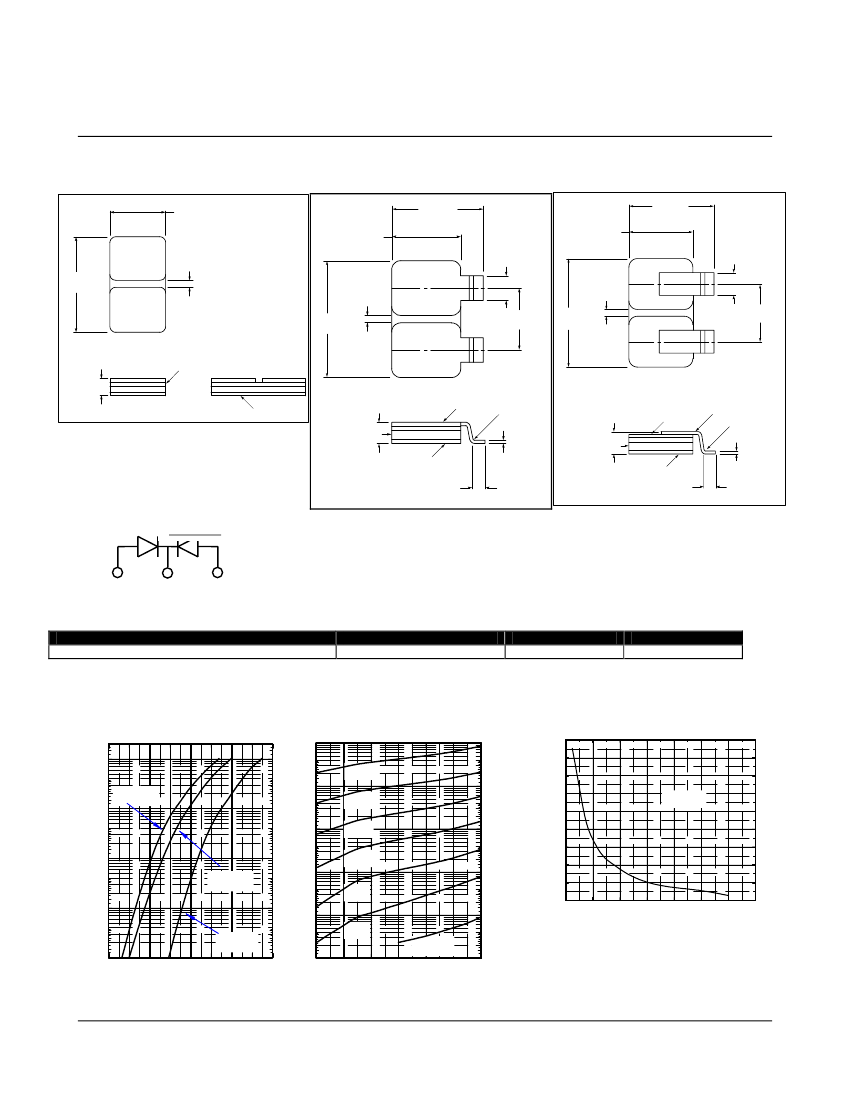

MECHANICAL DIMENSIONS: In Inches / mm
.370±.010
(9.40±.254)
.510±.020
(12.9±.508)
.370±.010
(9.40±.254)
.370±.010
(9.40±.254)
.520±.020
(13.2±.508)
2
.610±.010
(15.5±.254)
3
.030±.010
(.762±.254)
.125±.010
(3.17±.254)
.090±.010
(2.29±.254)
2
.030±.010
(.762±.254)
.610±.010
(15.5±.254)
.320±.010
(8.13±.254)
.030±.010
(.762±.254)
.610±.010
(15.5±.254)
2
.320±.010
(8.13 ±.254)
3
.110 (2.80) Max
Alumina Ring
3
Terminal 1
.110 (2.79) Max
Alumina Ring
Moly Lid
.020±.005 R
(.508±.127 )
Copper Terminals
.130 (3.30) Max
Moly Lid
.020±.005 R
(.508±.127 )
Alumina Ring
Moly Base
Terminal 1
.060±.010
(1.52±.254)
.020±.002
(.508±.051)
Moly Base
Terminal 1
.060±.010
(1.52±.254)
.015±.002
(.381±.051)
SHD-5B
COMMON CATHODE
1
2
3
PIN 1
COMMON CATHODE
PIN 2
ANODE
PIN 3
ANODE
PINOUT TABLE
DEVICE TYPE
DUAL RECTIFIER, COMMON CATHODE (P)
Typical Forward Characteristics
2
Typical Reverse Characteristics
10
1
1200
1100
175 °C
Typical Junction Capacitance
(mA)
(A)
10
2
5
4
3
2
Junction Capacitance - C
T
(pF)
F
1000
900
800
700
600
500
400
T
J
= 25 °C
10
0
150 °C
Instantaneous Forward Current - I
T
J
= 175 °C
10
1
5
4
3
2
Instantaneous Reverse Current - I
R
10
-1
125 °C
10
0
5
4
3
2
100 °C
T
J
= 125 °C
10
-2
75 °C
10
-1
5
4
3
2
300
10
-3
50 °C
T
J
= 25 °C
0
20
40
60
80
R
100
(V)
120
140
Reverse Voltage - V
T
J
= 25 °C
10
-2
0.1
10
-4
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0
20
40
60
80
100
R
(V)
120
Forward Voltage Drop - V
FM
(V)
Reverse Voltage - V
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SHD118534
SHD118534A
SHD118534B
SENSITRON
DATA SHEET 296, REV. B
DISCLAIMER:
