NCB-125LFPG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> NCB-125LFPG

NCB-125LFPG: DescriptionBoard Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

NCB-125LFPG Overview

Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Plug, ROHS COMPLIANT

NCB-125LFPG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: IEC 917; IEC 61076-4-101
body width	0.449 inch
subject depth	0.803 inch
body length	1.965 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	YES
Insulation resistance	10000000000 Ω
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	125
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

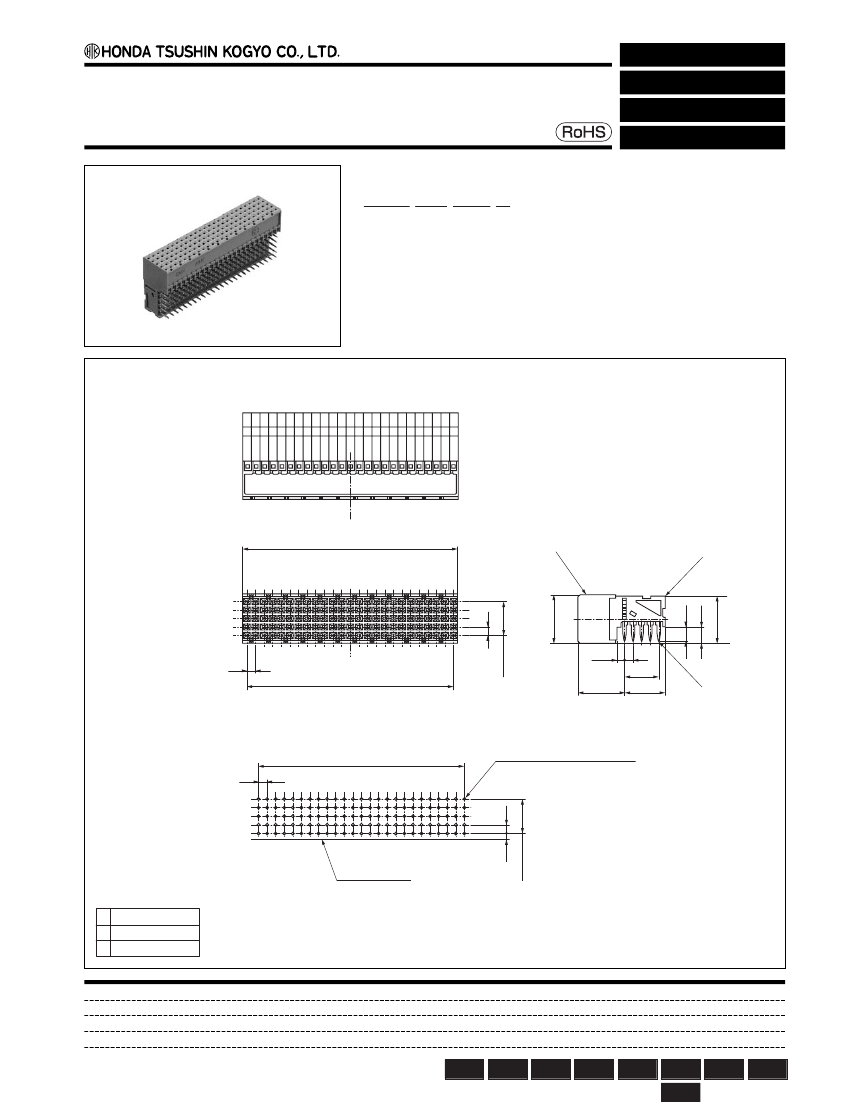

2 mm pitch connector

B-type, 125 contacts daughter-board mounted

female connectors (standard type)

NCB-125LFPG

●

Configuration of product Part No.

For PCB

Right-angle Press-in

IEC917/IEC61076-4-101

NCB- 125 LFP G

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 125 (B type)

➂

Type of contact

LFP: Right-angle jack (female) press-in

➃

Contact plating

G: Min. 0.76

μm

Gold plate

49.9 MAX.

➀

➂

2≈24=48

3.3

1.8

10.8

3.7

2≈4=8

9.6

➁

2≈24=48

125-ø0.6

±0.05

(Hole diameter: 0.7

±0.025

mm,

25μm or more copper plating)

Edge of PCB

●

Components

➀

Insulator

➁

Contacts

➂

Insulation blocks

Recommended PCB layout

Board thickness: t = 1.6

Mating connectors:

NCB-125SMPG( )

NCBA-125SMPGT( )+

Others

Wire

wrapping Crimping Soldering

2≈4=8

1.5

10.95

11.4

IDC

Press-in

SMT

Through

hole

Recommended Resources

Suppression of the influence of power supply voltage waveform (b)

Computer power detection circuit

Constant current source circuit diagram using 78XX

28MHz FM receiver high amplifier circuit

Active tone adjuster circuit diagram

How to modify the servo arm? ! ! Please help! !: I want to put some magnets on the servo, but it is useless to print a lot of through-hole modification parts. Do I have to make a shell for the original one and then make a platform based on it? ?...; 77不犹豫 Creative Market

Learning about the MAX32630FTHR board——by anning865: [size=4][url=home.php?mod=space&uid=363835]@anning865[/url] [url=https://bbs.eeworld.com.cn/thread-542353-1-1.html]MAX32630FTHR board learning (I): Getting started[/url] [url=https://bbs.eeworld.com.c...; okhxyyo DIY/Open Source Hardware

Some recent "bitter" lessons: Recently, I have encountered some painful lessons in debugging boards, purchasing, and welding. Now I share them with you, hoping that you can avoid similar situations. I also hope that everyone has s...; gauson Test/Measurement

MSP430F5529LP takes too long to process data: The main clock of msp430F5529LP is 25M, but in the MAIN function, while (1) the output frequency is only 1M. So it takes a lot of time to process the data after AD sampling. How can I solve this probl...; 735978414a Microcontroller MCU

[Boards that accompanied me through the years] + the few development boards: [i=s]This post was last edited by Changjianze1 on 2015-2-25 23:28[/i] [size=3]In 2009, for course design, I had to spend more than 200 yuan to buy a 51 development board. At that time, I felt like I w...; 常见泽1 Talking

Multisim 10.0 Light-controlled Alarm System: This is a light-controlled alarm system designed using Multisim 10.0. It is the same as the one in "Electronic Design from Scratch (Second Edition)", but why does the buzzer not make a sound when the ...; 平淡最真 Analog electronics
